Maintenance
■ Screen Cleaning
Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean micro-
fiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels.
Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the
surface. Antistatic and fingerprint resistant cleaning agents are recommended. Do not apply excessive pressure to the
screen to avoid damaging the LCD.
■ Faceplate Dusting
Dust the unit with a soft, damp cloth or chamois. Dry or abrasive cloths may cause electrostatic charge on the surface,
attracting dust particles. Neutralize static electricity effects by using the recommended cleaning and polishing practice.
Warranty
Marshall Electronics warranties to the first consumer that this V-LCD15SB-AFHD-DT LCD monitor will, under normal use,
be free from defects in workmanship and materials, when received in its original container, for a period of one year from
the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the
warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to
honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not
apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or
construction void this warranty. It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the
periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel
failure if deemed unobtrusive to effective use of the monitor by our technicians. No sales personnel of the seller or any
other person is authorized to make any warranties other than those described above, or to extend the duration of any
warranties on behalf of Marshall Electronics, beyond the time period described above. Due to constant effort to improve
products and product features, specifications may change without notice.
Marshall Electronics, Inc.
Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688
www.LCDRacks.com

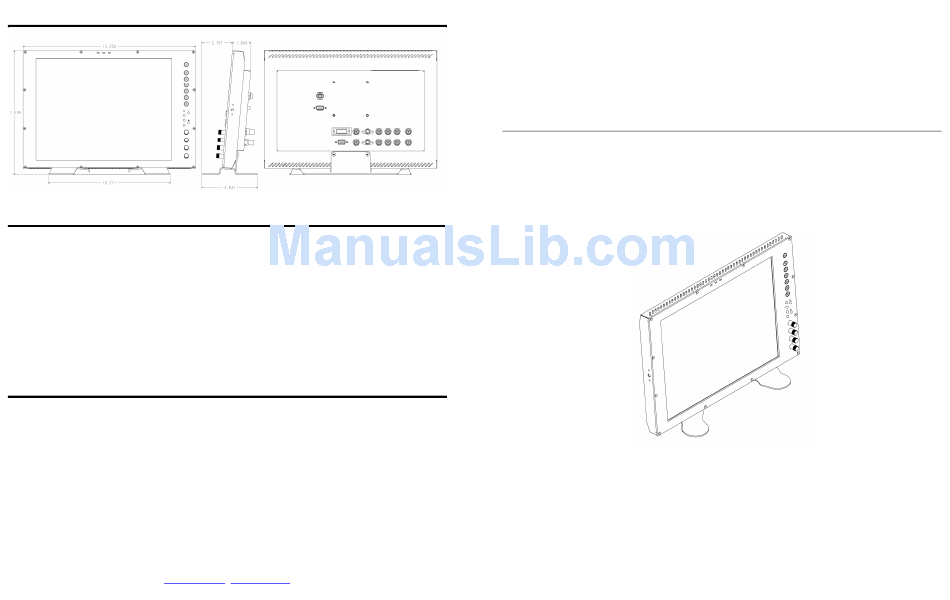

Specifications (continued)
1910 East Maple Ave.
El Segundo, CA 90245
•
sales@lcdracks.com
Marshall Electronics
Operating Instructions
Updated: 05/18/07
16
V-LCD15SB-AFHD-DT
SD/HD SunBrite LCD Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-LCD15SB-AFHD-DT and is the answer not in the manual?

Questions and answers

Related Manuals for Marshall Electronics V-LCD15SB-AFHD-DT

Summary of Contents for Marshall Electronics V-LCD15SB-AFHD-DT

  • Page 1 Neutralize static electricity effects by using the recommended cleaning and polishing practice. Warranty Marshall Electronics warranties to the first consumer that this V-LCD15SB-AFHD-DT LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.

  • Page 2: Table Of Contents

    Contents Product Overview... 3 Features ... 3 Installation and Initial Setup ... 4 Unpacking ... 4 Installation... 4 Connections and Power-On... 4 Front Panel Features ... 5 Power Button ... 5 Input Select Buttons... 5 On-Screen Menu Navigation Buttons ... 5 User-Definable Function Buttons...

  • Page 3: System Configuration Submenu

    600 cd/m ■ Multi-Format Compatibility With a variety of analog and digital inputs, the V-LCD15SB-AFHD-DT accommodates virtually all video formats. Input types include Composite Video, S-Video, YPbPr, SDI, VGA, and DVI with HDCP. Accepted formats include NTSC/PAL, 480i/p, 576i/p, 720p, 1035i, and 1080i/p standards, as well as VESA PC formats through SXGA (1280 x 1024).

  • Page 4: Video Input

    The monitor will draw approximately 3 Amps at 12 Volts in operation. Connect the required cables for video signal input and output. (Power must be applied to the V-LCD15SB-AFHD-DT for the active loop-though outputs to be activated.) All BNC connectors are rated at 75Ω.

  • Page 5: Monochrome Mode

    VIDEO CONFIGURATION SUBMENU (continued) ■ Monochrome Mode Use this setting to enable monochrome mode. Only the luminance of the image will be displayed as a grayscale picture. ■ Blue-Only Mode Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components.

  • Page 6: Rear Panel Features

    Rear Panel Features Power Input Tally Interface Connect the 12VDC input to the Conxall 2-pin twist-lock Each tally light is activated via the HD-15 connector by power input connector. Power can be supplied from the connecting the corresponding pin to ground. A variety of included power supply, or from a variety of DC sources external devices can be used to perform the contact supplying at least 3 Amps at 12 Volts.

  • Page 7: Compatible Input Formats

    MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9, or when Pixel-to-Pixel™, Underscan, or H/V Delay is enabled. •...

  • Page 8: On-Screen Menu

    On-Screen Menu STRUCTURE OVERVIEW MARKER 16:9 MARKER SETUP MARKER 4:3 MARKER BACKGROUND CENTER MARKER COLOR TEMP ADJ COLOR BIAS ADJ COLOR GAIN VIDEO CONFIG MONO BLUE ONLY MAIN PIXEL TO PIXEL ASPECT RATIO SCAN DELAY SMPTE BAR FUNCTION 1 FUNCTION 2 SYSTEM CONFIG STATUS DISPLAY LOAD CONFIG...
