5.2 Foot replacement

To remove the foot:
Nio 2-3-5 MP

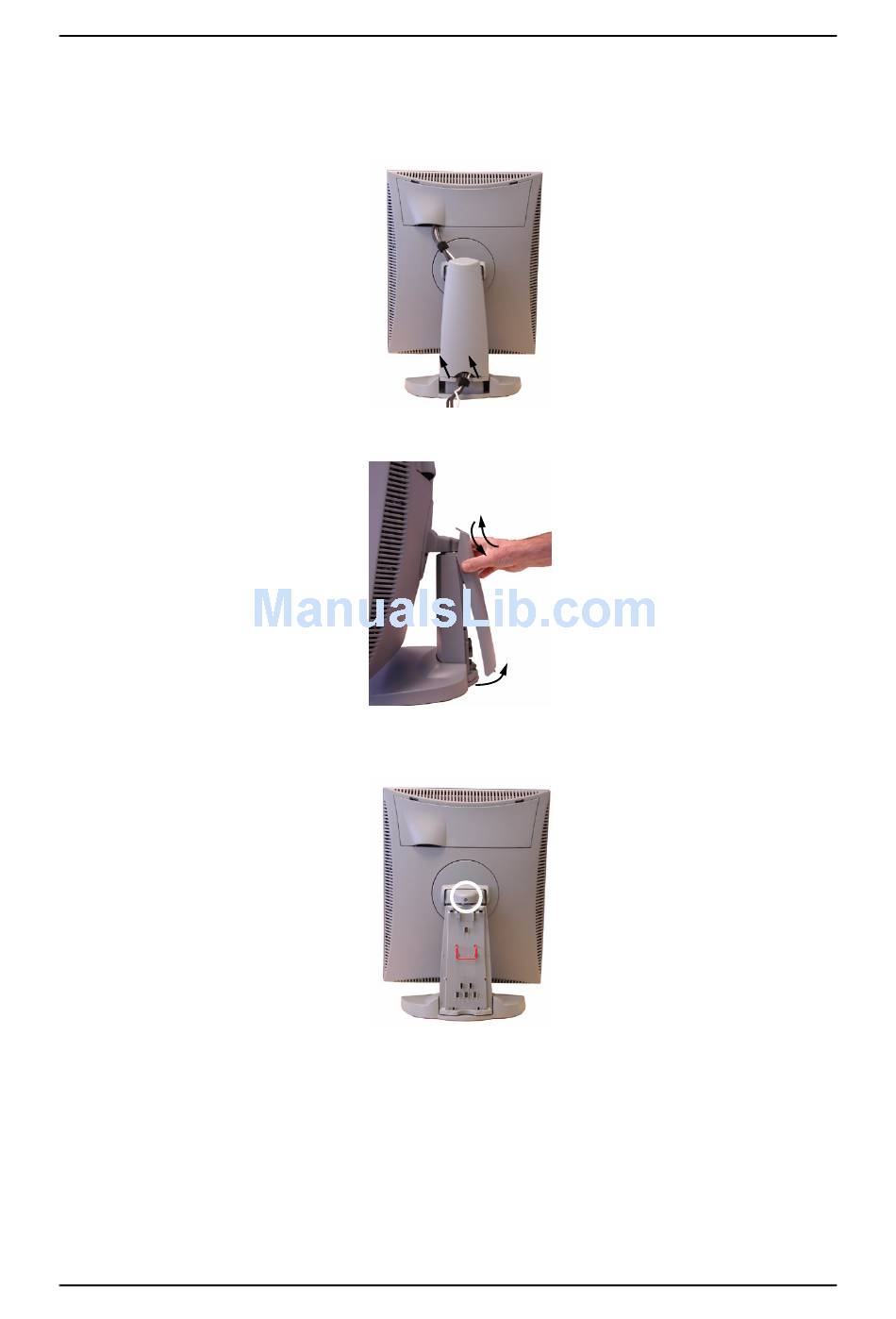

1. Lift and pull both clips at the bottom of the foot, to release the
foot.
2. Remove the rear cover from the foot.
3. Remove the small screw fixing the small plastic cover on top of
the foot. Next, remove the small cover itself.
4. Put the display with its panel facing down on a clean table surface,
preferably on a mat to avoid scratches on the glass.
Foot replacement
13
