  • Page 1 System manual E1 Installation & User Manual...

  • Page 2: Copyright Notice

    - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco © 2004 Barco N.V. All rights reserved. System manual E1...
  • Page 3 Copyright notice (This page intentionally left blank.) System manual E1...

  • Page 4: Table Of Contents

    Explanation of symbols ..............14 Introduction ................15 Overview.................... 17 BarcoMed Nio display controller overview ....... 17 Barco display overview.............. 18 Parts, controls and connectors............19 Display controller installation ..........21 Display controller installation ............23 Display installation ..............27 Precautions ..................
  • Page 5 Windows 2000 display resolution ........... 103 Driver re-installation, updates or removal........107 Reinstalling or updating your BarcoMed Nio driver ....107 Uninstalling the BarcoMed Nio driver or Barco NioWatch software ..............108 Appendices ................113 Appendix A: Possible resolutions ........... 115 Appendix B: Technical specifications..........

  • Page 6: Preface

    Preface System manual E1...
  • Page 7 Preface (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...
  • Page 8 BarcoView software products are the property of BarcoView. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V. or BarcoView LLC. and the licensee.
  • Page 9 Preface Canadian notice This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash.

  • Page 10: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Class I equipment...
  • Page 11 Safety Instructions • Power cords: Power cord with CEE 7 plug: The colors of the mains lead are colored in accordance with the following code: Green-and-yellow: Earth (safety earth), Blue: Neutral, Brown: Line Power cord with ANSI 73.11 plug: The wires of the power cord are colored in accordance with the following code: Green/yellow: ground, White: neutral, Black: line (live)
  • Page 12 Safety Instructions This apparatus conforms to: CE, IEC 60950, UL 60950, CAN/CSA C22.2 No. 60950 (c-UL) National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag" System manual E1...

  • Page 13: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and power supply On the display or power supply, you may find the following symbols: Indicates the display is approved according to the CE regulations Indicates the display is approved according to the UL regulations Indicates the display is approved according to the c-UL regulations...

  • Page 14: Introduction

    Introduction System manual E1...
  • Page 15 Introduction (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 16: Overview

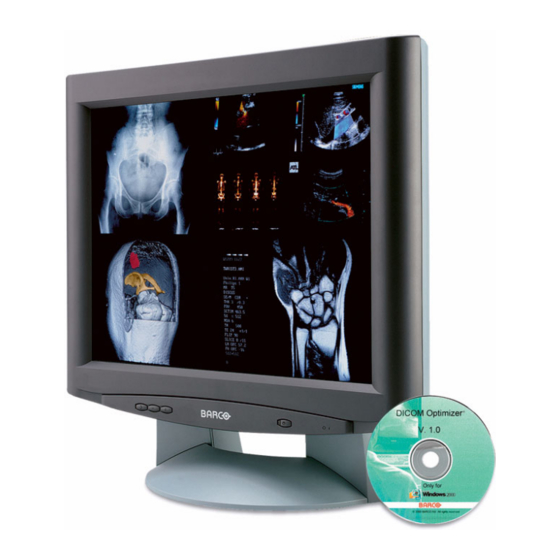

    Overview Overview Thank you for choosing Barco. BarcoMed Nio display controller overview The BarcoMed Nio Display Controller delivers a quality image with 256 simultaneous shades of gray for medical viewing applications. Minimum system requirements • Pentium II 266 MHz with 128 MB RAM (Pentium II 800MHz with 256 MB RAM for cineloops) •...

  • Page 17: Barco Display Overview

    The power saving system works with the standard Windows power saving and with the DPMS function on the Barco BarcoMed display controller (if installed in the PC). Foot The user can easily change the panel viewing angle, allowing to use the display in the optimal viewing conditions.

  • Page 18: Parts, Controls And Connectors

    Parts, controls and connectors Parts, controls and connectors Front BARCO Figure 1 1. Menu key 2. Minus (<->) key, to scroll down in the on-screen display (OSD) and decrease values. 3. Plus (<+>) key, to scroll up in the on-screen display (OSD) and increase values.
  • Page 19 Parts, controls and connectors Rear BARCO Figure 2 1. DC power input Connect the external power supply, delivered with the display, to this connector. 2. D-Sub 15 (VGA) video input (analog video) 3. DVI (digital) video input 4. S-Video input (analog video) 5.

  • Page 20: Display Controller Installation

    Display controller installation System manual E1...
  • Page 21 Display controller installation (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 22: Display Controller Installation

    Display controller installation Display controller installation Caution: Wear a grounded, protective ESD strap during installation or handling of the display controller. Electrostatic charges can damage the display controller. Prior to installing your BarcoMed Nio display controller(s) in your PC please take a few minutes to familiarize yourself with both the display controller(s) and the PCI slots in your computer.
  • Page 23 Display controller installation Figure 4 If you decide to use a separate VGA monitor as your boot monitor, you must disable the BarcoMed Nio’s on-board VGA capabilities by moving the jumper to the bottom two pins. Caution: To use multiple BarcoMed Nio controllers in a single host with VGA enabled, you should enable VGA on only ONE of the BarcoMed Nio display controllers and disable VGA on ALL the other BarcoMed Nio display controllers.
  • Page 24 Display controller installation Figure 5: PCI and RAID Controller Slots Installing the BarcoMed Nio display controller Install the BarcoMed Nio controller in your computer following these steps: 1. Turn off the power to your computer and disconnect the power cord, however make sure that the computer chassis is still grounded.
  • Page 25 Display controller installation 6. Connect the primary display to the connector marked “VID 1” on the BarcoMed Nio display controller using the provided DVI cable (see figure 6 below). For a dual-headed BarcoMed Nio setup, connect the secondary display to the other connector on the display controller.

  • Page 26: Display Installation

    Display installation System manual E1...
  • Page 27 Display installation (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 28: Precautions

    Precautions Precautions Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. • Avoid reflections in the flat panel to reduce eye strain. • Place the display on a strong and stable table or desk. •...

  • Page 29: Power Connection

    To connect the power: 1. Connect the output of the 12V DC power supply to the DC input of the display. BARCO Figure 7 2. Connect one end of the proper power cable to the AC input of the 12V DC power supply.

  • Page 30: Video Connection

    (DVI) and S-Video. However, the S-Video input is not supported. You can select the proper input by using the display’s on-screen display. To connect the video & sync signals: BARCO Figure 9 1. Connect one end of the appropriate video cable to the corresponding video input of the monitor: •...

  • Page 31: Wall Mounting

    1. Position one hand under the panel at the front side. Position the other hand at the rear, under the push-button with BARCO logo (1). 2. Firmly press down the push-button (1) with one hand while carefully lifting the panel up with the other hand.
  • Page 32 Wall mounting Figure 11 2. Slide back the locks at both sides of the mounting plate (figure 12). In that way, you can secure the panel to the mounting plate after placing the panel. Figure 12 Step 3: Place the panel on the mounting plate 1.
  • Page 33 Wall mounting Figure 13 2. To secure the panel, slide forward the locks on both sides of the mounting plate. Lock the panel with one screw at both sides (figure 14). Figure 14 System manual E1...

  • Page 34: Display Controller Software Installation

    Display controller software installation System manual E1...
  • Page 35 Display controller software installation (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 36: Windows 2000 Barcomed Nio Software Installation

    Windows 2000 BarcoMed Nio software installation Windows 2000 BarcoMed Nio software installation Note: These instructions apply to both Windows 2000 and ® Windows ® Preparation Prior to installing your E1 software the following should be done. 1. Install the BarcoMed Nio display controller(s) in your system. 2.
  • Page 37 Windows 2000 BarcoMed Nio software installation Wizard”. Please be patient as this may take several minutes while Windows scans its library of Plug-and-Play device drivers to see if it has a driver for your BarcoMed Nio controller. 3. If Windows advises you that it has finished installing all the new devices in your system and that you must reboot your system in order for the changes to take effect, click “No”.
  • Page 38 Windows 2000 BarcoMed Nio software installation Figure 15 If it determines that the Microsoft Installer is either out of date or missing, it will display the screen shown in figure 16 below. Click “OK” to continue, the wizard will then install a newer version of the Microsoft Installer.
  • Page 39 Windows 2000 BarcoMed Nio software installation Hardware Wizard - Video Controller”. Again, please be patient as Windows will again scan its library of Plug-and- Play device drivers to see if it has a driver for your BarcoMed Nio controller. The BarcoMed Software Install Wizard will automatically restart and the BarcoMed Product Installation Wizard’s welcome screen will again be displayed (figure 17 below).
  • Page 40 Windows 2000 BarcoMed Nio software installation your E1 Software CD. Select the device you want to install and then click “Next”. Note: If there are no BarcoMed devices installed, or if Windows does not recognize the installed devices, or if the driver on your E1 Software CD does not support the installed devices, the dialog box will be empty , and the BarcoMed...
  • Page 41 Windows 2000 BarcoMed Nio software installation Figure 19 Click “OK” to install the new driver. If you don’t want to replace the exiting driver, click “OK” and then click “Cancel”. 7. Your selection on the "Enable DualView" screen (figure 20 below) determines if DualView is enabled or not.
  • Page 42 Windows 2000 BarcoMed Nio software installation Figure 21: DualView Disabled—Rectangle 2 represents the combined heads of the BarcoMed Controller. Figure 22: DualView Enabled—Rectangles 2 & 3 represent the individual heads of the BarcoMed Controller. Special Note: If you installed the drivers with DualView disabled, Windows will still show two devices installed for each BarcoMed Display Controller installed under "Display System manual E1...
  • Page 43 Windows 2000 BarcoMed Nio software installation Adapters" in the "Device Manager Control Panel". The second device will be disabled. This is normal. Do NOT try to enable any of the disabled display adapters. 8. The “Device Confirmation” screen displays the device driver that will be installed and if DualView will be enabled or not.
  • Page 44 Windows 2000 BarcoMed Nio software installation Figure 24: Windows XP Windows Logo Testing Warning 10. When the screen shown in figure 25 on page 46 appears select the palette mode which is the correct one for your viewing application. If you are uncertain use the default settings.
  • Page 45 “Finish”. The wizard will now begin installing the next selected piece of BarcoMed Software. If you are working with the default selections, this will be the Barco NioWatch. Please turn to the section, “Windows 2000 BarcoMed Nio software installation” below.
  • Page 46 “Reinstalling or updating your BarcoMed Nio driver” on page 107. BarcoMed NioWatch installation 1. Click “Next” on the Welcome Screen of the BARCO NioWatch InstallShield Wizard (figure 26) to begin the installation or click “Cancel” to cancel and return to the BarcoMed Product Install Wizard.
  • Page 47 Barco monitor plug and play software After your system restarts and you have logged in, Windows will install the Barco Monitor Plug-n-Play software. If Windows displays the screens shown in figure 27 or figure 28 on page 49, click “Yes” or “Continue Anyway” to continue.
  • Page 48 Figure 27: Windows 2000 Digital Signature Not Found Warning Figure 28: Windows XP Windows Logo Testing Warning The Barco Monitor Plug and Play software should automatically set the resolution for the displays of your E1 System. However, the second head of a dual headed system may be inactive. To make this display active you must extend your desktop to this display using the “Windows Display Control Panel”.
  • Page 49 Windows 2000 BarcoMed Nio software installation (This page intentionally left blank.) System manual E1...

  • Page 50: Display Controller Tools

    Display controller tools System manual E1...
  • Page 51 Display controller tools (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 52: Barcomed Driver Tab

    “Properties”. 2. Under Windows 2000 or Windows XP, click on “Settings” tab. Double click on the rectangle that represents the Barco display whose settings you wish to change to bring up its property page. Click on the “BarcoMed Driver” tab (see figure 29 on page 54).

  • Page 53: Status

    BarcoMed Driver Tab Figure 29: BarcoMed Driver Tab under Windows 2000 and Windows XP Status The Status section displays information about the current BarcoMed display controller, driver, and the currently selected display resolution. Graphics Board This displays the current BarcoMed display controller. System manual E1...

  • Page 54: Palette Mode

    Use this palette option for applications, such as Java, which require True Color support. Such applications may not work correctly when using one of Barco's three “Standard 8-bit (256- color)” palette modes. All applications that are designed to work correctly with 8-bit (256-color) modes should continue to work normally.
  • Page 55 BarcoMed Driver Tab UserModifiable Color Palette This option allows applications to modify the palette contents dynamically. As indicated in figure 30, this mode reserves the first 10 and last 10 entries in the palette for the Windows operating system, but applications can manipulate the middle 236 entries.

  • Page 56: Drawing Modes

    BarcoMed Driver Tab interface method. If you are unsure whether or not your application requires this “Static Gray Palette including Standard System Colors” mode, contact your application provider. Static Gray Palette with NO system colors This option sets the palette to be a static linear ramp of 256 shades of gray.
  • Page 57 BarcoMed Driver Tab out, then they are not available for the model controller with which you are working. Enable DirectDraw This option allows the user to enable or disable DirectDraw. DirectDraw is a software interface that provides direct access to display devices while maintaining compatibility with the Windows graphics device interface (GDI).

  • Page 58: Monitor Configuration

    Important: If you are using a color display in conjunction with your Barco grayscale display(s) you should configure your desktop before setting the resolution of the your Barco grayscale display(s). Configuring the Windows 2000 or Windows XP desktop...

  • Page 59: Configuring The Dualview Desktop

    Not OK to use: Display 1:2480 x 2560 @ 59 Hz Display 2:2560 x 2480 @ 59 Hz The following options maybe set individually on each Barco display even if they are connected to the same BarcoMed controller: Palette Mode...

  • Page 60: Barcomed Hardware Tab

    BarcoMed Hardware Tab BarcoMed Hardware Tab Introduction The BarcoMed Hardware Tab is used for gathering information about BarcoMed display controller(s). For all BarcoMed display controller(s) it will display PCI information. For BarcoMed display controller(s) based on the AURA video chipset it will also display information about the Firmware installed on the board.

  • Page 61: Using The Barcomed Hardware Tab

    BarcoMed Hardware Tab Table 1: BarcoMed AURA Non-AURA Hardware Tab Controllers Controllers Support PCI and Firmware BarcoMed 3MP2FH Information BarcoMed 5MP1H PCI Information Only PCI and Firmware BarcoMed 5MP1HM Information BarcoMed 5MP2 PCI Information Only BarcoMed PCI and Firmware 5MP2 AURA Information PCI and Firmware BarcoMed...
  • Page 62 “Generate Report” Button: Clicking this button will launch the BarcoMed Self Exam utility. BarcoMed Self Exam is an automated Barco Diagnostic Tool that is used to gather the information that support engineers and technicians need to help determine the root cause of a customer...
  • Page 63 It probes the system for various types of system information, and saves it to a web-page report that can then be analyzed by the Barco ImageCare team. BarcoMed Self Exam is implemented in a Wizard Format. The BarcoMed Self Exam Wizard will first ask the user to provide detailed customer contact information.
  • Page 64 Customer Diagnostic Questions Screen This screen allows the user to tell the Barco ImageCare team as much as possible about the problem. For the Medical Viewing Applications Running field, enter the medical applications that are currently running on the system with the problem.
  • Page 65 Submitting the Data to Barco Support Once BarcoMed Self Exam has collected the data, the user can submit it to ImageCare, Barco Medical Imaging Systems’ customer support organization by email. To do this you need a system with access to the World Wide Web.
  • Page 66 BarcoMed Hardware Tab 6. Attach the BarcoMed Self Exam report(s) to the email message and send it. You will receive an acknowledgment of receipt of your email by the end of the next business day. System manual E1...
  • Page 67 BarcoMed Hardware Tab (This page intentionally left blank.) System manual E1...

  • Page 68: Niowatch

    NioWatch System manual E1...
  • Page 69 NioWatch (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 70: Lcd Sensor Installation

    In case you will be using the Barco LCD sensor with your system, you may have to install its driver. The Barco LCD sensor is a USB device. Connect the sensor to a free USB downstream connector. When you connect the sensor for the first time, the “New hardware found”...

  • Page 71: Niowatch Operation

    NioWatch operation NioWatch operation To use NioWatch The NioWatch application resides in the Windows systray. To use one of the NioWatch functions, right-click on the NioWatch systray icon and select the appropriate option: • Display settings: Allows to view information about your dis- play(s) and display controller.

  • Page 72: Display Settings

    NioWatch operation Display settings General Figure 36: Display Settings dialog The numbered icons in the upper part of the dialog represent the display controller heads supported by NioWatch. The display controller heads are also listed in the Display drop- down box. If you wish to control a display in a multi-head system, you must select the display controller head to which the display is connected.
  • Page 73 NioWatch operation display controller head. In that way you can easily see which display is connected to which head. The Display tab allows to view information about the display. The Graphic Board tab allows to view information about the display controller. The Calibration tab allows to calibrate the display(s) or view the result of the last calibration.
  • Page 74 NioWatch operation • To adjust display luminance manually, adjust the Luminance slider. This function is not available for MFCD/MFGD 1218 displays. The luminance setting is saved when the system is shut down. If the slider is positioned above the CAL mark, the luminance is in calibrated position, as determined during the latest calibration.
  • Page 75 NioWatch operation Graphic Board tab Figure 37: Graphic Board tab Here you can see information about the installed display controller: Name, serial number, driver version and firmware version. System manual E1...
  • Page 76 The possible options are explained below. To calibrate the display using the Barco LCD sensor: 1. If you have multiple displays of the same type connected (multi-head system), consider if you wish to equalize the display you calibrate to a reference display.
  • Page 77 4. A message appears, showing the different calibration options. Figure 39: Calibration choices 5. Select “Using the BARCO LCD sensor” and click OK. This option is grayed in case NioWatch does not find a connected Barco LCD sensor. 6. Follow the guidelines on the screen to complete the calibration successfully.
  • Page 78 Manual calibration 1. Follow step 2 and 3 of the calibration with Barco LCD sensor (see page 77). 2. In the Calibration dialog (see step no. 4. in the description of the calibration with sensor), check the option Visually and click the OK button.
  • Page 79 6. Click OK to finish. To reset to the latest calibration: 1. Follow step 2 and 3 of the calibration with Barco LCD sensor (see page 77). 2. In the Calibration dialog (see step no. 4. in the description of the calibration with sensor), check the option Use the latest calibration.

  • Page 80: Test Patterns

    NioWatch operation 3. Click the OK button. The calibration and the luminance will be reset to the latest calibrated position. Note: When you start up the system, the calibration is also reset to the latest calibrated position. The luminance, however, is kept at the latest value.

  • Page 81: Application Settings

    NioWatch operation 1. Select the desired test pattern by clicking on the corresponding thumbnail or selecting a pattern by name from the Test pattern drop-down box. Click Show to display the pattern. If you have selected Custom Image, you can select a bitmap image (e.g., saved on the hard disk) as test pattern.
  • Page 82 NioWatch operation (1) Reference display (2) Calibrated display: Luminance automatically matched to reference display Figure 44: Dual-head equalization The Equalization option will be available only if: • the system contains at least one display of the same type as the one being calibrated •...

  • Page 83: Update Niowatch

    For more information about MediCal Administrator, please contact Barco Medical Imaging Systems or consult our web site. Update NioWatch In the Windows Start menu, the Update NioWatch application is installed during installation of NioWatch.

  • Page 84: Display Operation

    Display operation System manual E1...
  • Page 85 Display operation (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 86: How To Use The On-Screen Display (Osd)

    How to use the on-screen display (OSD) How to use the on-screen display (OSD) Proceed as follows: BARCO Figure 46 1. Press the Menu key (1) on the front to display the OSD main menu (figure 47). Note: It may be possible that the OSD menu does not appear. If this is the case, the front controls are locked.
  • Page 87 How to use the on-screen display (OSD) 5. To exit the OSD while saving the changes, select Save & Exit. To exit the OSD without saving the changes, select Cancel. Note: The OSD disappears automatically after 30 seconds of inactivity. Main Menu -(Down) +(Up)

  • Page 88: Main Menu

    How to use the on-screen display (OSD) Main menu Function Description Brightness To adjust the overall image and background brightness level. Contrast To adjust the image brightness in relation to the background (the background is unchanged). Auto Adjust * To automatically set the H Position, V Position and Clock.
  • Page 89 How to use the on-screen display (OSD) Auto Adjust The Auto Adjust function will be automatically executed whenever the system is switched to a new mode. When the system is changed to this mode again later on, the system will not repeat the Auto Adjust function.
  • Page 90 To perform the Auto Balance function, you need to select a proper test pattern before performing the function. Proceed as follows: 1. You must have installed the Barco NioWatch software. 2. Start NioWatch. 3. Open the Test Patterns dialog. 4. Select the SMPTE test pattern.
  • Page 91 How to use the on-screen display (OSD) Clock Menu Function Description OSD Position To display the OSD to your preferred position. Clock * Adjust this function only when characters are blurred. Clock Phase * To adjust ADC sampling clock phase. Main Menu To return to Main Menu.
  • Page 92 How to use the on-screen display (OSD) Input menu: Input Type * This function is not available in DVI input mode. Function Description G to Y The Green video signal from the imaging board is used as luminance value to drive the RGB subpixels of the panel equally.
  • Page 93 How to use the on-screen display (OSD) (This page intentionally left blank.) System manual E1...

  • Page 94: Cleaning Instructions

    Cleaning instructions System manual E1...
  • Page 95 Cleaning instructions (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 96: Precautions

    Precautions Precautions Precautions • Take care not to damage or scratch the glass or LCD panel. • Do not apply pressure on the glass or LCD panel. • Do not apply or spray liquid directly to the glass, panel or cabinet as excess liquid may cause damage to internal electronics.

  • Page 97: Cabinet

    Cabinet Cabinet Proceed as follows: • Clean the cabinet using a soft cotton cloth, lightly moistened with a recognized cleaning product for medical equipment. • Repeat with water only. • Wipe dry with a dry cloth. • The cabinet has been tested for resistance to the following products: Cidex, Betadine, Alcohol (Isopropyl and Ethyl), Ammonia- based cleaners (Windex) and Aquasonic Gel.

  • Page 98: Lcd Panel

    LCD panel LCD panel To clean the LCD panel: • Dust particles on the LCD panel may be blown away by using a dust remover. E.g., DUST OFF 67 (KONTAKT Chemie). A dust remover is composed of a blend of compressed liquid gases functioning as propellant.
  • Page 99 LCD panel (This page intentionally left blank.) System manual E1...

  • Page 100: Troubleshooting

    Troubleshooting System manual E1...
  • Page 101 Troubleshooting (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 102: Pixel Faults

    ® Important: If you are using a color display in conjunction with your Barco grayscale display(s) you should configure your desktop before setting the resolution of the your Barco grayscale display(s). Configuring the Windows 2000 or Windows XP desktop Under Windows 2000 or Windows XP the recommended...
  • Page 103 Troubleshooting though this palette mode supports 32 bit True Color, we recommend that when using a using a color display in conjunction with your high-resolution grayscale display(s) that you still set the color display as the primary monitor. Setting the resolution of your E1 display In order to set the resolution of your E1 display you must be logged in using an account with administrator privileges.
  • Page 104 Troubleshooting rectangle that represents it, deselect “Attached” and click the “Apply” button. Tip: Since Windows 2000 and Windows XP will not let you detach the primary display connected to a particular controller, you may need to temporarily make another display the primary display Caution: if you have a single display configuration and you have enabled DualView, Windows will not allow you to attach the second head.
  • Page 105 Troubleshooting Figure 48: The Windows Display Properties Control Panel Settings Tab after the drivers have been installed and the resolution set with DualView Enabled. Note: The system shown in figure 48 above is a dual-head, single BarcoMed Nio display controller, with a 3rd party VGA controller configuration.

  • Page 106: Driver Re-Installation, Updates Or Removal

    Driver re-installation, updates or removal Driver re-installation, updates or removal Reinstalling or updating your BarcoMed Nio driver Note: These instructions apply to Windows 2000 and Windows Important for Windows 2000 or Windows XP users only: If you previously uninstalled the driver, do NOT allow the Windows Plug and Play software to reinstall the driver for you.

  • Page 107: Uninstalling The Barcomed Nio Driver Or Barco Niowatch Software

    “Finish” again. Reboot the system when prompted and then reset the resolution of your displays if necessary. Uninstalling the BarcoMed Nio driver or Barco NioWatch software Special Note: The BarcoMed Uninstaller is supported only on Windows 2000 and Windows XP.
  • Page 108 Driver re-installation, updates or removal doesn’t start within one minute, browse the contents of your E1 Software CD and double click on the file: “Setup.exe” to start the wizard. 2. The BarcoMed Product Installation Wizard will display its welcome screen. 3.
  • Page 109 Driver re-installation, updates or removal Figure 52 6. Click “Next”. 7. If you installed your driver with DualView enabled, skip to step 8. If you installed your driver with DualView disabled, click “Next” to continue. Then click “Finish” to complete the uninstall process.
  • Page 110 Driver re-installation, updates or removal 10. When your system restarts, log in again using an account with administrator priveleges. DualView should now be disabled. 11. The “BarcoMed Product Installation Wizard” should automatically restart. Finish uninstalling the driver by clicking “Next” three times. Then click “Reboot”, “Finish” and “Yes”.
  • Page 111 Driver re-installation, updates or removal (This page intentionally left blank.) System manual E1...

  • Page 112: Appendices

    Appendices System manual E1...
  • Page 113 Appendices (This page intentionally left blank.) (This page intentionally left blank.) System manual E1...

  • Page 114: Appendix A: Possible Resolutions

    Appendix A: Possible resolutions Appendix A: Possible resolutions There are 22 preset modes and 2 user modes. The following modes are preset as factory defaults. 640 x 350 25.175 31.47 640 x 480 25.175 31.47 VGA/VESA 30.24 35.00 31.50 37.90 VESA 31.50 37.50...
  • Page 115 Appendix A: Possible resolutions 1280 x 1024 63.98 VESA VESA 157.5 91.146 VESA System manual E1...

  • Page 116: Appendix B: Technical Specifications

    Appendix B: Technical specifications Appendix B: Technical specifications Picture panel 18.1-inch diagonal viewable screen TFT (thin film transistor) active matrix, color liquid crystal display, RGB interface Display color Resolution SXGA 1280 x 1024 @ 60 Hz (native) Display area (H x V) 359 x 287 (mm) Viewing angle Vertical:...
  • Page 117 Appendix B: Technical specifications • DVI Digital: Hor. 31.47 to 64 kHz Vert. 60 to 70 Hz • TV-video: NTSC (3.58M), PAL (4.43M) Video: 0.7 Vpp Sync: TTL level Max. video input bandwidth 157.5 MHz Front panel controls Menu, - (down / decrease), + (up / increase), Power Input connectors •...
  • Page 118 Appendix B: Technical specifications PnP compatibility VESA DDC 2B standards compliant Dimensions (W x H x D) 450 mm x 461.8 mm x 213.9 mm Net weight 7.7 kg Operating Temperature 10°C to 35°C Storage Temperature -10°C to 60°C System manual E1...

  • Page 119: Appendix C: Warranty Statement

    Appendix C: Warranty Statement Appendix C: Warranty Statement ARTICLE 1: SERVICES BarcoView warrants that the equipment will be free of defects in workmanship or material for the warranty period. Notwithstanding the provisions of clause 2, repair and replacement of defects in material and/or workmanship under this warranty shall be accomplished in our works in the following manner: 1.1 The Customer, upon the occurrence of any equipment failure,...
  • Page 120 Appendix C: Warranty Statement center) shall become the property of BarcoView (or the authorized service center). 1.5 The repaired equipment shall be returned to the Customer, by regular freight, at BarcoView's charge. ARTICLE 2: ITEMS EXCLUDED FROM WARRANTY The warranty described herein shall not include the following: 2.1 Any hardware or software item procured from a source other than BarcoView or their official agent or distributor and integrated by Customer or a third party into BarcoView supplied...
  • Page 121 Appendix C: Warranty Statement obligations under this paragraph shall excuse BarcoView's performance hereunder: 3.1 Customer shall not expose BarcoView personnel to any unsafe working conditions. 3.2 Repairs to equipment under warranty resulting from improper maintenance or repair performed by the Customer, or its officers, agents, employees, or representatives, shall be borne by the Customer at its additional cost and expense.
  • Page 122 Appendix C: Warranty Statement products or services covered by or furnished under this warranty condition, whether arising out of contract, negligence, strict tort, warranty or otherwise, shall not exceed the price of the item or items of goods or services upon which such liability is based. ARTICLE 7: FORCE MAJEURE Either party shall be released from performance of its obligations under this agreement to the extent, and for so long as, the...
  • Page 123 Appendix C: Warranty Statement System manual E1...
  • Page 124 B4100524 - 00 November 2004 www.barco.com...
