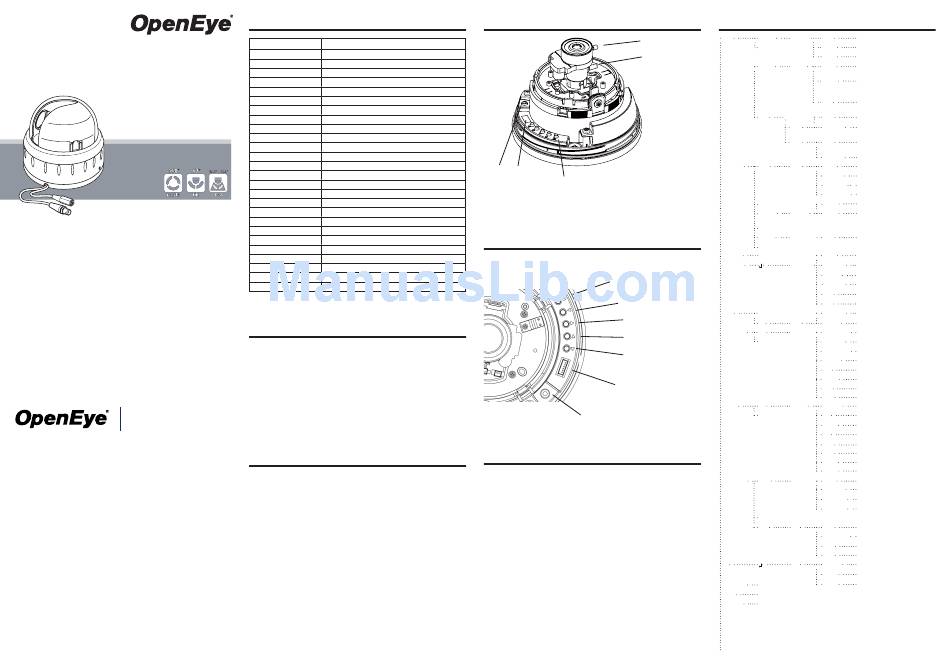

OpenEye CM-206 RevB Installation/Configuration

General Specifications

Model No.
High Resolution Indoor
Image Sensor
Imaging DSP

Dome Camera

IP Rating
Type / Format
Wide Dynamic Range
Camera Installation & Configuration
Minimum Illumination
CM-206 Rev B
model no: Day / Night
Resolution
Service Monitor Jack
S/N Ratio
Focal Length
Iris Control
Synchronization
Video Output
White Balance
Auto White Balance Range
Backlight Compensation
Please carefully read these instructions before using this product.
Auto Gain Control
Save this document for future use.
30657AB
Operating Temperature
Heater
Power Consumption
Rated Amperage
Imput Voltage
Weight
Dimensions
Housing / Dome Cover

Hardware Kit Contents

• Wall anchors (x3)
• D5 screws (x3)
• T6 screw (x1)
• ¾" cable entry sealing plug
• Torx Driver
• Quick Install Adapter
• Wire-Ended Power Adapter Lead
23221 E Knox Ave
Liberty Lake, WA 99019
1.888.542.1103
www.openeye.net

Regulatory Compliance

Emissions
Immunity
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in as
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try \to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio/Video product and only connected to 15W or less power supply.
*Power supply should be a NEC Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifications not expressly approved by the manufacturer, the party responsible for FCC
compliance, could void the user's authority to operate the equipment and could create a hazardous condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CM-206RevB
1/3" Sony CCD
Sony Effio-E 2
IP55
NTSC
Yes, Digital WDR
0.3 Lux @ 50 IRE, 0.15 Lux @ 30 IRE
Digital Day / Night
700 TVL
Yes
>50dB
3.3 ~ 12 mm
Auto Iris
Internal
1.0Vpp 75Ω BNC Unbalanced
AWB, ATW, ATW2, AWC, MWB, Indoor, Outdoor
2700K ~ 9700K (AWB/ATW), 2500K ~ 20,000K (AWT2)
Full Range
44.8 dB
14˚ ~ 122˚ F (-10˚ ~ 50˚C)
No
2.5W Max
0.2A (12vDC) / 0.1A (24vAC)
12vDC / 24vAC (± 10%)
0.6 lbs (0.27 kg)
ø4.7" (120 mm) x H: 3.9" (94.2 mm)
White / Clear
FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR22
ANSI C63.4
CE: EN50130-4

Camera Overview

A
B
D
C A: Focus Adjuster
OSD menu B: Field of View Adjuster
control bank
C: External OSD Control
Board Connector
D: Service Monitor Jack

Camera Adjustments

The following illustrates the Service Board. You can make adjustments to your camera
using the keys on the control bank, or by using the optional external OSD control board.
Menu / Enter
Down
Up
Left
Right
Control Board
Connector
Service Jack

Adjusting the Camera

With the exception of the Focus (A) and Field of View (B) controls on the camera, all
settings are made using the keys on the OSD Service Board. When making adjust-
ments using the OSD Service Board, the camera must have power and be connected
to a video display.
1. Press and hold the MENU key for three seconds to access the top level menu.
2. Use the arrow keys on the service board to navigate the OSD menu and use the
MENU key to confirm your selections.
3. When you have completed the camera configuration, you must select EXIT to
save your changes.
4. If necessary, you can reset the camera to the factory default settings by selecting
CAMERA RESET in the OSD menu.
Dead Pixel Compensation: The CM-206 camera has a feature that can cover most
dead pixels that could occur over time. To enable this feature:
1. Select DPC under the SPECIAL menu.
2. Cover the lens with your hand to black out the image and press the MENU key.
3. When the DPC feature is enabled, the camera will return to the menu. It may take
up to 30 seconds.

Camera OSD Menu

Lens Manual Auto Iris Type DC / Video
Auto Mode Open / Close / Auto
Speed 0 ~ 255
Shutter / AGC Manual Manual Mode Shut + AGC
Setup
Shutter 1/50 (1/60*), 1/100 (1/120*), 1/250
1/500, 1/1000, 1/2000, 1/4000,
1/10000
AGC 6.00, 12.00, 18.00, 24.00, 30.00,
36.00, 42.00, 44.80
Auto Auto Setup Mode Shut + Auto Iris / Auto Iris
High Brightness 0 ~ 255
Luminance
Low Mode Off / AGC
Luminance
Brightness X0,25 / X0.5 / X0.75 / X1.0
White Bal. ATW ATW Speed 0 ~ 255
Delay Cnt 0~ 255
ATW Frame X0.5 / X1.0 / X1.5 / X2/0
Environment Indoor / Outdoor
Push B-Gain 0 ~ 255
User 1/2 User 1/2 R-Gain 0 ~ 255
WB
Anti CR
Manual Manual WB Level 0 ~ 255
Push Lock
Backlight Off / BLC / HLC Mirror Off / On
Pict Adjust Pict Adjust Brightness 0 ~ 255
Contrast 0 ~ 255
Sharpness 0 ~ 255
Hue 0 ~ 255
Gain 0 ~ 255
ATR Off Luminance Low / Md / High
On ATR Contrast Low / Mdlow / Md / Mdhigh / High
Motion Det On Motion Det Detect Sense 0 ~ 127
Off Block Disp Off / On / Enable
Monitor Area Off / On
Area Sel 1/4 ~ 4/4
Top 0 ~ 244
Bottom 0 ~ 244
Left 0 ~ 474
Right 0 ~ 474
Privacy On Privacy Area Sel 1/4 ~ 4/4 (1/8 ~ 8/8**)
Off Top 0 ~ 244
Bottom 0 ~ 244
Left 0 ~ 474
Right 0 ~ 474
Color 1 ~ 8
Transp 0.00 / 0.50 / 0.75 / 1.00
Mosaic Off / On
Day / Night Auto Day / Night Burst Off / On
Delay Cnt 0 ~ 255
Day - Night 0 ~ 255
Night - Day 0 ~ 255
Color
B/W B/W Burst Off / On
IR Optimizer Off / On
Mode Auto / Center
Level 0 ~ 31
NR NR NR Mode Off / Y / C / Y/C
Y Level 0 ~ 15
Camera ID Off / On C Level 0 ~ 15
Sync Int
Language English / Chinese / Spanish / Portuguese / Russian / French / German / Japanese
Camera Reset
Exit
Next
Back
Save All
