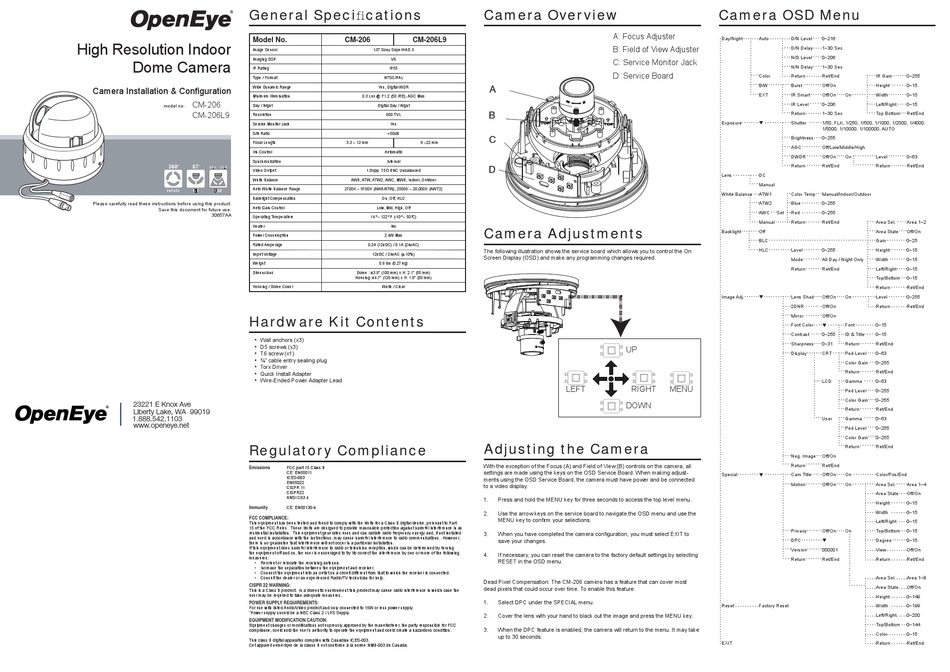

OpenEye CM-206 Installation/Configuration

High resolution indoor dome camera

Advertisement

Quick Links

General Specifi cations
Model No.
High Resolution Indoor
Image Sensor
Imaging DSP

Dome Camera

IP Rating
Type / Format
Wide Dynamic Range
Camera Installation & Confi guration
Minimum Illumination
CM-206
model no:
Day / Night
CM-206L9
Resolution
Service Monitor Jack
S/N Ratio
Focal Length
Iris Control
Synchronization
Video Output
White Balance
Auto White Balance Range
Backlight Compensation
Please carefully read these instructions before using this product.
Auto Gain Control
Save this document for future use.
30657AA
Operating Temperature
Heater
Power Consumption
Rated Amperage
Imput Voltage
Weight
Dimensions
Housing / Dome Cover

Hardware Kit Contents

• Wall anchors (x3)
• D5 screws (x3)
• T6 screw (x1)
• ¾" cable entry sealing plug
• Torx Driver
• Quick Install Adapter
• Wire-Ended Power Adapter Lead
23221 E Knox Ave
Liberty Lake, WA 99019
1.888.542.1103
www.openeye.net

Regulatory Compliance

Emissions
Immunity
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in as
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try \to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio/Video product and only connected to 15W or less power supply.
*Power supply should be a NEC Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifi cations not expressly approved by the manufacturer, the party responsible for FCC
compliance, could void the user's authority to operate the equipment and could create a hazardous condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CM-206
CM-206L9
1/3" Sony SuperHAD II
V6
IP55
NTSC/PAL
Yes, Digital WDR
0.3 Lux @ F1.2 (50 IRE), AGC Max
Digital Day / Night
600 TVL
Yes
>50dB
3.3 ~ 12 mm
9 ~22 mm
Automatic
Internal
1.0Vpp 75Ω BNC Unbalanced
AWB, ATW, ATW2, AWC, MWB, Indoor, Outdoor
2700K ~ 9700K (AWB/ATW), 2500K ~ 20,000K (AWT2)
On, Off, HLC
Low, Mid, High, Off
14˚ ~ 122˚ F (-10˚ ~ 50˚C)
No
2.4W Max
0.2A (12vDC) / 0.1A (24vAC)
12vDC / 24vAC (± 10%)
0.6 lbs (0.27 kg)
Dome : ø3.9" (100 mm) x H: 2.1" (55 mm)
Housing: ø4.7" (120 mm) x H: 1.9" (50 mm)
White / Clear
FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR22
ANSI C63.4
CE: EN50130-4

Camera Overview

A: Focus Adjuster
B: Field of View Adjuster
C: Service Monitor Jack
D: Service Board
A
B
C
D

Camera Adjustments

The following illustration shows the service board which allows you to control the On
Screen Display (OSD) and make any programming changes required.
UP
LEFT
RIGHT
DOWN

Adjusting the Camera

With the exception of the Focus (A) and Field of View (B) controls on the camera, all
settings are made using the keys on the OSD Service Board. When making adjust-
ments using the OSD Service Board, the camera must have power and be connected
to a video display.
1.
Press and hold the MENU key for three seconds to access the top level menu.
2.
Use the arrow keys on the service board to navigate the OSD menu and use the
MENU key to confi rm your selections.
3.
When you have completed the camera confi guration, you must select EXIT to
save your changes.
4.
If necessary, you can reset the camera to the factory default settings by selecting
RESET in the OSD menu.
Dead Pixel Compensation: The CM-206 camera has a feature that can cover most
dead pixels that could occur over time. To enable this feature:
1.
Select DPC under the SPECIAL menu.
2.
Cover the lens with your hand to black out the image and press the MENU key.
3.
When the DPC feature is enabled, the camera will return to the menu. It may take
up to 30 seconds.

Camera OSD Menu

Day/Night
Auto
D/N Level
0~216
D/N Delay
1~30 Sec
N/D Level
0~206
N/N Delay
1~30 Sec
Color
Return
Ret/End
B/W
Burst
Off/On
EXT
IR Smart
Off/On
On
IR Level
0~206
Return
1~30 Sec
Exposure
Shutter
1/50, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/5000, 1/10000, 1/100000, AUTO
Brightness
0~255
AGC
Off/Low/Middle/High
DWDR
Off/On
On
Return
Ret/End
Lens
DC
Manual
White Balance
ATW1
Color Temp
Manual/Indoor/Outdoor
ATW2
Blue
0~255
AWC
Set
Red
0~255
Manual
Return
Ret/End
Backlight
Off
BLC
HLC
Level
0~255
Mode
All Day / Night Only
Return
Ret/End
Image Adj.
Lens Shad
Off/On
On
2DNR
Off/On
Mirror
Off/On
Font Color
Font
Contrast
0~255
ID & Title
Sharpness
0~31
Return
Display
CRT
Ped Level
Color Gain
Return
LCD
Gamma
MENU
Ped Level
Color Gain
Return
User
Gamma
Ped Level
Color Gain
Return
Neg. Image
Off/On
Return
Ret/End
Special
Cam Title
Off/On
On
Motion
Off/On
On
Privacy
Off/On
On
DPC
Version
000001
Return
Ret/End
Reset
Factory Reset
EXIT
IR Gain
0~255
Height
0~15
Width
0~15
Left/Right
0~15
Top Bottom
Ret/End
Level
0~63
Return
Ret/End
Area Sel.
Area 1~2
Area State
Off/On
Gain
0~25
Height
0~15
Width
0~15
Left/Right
0~15
Top/Bottom
0~15
Return
Ret/End
Level
0~255
Return
Ret/End
0~15
0~15
Ret/End
0~63
0~255
Ret/End
0~63
0~255
0~255
Ret/End
0~63
0~255
0~255
Ret/End
Color/Pos/End
Area Sel.
Area 1~4
Area State
Off/On
Height
0~15
Width
0~15
Left/Right
0~15
Top/Bottom
0~15
Degree
0~15
View
Off/On
Return
Ret/End
Area Sel.
Area 1~8
Area State
Off/On
Height
0~149
Width
0~199
Left/Right
0~200
Top/Bottom
0~144
Color
0~15
Return
Ret/End
