OpenEye CM-510 Installation Manual

510-series camera speed dome
Hide thumbs Also See for CM-510:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

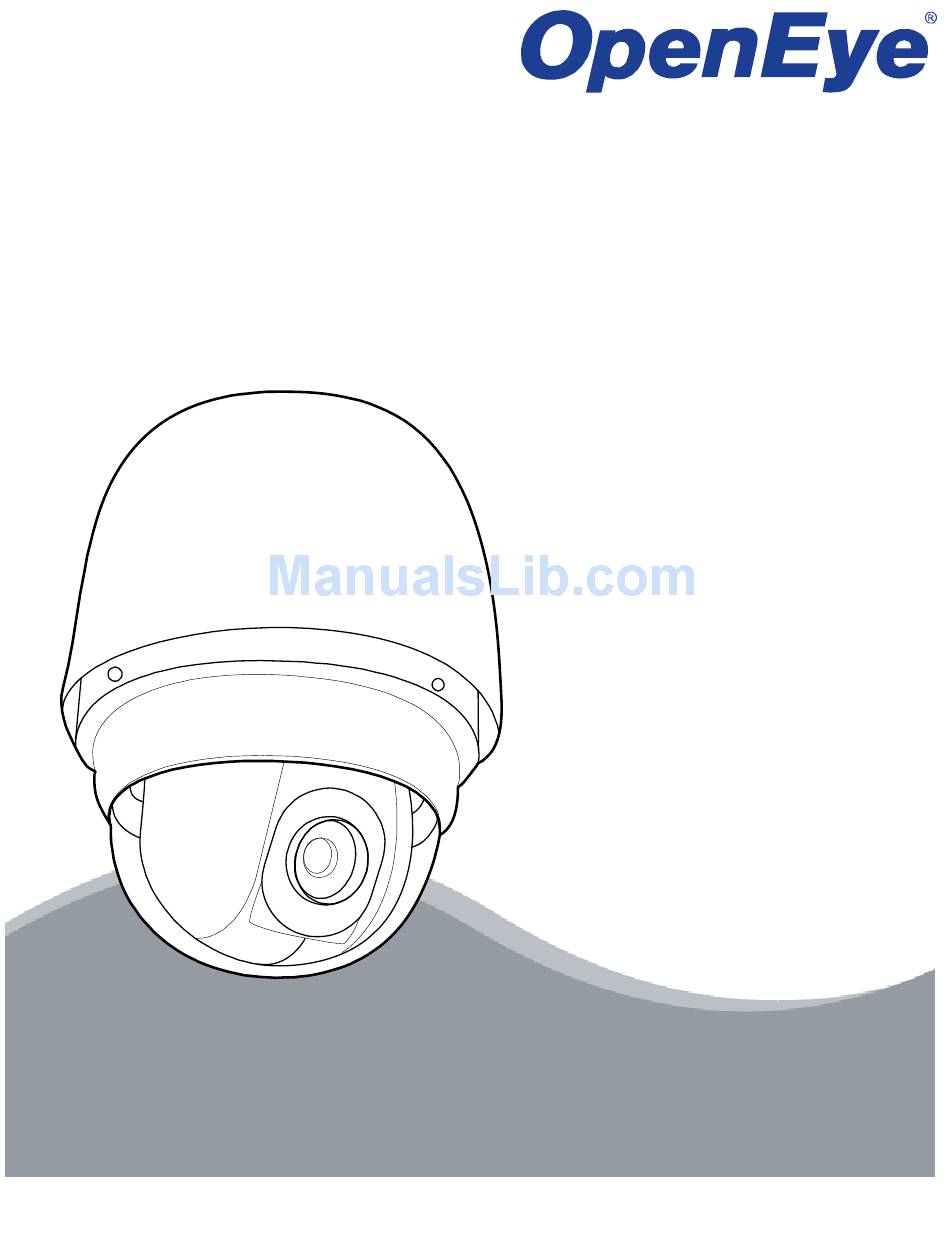

510-Series Camera
Speed Dome
Installation Manual
CM-510
XM5000
model no.
model no.
Please carefully read these instructions before using this product.
28582AA
Save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-510 and is the answer not in the manual?

Questions and answers

Related Manuals for OpenEye CM-510

Summary of Contents for OpenEye CM-510

  • Page 1 510-Series Camera Speed Dome Installation Manual CM-510 XM5000 model no. model no. Please carefully read these instructions before using this product. 28582AA Save this manual for future use.
  • Page 2 28582AA...
  • Page 3 THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING OUT OF THE USE OF THIS INFORMATION REMAINS WITH RECIPIENT. IN NO EVENT SHALL OPENEYE BE LIABLE FOR ANY DIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL, PUNITIVE, OR OTHER DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITATION,...

  • Page 4: Important Safeguards

    Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
  • Page 5 REGULATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste in accordance with Directive 2002/96/EC.

  • Page 6: Explanation Of Graphical Symbols

    WARNING DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. CAUTION C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

  • Page 7: Standard Warranty

    Standard Warranty Openeye warrants all products to be free from defects in workmanship and material under normal use for a period of one year after the date of purchase. Any defective product that falls under this warranty will, at OpenEye's discretion, be repaired or replaced at no additional charge.
  • Page 8 NOTES: viii 28582AA...

  • Page 9: Table Of Contents

    Table of Contents INTRODUCTION ......................1 OVERVIEW .............................. 1 GENERAL OPERATION REQUIREMENTS .................... 1 System Configuration ........................... 1 GETTING STARTED ...................... 3 CAMERA CONTENTS ..........................3 DOME SETUP AND CABLE CONNECTION ................... 4 PREPARATIONS for Dome Setup ....................... 4 Dome Setup ............................6 Switch Definition ..........................
  • Page 10 NOTES: 28582AA...

  • Page 11: Introduction

    SYSTEM CONFIGURATION NOTE: To extend the network distance up to 1.2 km (4000 feet) and to protect the connected devices, OpenEye recommends placing a repeater at the mid-point. However, a repeater may be needed with network distances less than 1.2 km if the cables used are not CAT 5, 24-gauge cables.
  • Page 12 NOTES: 28582AA...

  • Page 13: Getting Started

    13 pin Alarm Cable Waterproof Gasket 510-Series Camera Speed Dome Installation Manual XM5000 CM-510 model no. model no. Please carefully read these instructions before using this product. Save this manual for future use. Quick Start Guide Installation and User Manuals...

  • Page 14: Dome Setup And Cable Connection

    DOME SETUP AND CABLE CONNECTION Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. PREPARATIONS FOR DOME SETUP The following installation procedure is for the outdoor dome equipped with the sunshield housing. Please follow the steps below to complete dome housing installation.
  • Page 15 Note that the tiny protrusion on the dome cover must align with one of the four holes on the dome body. Using both hands, gently press the dome cover downward. DO NOT press the cover as shown in the figure; this may cause damage to the dome body.

  • Page 16: Dome Setup

    DOME SETUP Before connecting the dome camera to CCTV devices, please complete the dome ID and communication switch settings. These switches are located on the bottom of the dome camera. Switch Definition Please refer to the following figure for switch location and definitions. Dome Control Protocol Switch Communication Switch...

  • Page 17: Dome Id Setting

    Dome ID Setting Use the switch to change your speed dome ID by turning the arrow to the desired number. For instance, if the dome ID is 123, the ID switch should be set as below. Centesimal Digit Decimal Digit Single Digit NOTE: No two domes should have the same ID, or communication conflict may occur NOTE: The number 0 should be at the top, as shown, when setting the camera ID.

  • Page 18: Dome Cable Definition And Requirements

    Connector 2-wire NOTE: Be careful not to pull the cables improperly during installation. OpenEye suggests that you fasten the cables after installation is complete. NOTE: When wiring the power cable, make sure the G/Y wire (Ground) is inserted into the mid-pin of the terminal block.

  • Page 19: 22-Pin Connector Definition

    22-Pin Connector Definition Using the 22-pin connector, installers can connect the power, video, and RS-485 cables in one place. The alarm pins are serviceable for connecting alarm input and output devices such as sensors, sirens, or flashing lights to the surveillance system. For the definition of each pin, refer to the list below.

  • Page 20: Rs-485 Connector Definition

    The dome camera uses the RS-485 interface to communicate with a connected control device. Connect a control keyboard to the speed dome using the terminal block. OpenEye recommends using CAT 5 cables for RS-485 communication with a maximum length of 4000 feet (1219 meters) for 24-gauge wire. If the total cable length exceeds 4000 feet, use a repeater to maintain the signals.

  • Page 21: Grounding Recommendation

    Grounding Recommendation The GND (ground) wire must be directly connected to the middle pin of the AC24V power connector. Failure to connect the ground can cause damage and failure of the camera and may void the warranty. If the connection of the GND wire causes video noise, use a video isolator. This is only necessary in some situations. 3 pins terminal block VIDEO OUT Must be...
  • Page 22 NOTES: 28582AA...

  • Page 23: Dome Installation

    DOME INSTALLATION OVERVIEW Depending on the user’s installation environment, the dome can be installed on the ceiling, on a wall, or a pole. The following section illustrates installation methods and procedures for installing the dome and mounting accessories. DOME DIMENSIONS The dome dimensions are Ø172 x 302.5mm (6.7 x 11.9 inches) and Ø190 x 302.5mm (7.5 x 11.9 inches) with the sunshield.

  • Page 24: Mounting Accessories

    MOUNTING ACCESSORIES Gooseneck Tube Iron, 298×385 mm (11.73×15.56 inches) ; 2.1 kg (4.6 lbs) Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1 Wall Mount Bracket (w/ Anti Drop) 184×104×115.2 mm (7.24×4.09×4.54 inches); 0.6 kg (1.2 lbs) Supplied with rubber washer-8×1, pendant tube washer×1, spring washer-8×1 and M8*12 screw×1.
  • Page 25 Corner Mounting Plate 222(L)×204(W)×117(D) mm (8.7×8×4.6 inches); 2 kg (4.4 lbs) Supplied with washer-8×4,spring washer×4, M8*16 screw×4, M8 nut×4. Small Pole Mount 232(L)×136(W)×60(D) mm (9.1×5.4×2.4 inches); Diameter: 112~140 mm (4.4~5.5 inches); 0.7 kg (1.6 lbs). Supplied with stainless steel straps×4, M8*16 screw×4, washer×4. Large Pole Mount 270(L)×170(W)×60(D) mm (10.6×6.7×2.4 inches);...

  • Page 26: Ceiling Mounting With Pole

    CEILING MOUNTING WITH POLE The pole is available in two lengths: 25 cm and 30 cm. Items Needed: • Dome Camera • Ceiling Pole Accessory • Waterproof Gasket (supplied) • Screws and Anchors appropriate for the mounting surface (not supplied) Tools Needed: •...

  • Page 27: Wall Mounting With Gooseneck Tube

    WALL MOUNTING WITH GOOSENECK TUBE The camera cables can be recessed or exposed when mounting with the gooseneck tube. Items Needed: • Dome Camera • Gooseneck Tube Accessory • Waterproof Gasket (supplied) • Screws and Anchors appropriate for the mounting surface (not supplied) Tools Needed: •...

  • Page 28: Wall Mounting With Wall Mount Bracket

    WALL MOUNTING WITH WALL MOUNT BRACKET Items Needed: • Dome Camera • Wall Mount Bracket Accessory • Waterproof Gasket (supplied) • Screws and Anchors appropriate for the mounting surface (not supplied) Tools Needed: • Drill • Screwdriver Installation Steps: Cut a cable access hole on the wall. Cables can also be threaded through the cable entry knockout on the tube if desired.

  • Page 29: Wall Mounting With Corner Mount

    WALL MOUNTING WITH CORNER MOUNT The corner mount can be used in conjunction with the gooseneck and the wall mount bracket. Items Needed: • Dome Camera • Gooseneck/Wall Mount Bracket Accessory • Corner Mounting Plate • Waterproof Gasket (supplied) • Screws and Anchors appropriate for the mounting surface (not supplied) Tools Needed: •...

  • Page 30: Pole Mounting

    POLE MOUNTING The dome can be mounted on a pole with the thin or wide direct mounting accessory and a gooseneck mount. Items Needed: • Dome Camera • Gooseneck Mount Accessory • Pole Thin/Wide Direct Mounting Accessory • Stainless Steel Straps •...
  • Page 31 NOTES: 28582AA...
  • Page 32 NOTES: 28582AA...

  • Page 33: Specifications

    SPECIFICATIONS TECHNICAL SPECIFICATIONS Model CM-510 Outdoor Speed Dome CAMERA CCD Sensor 1/4” CCD Progressive Scan Optical Zoom Digital Zoom 1x ~ 12x variable Effective Pixels 380k Horizontal Resolution 480 TVL Scanning System NTSC / PAL Synchronization Internal / Line Lock Video Output 1.0 Vp-p / 75 Ώ, BNC...

  • Page 34: Operation

    OPERATION Built-in Protocol OPTIX 3, Pelco D&P, VCL, Philips, AD-422, JVC, Kalatel Multi-Language OSD English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish Pan Travel 360° endless Tilt Travel -10° ~ 190° Manual Speed 1° ~ 90°/s Presets 0.225° Preset Accuracy Tilt 0.225°...
  • Page 35 28582AA...
  • Page 37 © 2008 OpenEye Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye Inc. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
