OpenEye CM-200W Installation Manual

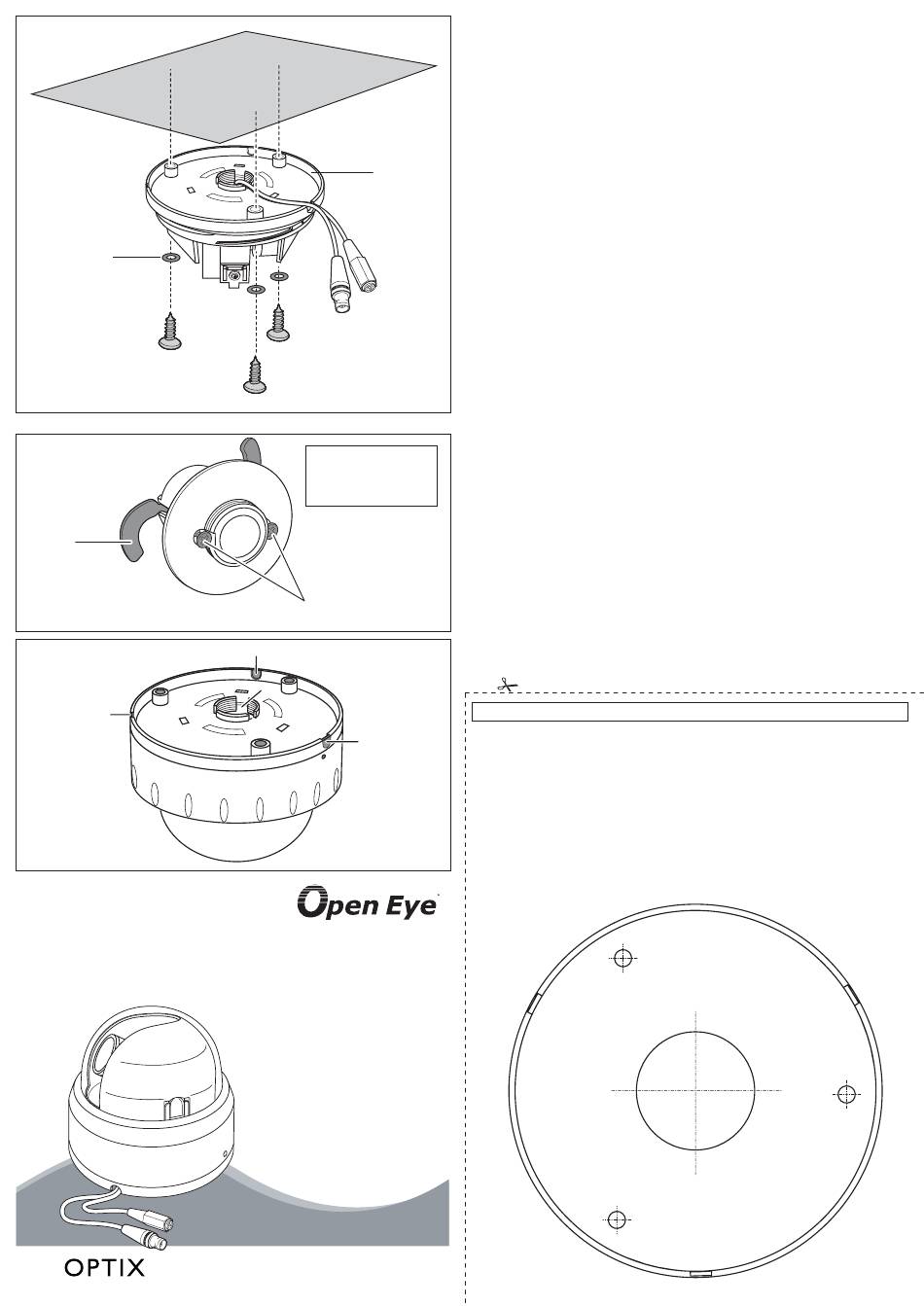

A
Rubber o-rings to maintain
moisture seal when fixing
externally.
B
B1
Locking arms
C
C2
C3
Dome base
Quick Installation Mount
is an optional accessory
for the 200-Series
B1
Loosen screws, but not remove them,
to first extend the locking arms. Then
tighten the screws sufficiently to
compress the rubber o-rings located
underneath the screwheads; however,
DO NOT OVERTIGHTEN.
C3
C2
C1
C2
C3
C1: Threaded base
C2: Screw access holes
C3: Side knock-outs
200 Series Indoor

Dome Camera

Installation Manual
CM-200W
model no.
CM-200
CM-209
Please carefully read these instructions before using this product.
Save this manual for future use.
Precautions
• Do not attempt to disassemble the camera module
mounted within the dome. There are no user-ser-
viceable parts within the camera module. Refer
servicing to qualified service personnel.
• Handle the camera with care. Avoid dropping or
shaking it. Improper handling or storage could dam-
age the camera.
• Regardless of whether the camera is in use or not,
never face it towards the sun. Use caution when
operating the camera in the vicinity of spotlights or
other bright lights and light reflecting objects.
• Do not operate the camera beyond its temperature,
humidity or power source ratings. Please refer to the
environmental information provided in the Setup
Manual.
Methods For Mounting The Enclosure
There are three ways to mount and fix the dome
enclosure:
A: Surface mount using screws
B: Surface mount with the optional
Quick Installation Kit
Note: Always use the template provided

Packing List

In addition to this installation sheet:
• O-ring x 3
• Torx driver x 1
• D5 fixing screws x 3
• T2 fixing screw x 1
• Power adapter lead x 1
Template
Surface Mount (In a wall or ceiling)
Using Quick Installation Kit: Create an aperture in
the mounting surface to a diameter of 1.3" (35mm) as
indicated by "T5".
Using screws: Create three holes at template posi-
tions 'D5' of diameter ¼ (7.5mm) and insert a wall plug
into each. Use three D5 screws.
D5
D5

Regulatory Compliance

Emissions FCC part 15 Class B
CE: EN55011
ICES-003
EN5502
CISPR 11
CISPR 22
ANSI C63.4
Immunity CE: EN50130-4
FCC COMPLIANCE: This equipment complies with
Part 15 of the FCC rules for intentional radiators and
Class B digital devices when installed and used in ac-
cordance with the instruction manual. Following these
rules provides reasonable protection against harmful
interference from equipment operated in a commercial
area. This equipment should not be installed in a resi-
dential area as it can radiate radio frequency energy
that could interfere with radio communications, a situa-
tion the user would have to fix at their own expense.
CISPR 22 WARNING: This is a Class B product. In a
domestic environment this product may cause radio
interference in which case the user may be required to
take adequate measures.
POWER SUPPLY REQUIREMENTS: For use with
listed Audio/Video Product and only connected to 15W
or less power supply. Power supply should be a NEC
Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION: Equipment
changes or modifications not expressly approved,
the party responsible for FCC compliance, could void
the user's authority to operate the equipment and could
create a hazardous condition.
ATTENTION:
The information in this document is subject to change
without notice. OpenEye shall not be liable for
technical, editorial errors or omissions contained
herein.
Cable Access
The cables are threaded through the base knock-out
(shown in C1 overleaf). It is threaded for use with the
threaded rod adapter.
When mounting the dome on a surface with the three D5
screws, use one of the side knock-outs as indicated by C3
shown in fig C overleaf for cable entry. See "Installing
the dome enclosure" for instructions on how to drill a
hole on the side knock-out.
T5
D5
