- Page 1 PU-USB-KIT USB extender USB 2.0 over Single CAT5e/CAT6 (100m) Kit OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Transmitter Front & Rear Panels ... 7 6.2 Receiver Front & Rear Panels ....8 7. -
Page 6: Introduction

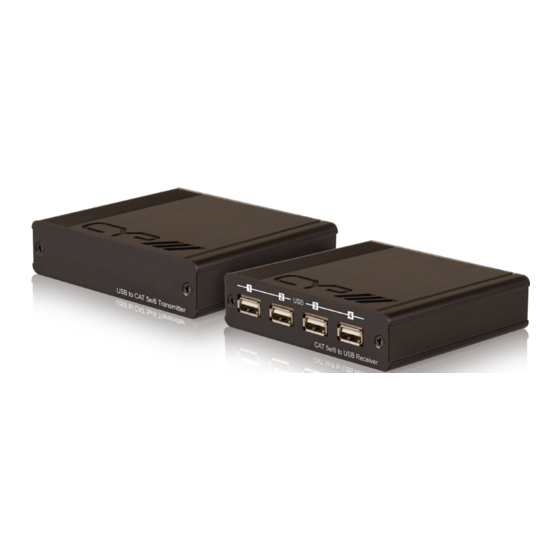

1. INTRODUCTION The PU-USB-KIT is a USB over CAT5/6 transmitter and receiver that has been developed to extend USB devices over long distances via CAT5e/6 cable infrastructure. This kit allows any USB host to send data within a 100m range while offering up to 4 USB outputs, giving this product the ability to act like a USB hub. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front & Rear Panels Transmitter DC 5V Link Pair Link USB In Link Power Select On/Off CAT 5e/6 Out USB to CAT 5e/6 Transmitter USB Link: This LED will illuminate when the transmitter has linked with receiver’s USB signal. -
Page 8: Receiver Front & Rear Panels
6.2 Receiver Front & Rear Panels Receiver DC 5V Link Pair Link Power Select USB Link CAT 5e/6 In CAT 5e/6 to USB Receiver USB Link: This LED will illuminate when the transmitter has linked with receiver’s USB signal. User are only able to control the USB in (the source device) when this LED is not illuminated. -
Page 9: Connection And Installation
7. CONNECTION AND INSTALLATION Example 1 Input Power Supply USB to CAT 5e/6 Transmitter Transmitter DC 5V Link Pair Link USB In Link Power Select On/Off CAT 5e/6 Out Network CAT5e/6 100m Power Supply Receiver DC 5V Link Pair Link Power Select USB Link CAT 5e/6 In... - Page 10 Example 2 USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter USB to CAT 5e/6 Transmitter CAT5e/6 100m CAT5e/6 100m CAT 5e/6 to USB Receiver CAT 5e/6 to USB Receiver CAT 5e/6 to USB Receiver CAT 5e/6 to USB Receiver In this example, up to 16 Transmitters and Receivers can be paired using the DIP switch setting on the units and used over the network...
-
Page 11: Specifications
8. SPECIFICATIONS TRANSMITTER Input Port 1×USB (B type) Output Port 1×RJ45 RECEIVER Input Port 1×RJ45 Output Ports 4×USB (A type) ESD Protection Human Body ±10 kV (air-gap dis- Model: charge) ±6 kV (contact dis- charge) Power Supply 5 V/3 A DC (US/EU standards, CE/FCC/ UL certified) Dimensions(mm) 206 mm (W)×99 mm (D)×25 mm(H) Weight(g) 206 g (Transmitter), 214 g (Receiver) Chassis Material Aluminum Silkscreen Color Black Operating Temperature 0 °C~40 °C/32 °F~104 °F Storage Temperature −20 °C ~ 60 °C /−4 °F~140 °F... - Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com...
