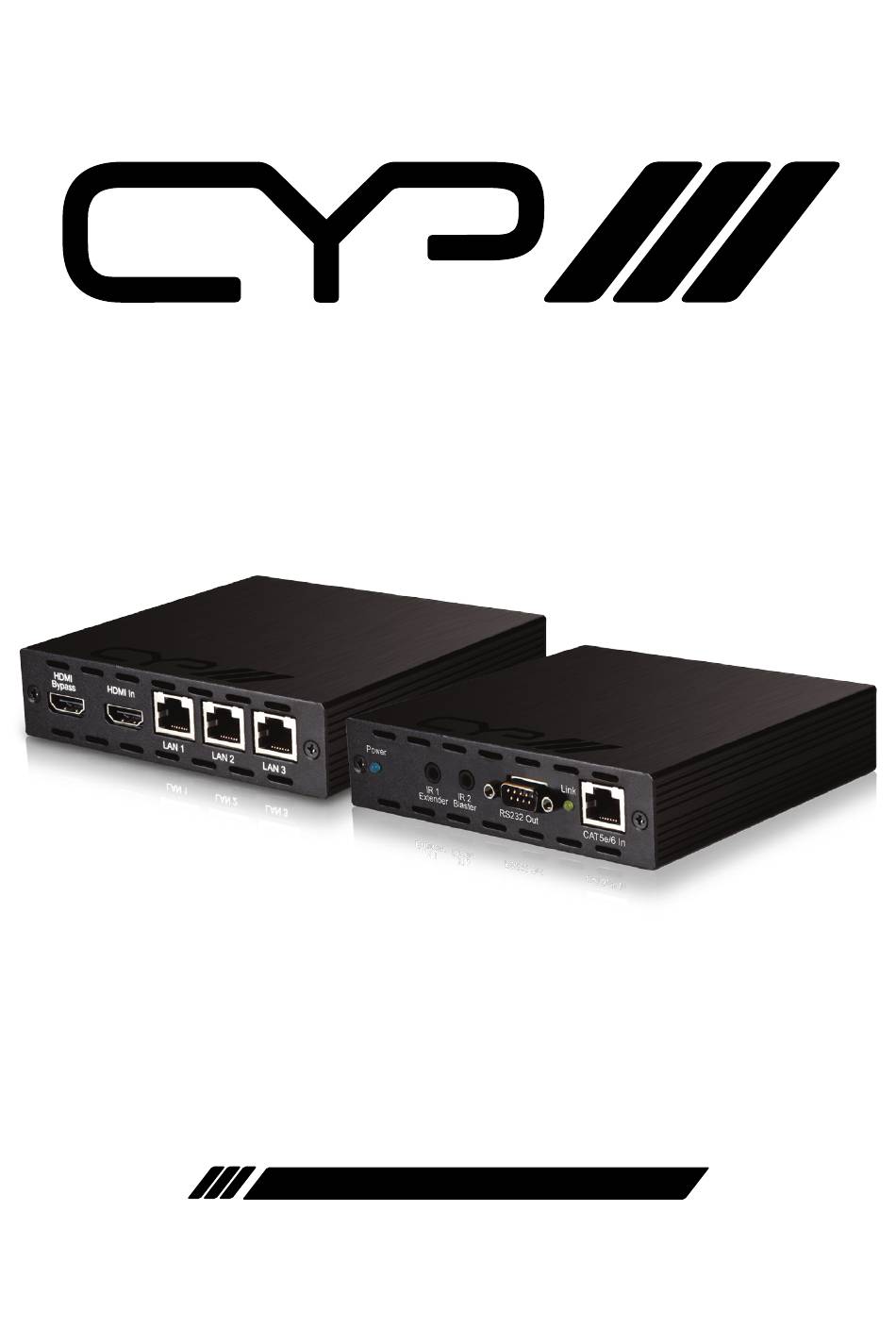

- Page 1 PU-1109-KIT 5-Play HDBaseT™ Extender Kit (inc. PoE & 3x LAN, up to 100m) OPERATIONS MANUAL...
- Page 1 PU-1109-KIT 5-Play HDBaseT™ Extender Kit (inc. PoE & 3x LAN, up to 100m) OPERATIONS MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter ........... 8 6.2 Receiver ............9 6.3 D-Sub 9 Pin De nitions ......10 7. Connection Diagram ......11... -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Transmitter ........... 8 6.2 Receiver ............9 6.3 D-Sub 9 Pin Definitions ......10 7. Connection Diagram ......11... -
Page 6: Introduction
1. INTRODUCTION The PU-1109-KIT features 5Play HDBaseT technology. This will allow the user to distribute uncompressed HDMI, 2-Way IR, 2-Way RS-232, PoE (Power Over Ethernet) and 3 individual LAN connections over a Single CAT5e/6 cable, to lengths of up to 100m. -
Page 6: Introduction
1. INTRODUCTION The PU-1109-KIT features 5Play HDBaseT technology. This will allow the user to distribute uncompressed HDMI, 2-Way IR, 2-Way RS-232, PoE (Power Over Ethernet) and 3 individual LAN connections over a Single CAT5e/6 cable, to lengths of up to 100m. -
Page 7: Features
5. FEATURES HDMI 1.4 compliant with 3D formats and 4k 2k resolution support Supports CEC bypass function Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Colour) over a single CAT5e/CAT6 type cable for up to 100 m (300 ft.). Audio support up to 7.1CH Dolby TrueHD and DTS-HD Connect and share up to 6 Ethernet connections at speeds up to 100 Mbps Various controls over HDMI: CEC, RS-232 and IR... -
Page 7: Features
5. FEATURES HDMI 1.4 compliant with 3D formats and 4k 2k resolution support Supports CEC bypass function Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Colour) over a single CAT5e/CAT6 type cable for up to 100 m (300 ft.). Audio support up to 7.1CH Dolby TrueHD and DTS-HD Connect and share up to 6 Ethernet connections at speeds up to 100 Mbps Various controls over HDMI: CEC, RS-232 and IR... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Rear Front DC 24V HDMI HDMI In Power Bypass Link IR 1 IR 2 Blaster Extender RS232 In LAN 1 LAN 2 LAN 3 CAT5e/6 Out HDMI Bypass: Connect to a HDMI TV/monitor for instant display of the HDMI input source signal. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Rear Front DC 24V HDMI HDMI In Power Bypass Link IR 1 IR 2 Blaster Extender RS232 In LAN 1 LAN 2 LAN 3 CAT5e/6 Out HDMI Bypass: Connect to a HDMI TV/monitor for instant display of the HDMI input source signal. -
Page 9: Receiver
6.2 Receiver Rear Front HDMI Out Power Link IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In LAN 1 LAN 2 LAN 3 Power LED: The red LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. IR 1 Extender: This slot is to connect with the IR receiver cables included in the package for IR signal reception. -
Page 10: D-Sub 9 Pin Definitions
6.3 D-Sub 9 Pin Definitions Define TX/RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM PC with RS-232 Control Blu-ray/DVD Player 1.5m 60° Modem/Router HDMI HDMI In Bypass Media Server LAN 1 LAN 2 LAN 3 DC 24V Power Link Transmitter IR 1 IR 2 Blaster Extender RS232 In CAT5e/6 Out Single CAT5e/6 Cable RS-232 Controlled... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/9 Gbps Ethernet Speed 100 Mbps Transmitter Input 1×HDMI , 3×Ethernet, 1×RS-232, 1×IR Extender Output 1×CAT5e/6, 1×HDMI Bypass, 1×IR Blaster Receiver Input 1×CAT5e/6, 1×IR Extender Output 1×HDMI, 1×RS-232, 3×Ethernet, 1×IR Blaster ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
