EVB-LAN9252-DIG-IO EtherCAT® DIG I/O User's Guide
2.3
CLOCK
The EVB-LAN9252-DIG-IO utilizes an external 25Mhz 25ppm crystal from Cardinal
Components Inc. (P/N: CSM1Z-A5B2C5-40-25.0D18-F).
2.4
CONFIGURATION
The following sub-sections describe the various board features and configuration set-
tings. A top view of the EVB-LAN9252-DIG-IO is shown in Figure 2-1.
FIGURE 2-1:
DS50002332A-page 14

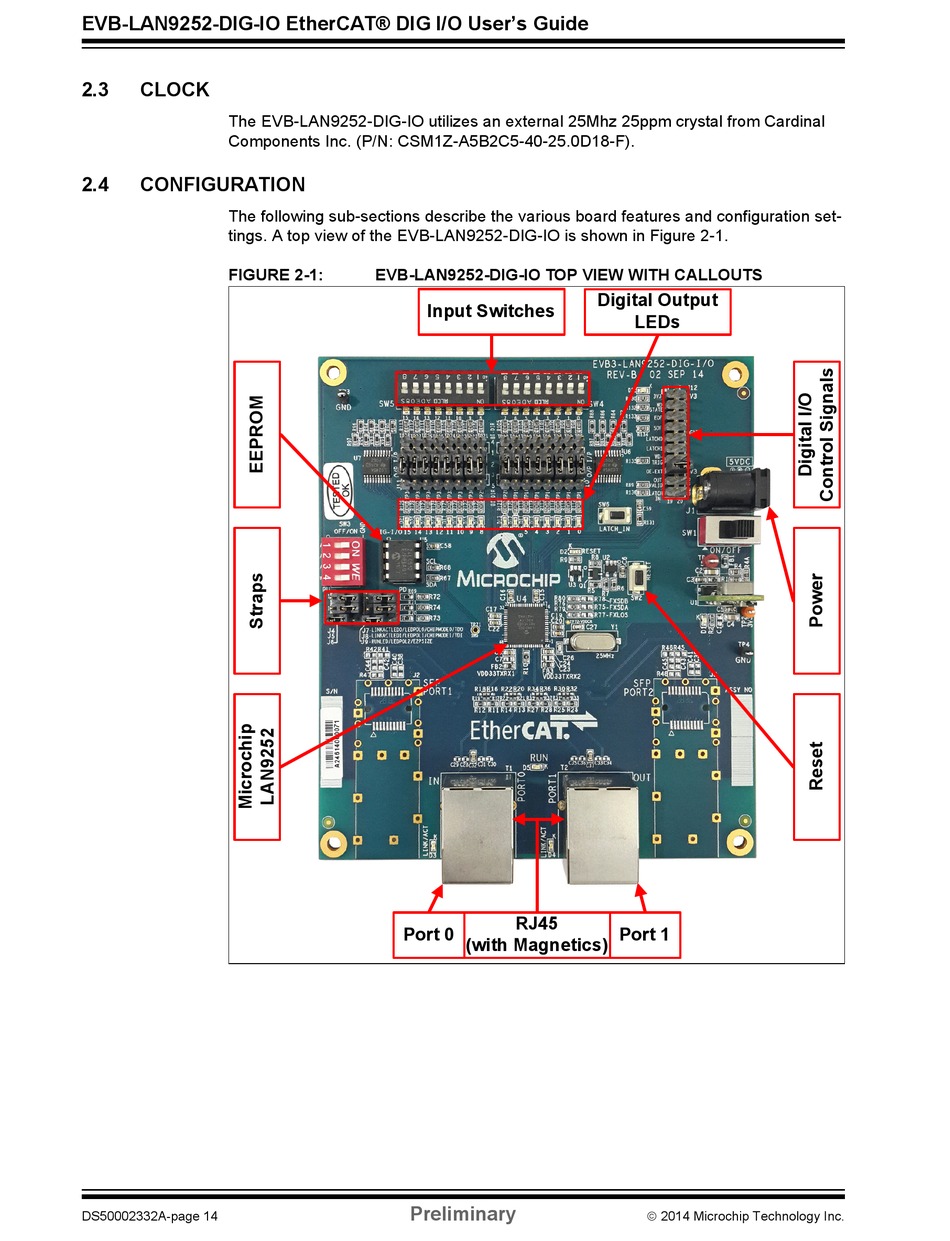

EVB-LAN9252-DIG-IO TOP VIEW WITH CALLOUTS
Input Switches
RJ45
Port 0
(with Magnetics)
Preliminary
Digital Output
LEDs
Port 1
2014 Microchip Technology Inc.
