EVB-LAN9252-DIG-IO EtherCAT® DIG I/O User's Guide

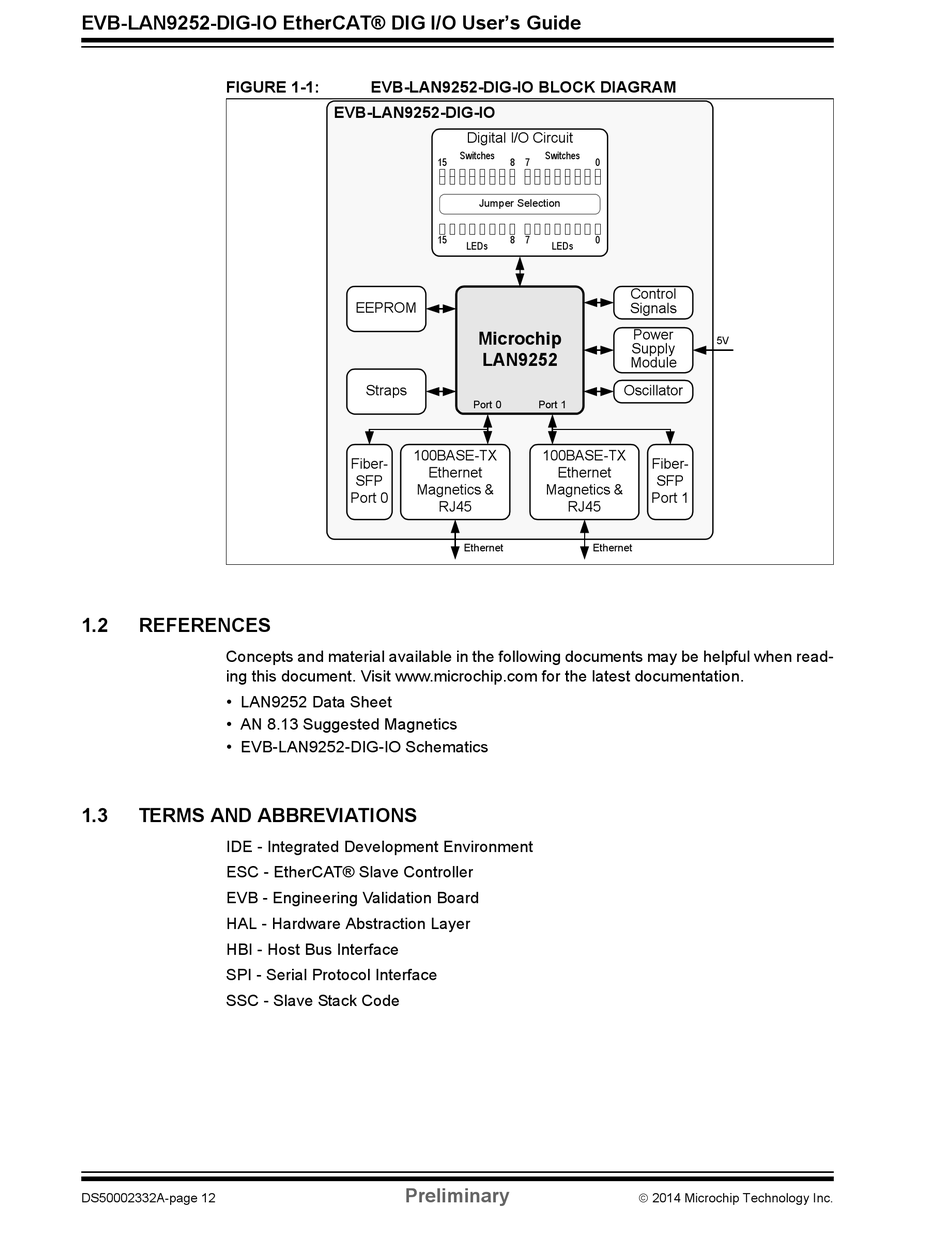

FIGURE 1-1:
1.2

REFERENCES

Concepts and material available in the following documents may be helpful when read-
ing this document. Visit www.microchip.com for the latest documentation.
• LAN9252 Data Sheet
• AN 8.13 Suggested Magnetics
• EVB-LAN9252-DIG-IO Schematics
1.3

TERMS AND ABBREVIATIONS

IDE - Integrated Development Environment
ESC - EtherCAT® Slave Controller
EVB - Engineering Validation Board
HAL - Hardware Abstraction Layer
HBI - Host Bus Interface
SPI - Serial Protocol Interface
SSC - Slave Stack Code
DS50002332A-page 12
EVB-LAN9252-DIG-IO BLOCK DIAGRAM
EVB-LAN9252-DIG-IO
Digital I/O Circuit
Switches
15 8
Jumper Selection
15 8
LEDs
EEPROM
Microchip
LAN9252
Straps
Port 0
100BASE-TX
Fiber-
Ethernet
SFP
Magnetics &
Port 0
RJ45
Ethernet
Preliminary
Switches
7 0
7 0
LEDs
Control
Signals
Power
Supply
Module
Oscillator
Port 1
100BASE-TX
Fiber-
Ethernet
SFP
Magnetics &
Port 1
RJ45
Ethernet
 2014 Microchip Technology Inc.
5V
