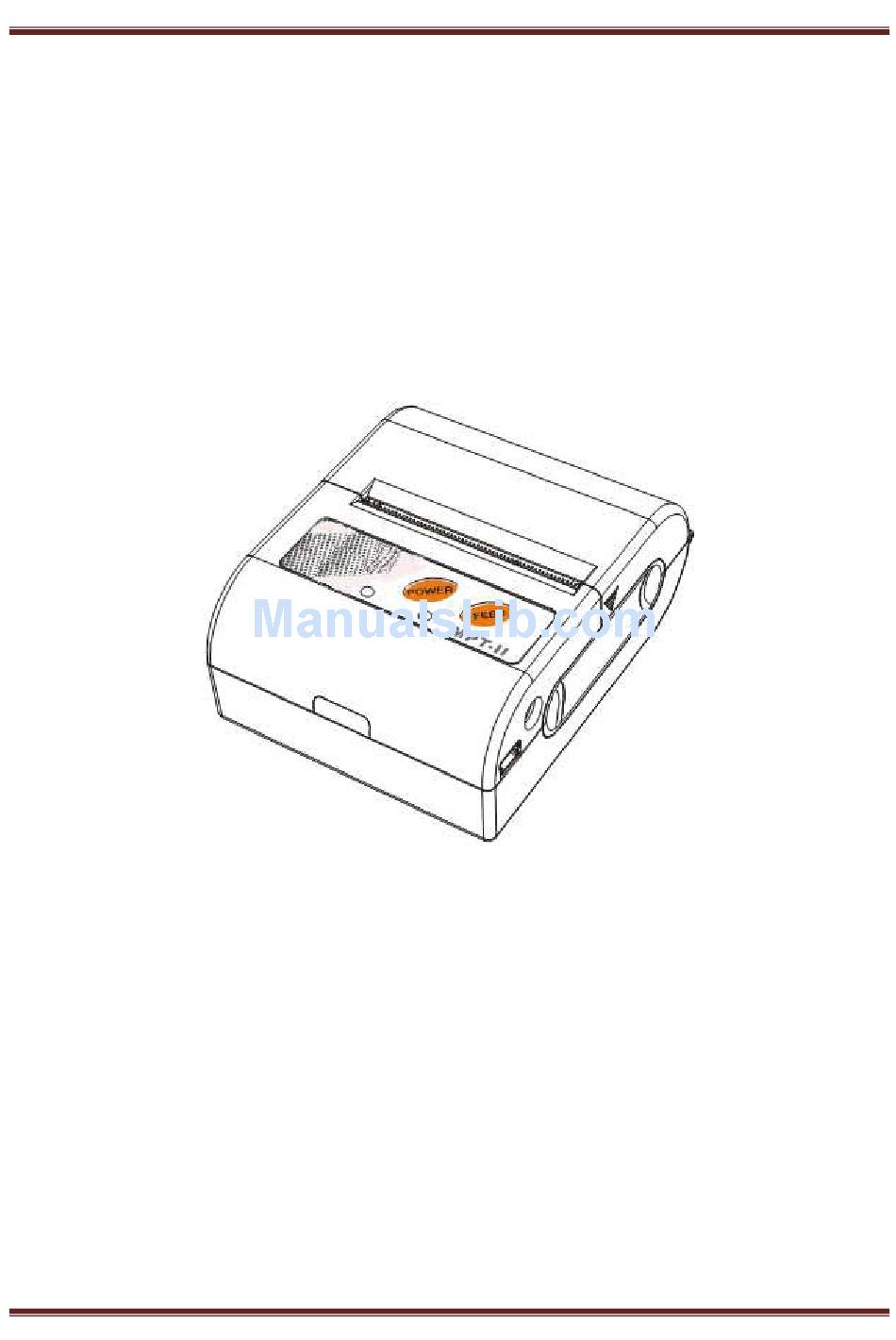

- Page 1 MPT-II User Manual Xiamen Hanin Electronic Technology Co.Ltd. ADD: Room 305A,Angye Building,Pioneering Park, Torch High-tech Zone,Xiamen,China 361009 Tel.： +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com...
- Page 2 MPT-II User Manual REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2013.11.28 Chen weihua Lin yang Ren xiaowei www.hprt.com...
-
Page 3: Statement
MPT-II User Manual Statement This manual content may be altered without permission, and Xiamen Hanin Electronic Technology Co., Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co., Ltd. -
Page 4: Table Of Contents
MPT-II User Manual Contents Statement ···················································································································· 3 Precautions ·················································································································· 5 1.Safety Precautions ····························································································· 5 2. Operation Precautions ······················································································ 5 3. Storage Precautions·························································································· 6 4. Battery Safety Precautions ··············································································· 6 Chapter 1 Brief Introduction ························································································ 8 1.1Appearance ····································································································· 8 1.2 Accessories ····································································································· 9 Chapter 2 Specifications ·····························································································... -
Page 5: Precautions
MPT-II User Manual Precautions 1.Safety Precautions 1) Be sure to use the specified battery and power source provided by our company. 2) Connection to an improper power source may cause fire, explosion or damage to the printer. 3) Don’t put the battery into the fire or water, don’t disassemble or modify the battery, don’t be short circuit, otherwise may result in injury or fire even... -
Page 6: Storage Precautions
MPT-II User Manual 9) Be sure to use up the power of the battery before charge it, as it can ensure the using life of the battery. 3. Storage Precautions 1) The printer should be placed in such an environment that the temperature is between-20℃... - Page 7 MPT-II User Manual material and/ or damage safety devices or safety equipment, then ignite electrolytic solution, and cause the battery overheat, burning and / or explosion. 9) Do not use the battery with contrary (+) and (-) Location. In the charging process, this will cause the reverse charging and may cause abnormal chemical reaction.
-
Page 8: Chapter 1 Brief Introduction

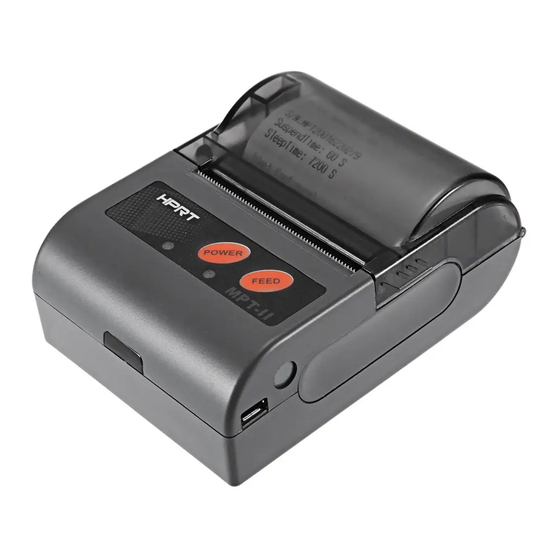

MPT-II User Manual Chapter 1 Brief Introduction 1.1Appearance 1) Feed button 2) Status indicator 3) RS232 serial socket 4) Infrared ray (IR) interface 5) Top cover 6) Power on/off 7) Charging indicator 8) Power input 9) Li-ion battery cover Notice: Two LED indicators are under button with different definition by red and blue two color. -
Page 9: Accessories
MPT-II User Manual 1.2 Accessories Standard accessories Li-ion battery Power Adapter Paper USB cable Optional accessories Leather case Serial interface cable www.hprt.com... -
Page 10: Chapter 2 Specifications
MPT-II User Manual Chapter 2 Specifications 2.1 Printing specifications 1) Printing method: Line thermal 2) Paper width: 56mm 3) Paper thickness: 60 80 m 4) Valid printing width: 48 mm 5) Resolution: 8 dot/mm (230 dpi) 6) Dot /line: 384 dots... - Page 11 MPT-II User Manual 7) Battery full charge time: 2 to 4 hours. 8) Battery duration: under 12.5% print density, at least 100 to 200 meters, under 25% print density, at least 80 to 100 meters, the standby time is over 15 days.
-
Page 12: Chapter 3 Operation Methods
MPT-II User Manual Chapter 3 Operation Methods 3.1 Preparation before using 3.1.1 Li-ion battery installation 1) Refer to the picture, put the battery in the battery slot, pls pay attention to the correct positive and negative. 2) Close the battery case. -
Page 13: Basic Function
MPT-II User Manual 3.2 Basic Function 3.2.1 Printer on The printer is powered on by pressing the power button; the power indicator is on with red color whenever the printer is on. Notice: when the batter is almost exhausted, the power indicator blinks with blue color, in this case, you must charge the battery by using the adaptor. -
Page 14: Interface And Printing
3.3.2 Infrared ray (IR) & IrDA interface MPT-II can be connected to your main device through IR, RAW-IR and IrDA can not be available at the same time. Reset the printer if it is not the model you want. -
Page 15: Led Indicator And Buzzer Definition
MPT-II User Manual 3.4 LED indicator and Buzzer definition There are one buzzer and two LED indicators to indicate the printer status. LED indicators indicate current status and buzzer indicates the changes of status. Remarks Status LED indicator blue LED indicator (red... - Page 16 MPT-II User Manual 2) Click Install 3) Choose the printer port and printer type you need and click “OK” to next step. 4) Click “Finish” . A successful installation www.hprt.com...
-
Page 17: Chapter 4 Other Information
MPT-II User Manual Chapter 4 Other information 4.1 Printer technical manual Pls refer to MPT-II technical manual. 4.2 Preprinted black mark specification If user wants to locate receipt by detecting preprinted black mark, shall accord to the following specification for the black mark. Otherwise it may cause printer can’t recognize the black mark.
