HPRT MPT-II User Manual

2inch Mobile Thermal Printer
MPT-II
User Manual
Xiamen Hanin Electronic Technology Co.,Ltd.
ADD: Room 305A, Angye Building, Pioneering Park,
Torch High-tech Zone, Xiamen, China 361009
TEL: +86-(0)592-5885993
FAX: +86-(0)592-5885992
WEB：www.hprt.com
1.3 Storage Precautions
1) The printer should be placed in such an environment that the temperature is
between -40℃ and +60℃, and the relative humidity is ≤93%RH(40°C) .
2) If the printer will be stored for a long time, please be sure to take out the
battery, otherwise may damage the battery and printer.
3) Normal thermal paper can't be kept too long, if you need to keep the receipt
for a long period, please choose long term effective thermal paper.
4) The print paper should be keep away from high temperature environment and
point-blank sunshine.
1.4 Battery Safety Precautions
Be sure to carefully read the user manual before using the product.
Ignore the following instructions may cause battery overheating, fire,
explosion, damage and/or performance, and reduced product life.
1) Do not allow water, sea water from entering or leaking into the
battery inside. If the batteries internal safety device burn, when charging it, it
may produce any abnormal current and/or voltage, and cause any abnormal
chemical reaction, then may cause the battery overheating, fire and/or
explosion.
2) Do not use or place the battery nearby the stove or other high temperature places.
Excessive heat maybe damage the resin shell and/or the insulation materials,
thereby cause short-circuit inside the battery, then the battery may be caused
overheating, burning and/or explosion.
3) When charging, use a specified charger. Other conditions (high
temperature, high pressure/high current, using the modified battery
charger, etc.) excluded here may result in over-charging the battery and
abnormal current and/or voltage , cause abnormal chemical reaction, and may
cause the battery overheat, light and/or explosion.
4) Battery clearly marks with positive and negative. When connect the battery
with the charger and/or printer, be sure to verify the correct battery orientation.
Reverse insertion will cause the reverse charging and may cause abnormal
chemical reaction, and then may cause the battery overheat, ignite, and/or
explosion.
5) Do not make the battery contact with the power outlet and/or car cigarette
lighter socket. This may cause high pressure and excessive current, and lead to
the battery overheat, burning and/or explosion.
6) Do not heat the battery or put the battery into fire. This may melt
insulation material and/or damage safety devices or safety equipment , then
ignite electrolytic solution, and cause the battery overheat, burning and/or
explosion.
-2-
CONTENTS
1. Precautions·············································································································1
1.1 Safety Precautions··························································································1
1.2 Operation Precautions····················································································1
1.3 Storage Precautions························································································2
1.4 Battery Safety Precautions·············································································2
2. Brief Introduction ······················································································ ·············4
2.1 Appearance ····································································································4
2.2 Accessories ····································································································4
2.1.1 Standard Accessories···········································································4
3. Specifications..........................................................................................................5
4. Operation Methods································································································6
4.1 Preparation Before Using ··············································································6
4.1.1 Li-polymer Battery Installation ····························································6
4.1.2 Paper Loading ·······················································································6
4.2 Basic Function································································································7
4.2.1 Printer On ·····························································································7
4.2.2 Printer Off ·····························································································7
4.2.3 Self-test ·································································································7
4.2.4 Paper Feeding ·······················································································7
4.2.5 Battery Charging ···················································································7
4.3 Interface and Printing ···················································································8
4.3.1 Serial Interfaces ···················································································8
4.3.2 Bluetooth ·····························································································8
4.4 LED Indicator and Buzzer Definition ····························································9
4.5 Software Tools of MPT-II ············································································10
5. Other Information ······························································································10
5.1 Printer Technical Manual ··········································································10
5.2 Preprinted Black Mark Specification·························································10
7) Do not use the battery with contrary (+) and (-) Location . In the charging
process , this will cause the reverse charging and may cause abnormal chemical
reaction. During use, may appear unpredictable current exception, and cause the
battery overheat, ignite, and/or explosion.
8) Do not make the battery (+) and (-) contact with any metal. Also, do not
carry along or store batteries with metal objects, such as necklaces , hair clips
and so on. Battery internal short circuit may cause excessive current, and lead
to the battery overheat, ignite, and/or explosion and the adjacent metal
objects (necklaces, hairpins, etc.) may be overheating.
9) Do not throw or heavy attack the battery . If internal safety device of the
batteries burn, the battery charging may cause any abnormal current
and/or voltage, and abnormal chemical reaction, and lead to the battery
overheat, ignite, and/or explosion.
-3-
1.Precautions
1.1 Safety Precautions
1）Be sure to use the specified battery and power source provided by our
company . Connection to an improper power source may cause fire, explosion
or damage to the printer.
2）Don't put the battery into the fire or water , don't disassemble or
modify the battery, don't be short circuit, otherwise may result in injury or fire
even explosion.
3）If the printer would not be used for a long time, be sure to take off the
battery, otherwise the battery may leak liquid which is corrosive, if improper
operation causes battery leak, and the liquid is spattered on the skin or
clothes, please wash it with water, if spattered in the eyes, please rinse them
with water thoroughly and see a doctor.
4）Please do not open the paper case cover when it is printing or just when
printing is over, do not touch the print head with hand or body, overheat
may cause scald.
1.2 Operation Precautions
1）Water or other liquid should not spill into the printer, also the printer should
not be appeared in the rain, or else may cause printer damage.
2）Please do not open the paper case cover when it is printing, otherwise the
printer may work improperly.
3）If print with serial interface, should not unplug the interface cable in the
course of printing, or else some printing data may be lost.
4）When print in Ir or IrDA mode, be sure the Ir window of the host equipment face
rightly the Ir window of the printer, the distance should be within the range
of 50cm, and the angle should be within the range of 30°.
5）When print with Bluetooth interface, the communication distance
should be within 10 meters, otherwise the printer doesn't print or prints
rubbish codes.
6）Too high （50℃） or too low （-5℃） temperature and too high (80％) or too
low (25％) relative humidity both effect the print quality.
7）The print paper in poor quality or stored for too long time also may reduce
the print quality even damage the printer.
8）In the black mark detecting mode, the printer requires that the preprinted black
mark is accordant with the black mark specifications (details please refer to 5.2),
otherwise the black mark can not be detected correctly.
9）Be sure to use up the power of the battery before charge it, as it can ensure
the using life of the battery.
-1-
2. Brief Introduction

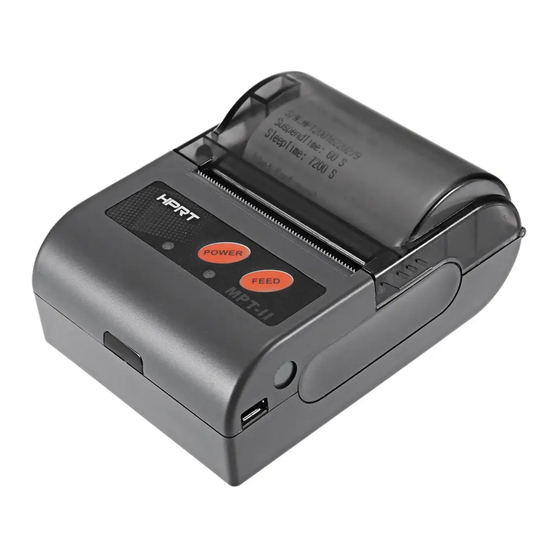

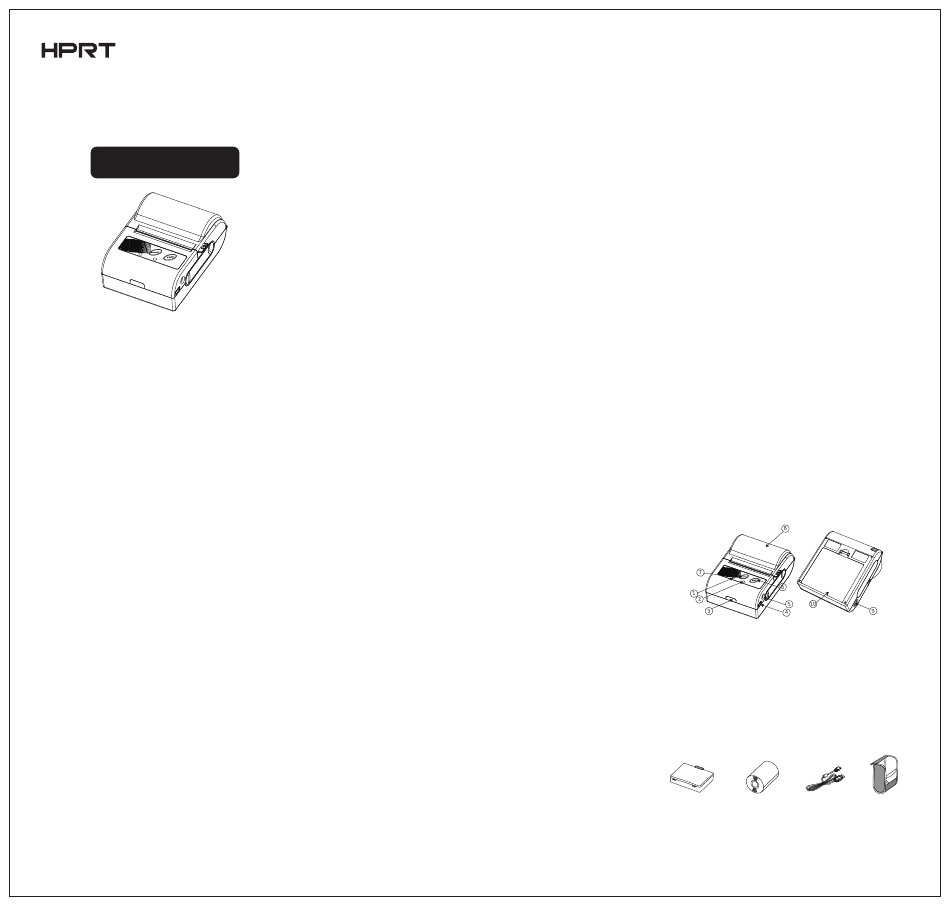

2.1 Appearance
1.Power Indicator 6.FEED Button
2.Status Indicator 7.Power On/Off
3.Infrared Ray (IR) Interface 8.Top Cover
4.USB Interface 9.RS232 Interface
5.Power Input 10.Li-ion Battery
2.2 Accessories
2.2.1 Standard Accessories
Paper Roll USB Cable
Li-ion Battery
-4-
Leather Case
