HPRT MPT-III User Manual

Mobile Thermal Printer
MPT-III
User Manual
Xiamen Hanin Electronic Technology Co.,Ltd.
ADD: Room 305A, Angye Building, Pioneering Park,
Torch High-tech Zone, Xiamen, China 361009
TEL: +86—(0)592-5885993
FAX: +86—(0)592-5885992
WEB: www.hprt.com
preprinted black mark is accordant with the black mark specifications
(details please refer to 4.2), otherwise the black mark can not be detected
correctly.
9) Be sure to use up the power of the battery before charge it, as it can ensure
the using life of the battery.
3.Storage Precautions
1) The printer should be placed in such an environment that the
temperature is between -20℃ and 70℃, and the relative humidity is
between 5% and 95%.
2) If the printer will be stored for a long time, pleas be sure to take out the
battery, otherwise may damage the battery and printer.
3) Normal thermal paper can't be kept too long, if you need to keep the receipt
for a long period, please choose long term effective thermal paper.
4) The print paper should be keep away from high temperature environment
and point-blank sunshine.
4.Battery Safety Precautions
Be sure to read the user manual carefully before using the product.
Ignore the following instructions may cause battery overheating, fire,
explosion, damage and/or performance, and reduced product life.
1) Do not allow water, sea water from entering or leaking into the
battery. If the batteries internal safety device burn, when charging it, it
may produce abnormal current and/or voltage, or abnormal chemical
reaction when charging it, then may cause the battery overheating, fire
and / or explosion.
2) Do not use or place the battery nearby the stove or other high
temperature places. Excessive heat maybe damage the resin shell and/or
the insulation materials, there by cause short-circuit inside the
battery, then the battery may be overheated, burning and/or
explosion.
3) When charging, use a specified charger. Other conditions ( high
temperature, high pressure/high c urrent, using the modified
battery charger,etc.) excluded here may result in overcharging the battery
and abnormal current and/or voltage, cause abnormal chemical reaction ,
and may cause the battery overheat, lightand/or explosion.
4) Battery clearly marks with positive and negative. When connect the
battery with the charger and/or printer, be sure to verify the correct battery
orientation. Reverse insertion will cause the reverse charging and may cause
-2-
Contents
Precautions············································································································1
1. Safety Precautions········································································································1
2. Operation Precautions·································································································1
3. Storage Precautions······································································································2
4. Battery Safety Precautions ··························································································2
Chapter 1 Brief Introduction ································································· ························4
1.1 Appearance ·······································································································4
1.2 Accessories ··········································································································4
Chapter 2 Specifications ····························································································5
Chapter 3 Operation Methods·····················································································6
3.1 Preparation Before Using ··············································································6
3.1.1 Li-ion Battery Loading ···············································································6
3.1.2 Paper Loading ·······················································································6
3.2 Basic Function··································································································· 6
3.2.1 Printer On ······························································································ 6
3.2.2 Printer Off ·························································································· 7
3.2.3 Self-test ································································································· 7
3.2.4 Paper Loading ···················································································· 7
3.2.5 Battery Charging ················································································ 7
3.3 Interface and Printing ······················································································ 8
3.3.1 Serial Interface ···················································································8
3.3.2 Infrared Ray(IR)&IrDA Interface ························································8
3.4 LED Indicator and Buzzer Definition ······························································· 9
3.5 Software Tools of MPT-III ··············································································· 9
Chapter 4 Other Information ·························································································10
4.1 Printer Technical Manual ···············································································10
4.2 Preprinted Black Mark Specification······························································10
abnormal chemical reaction, and then may cause the battery overheat, ignite, and
/ or explosion.
5) Do not make the battery contact with the power outlet and/ or car cigarette
lighter socket.This may cause high pressure and excessive current , and
lead to the battery overheat, burning and/or explosion.
6) Do not heat the battery or put the battery into fire. This may melt
insulation material and/or damage safety devices or safety equipment,
then ignite electrolytic solution , and cause the battery overheat,
burning and/or explosion.
7) Do not use the battery with contrary (+) and (-) location. In the charging
process, this will cause the reverse charging and may cause abnormal
chemical reaction. During use, may appear unpredictable current
exception, and cause the battery overheat, ignite, and/or explosion.
8) Do not make the battery (+) and (-) contact with any metal. Also, do not
carry along or store batteries with metal objects, such as necklaces, hair
clips and so on. Battery internal short circuit may cause excessive current,
and lead to the battery overheat, ignite, and/or explosion and the adjacent
metal objects (necklaces, hairpins, etc.) may be overheating.
9) Do not throw or attack the battery heavily. If internal safety device of the
batteries burn, the battery charging may cause any abnormal current and/
or voltage, and abnormal chemical reaction, and lead to the battery
overheat, ignite, and/or explosion.
-3-
Precautions
1.Safety Precautions
1) Be sure to use the specified battery and power source provided by our
company. Connection to an improper power source may cause fire,
explosion or damage to the printer.
2) Don't put the battery into fire or water, don't disassemble or modify the
battery, don't be short circuit, otherwise may result in injury or fire or even
explosion.
3) If the printer would not be used for a long time, be sure to take off the
battery, otherwise the battery may leak liquid which is corrosive, if
improper operation causes battery leak, and the liquid is spattered on
the skin or clothes, please wash it with water, if spattered into the eyes, please
rinse them with water thoroughly and see a doctor.
4) Please do not open the paper case cover when it is printing or just when
printing is over, do not touch the print head with hand or body, overheat
may cause scald.
2.Operation Precautions
1) Water or other liquid should not spill into the printer, also the printer should
not be expose to the rain, or else may cause printer damage.
2) Please do not open the paper case cover when it is printing, otherwise the
printer may work improperly.
3) If print with serial interface, should not unplug the interface cable in the
course of printing, or else some printing data may be lost.
4) When print in Ir or IrDA mode, be sure the Ir window of the host
equipment face rightly the Ir window of the printer, the distance should
be within the range of 50cm, and the angle should be within the range of
30 .
5) When print with Bluetooth interface, the communication distance
should be within 10 m eters, otherwise the printer doesn't print or prints
rubbish codes.
6) Too high ( 40℃) or too low ( 0℃) temperature and too high (85%) or too low
(20%) relative humidity both effect the print quality.
7) The print paper in poor quality or stored for too long time also may
reduce the print quality even damage the printer.
8) In the black mark detecting mode, the printer requires that the
-1-

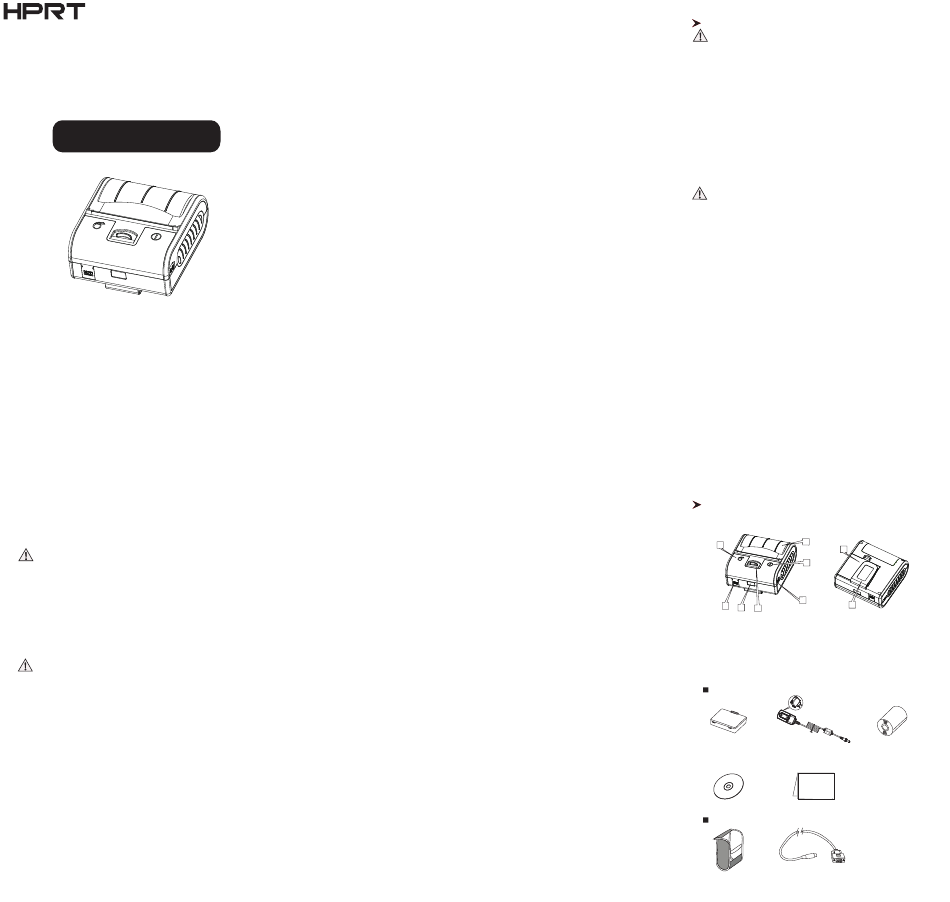

Chapter 1 Brief Introduction

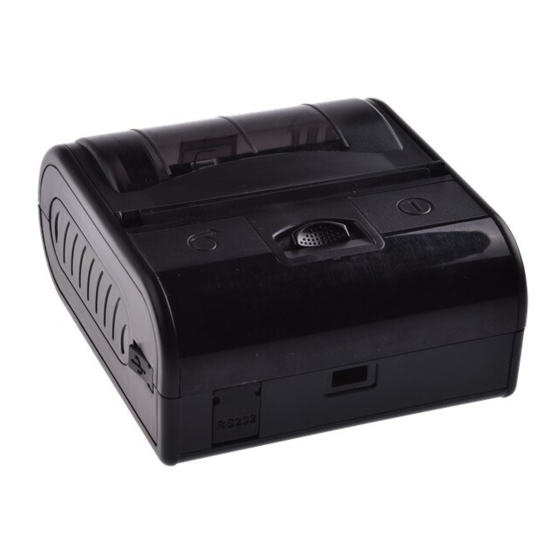

1.1 Appearance
6
1
8
5
4
9
2
3
7
1) Feed On/Off and Blue Status Indicator
6) Top Cover
2) RS232 Serial Interface
7) Cover Open Button
3) Infrared Ray(IR) Interface(optional)
8) Li-ion Battery Cover
4) Power Input 9) Buckle
5) Power On/Off and Red Power Indicator
1.2 Accessories
Standard accessories
Power Adapter
Li-ion Battery
Varies by local or region
User Manual
CD User Manual
Optional accessories
Leather Case Serial Interface Cable
-4-
Paper Roll
