- Page 1 MPT-II User Manual Xiamen Hanin Electronic Technology Co.,Ltd. ADD: Room 305A,Angye Building, Pioneering Park, Torch High-tech Zone, Xiamen, China 361009 Tel: +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com...
- Page 2 REVISION RECORDS REV. DATE DESCRIPTION DRAWN CHECKED APPROVED 2014.08.06 Preliminary Chen Weihua Yang Kaiqu Ren Xiaowei 1.Updated the driver 2014.12.05 2.Added the pin assignment of Cui Xiao Yang Kaiqu Ren Xiaowei interface 1.Modify the printing speed;(P5) 2.Modify the font of character set;(P5) 3.Modify the memory of 2015.12.30...
- Page 3 3.2.6 No Paper Alarming...................8 3.2.7 Battery Charging ..................8 3.3 Bluetooth ......................9 3.4 LED Indicator and Buzzer Definition..............10 3.5 Software Tools of MPT-II ................... 10 CHAPTER 5 OTHER INFORMATION................. 11 5.1 Printer Technical Manual .................. 11 5.2 Preprinted Black Mark Specification..............11 CHAPTER 6 CLEAN PRINTER ....................
-
Page 4: Precautions
MPT-II User Manual PRECAUTIONS 1. Safety Precautions 1) Be sure to use the specified battery and power supply provided by our company. 2) Connection to an improper power supply may cause fire, explosion or damage to the printer. 3) Don’t put the battery into the fire or water, don’t disassemble or modify the battery, don’t be short circuit, otherwise may result in injury or fire even... -
Page 5: Battery Safety Precautions
MPT-II User Manual 4) The print paper should be keep away from high temperature environment and point-blank sunshine. 4. Battery Safety Precautions 1) Be sure to carefully read the user manual before using the product. 2) Ignore the following instructions may cause battery overheating, fire, explosion, damage and/or performance, and reduced product life. - Page 6 MPT-II User Manual hairpins, etc.) may be overheating. 11) Do not throw or heavy attack the battery. If internal safety device of the batteries burn, the battery charging may cause any abnormal current and/or voltage, and abnormal chemical reaction, and lead to the battery overheat, ignite, and/or explosion.
-
Page 7: Chapter 1 Brief Introduction

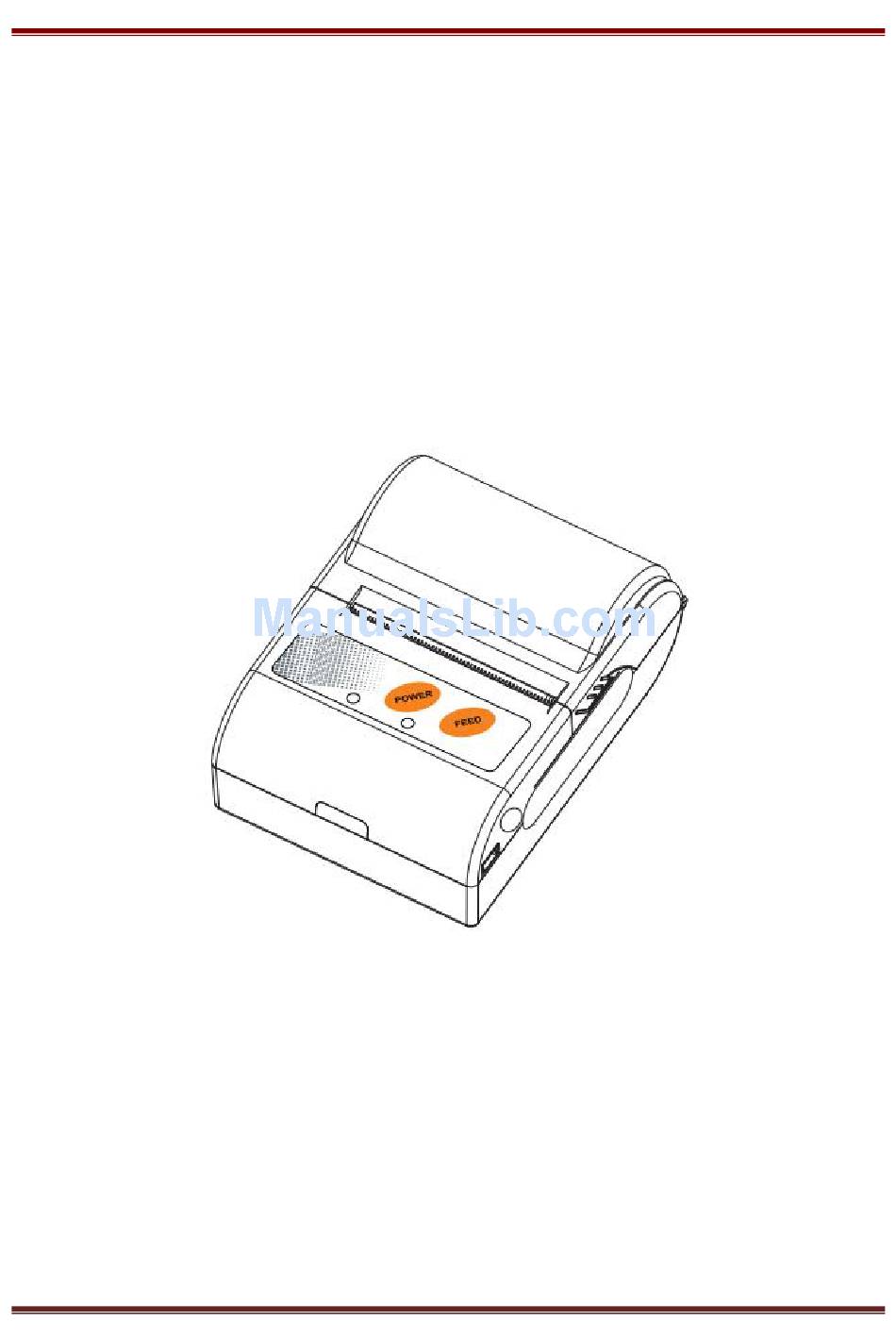

MPT-II User Manual CHAPTER 1 BRIEF INTRODUCTION 1.1 Appearance 1.2 Accessories Standard accessories Optional accessories Rev.1.2 www.hprt.com... -
Page 8: Chapter 2 Specifications
MPT-II User Manual CHAPTER 2 SPECIFICATIONS Item Parameter Printing method Thermal line printing Resolution 203dpi, 8dots/mm Printing Printing speed 30~50mm/s Valid printing width 48mm Interface Bluetooth,RS-232,USB(optional) Power saving Sleep mode ASCII: 12×24 Character Set Font GBK: 24×24 UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR,... -
Page 9: Chapter 3 Operation Methods
MPT-II User Manual CHAPTER 3 OPERATION METHODS 3.1 Preparation Before Using 3.1.1 Li-ion Battery Installation 1) Refer to the picture, put the battery in the battery slot, pls pay attention to the correct positive and negative. 2) Close the battery case. -
Page 10: Basic Function
“MPTTools”. 3.2.5 Standby/Sleep MPT-II has auto-sleep and auto-wake up function to save the battery power. When the printer is power on, but during the pre-set standby time, no data is sent to the printer, no operation is done to the printer , it will enter auto standby mode.When the printer enters auto standby mode, the power indicator will show in red. -
Page 11: No Paper Alarming
3.2.6 No Paper Alarming MPT-II printer has the paper sensor to detect the paper end or not. If the printer has no paper, the function indicator and power indicator will flash slowly. If the paper is used up when the printer is doing the printing duty, the printer will continue to print the unfinished printing duty when a new paper id loaded. -
Page 12: Bluetooth
MPT-II. Instructions as follows: 1. Power on printer. 2. primary device search for outer Bluetooth devices. 3. If there are some outer Bluetooth devices, choose MPT-II. 4. Enter password “0000”. 5. Finish matching. Detailed pairing methods, please refer to primary devices Bluetooth Names. -
Page 13: Led Indicator And Buzzer Definition
Enter to the parameter setting mode Four times Download the Font library 3.5 Software Tools of MPT-II There is software which called MPTTools which is the software to set the printer parameters, and used to set the printer Bluetooth device name and password, Standby Time, Sleep Time, Max Feed Length and so on. -
Page 14: Chapter 5 Other Information
MPT-II User Manual CHAPTER 5 OTHER INFORMATION 5.1 Printer Technical Manual Please refer to MPT-II technical manual. 5.2 Preprinted Black Mark Specification If user wants to locate receipt by detecting preprinted black mark, shall accord to the following specification for the black mark. Otherwise it may cause printer can’t recognize the black mark. -
Page 15: Chapter 6 Clean Printer
MPT-II User Manual CHAPTER 6 CLEAN PRINTER 6.1 Cleaning Head Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※NOTE:...
