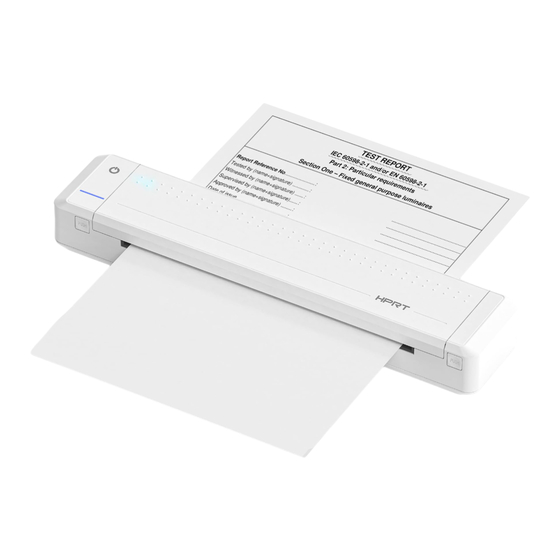

HPRT MT866 Quick Start Manual

HPRT MT866 Quick Start Manual

Portable printer wireless for travel
Hide thumbs Also See for MT866:

Advertisement

Quick Links

Quick Start Guide
MT866
Manufacturer: Xiamen Hanin Electronic Technology Co.,Ltd.
Add: No.96, Rongyuan Road, Tong'an District, Xiamen, China,
361100
E-mail: support@hprt.com
Web: www.hprtprinter.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT866 and is the answer not in the manual?

Questions and answers

Summary of Contents for HPRT MT866

  • Page 1 Quick Start Guide MT866 Manufacturer: Xiamen Hanin Electronic Technology Co.,Ltd. Add: No.96, Rongyuan Road, Tong'an District, Xiamen, China, 361100 E-mail: support@hprt.com Web: www.hprtprinter.com...
  • Page 3 Content Quick Start Guide -------- 取扱説明書 -----------------...
  • Page 4: Packing List

    Packing List Printer Thermal Bracket USB Cable Protective Case Thermal Paper Quick Start Guide -01-...
  • Page 5: Appearance And Components

    Appearance and Components Front View Power Button Top Cover Indicator Left Cover Paper Inlet Right Cover Opening Button Opening Button Left View Connection Status Indicator USB Type-C Interface -02-...
  • Page 6: Led Indicator

    Inner View Right Out-of-paper Left Out-of-paper Sensor Sensor Right Left Paper Paper Position Position Sensor Sensor Thermal Bracket LED Indicator White LED indicator is lighting: Printer is turned on. Green LED indicator is lighting: Printer is in charging mode, and green LED indicator will be off...
  • Page 7: Print Self-Test Page

    Print Self-test Page In the turned on state, loading the thermal paper, press the power button 3 times to print a self-test page of the printer. Power On Hold down the power button for 3 seconds to turn on the printer. To turn off...
  • Page 8: Paper Loading

    Paper Loading Put the thermal paper into the paper inlet in parallel with the thermal side down. The printer will feed a distance automatically after detecting the paper. Thermal Side Down Note: If the buzzer sounds once when paper feeding stops, it shows that the paper is loaded successfully.
  • Page 9 Scan the QR code to download the APP. 2. Connect with the printer ① Open App, click "Connect printer", and "Connect" with "HPRT MT866-XXXX"(XXXX are last four digits of Bluetooth address); ② If the APP can't find the printer, please open "Settings"-"Bluetooth" on your phone and connect with the printer first, and then return to APP and...
  • Page 10 3. Print ① Open the document you want to print, and copy/share it to APP. (Or click “Documents” on Home to choose the document.) ② Adjust it in Print preview, and click “Print” to print it. -07-...
  • Page 11: Printing From Computer

    2. Turn on the printer; 3. Download the printer driver from the website: www.hprt.com/HPRT-MT866 And then install it on the computer; 4. Choose the document you want to print and print it via printer “HPRT MT866” . -08-...
  • Page 12: Battery Charging

    Battery Charging When the printer is in low power, the green LED indicator will flash. Please use matching USB cable to charge in time. If you continue printing, the printer may shut down automatically. ① Charging by computer ② Charging by adapter -09-...
  • Page 13 Precautions 1. The best operating temperature is 0℃~40℃, if the environmental temperature is too low or too high, the print quality may be affected. 2. Please do not use the unofficial paper to ensure the print quality. 3. During printing, the area around the print head is very hot.
  • Page 14 箱入り プリンター サーマルブラケッ ト USBケーブル 保護収納ケース 感熱紙 取扱説明書 -11-...
  • Page 15 外見及び各部の名 前から 電源ボタン トップカバー 指示 ランプ 左カバーオ 給紙口 右カバーオ ープンボタン ープンボタン 左から 接続状 態ランプ USB Type-C インタフェース -12-...
  • Page 16 内部から 右側の用紙 左側の用紙 切れセンサー 切れセンサー 右側用 左側用 紙位置 紙位置 センサー センサー サーマルプリン トヘッ ド サーマルブラケッ ト 指示ランプ 白いランプが点灯: 電源オン 緑ランプが点灯: プリンターが充電中、 充電完了時に緑ラン プが消灯になります。 赤ランプが点滅: プリンタカバーが開いている 注意: 指示ランプとブザーの状態の詳細に ついては、 メールでカスタマーサービスに 連絡してください。 -13-...
  • Page 17 セルフテストページの印刷 電源を入れた状態で、 感熱紙をセッ トし、 電 源ボタンを3回押すと、 プリンタのセルフテス トページが印刷されます。 電源オン 電源ボタンを3秒間押してプリンタを起 動されます。 プリンタを閉じるには、 電源ボタンを3秒 間押し続けます。 -14-...
  • Page 18 用紙の入れ方法 感熱紙を給紙口に入れて、 感熱紙の面を下 にします。 用紙が検出されると、 プリンタは自 動的にフィードできます。 感熱層は下向き 注意: 給紙停止時にブザーが1回鳴った場合 は、 用紙の装填に成功したことを示します。 ブザーが鳴り続け、 赤ランプが点滅している 場合は、 カバーを開けて用紙を再装着して ください。 -15-...
  • Page 19 スマホで印刷 1. APPダウンロード QRコードをスキャンしてAPPをダウンロー ドします。 ① APPを開き、 「 プリンタに接続」 をクリ ック し、 「 HPRT MT866-XXXX」 ( XXXXは Bluetoothアドレスの最後の4桁) で 「接続」 をクリ ックしてください。 ② APPにプリンタが見つからない場合は、 まず携帯電話の設定→Bluetoothを開いて プリンタに接続し、 APPに戻り、 「 接続」 をク リ ックください。 -16-...
  • Page 20 3. 印刷 ① 印刷するドキュメン トを開き、 APPにコピ ー/共有できます。 ( または、 「 ホーム」 にある 「ドキュメン ト」 をクリ ックしてドキュメン トを 選択できます。 ) ② 印刷プレビューで調整し、 [印刷]をクリ ッ クしてプリン トします。 -17 -...
  • Page 21 パソコンで印刷 1. USBケーブルの一端をコンピュータに接 続し、 もう一端をプリンタに接続ください。 2. プリンターを起動してください。 3. 「www.hprt.com/HPRT-MT866」 のWeb サイ トからプリンタドライバをダウンロード し、 コンピュータにインストールしてくださ い。 4. 印刷するドキュメン トを選択し、 プリンタ 「 HPRT MT866」 で印刷します。 -18 -...
  • Page 22 バッテリー充電 バッテリー残量が足りない場合は、 緑色の ライ トが速く点滅になります。 同梱のUSBで 充電してくだい。 続けて印刷すると自動シャ ッ トダウンとなります。 ① パソコンから充電 ② アダプターによる充電 -19-...
  • Page 23 注意事項 1. 最適な動作温度は0℃~ 40℃であり、 環 境温度が低すぎたり、 高すぎたりすると、 印 刷品質に影響を与える可能性があります。 2. 印刷品質を確保するために、 非公式の用 紙を使用しないでください。 3. 印刷中、 印刷ヘッ ドの周囲は非常に熱い です。 やけどをしないように触らないでくだ さい。 4. 印刷中に用紙を強く引き出しないでくだ さい。 プリンタが破損する可能性があります 。 -20-...
  • Page 24: Fcc Warning

    FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
  • Page 27 Please Scan QR Code to Get 24h After-sales Technical Support Service Search “HPRT Official ” on YouTube to Get Instruction Videos HPRT YouTube Website Search “HPRT Official ” on Facebook to Get Extra Consumables of Printer HPRT Facebook Website...
