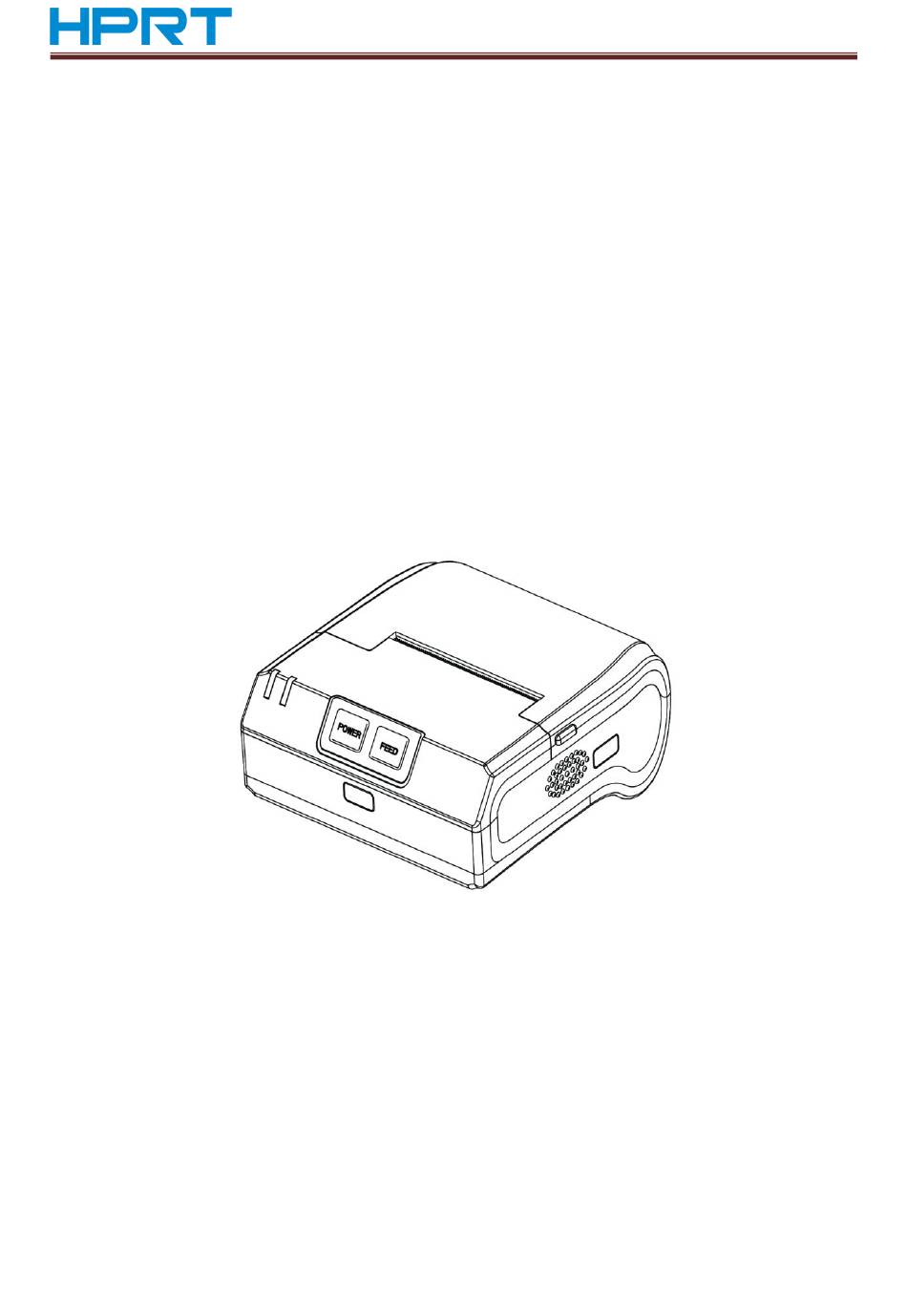

- Page 1 MPD2 User Manual MPD2 User Manual Xiamen Hanin Electronic Technology Co.Ltd. ADD: Room 305A, Angye Building , Pioneering Park, Torch High-tech Zone, Xiamen , China 361009 Tel.: +86-(0)592-5885993 Fax: +86-(0)592-5885992 Web: www.hprt.com...
- Page 2 MPD2 User Manual REVISION RECORDS REV. DATE DESCRIPTION Drawn Checked Approved 2013.04.10 First edition Chen Weihua Lin Y0ang Ren Xiaowei 1.Some changes about "descriptions 2013.06.07 of replace the ribbon" on P11. Chen Weihua Lin Yang Ren Xiaowei 1.Some changes about "descriptions of replace the ribbon"...
- Page 3 MPD2 User Manual Statement This manual content may be altered without permission, and Xiamen Hanin Electronic Technology Co.,Ltd. reserves the rights to make changes without notice in technology, spare parts, hardware and software of the products. If more information is needed about the products, please contact Xiamen Hanin Electronic Technology Co.,Ltd.
-
Page 4: Table Of Contents
MPD2 User Manual Content Precautions ............................. 1 1. Safety Precautions........................1 2. Operation Precautions.........................1 3. Storage Precautions........................1 4. Battery Safety Precautions......................2 Chapter 1 Appearance and Accessories....................3 1.1 Appearance..........................3 1.2 Packing List..........................4 Chapter 2 Specification........................5 Chapter 3 Method of Application......................6 3.1 the Preparation Before Using.................... -
Page 5: Precautions
MPD2 User Manual Precautions 1. Safety Precautions 1) Be sure to use the specified battery and power source provided by our company. Connection to an improper power source may cause fire, explosion or damage to the printer. 2) Don’t put the battery into the fire or water, don’t disassemble or modify the battery, don’t be short circuit, otherwise may result in injury or fire even explosion. -
Page 6: Battery Safety Precautions
MPD2 User Manual period, please choose long term effective thermal paper. 4) The print paper should be keep away from high temperature environment and point-blank sunshine. 4. Battery Safety Precautions Be sure to read carefully the user manual before using the product. Ignore the following instructions may cause battery overheating, fire, explosion, damage and / or performance, and reduce product life. -
Page 7: Chapter 1 Appearance And Accessories
MPD2 User Manual Chapter 1 Appearance and Accessories 1.1 Appearance 1.Li-ion Battery Cover 2.Infrared Interface 3.Charging Interface 4.USB/RS232 Interface 5.Function Indicator 6.Power Indicator 7.Power Button 8.Feed Button 9.Top Cover 10.Infrared Ray (IR) Interface 11.Bottom Case 12.Paper Cover www.hprt.com... -
Page 8: Packing List
MPD2 User Manual 1.2 Packing List www.hprt.com... -
Page 9: Chapter 2 Specification
MPD2 User Manual Chapter 2 Specification Model MPD2 Physical parameters Dimension 106*96*45（L*W*H）mm Weight 257g（without paper roll） Paper roll diameter ≤40mm Print specs. Printing method Dot-matrix printing Valid printing width 57.5±0.5mm Dots/line 144dots Printing speed 7mm/s Paper thickness 0.06~0.085mm Copy capability... -
Page 10: Chapter 3 Method Of Application
Chapter 3 Method of Application 3.1 the Preparation Before Using 3.1.1 Install Battery The MPD2 is supplied by battery, please install battery before using the printer. As in the following figures: 1.Keeping printer inversion and open the battery cover. 2.Install the battery into battery cover, please pay attention direction of anode and cathode. -
Page 11: Install Printer Paper
6) The receipt have to be tear after the printing, the MPD2 has a teeth design for convenient to tear the paper, Please pay attention to the paper tearing angel, using too much power will lead the printing paper out from the paper storehouse. -
Page 12: Printing The Selftest Page
MPD2 User Manual printer will power off if it is working before. Please make sure weather the printer is power on or not, if the printer will not work for a long time, please power off the printer to reduce the power consumption and extend the life of the printer. -
Page 13: Communication Interfaces
When MPD2 communicates with main devices, whose hardware also meets the regulation of IrDA 1.1 physical layer, make the IR interfaces ( from both MPD2 and main device ) right towards to each other ( angle shall not be more than 30°... -
Page 14: Bluetooth Interface
IrCOMM interface in MPD2 have the same hardware source, so they can‘t work at the same time. The original mode of MPD2 is IrCOMM. If you want to change IR interface mode, please refer to MPTTools modification setting. Details in 【3.5 Parameter setting】Detailed IrDA protocol, please refer to IrDA official website: http://www.irda.org/... -
Page 15: Other Functions
3.4 Other Functions 3.4.1 Sleep Mode To save electricity and prolong the using time, MPD2 printer adopts the technology of automatic dormancy. Printer will enter into Sleep mode if there is not any printing job for sleep time schedules in Ready mode. -
Page 16: Led Indicator And Buzzer Definition
MPD2 User Manual 3.6 LED Indicator and Buzzer Definition There are one buzzer and two LED indicators to indicate the printer status. LED indicators indicate current status and buzzer indicates the changes of status. Power indicator Function indicator Status (green) -
Page 17: Chapter 4 Other Information
MPD2 User Manual Chapter 4 Other Information 4.1 Printer Technical Manual Pls refer to MPD2 technical manual. 4.2 Preprinted Black Mark Specification If user wants to locate receipt by detecting preprinted black mark, shall accord to the following specification for the black mark. Otherwise it may cause printer can’t recognize the black mark.
