CIO-DIO24H User's Guide
Unpacking the CIO-DIO24H
As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the CIO-DIO24H from its packaging, ground yourself using a wrist strap or by
simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by
phone, fax, or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
Fax: 508-946-9500 to the attention of Tech Support
Email:
techsupport@mccdaq.com
Installing the software
Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data
Acquisition Software CD. This booklet is available in PDF at
Quick-Start.pdf.
Configuring the CIO-DIO24H
The CIO-DIO24H has a bank of base address-select switches, an interrupt level select jumper, and a wait-state
jumper. The InstaCal calibration and test program included with the CIO-DIO24H will show you how to
configure the board. Run InstaCal to verify or change their settings before installing the board in your
computer.

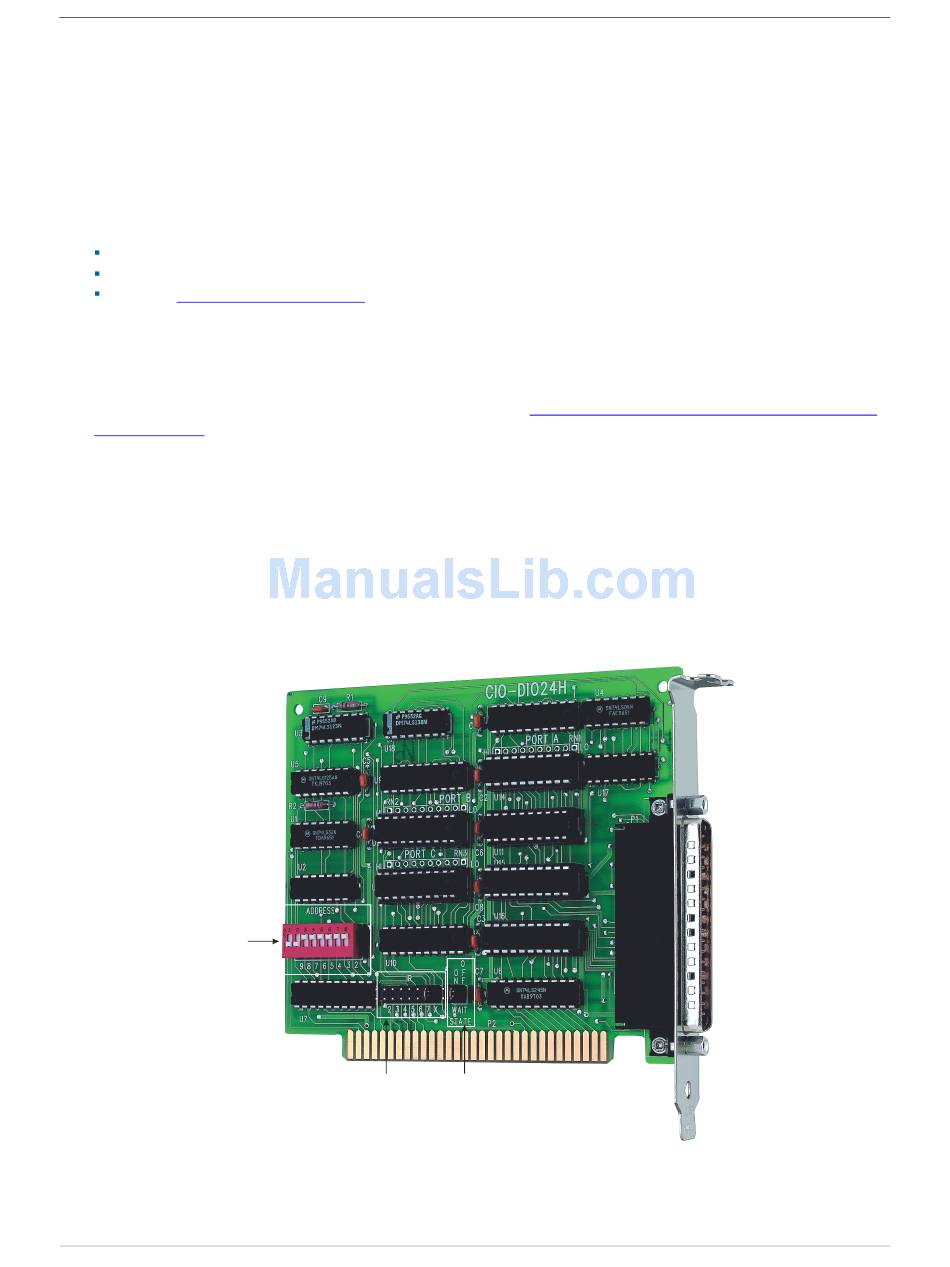

The location of each switch and jumper on the CIO-DIO24H is shown in Figure 1.
Base
Address
switches
The CIO-DIO24H is shipped with the factory-default settings listed in the table below.
Interrupt
Wait
Level
State
jumper
jumper
Figure 1. Switch and jumper locations
9
www.mccdaq.com/PDFmanuals/DAQ-Software-
Installing the CIO-DIO24H
