6. Operating Instructions

IMPORTANT: It is the responsibility of the user to verify the

calibration of the instrument before each use.

Battery Installation

Remove battery door by rotating it counter-

clockwise, put in two alkaline "AAA"

batteries according to the illustrated polarity

requirements, then install the battery door by

rotating it clockwise.

Note: Used (discharged) batteries are hazardous waste and should be

disposed of properly.

Power On/Off

1. Press power switch to project laser line or point.

2. Press power switch again to shut off laser output.

Switch Between Laser Point

and Laser Line

1. Turn the mode conversion knob to switch

between laser line and laser point. Rotating

the lens up or down converts laser from a dot

to a line, or line to a dot. Rotating the lens

counter-clockwise, while in line

mode, rotates line from horizontal to vertical.

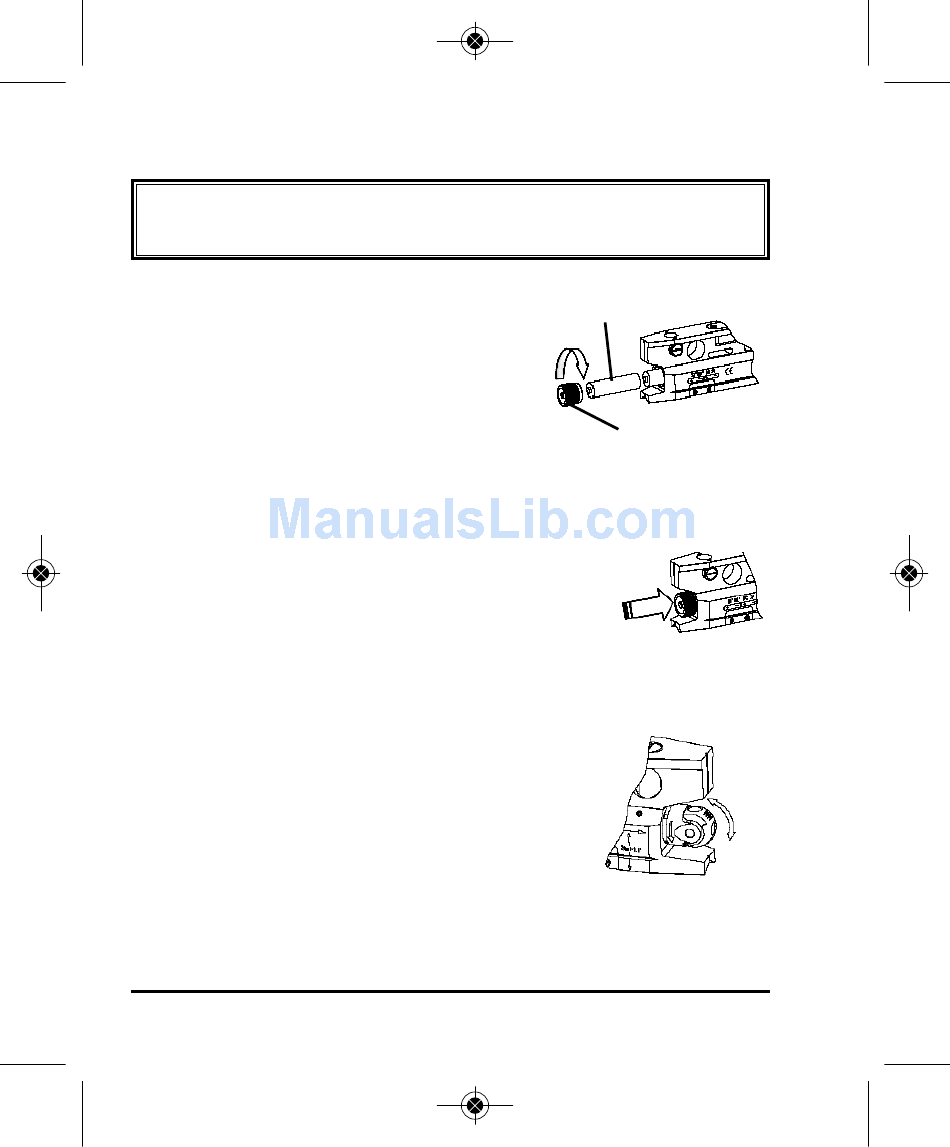

Battery

Battery Door

Power Switch

Rotate to switch

between point

and line
