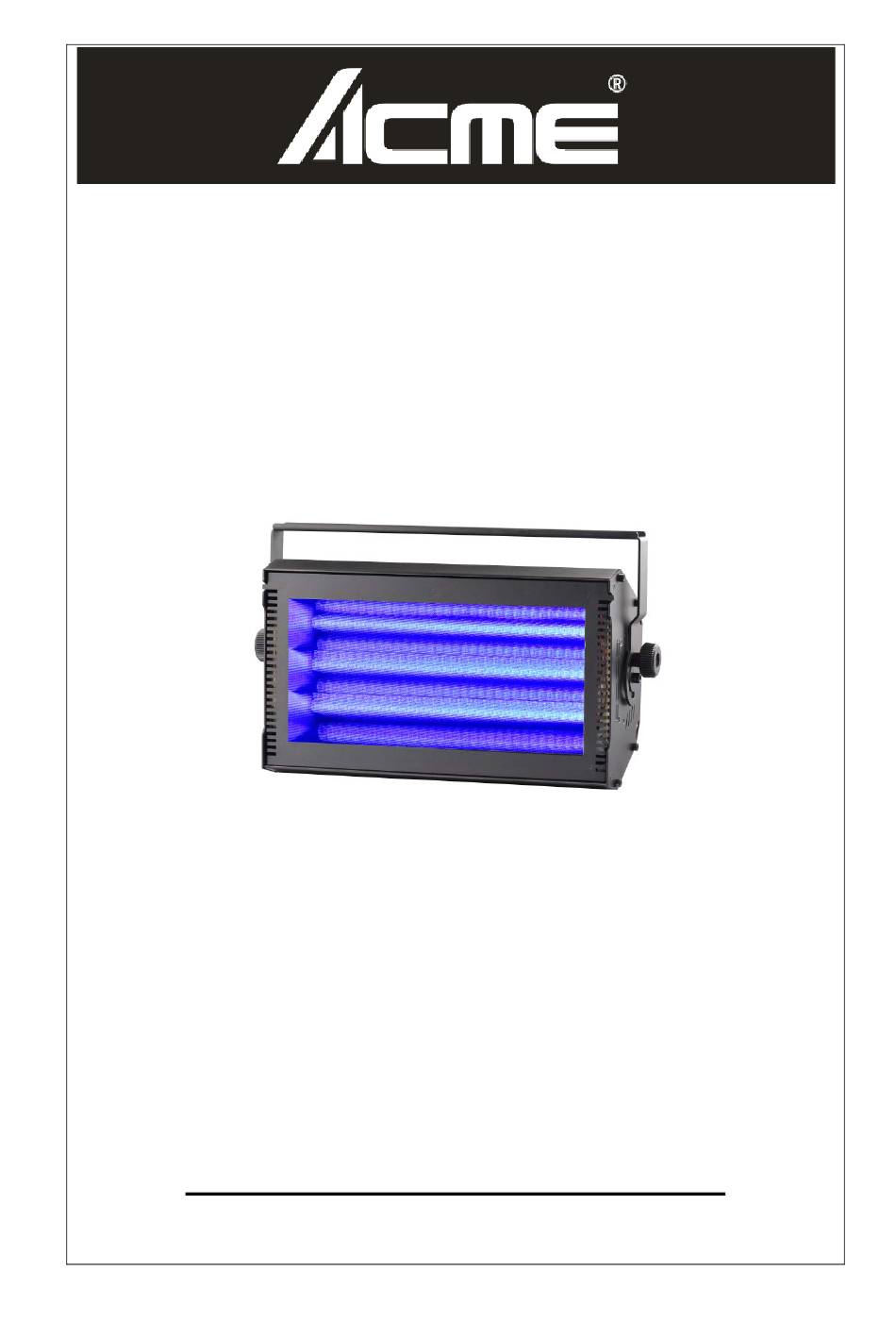

- Page 1 MEGA STROBE 5000 RGB LED-ST5000 RGB User Manual Please read the user manual before use...
-
Page 2: Table Of Contents
Table of Contents 1，Safety Information…………………………………………………. 2 2，Rear Panel…………………………………………………………. 4 3，Preparation for Use ………………………………………………...4 4，Main Function …………………………………………………….. 5 5， Remote Control…………………………………………………….13 6， Technical Specification…………………………………………….15... -
Page 3: 1，Safety Information
1. Safety Information Warning: This product is for professional use only! It is not for household use. The LED-ST5000 RGB presents risks of lethal or severe injury due to fire and heat, electric shock, ultraviolet radiation, and falls. Flashing light is also known to trigger epileptic seizures in persons who are photosensitive. - Page 4 Never place filters or other materials over the front glass cover. The exterior of the fixture can reach temperatures up to 120° C (248° F). Allow the fixture to cool for at least 15 minutes before handling. Do not modify the fixture or install other than genuine parts.
-
Page 5: 2，Rear Panel
2. Rear Panel Circuit Breaker 2, Main Power 3. LED display 4, Menu /UP/DOWN/ Enter button 5, DMX signal/ Flash indicator 6, DMX input/output 3. Preparation for Use Table1: Cord cap wirings INSTALLATION The LED-ST5000 RGB may be installed in any orientation. The mounting bracket provides five 12 mm holes for direct fastening or attachment of rigging clamps. -
Page 6: 4，Main Function
2. Place an aluminum washer on each mounting bracket stud. 3. Make clear the direction of left and right side of bracket and lock the screws. After that, tighten one hand knob to lock the mounting bracket in one end of bracket. 4. - Page 7 MENU button for 1 second. Channel mode setting Select CHMD option, press ENTER button to confirm your selection. Change the channel way (1/2/3/4/6/7) by press UP/DOWN button. Press ENTER button to confirm your selection. Wait for 30 seconds, it will return to main interface.
- Page 8 Test setting Select TEST option, press ENTER button to confirm your selection. The flash indicator will light up and the unit will test automatically. Wait for several seconds self-test, it will return to main interface. If you want back to main menu, please hold MENU button for 1 second.
- Page 9 1 Channel Mode Channel Value Function Blackout 6-250 Flash rate, slow to fast 251-255 Continuous ”Blinder”effect 2 Channel Mode Channel Value Function Blackout 6-255 Flash rate, slow to fast Blackout Flash intensity 6-255 Minimum to maximum 3 Channel Mode Channel Value Function Blackout...
- Page 10 4 Channel Mode Channel Value Function Blackout 1 Flash intensity 6-255 Minimum to maximum 2 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC No flash (single flash with ch. 1) 3 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC No effect 6-50 Ramp up...
- Page 11 Blackout 2 (G)Flash intensity 6-255 Minimum to maximum Blackout 3 (B)Flash intensity 6-255 Minimum to maximum Blackout (RGB)Flash intensity 6-255 Minimum to maximum 5 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC No flash (single flash with ch. 1) 6 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC...
- Page 12 5 Flash duration 0-255 0-650 ms@50 Hz AC, or 0-530 ms@60 Hz AC No flash (single flash with ch. 1) 6 Flash rate 6-255 0.5-25 Hz@50 Hz AC, or 0.6-30 Hz @60 Hz AC No effect 6-50 Ramp up 51-100 Ramp down 101-150 Ramp up-down...
- Page 13 7-channel DMX modes, flash duration can be set from 0 to 650 ms on 50 Hz power supplies, or 0 to 530 ms on 60 Hz power supplies Rate On channel 3 in the 3- and 4-channel DMX modes, and channel 6 in the6- and 7-channel DMX modes, flash rate can be set from 0 flashes per second to 17.5 flashes per second on 50 Hz power supplies or from 0 to 20 flashes per second on 60 Hz power supplies.
-
Page 14: 5， Remote Control
falls as power is reduced. Single Flash To trigger single flashes, start with the intensity and flash rate at 0 and then set the intensity on channel 1. When the value of channel 1 is changed, the light will flash once with the programmed intensity, duration, and effect. 5. - Page 15 the LED indicator of BLACK OUT is on, that means chase is stop. Chase number toggle switch Chase mode toggle switch: AUTO/SOUND DATA CONNECTION Important: Do not terminate the data link when using the BF-04D! The remote controller connects to The LED-ST2000 RGB with a 3-pin XLR data cable.
-
Page 16: 6， Technical Specification
6. Technical Specifications Approved AC power ......100 - 240 V nominal, 50/60 Hz Total Power consumption.
