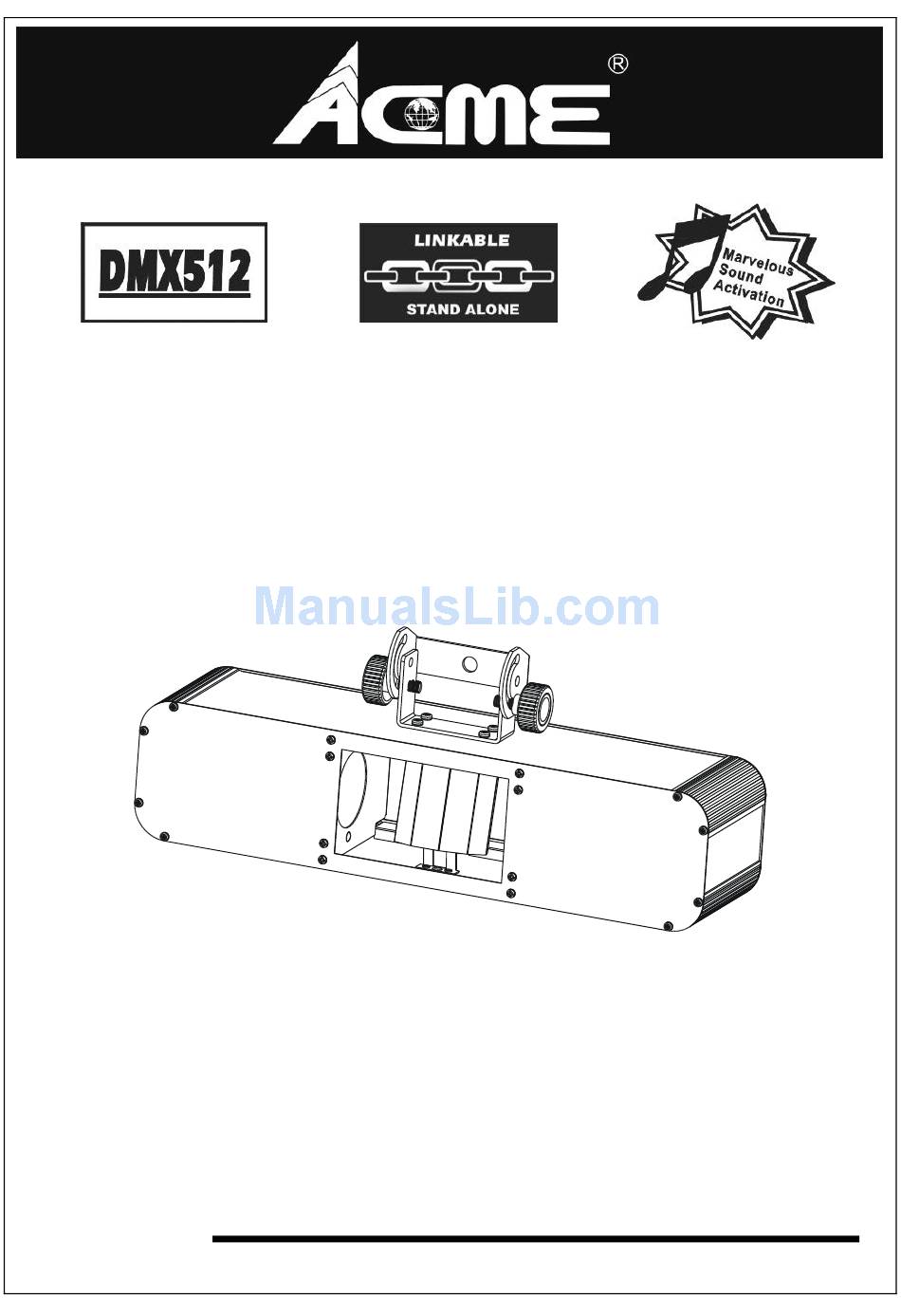

BARRAGE LED-247 User Manual Please read the instructions carefully before use... -
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. How to Set the Fixture 4. How to Control the Fixture 5. DMX 512 Configuration 6. DMX 512 Connections 7. Troubleshooting 8. Fixture Cleaning... - Page 4 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...
-
Page 5: Technical Specifications
2. Technical Specifications Input Voltage: 100V~240V 50/60Hz Power consumption:21.6W LED: 3W LED, Total 8pcs, Red 2pcs, Green 2pcs, Blue 2pcs, White 2pcs Dimension: 510 x 120 x 150.8 mm Weight: 4.3kgs 3. How to Set the Fixture 3.1 Rear panel ○... - Page 6 ○ 4 Button: To select the programming functions MENU DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions ○ 5 LED: DMX input present Master Mode MASTER SLAVE Slave Mode SOUND Flashing...
- Page 7 DMX Address Setting Press the MENU button to show on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to change the DMX address. Once the address has been selected, press the ENTER button to store. To return to the main menu...
- Page 8 without any changes press the MENU button. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. Slave Mode Press the MENU button to show on the display. Press the ENTER button and the display will blink.
- Page 9 (normal). Once selected, press the ENTER button to store. To return to the main menu without any changes press the MENU button. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. LED display Press the MENU button to show on the display.
- Page 10 Reset Press the MENU button to show on the display. Press ENTER button and all channels of the unit will return to their standard position. 4. How To Control The Unit You can operate the unit in three ways: 1. Master/slave built-in preprogram function 2.
-
Page 11: Dmx512 Configuration
Blackout Blackout the unit 1. Synchronous Strobe in full ON Select Show Function 2. Sound Strobe in full ON (Show 1-8) 3. Sound Strobe in color(Random) Strobe Show Mode (LED OFF) (LED ON) 4.3 DMX Controller By using a universal DMX controller to control the units, you will need to set a DMX address from 1 to 512 so that the units can receive the DMX signal. -
Page 12: Dmx512 Connections
6. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Connect the fixture together in a “daisy chain” with the XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y”... -
Page 13: Fixture Cleaning
A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if linked properly. 2. - Page 15 EC - Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55014-2: 1997 A1: 2001, EN61000-4-2: 1995; EN61000-4-3: 2002; EN61000-4-4: 1995;...
