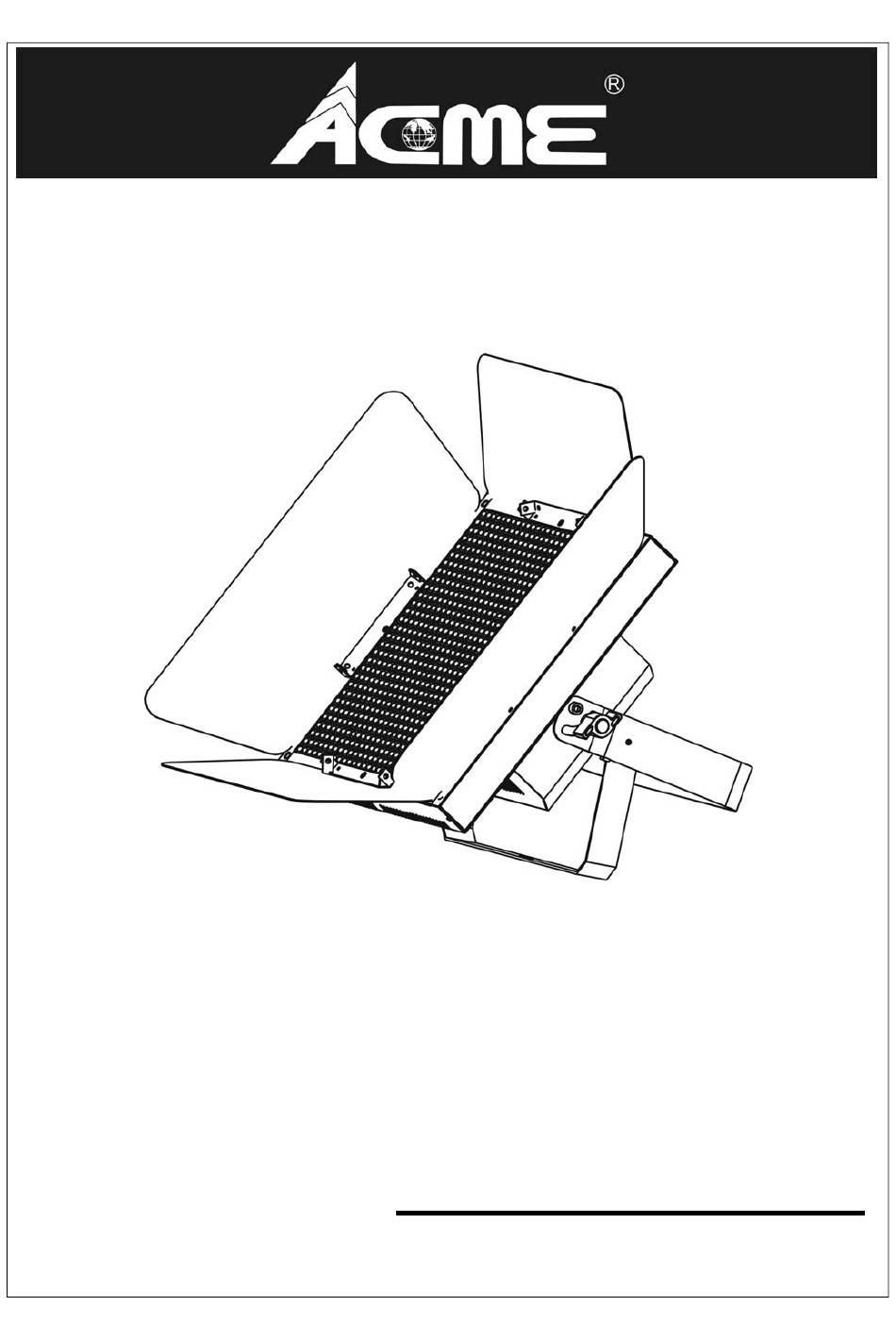

- Page 1 TV LIGHT PANEL 900 LP-900 User Manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Introductions ....................2 2. Technical Specifications....................3 3. Installation.........................3 4. How To Set The Fixture ....................3 4.1 Control Panel ......................3 4.2 Main Function......................4 5. How To Control The Unit...................7 5.1 Master/Slave Function ..................7 5.2 DMX Controller....................7 6. DMX512 Configuration .....................8 7. -
Page 3: Safety Introductions
1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. -
Page 4: Technical Specifications
2. Technical Specifications It can be operated by DMX512 control or can be used as an individual unit without controller. It can be linked together as many as required in master/slave mode, and perform the great built-in programmed lighting shows triggered by music. Please use a 3 pin XLR cable/plug when connecting them together. -
Page 5: Main Function
○ 1 Display: To show the various menus and the selected functions ○ 2 Indicator LED: DMX input present MASTER Master Mode SLAVE Slave Mode COLOR Max. power consumption of Flashing TEMP. CW/WW ○ 3 Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions... - Page 6 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has been selected, press ENTER button to setup or automatically exit menu mode without any change after 30 seconds.
- Page 7 Channel Mode Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select the (dimmer) mode, press the ENTER button to confirm, use UP and DOWN button to adjust the value between 0 and 255, once select press ENTER button to setup or automatically exit menu mode without any change after 30 seconds.
-
Page 8: How To Control The Unit
Fixture Hours Press the MENU button up to when the is blinking on the display. Pressing ENTER button and the display will show the number of working hours of the unit. To go back to the functions press the MENU button. Software version Press the MENU button up to when the is blinking on the display. -
Page 9: Dmx512 Configuration
If you use please refer to the following diagram to address your DMX512 channel for the first 4 units. 2 channels: 3 channels: 6. DMX512 Configuration 2/2/3 Channels Mode: 7. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. -
Page 10: Troubleshooting
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2. -
Page 11: Fixture Cleaning
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. No response to the sound 1. Make sure the fixture does not receive DMX signal. 2. - Page 12 Innovation, Quality, Performance...
