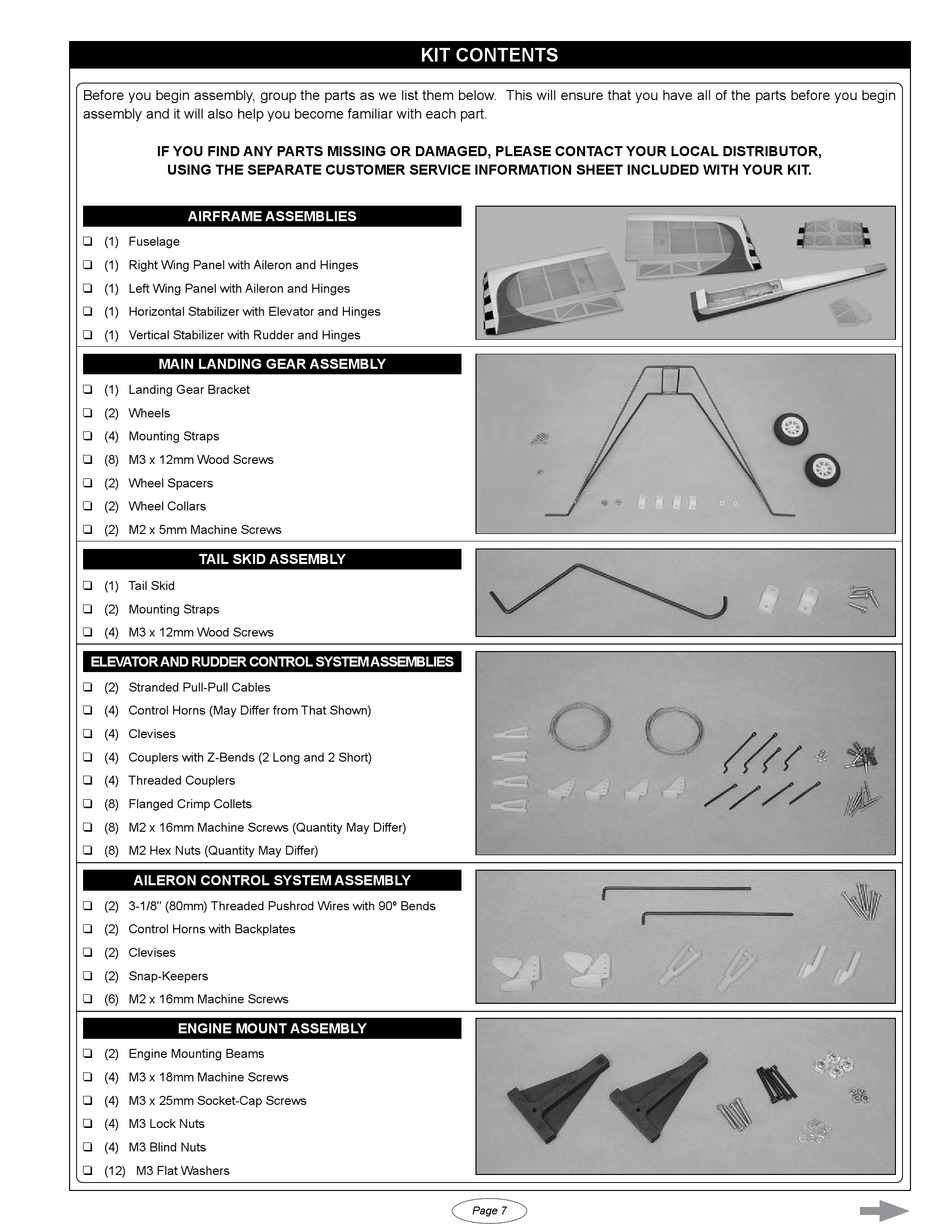

Kit CoNteNts

Before you begin assembly, group the parts as we list them below. This will ensure that you have all of the parts before you begin
assembly and it will also help you become familiar with each part.
IF you FInD Any pARTs MIssIng oR DAMAgeD, pleAse conTAcT youR locAl DIsTRIBuToR,
usiNG tHe seParate CustoMer serviCe iNforMatioN sHeet iNCLuDeD WitH Your Kit.
airfraMe asseMBLies
q (1) Fuselage
q (1) Right Wing Panel with Aileron and Hinges
q (1) Left Wing Panel with Aileron and Hinges
q (1) Horizontal Stabilizer with Elevator and Hinges
q (1) Vertical Stabilizer with Rudder and Hinges
MaiN LaNDiNG Gear asseMBLY
q (1) Landing Gear Bracket
q (2) Wheels
q (4) Mounting Straps
q (8) M3 x 12mm Wood Screws
q (2) Wheel Spacers
q (2) Wheel Collars
q (2) M2 x 5mm Machine Screws
taiL sKiD asseMBLY
q (1) Tail Skid
q (2) Mounting Straps
q (4) M3 x 12mm Wood Screws
eLevator aND ruDDer CoNtroL sYsteM asseMBLies
q (2) Stranded Pull-Pull Cables
q (4) Control Horns (May Differ from That Shown)
q (4) Clevises
q (4) Couplers with Z-Bends (2 Long and 2 Short)
q (4) Threaded Couplers
q (8) Flanged Crimp Collets
q (8) M2 x 16mm Machine Screws (Quantity May Differ)
q (8) M2 Hex Nuts (Quantity May Differ)
aiLeroN CoNtroL sYsteM asseMBLY
q (2) 3-1/8" (80mm) Threaded Pushrod Wires with 90º Bends
q (2) Control Horns with Backplates
q (2) Clevises
q (2) Snap-Keepers
q (6) M2 x 16mm Machine Screws
eNGiNe MouNt asseMBLY
q (2) Engine Mounting Beams
q (4) M3 x 18mm Machine Screws
q (4) M3 x 25mm Socket-Cap Screws
q (4) M3 Lock Nuts
q (4) M3 Blind Nuts
q (12) M3 Flat Washers
