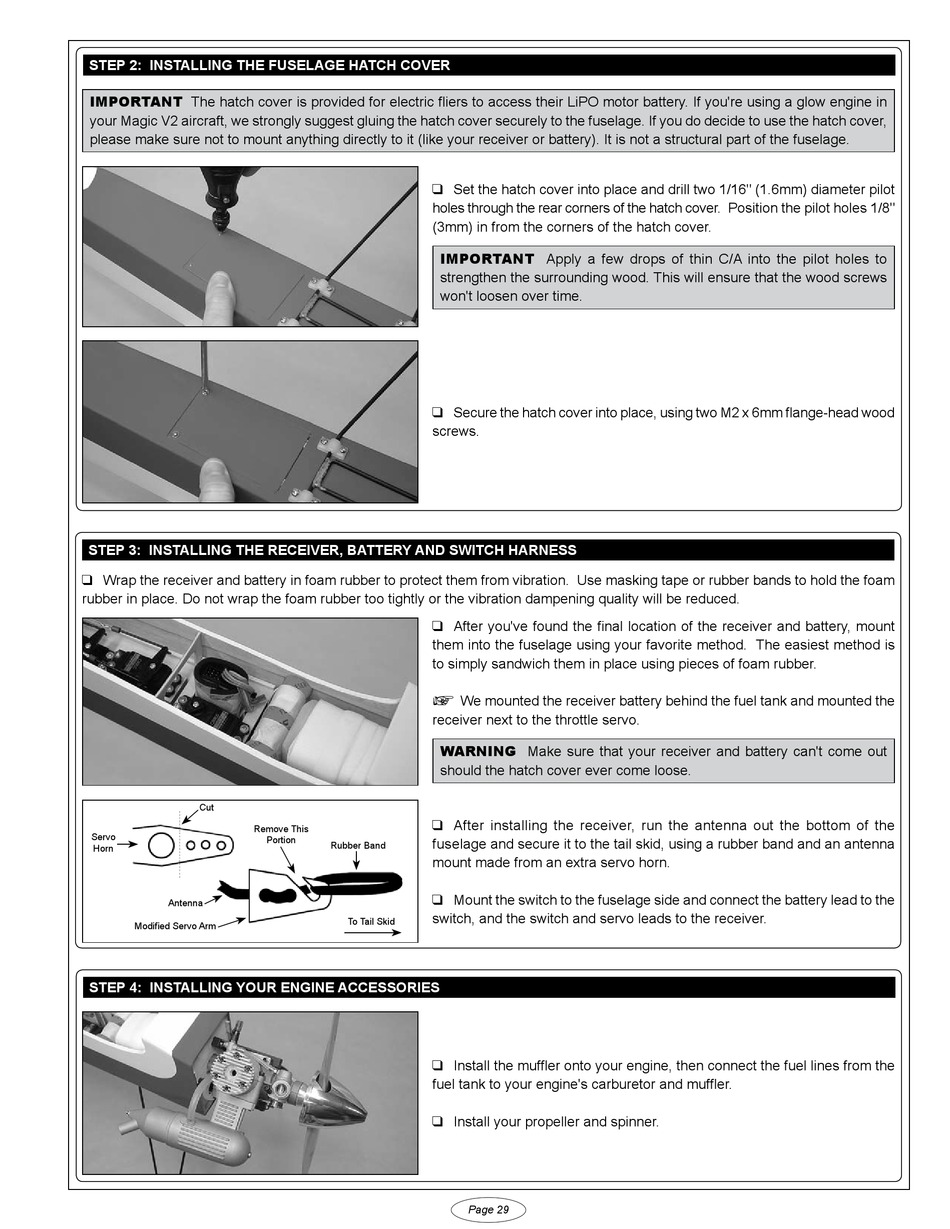

Model Tech Magic V2 Instruction Manual page 29

steP 2: iNstaLLiNG tHe fuseLaGe HatCH Cover
IMPORTANT The hatch cover is provided for electric fliers to access their LiPO motor battery. If you're using a glow engine in
your Magic V2 aircraft, we strongly suggest gluing the hatch cover securely to the fuselage. If you do decide to use the hatch cover,
please make sure not to mount anything directly to it (like your receiver or battery). It is not a structural part of the fuselage.
sTep 3: InsTAllIng The ReceIVeR, BATTeRy AnD sWITch hARness
q Wrap the receiver and battery in foam rubber to protect them from vibration. Use masking tape or rubber bands to hold the foam
rubber in place. Do not wrap the foam rubber too tightly or the vibration dampening quality will be reduced.
Cut
Remove This
Servo
Horn
Antenna
Modified Servo Arm
steP 4: iNstaLLiNG Your eNGiNe aCCessories
q Set the hatch cover into place and drill two 1/16" (1.6mm) diameter pilot
holes through the rear corners of the hatch cover. Position the pilot holes 1/8"
(3mm) in from the corners of the hatch cover.
IMPORTANT Apply a few drops of thin C/A into the pilot holes to
strengthen the surrounding wood. This will ensure that the wood screws
won't loosen over time.
q Secure the hatch cover into place, using two M2 x 6mm flange-head wood
screws.
q After you've found the final location of the receiver and battery, mount
them into the fuselage using your favorite method. The easiest method is
to simply sandwich them in place using pieces of foam rubber.
+
receiver next to the throttle servo.
WARNING Make sure that your receiver and battery can't come out
should the hatch cover ever come loose.
q After installing the receiver, run the antenna out the bottom of the
Portion
fuselage and secure it to the tail skid, using a rubber band and an antenna
Rubber Band
mount made from an extra servo horn.
q Mount the switch to the fuselage side and connect the battery lead to the
switch, and the switch and servo leads to the receiver.
To Tail Skid
q Install the muffler onto your engine, then connect the fuel lines from the
fuel tank to your engine's carburetor and muffler.
q Install your propeller and spinner.
We mounted the receiver battery behind the fuel tank and mounted the
