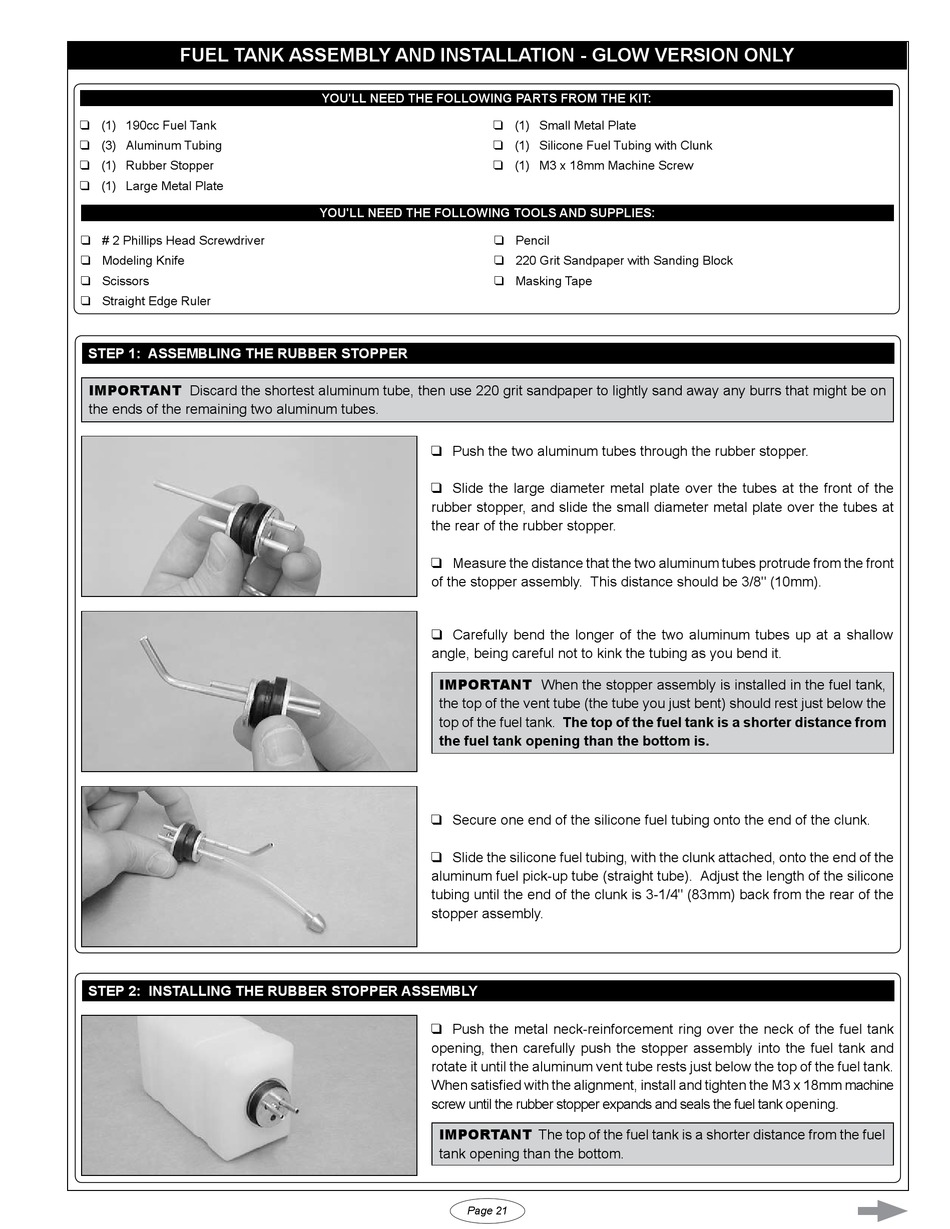

fueL taNK asseMBLY aND iNstaLLatioN - GLoW versioN oNLY

q (1) 190cc Fuel Tank
q (3) Aluminum Tubing
q (1) Rubber Stopper
q (1) Large Metal Plate
q # 2 Phillips Head Screwdriver
q Modeling Knife
q Scissors
q Straight Edge Ruler
steP 1: asseMBLiNG tHe ruBBer stoPPer
IMPORTANT Discard the shortest aluminum tube, then use 220 grit sandpaper to lightly sand away any burrs that might be on
the ends of the remaining two aluminum tubes.
steP 2: iNstaLLiNG tHe ruBBer stoPPer asseMBLY
You'LL NeeD tHe foLLoWiNG Parts froM tHe Kit:
q (1) Small Metal Plate
q (1) Silicone Fuel Tubing with Clunk
q (1) M3 x 18mm Machine Screw
You'LL NeeD tHe foLLoWiNG tooLs aND suPPLies:
q Pencil
q 220 Grit Sandpaper with Sanding Block
q Masking Tape
q Push the two aluminum tubes through the rubber stopper.
q Slide the large diameter metal plate over the tubes at the front of the
rubber stopper, and slide the small diameter metal plate over the tubes at
the rear of the rubber stopper.
q Measure the distance that the two aluminum tubes protrude from the front
of the stopper assembly. This distance should be 3/8" (10mm).
q Carefully bend the longer of the two aluminum tubes up at a shallow
angle, being careful not to kink the tubing as you bend it.
IMPORTANT When the stopper assembly is installed in the fuel tank,
the top of the vent tube (the tube you just bent) should rest just below the
top of the fuel tank. the top of the fuel tank is a shorter distance from
the fuel tank opening than the bottom is.
q Secure one end of the silicone fuel tubing onto the end of the clunk.
q Slide the silicone fuel tubing, with the clunk attached, onto the end of the
aluminum fuel pick-up tube (straight tube). Adjust the length of the silicone
tubing until the end of the clunk is 3-1/4" (83mm) back from the rear of the
stopper assembly.
q Push the metal neck-reinforcement ring over the neck of the fuel tank
opening, then carefully push the stopper assembly into the fuel tank and
rotate it until the aluminum vent tube rests just below the top of the fuel tank.
When satisfied with the alignment, install and tighten the M3 x 18mm machine
screw until the rubber stopper expands and seals the fuel tank opening.
IMPORTANT The top of the fuel tank is a shorter distance from the fuel
tank opening than the bottom.
