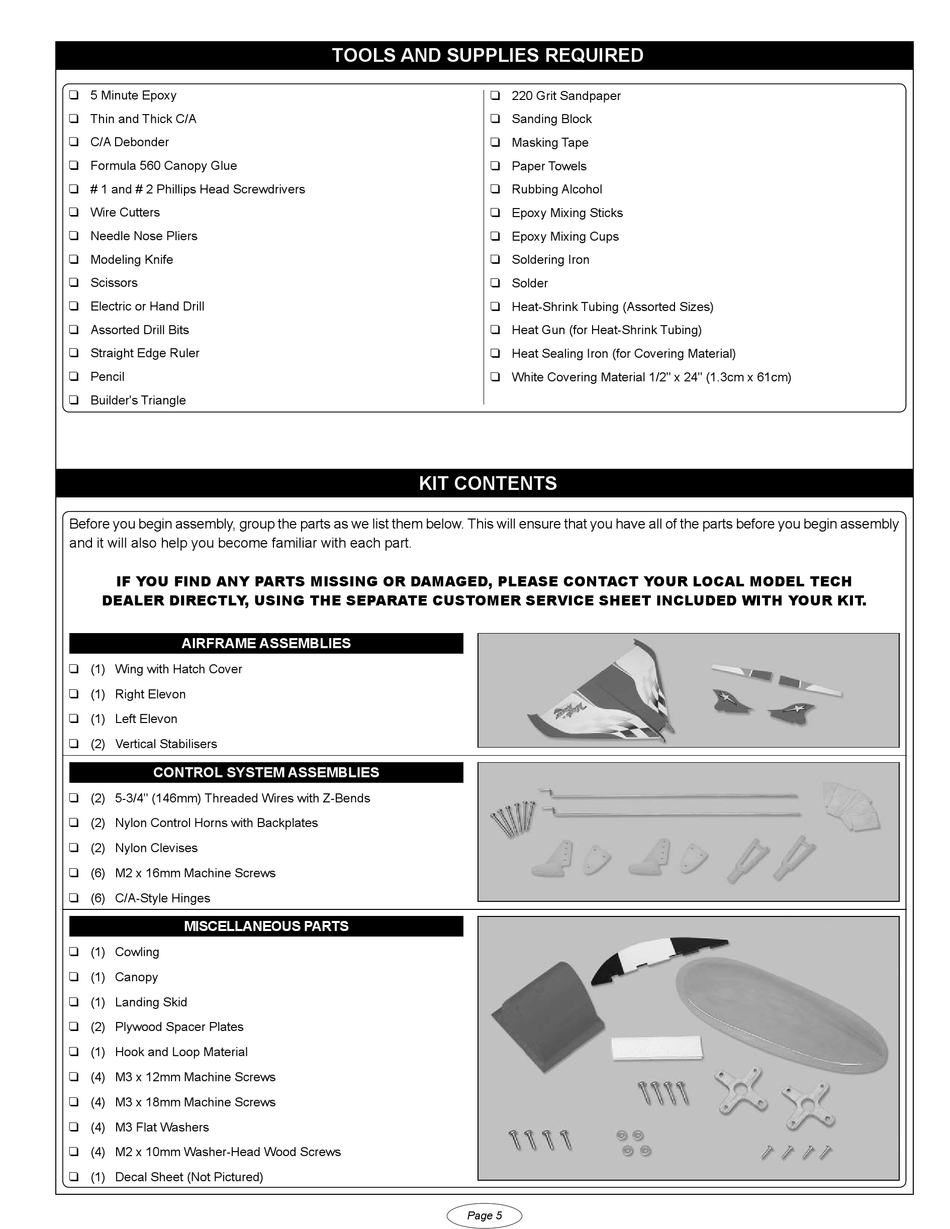

Tools And Supplies Required; Kit Contents - Model Tech Mini Mach Racer Assembly Instructions Manual

q 5 Minute Epoxy
q Thin and Thick C/A
q C/A Debonder
q Formula 560 Canopy Glue
q # 1 and # 2 Phillips Head Screwdrivers
q Wire Cutters
q Needle Nose Pliers
q Modeling Knife
q Scissors
q Electric or Hand Drill
q Assorted Drill Bits
q Straight Edge Ruler
q Pencil
q Builder's Triangle
Before you begin assembly, group the parts as we list them below. This will ensure that you have all of the parts before you begin assembly
and it will also help you become familiar with each part.
IF you FInd any parts mIssIng or damaged, please contact your local model tech
dealer dIrectly, usIng the separate customer servIce sheet Included wIth your kIt.
airfraMe asseMblies
q (1) Wing with Hatch Cover
q (1) Right Elevon
q (1) Left Elevon
q (2) Vertical Stabilisers
CoNTrol sysTeM asseMblies
q (2) 5-3/4" (146mm) Threaded Wires with Z-Bends
q (2) Nylon Control Horns with Backplates
q (2) Nylon Clevises
q (6) M2 x 16mm Machine Screws
q (6) C/A-Style Hinges
MisCellaNeous ParTs
q (1) Cowling
q (1) Canopy
q (1) Landing Skid
q (2) Plywood Spacer Plates
q (1) Hook and Loop Material
q (4) M3 x 12mm Machine Screws
q (4) M3 x 18mm Machine Screws
q (4) M3 Flat Washers
q (4) M2 x 10mm Washer-Head Wood Screws
q (1) Decal Sheet (Not Pictured)

Tools aNd suPPlies reQuired

q 220 Grit Sandpaper
q Sanding Block
q Masking Tape
q Paper Towels
q Rubbing Alcohol
q Epoxy Mixing Sticks
q Epoxy Mixing Cups
q Soldering Iron
q Solder
q Heat-Shrink Tubing (Assorted Sizes)
q Heat Gun (for Heat-Shrink Tubing)
q Heat Sealing Iron (for Covering Material)
q White Covering Material 1/2" x 24" (1.3cm x 61cm)
