Check out our website for more information on other exciting Model Tech products!
Model Tech Co., Ltd.
Hong Kong
© 2008, Model Tech Co., Ltd.
All Rights Reserved
Version 1 May 2008
Wing span: 23 Inches (584mm)
functions: Elevons (Electronic Elevon Mixing) and Throttle
electronic speed Control required: 18 Amp Brushless
Made in China

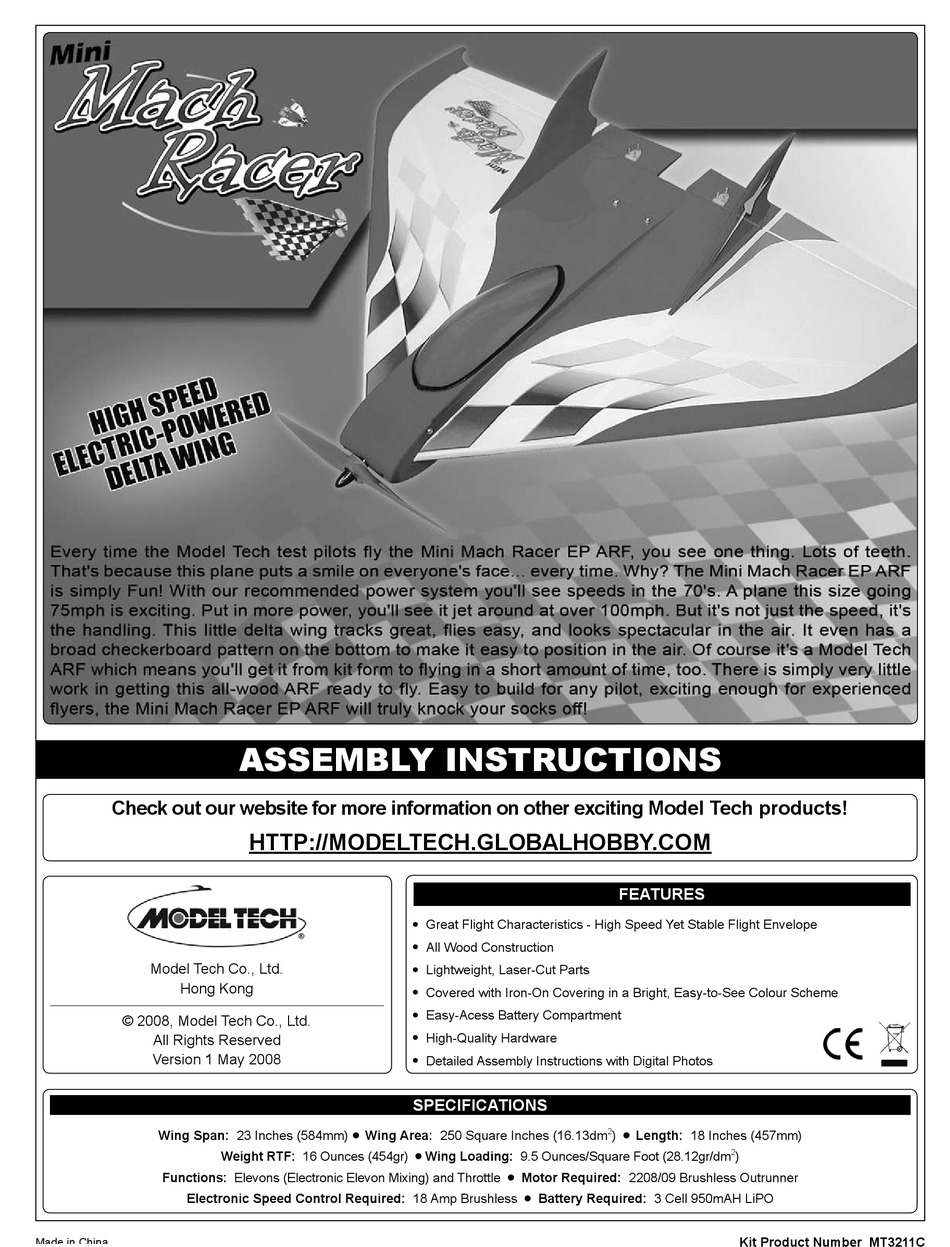

ASSEMBLY INSTRUCTIONS
hTTP://ModelTeCh.globalhobby.CoM
Wing area: 250 Square Inches (16.13dm
l
Weight rTf: 16 Ounces (454gr)
Great Flight Characteristics - High Speed Yet Stable Flight Envelope
l
All Wood Construction
l
Lightweight, Laser-Cut Parts
l
Covered with Iron-On Covering in a Bright, Easy-to-See Colour Scheme
l
Easy-Acess Battery Compartment
l
High-Quality Hardware
l
Detailed Assembly Instructions with Digital Photos
l
sPeCifiCaTioNs
Wing loading: 9.5 Ounces/Square Foot (28.12gr/dm
l
Motor required: 2208/09 Brushless Outrunner
l
battery required: 3 Cell 950mAH LiPO
l
Page
feaTures
2
)
length: 18 Inches (457mm)
l
2
)
Kit Product Number MT3211C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Model Tech Mini Mach Racer
Summary of Contents for Model Tech Mini Mach Racer
- Page 1 ASSEMBLY INSTRUCTIONS Check out our website for more information on other exciting Model Tech products! hTTP://ModelTeCh.globalhobby.CoM feaTures Great Flight Characteristics - High Speed Yet Stable Flight Envelope All Wood Construction Model Tech Co., Ltd. Lightweight, Laser-Cut Parts Hong Kong Covered with Iron-On Covering in a Bright, Easy-to-See Colour Scheme Easy-Acess Battery Compartment ©...
-
Page 2: Table Of Contents
Model Tech's liability exceed the original cost of the purchased kit. In that Model Tech has no control over the final assembly or material used for final assembly, no liability shall be assumed for any damage resulting from the use by the user of the final user-assembled product. -
Page 3: Our Recommendations
PoWer sysTeM The Mini Mach Racer EP ARF is designed to use a brushless outrunner motor and a 3 cell LiPO battery. For good overall flight performance, we recommend using the KMS Quantum 2208/09 brushless outrunner motor, the KMS 18 amp brushless electronic speed control, an APC 6 x 4 propeller, and the Impulse Power 3 Cell 950mAH LiPO battery. -
Page 4: Lithium Polymer Battery Warnings - Please Read
liThiuM PolyMer baTTery WarNiNgs - Please read WarNiNgs aNd safeTy PreCauTioNs for all braNds of liThiuM PolyMer baTTeries Please read and understand the warnings listed in this section. Make sure to read any and all warnings included in the packaging with your battery, too. If used improperly, lithium polymer batteries can be very dangerous, so please follow these warnings and suggestions at all times. -
Page 5: Tools And Supplies Required
Before you begin assembly, group the parts as we list them below. This will ensure that you have all of the parts before you begin assembly and it will also help you become familiar with each part. IF you FInd any parts mIssIng or damaged, please contact your local model tech dealer dIrectly, usIng the separate customer servIce sheet Included wIth your kIt. -
Page 6: Tips From The Pros
TiPs froM The Pros During the covering process, sometimes color may smear slightly from the seams. If you see any smeared colors on the covering material, they can be quickly removed by simply wiping them off with a paper towel and a small amount of acetone. Make sure to test-fit the parts together before applying glue. -
Page 7: Elevon Control System Installation
q Slide one hinge into each of the three hinge slots in the elevon, making sure that you push each hinge in up to the T-Pins. IMPORTANT Don't glue the hinges into the elevon yet. q Push the elevon and hinges into the corresponding three hinge slots in the trailing edge of the wing. - Page 8 STEP 1: inSTALLinG ThE ELEvon SERvoS q Cut away the covering material from over the two elevon servo mounting holes in the bottom of the wing. One servo mounting hole is located on each side of the wing, 1/2" (13mm) out from the sides of the radio compartment and 6"...
-
Page 9: Landing Skid And Motor Installation
q Enlarge the hole in one servo arm that is 3/8" (10mm) out from the centre of the servo horn, using a 1/16" (1.6mm) diameter drill bit. q Install the Z-Bend in one pushrod wire into the hole that you enlarged in the servo arm. - Page 10 sTeP 1: iNsTalliNg The laNdiNg sKid q Cut away the covering material from over the landing skid mounting slots in the bottom of the wing, then test-fit and glue the landing skid firmly into place, using a generous amount of thick C/A. IMPORTANT Make sure to cut away the covering material from over the gluing surfaces to ensure a strong bond.
- Page 11 q Install your motor, using four M3 x 12mm machine screws and four M3 flat washers, making sure to tighten the machine screws firmly. IMPORTANT It's not necessary to use the two plywood spacer plates with this type of motor. sTeP 3: iNsTalliNg The CoWliNg q Cut out the back of the cowling along its base, making sure to cut the back edge straight.
-
Page 12: Vertical Stabilisers Installation
vERTicAL STABiLiSERS inSTALLATion you'll Need The folloWiNg ParTs froM The KiT: q (2) Vertical Stabilisers you'll Need The folloWiNg Tools aNd suPPlies: q 5 Minute Epoxy q Paper Towels q Modeling Knife q Rubbing Alcohol q Straight Edge Ruler q Epoxy Mixing Sticks q Epoxy Mixing Cups q Pencil q Builder's Triangle... -
Page 13: Final Assembly
fiNal asseMbly you'll Need The folloWiNg ParTs froM The KiT: q (1) Canopy q (1) Hook and Loop Material you'll Need The folloWiNg Tools aNd suPPlies: q Formula 560 Canopy Glue q Paper Towels q # 2 Philips Head Screwdriver q Soldering Iron q Wire Cutters q Solder... - Page 14 sTeP 3: iNsTalliNg The flighT baTTery q Carefully solder matching plugs onto the two battery wires on your battery and the two battery wires on your ESC. q Mount your flight battery to the front of the radio compartment floor, using the strip of hook and loop material provided.
-
Page 15: C/G And Balancing
C/g aNd balaNCiNg you'll Need The folloWiNg Tools aNd suPPlies: q Straight Edge Ruler q Masking Tape IMPORTANT It is critical that your aircraft be balanced correctly. Incorrectly balancing your aircraft can cause your aircraft to lose control and crash! Balance poInt (c/g): 4-1/4"... -
Page 16: Control Throws
Only the bottom of the hinge gap needs to be sealed. It is not necessary to seal both the bottom and the top. q Disconnect the clevis from one elevon control horn, so that the elevon can be deflected fully in both directions. q Remove the protective backing from the covering material. -
Page 17: Preflight Check And Safety
When it comes time to order replacement parts, we recommend ordering directly from your local hobby retailer. if your hobby retailer does not stock Model Tech products, you can order replacement parts directly from your local distributor, using the separate customer Service sheet included with your kit. - Page 18 THIS PAGE INTENTIONALLY LEFT BLANK Page ...
-
Page 19: Product Evaluation Sheet
Your privacy is important to us. 7) Was any of the assembly difficult for you? If yes, please explain. 1) Kit: Model Tech Mini Mach racer eP arf # MT3211C q Yes q No... - Page 20 _______________________________ _______________________________ Post office will not deliver _______________________________ without proper postage (Return Address Here) Global Hobby Distributors attn: global services 18480 Bandilier Circle Fountain Valley CA 92728-8610 fold along dotted line Page 0...
