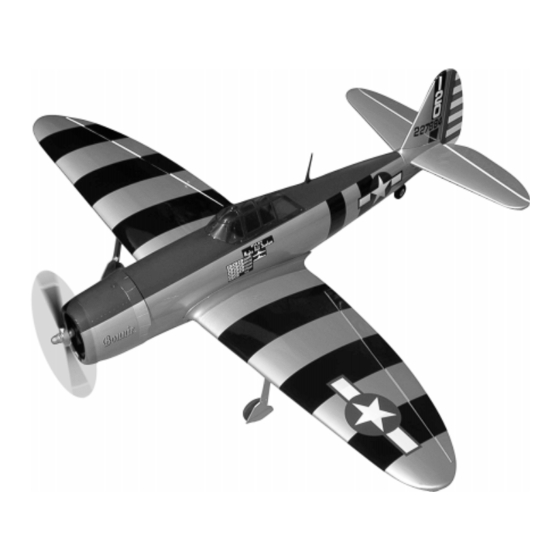

Model Tech P-47 Thunderbolt Instructions For Final Assembly
  1. Manuals
  2. Brands
  3. Model Tech Manuals
  4. Toy
  5. P-47 Thunderbolt
  6. Instructions for final assembly

Model Tech P-47 Thunderbolt Instructions For Final Assembly

Hide thumbs
Table of Contents

Advertisement

Quick Links

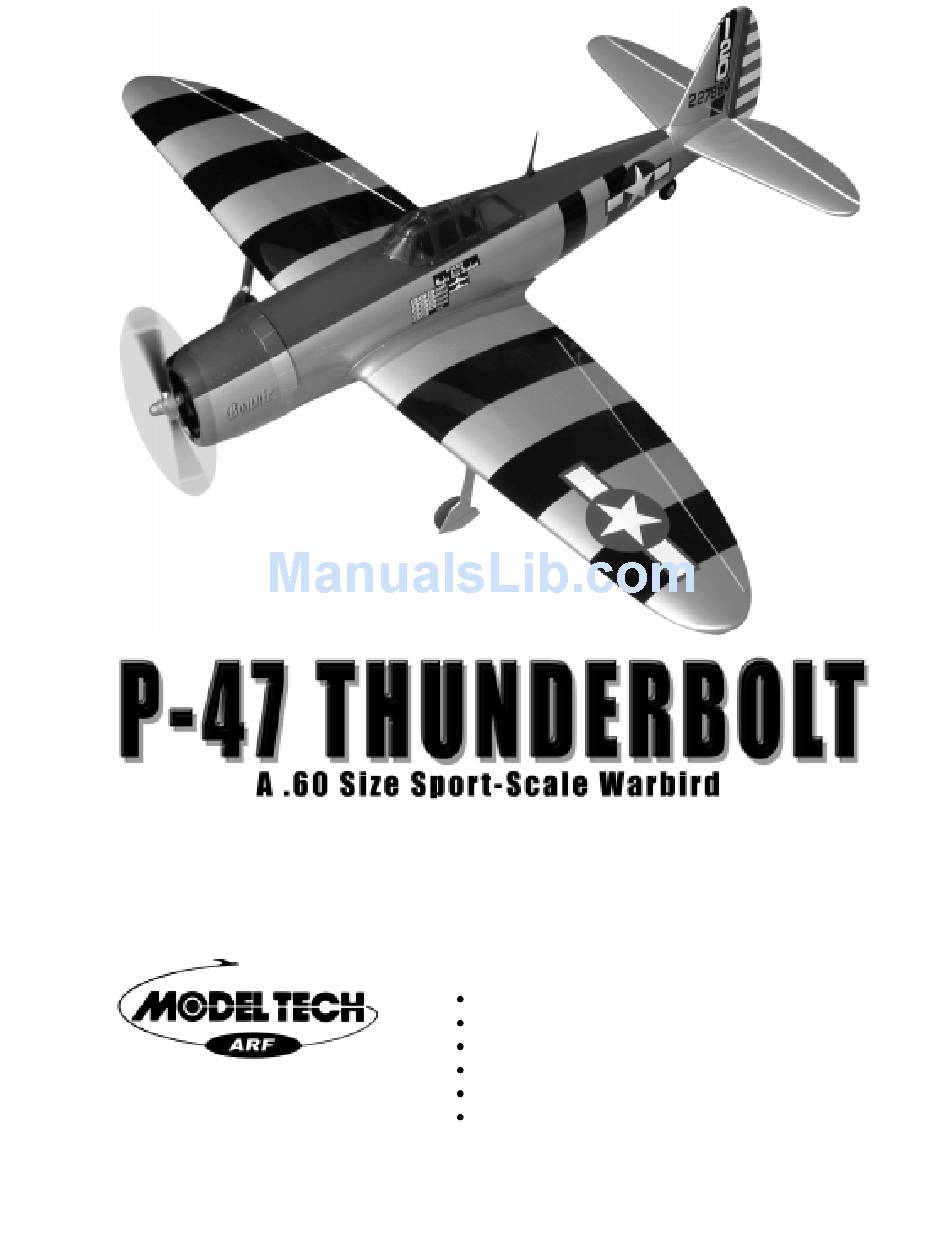

INSTRUCTIONS FOR FINAL ASSEMBLY

Specifications:

Wing Span: 67 Inches
Wing Area: 785 Square Inches
Length: 55.5 Inches
Weight: 6.75 - 7.75 Pounds
Product Part Number 123745
Power: .61 - .91 Two Stroke or .70 - .91 Four Stroke
Radio: 5 Channel w/4 Standard Servos & 1 Retract Servo
The Modeltech P-47 Thunderbolt ARF is distributed exclusively by Global Hobby Distributors 18480 Bandilier Circle, Fountain Valley, CA 92708
All contents copyright © 2002, Global Hobby Distributors Version V1.0 March 2002
1
See other exciting Modeltech ARF airplanes at http://modeltech.globalhobby.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47 Thunderbolt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Model Tech P-47 Thunderbolt

Summary of Contents for Model Tech P-47 Thunderbolt

  • Page 1: Specifications

    Radio: 5 Channel w/4 Standard Servos & 1 Retract Servo The Modeltech P-47 Thunderbolt ARF is distributed exclusively by Global Hobby Distributors 18480 Bandilier Circle, Fountain Valley, CA 92708 All contents copyright © 2002, Global Hobby Distributors Version V1.0 March 2002...

  • Page 2: Table Of Contents

    Section 25: Canopy Installation ..............56 Section 26: Final Assembly ................57 Section 27: Balancing the P-47 Thunderbolt ..........60 Section 28: Lateral Balancing the P-47 Thunderbolt ........61 Section 29: Recommended Control Throws ........... 61 Section 30: Preflight Check & Safety ............. 62 Section 31: Flying the P-47 Thunderbolt ............

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the new Modeltech P-47 Thunderbolt ARF. Before completing the final assembly of your new airplane, please carefully read through this instruction manual in its entirety. Doing so will ensure success the first time around! Modeltech P-47 Thunderbolt Features: Strong Interlocking Construction Hand-Built from Quality Balsa &...

  • Page 4: Section 1: Our Recommendations

    This section describes our recommendations to help you in deciding which types of accessories to purchase for your new P-47 Thunderbolt ARF. These suggestions are not set in stone, but they should provide you with a good starting point. What Engine Should I Use? If you Want to Use a Two Stroke Engine: If you want to use a two stroke engine, we recommend using a .61 up to a .91.

  • Page 5: Section 2: Additional Items Required

    SECTION 2: ADDITIONAL ITEMS REQUIRED Here's a List of What We Used in the Airplane Shown in These Instructions: QTY. 1 210803 Magnum XL .61ARNV Engine QTY. 1 444222 Cirrus CS-100 Retract Servo QTY. 1 280180 Magnum Pitt's Style Muffler QTY.

  • Page 6: Section 4: Kit Contents

    SECTION 4: KIT CONTENTS We have organized the parts as they come out of the box for easier identification during assembly. Before you begin assembly, group the parts like we list them below. This will ensure that you have all of the parts before you begin assembly and it will also help you become familiar with each part.
  • Page 7 WING ASSEMBLY FUEL TANK ASSEMBLY (1) Plywood Dihedral Brace (W64) (1) 360cc Fuel Tank (1) Plywood Wing Bolt Doubler (W72) (1) 20mm Diameter Aluminum Front-Plate (2) 5mm x 35mm Machine Screws (1) 18mm Diameter Aluminum Back-Plate (2) 5mm Flat Washers (1) Rubber Stopper (2) 5mm Blind Nuts (1) Silicon Fuel Tubing...

  • Page 8: Section 5: Replacement Parts

    (4) 3mm Flat Washers SECTION 5: REPLACEMENT PARTS Modeltech stocks a complete line of replacement parts for your P-47 Thunderbolt ARF. Listed below are the replacement parts that are available along with their respective part numbers for easy ordering convenience. We suggest ordering directly from your local dealer.

  • Page 9: Section 7: A Note About Covering

    SECTION 7: A NOTE ABOUT COVERING The covering material used on the P-47 Thunderbolt ARF is real iron-on heat shrink covering material, not cheap "shelf paper." Because of this, it is possible with heat and humidity changes that the covering on your airplane may wrinkle or sag.
  • Page 10 Using a modeling knife, cut away and remove the excess covering material that overlaps onto the root ribs of each wing panel, leaving about 1/16" overlapped so it does not pull away. IMPORTANT It's very important to the integrity of the wing center section joint that you remove as much covering from the root ribs as possible.
  • Page 11 Look carefully at the center section joint: the wing halves should fit together tightly with few or no gaps in the joint. If the wing halves do not fit together properly, remove the dihedral brace and use 220 grit sandpaper with a sanding block to lightly sand the edges and tips of the brace.

  • Page 12: Section 9: Wing Mounting

    Step 4: Installing the Plywood Wing Bolt Doubler Set the wing bolt doubler onto the bottom of the wing. The rear edge of the doubler should be 3/32" in front of the trailing edge of the wing and the centerline of the doubler should be lined up with the centerline of the wing.
  • Page 13 Using a ruler and a pencil, measure out 1-1/2" from each side of the wing centerline (at the trailing edge) and draw a mark on the plywood wing bolt doubler. Using a ruler and a pencil, measure forward 1/2" from the back edge of the wing bolt doubler (at the first marks you drew) and draw two intersecting marks.
  • Page 14 Step 2: Tapping the Wing Mounting Block IMPORTANT Although the P-47 includes blind nuts to install in the wing mounting block, we suggest tapping the block with a 5mm tap as we show. This is much easier than installing the blind nuts and is more accurate. Of course, you can opt to install the blind nuts if you want to.

  • Page 15: Section 10: Belly Pan Installation

    Step 3: Mounting the Wing Using a 13/64" drill bit, enlarge only the two wing mounting holes in the wing. Enlarging the holes will allow the wing bolts to slide through the wing without binding. Set the wing back into the wing saddle and realign it. Secure the wing into place using two 5mm x 35mm machine screws and two 5mm flat washers.
  • Page 16 IMPORTANT You may need to sand an angle in the front of the belly pan so that it will fit flush with the surface of the wing. If there are any gaps between the belly pan and the wing, remove the belly pan and sand down any high spots using a sanding block with 220 grit sandpaper.

  • Page 17: Section 11: Horizontal & Vertical Stabilizer Installation

    Glue the belly pan into place using a generous amount of 5 minute epoxy. Remove any excess epoxy using a paper towel and rubbing alcohol, and hold the belly pan firmly in place and aligned using pieces of masking tape until the epoxy fully cures.
  • Page 18 While holding the vertical stabilizer firmly in place, use a builder's triangle to double-check that the vertical stabilizer is aligned 90º to the horizontal stabilizer. Step 2: Mounting the Vertical Stabilizer Mix and apply a generous amount of 30 minute epoxy to the bottom of the vertical stabilizer and to the slot in the trailing edge of the horizontal stabilizer.
  • Page 19 With the stabilizer assembly held firmly in place, look from the front of the airplane at both the wing and the horizontal stabilizer. When aligned properly, the horizontal stabilizer should be parallel with the wing. C=C-1 IMPORTANT If the stabilizer assembly is out of alignment, remove it and use 220 grit sandpaper with a sanding block to sand down the higher mounting side on the fuselage, then reinstall the assembly and check the alignment once more.

  • Page 20: Section 12: Control Surface Hinging

    SECTION 12: CONTROL SURFACE HINGING YOU'LL NEED THE FOLLOWING PARTS: (17) C/A Style Hinges YOU'LL NEED THE FOLLOWING SUPPLIES: Ernst Airplane Stand Kwik Bond Thin C/A Paper Towels Kwik Bond C/A Debonder IMPORTANT If you want flutter-free control surfaces it is imperative that the hinges be glued in properly. This includes both having a tight hinge gap and using plenty of thin C/A glue.

  • Page 21: Section 13: Tail Wheel Installation

    Repeat the previous procedures to install the second aileron on the other half of the wing. Step 2: Hinging the Elevator Halves and Rudder Hinge the elevator halves and the rudder using the same methods as for the ailerons. When aligned properly, the outer tips of the elevator halves and rudder should be even with the tips of the stabilizers.

  • Page 22: Section 14: Optional Fixed Main Landing Gear Installation

    Install the tail wheel assembly into the back of the fuselage using four 3mm x 15mm socket-cap screws and four 3mm flat washers. Tighten the screws firmly using a 1.5mm hex wrench. Blind nuts have been preinstalled in the back side of the bulkhead to accept the screws.
  • Page 23 Insert the short 90º bend in each main gear wire into the predrilled hole in each landing gear block. Push the wires firmly down into the slots. The top of the wires should be nearly flush with the top of the blocks. When the landing gear wires are pushed into place, they come out of the blocks at an angle.
  • Page 24 Step 2: Installing the Nylon Landing Gear Straps Each main gear wire is held in place using two flat nylon landing gear straps and four 3mm x 12mm wood screws. Working with one gear wire for now, position two straps equal distances from each end of the wire.

  • Page 25: Section 15: Optional Retract Landing Gear Installation

    Install the covers onto the landing gear wires using four U-shaped nylon gear cover straps, eight 3mm x 10mm machines screws, eight 3mm flat washers and eight 3mm hex nuts. The covers should be perpendicular to the landing gear axles and there should be a 1/8" gap between the front edge of the gear covers and the wing.
  • Page 26 Test-fit the retract servo onto the servo mounting rails, making sure the servo output shaft is toward the trailing edge of the wing. The servo should be centered on the servo rails as shown. Because servo sizes differ, you may need to trim the inside edges of the servo rails to fit your particular servo.
  • Page 27 Using a modeling knife and a ruler, cut away and remove the portion of the wing for strut clearance. IMPORTANT Make the slot slightly wider than the strut to prevent any chance of the strut interfering with the wing during use. Install the Z-Bend in one 2mm x 250mm pushrod wire into the hole in the nylon retract actuator arm.
  • Page 28 Step 3: Connecting the Pushrod Assemblies Install two adjustable servo connectors onto a large servo wheel. Each connector should be installed in a hole that is 7/16" out from the center of the wheel. IMPORTANT When threading on the connector nuts, don't tighten them completely.
  • Page 29 Step 4: Installing the Main Gear Wheels Slide one 60mm wheel, flat side toward the wing tip, onto each axle. Slide one 4mm nylon spacer onto each axle, up against the wheel. Secure each wheel in place using one 4mm wheel collar and one 3mm x 5mm machine screw.

  • Page 30: Section 16: Engine Installation

    Cycle the retracts up and down a couple of times to check the alignment. The wheel should be centered within the wheel cup and no part of the strut should touch the wing. When satisfied with the alignment, glue the wheel cup into place using Pacer Formula 560 Canopy Glue. Repeat the previous procedures to install the second wheel cup in the other half of the wing.
  • Page 31 Before continuing you should decide in which direction you want to mount your engine. The direction you mount your engine is strictly up to you. You can either mount the engine sideways (like we show), inverted, or at a 45º down angle. Whichever direction you decide to mount the engine make sure that the center of the engine's crankshaft lines up where the horizontal and vertical lines intersect.
  • Page 32 Step 2: Installing the Engine Mount Beams Remove the engine mount beams from your engine and clean off any dried C/A from the engine mount beams and the bottom of the engine mounting lugs using a modeling knife. Using a drill with an 11/64" drill bit, drill a hole through the firewall at each of the four intersecting lines.
  • Page 33 Before marking and drilling the holes for the engine mounting screws in the next few procedures, it's very important to verify that the engine's thrust washer is 5-5/8" away from the firewall. This will ensure that the front of the cowling lines up properly when it is installed later.

  • Page 34: Section 17: Fuselage Servos Installation

    SECTION 17: FUSELAGE SERVOS INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (1) Plywood Fuselage Servo Tray (D24) YOU'LL NEED THE FOLLOWING SUPPLIES: Kwik Bond Thick C/A Electric Drill # 1 Phillips Head Screwdriver 1/16" Drill Bit Excel Modeling Knife Ernst Airplane Stand Step 1: Installing the Fuselage Servo Tray Test-fit the servo tray onto the two preinstalled support rails inside the fuselage.

  • Page 35: Section 18: Throttle Control System Installation

    SECTION 18: THROTTLE CONTROL SYSTEM INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (1) 2mm x 400mm Pushrod Wire w/Z-Bend (1) Adjustable Servo Connector Assembly YOU'LL NEED THE FOLLOWING SUPPLIES: Kwik Bond Thin C/A Electric Drill # 1 Phillips Head Screwdriver 5/64" & 7/64" Drill Bits Wire Cutters Ernst Airplane Stand Excel Modeling Knife...
  • Page 36 Step 2: Installing the Adjustable Servo Connector Using wire cutters, remove all but one arm from a "4-point" servo horn. Enlarge the fourth hole out from the center of the servo arm using a 5/64" drill bit. Install the adjustable servo connector into the servo arm. IMPORTANT When threading on the connector nut, don't tighten the nut completely.

  • Page 37: Section 19: Fuel Tank Assembly & Installation

    SECTION 19: FUEL TANK ASSEMBLY & INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (1) 360cc Fuel Tank (1) Silicon Fuel Tubing (1) 20mm Diameter Aluminum Front-Plate (1) Weighted Fuel Pick-Up (1) 18mm Diameter Aluminum Back-Plate (2) Aluminum Tubes (1) Rubber Stopper (1) 3mm x 20mm Machine Screw YOU'LL NEED THE FOLLOWING SUPPLIES: # 1 Phillips Head Screwdriver...
  • Page 38 Slide the 20mm diameter front-plate over the ends of the aluminum tubes and push it against the front of the stopper. Push the 3mm x 20mm machine screw into the front- plate and through the stopper assembly, then partially thread it into the back-plate.
  • Page 39 Double-check the seal between the stopper and the fuel tank. To do this, carefully try to twist the stopper assembly. If the stopper twists in the fuel tank, tighten the machine tighter. If the stopper doesn't twist, the seal is good. With the stopper assembly in place, double-check to make sure the clunk can move freely inside the fuel tank.

  • Page 40: Section 20: Elevator Control System Installation

    SECTION 20: ELEVATOR CONTROL SYSTEM INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (2) 755mm Nylon Pushrod Tubes (1) Nylon Pushrod Joiner Plate (2) 2mm x 255mm Threaded Wires (2) 2mm x 10mm Flange-Head Wood Screws (2) Nylon Control Horns w/Backplates (2) 2mm Flat Washers (4) 2mm x 25mm Machine Screws (1) 2mm Hex Nut (1) 2mm x 20mm Machine Screw...
  • Page 41 Install the nylon control horn using two 2mm x 25mm machine screws. Don't overtighten the screws. You don't want to crush the elevator. Repeat the previous procedures to install the second control horn on the other elevator half. Step 2: Installing the Elevator Pushrod Tubes Install one 2mm x 20mm machine screw, two 2mm flat washers and one 2mm hex nut into the center hole in the nylon pushrod joiner plate.
  • Page 42 Slide the plain end of one 2mm x 255mm threaded wire into the back of each nylon pushrod tube. Thread the wires into the tubes until 1/2" of threaded wire extends past the end of each tube. Apply a couple of drops of thin C/A to the ends of the tubes.

  • Page 43: Section 21: Rudder & Steering Control System Installation

    Check the control surface throw by measuring from the widest point of each control surface. Both elevator halves should move both up and down 3/8". You can adjust the control throws by moving the clevises in and out on both the control horns and the servo arm. Moving the clevises toward the control surfaces will increase the control throw.
  • Page 44 Step 2: Installing the Rudder & Steering Pushrod Tubes The rudder and steering pushrod control system is assembled in the same manner as the elevator pushrod control system, however, because the steering pushrod clevis is difficult to access once the pushrod is installed, the assembly order of the rudder and steering control system will be different.
  • Page 45 Using wire cutters, remove all but one arm from a "4-point" servo horn. Snap the nylon clevis (attached to the joiner plate assembly) into the second hole out from the center of the servo arm. You will have to enlarge the hole in the servo arm using a 5/64" drill bit so the clevis does not bind. Connect your radio system and plug the rudder servo into its proper slot in the receiver.

  • Page 46: Section 22: Aileron Control System Installation

    SECTION 22: AILERON CONTROL SYSTEM INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (2) Plywood Servo Covers (W59) (2) Nylon Clevises (4) Servo Mounting Blocks (W60) (2) Nylon Snap-Keepers (2) 2mm x 60mm Threaded Wires w/90º Bends (8) 3mm x 5mm Wood Screws (2) Nylon Control Horns w/Backplates (1) Clear Tubing (4) 2mm x 30mm Machine Screws...
  • Page 47 Temporarily place the aileron servo onto the bottom (non- covered side) of the servo cover. The servo arm should be inserted through, and centered within, the precut slot. While holding the servo aligned, temporarily place two hardwood mounting blocks behind the servo mounting tabs. You will need to first cut a notch in one of the blocks so the block doesn't interfere with the servo wire.
  • Page 48 Step 2: Installing the Servo Cover Assemblies Using a modeling knife, cut away and remove the cover- ing material from over the two aileron servo hatches in the bottom of the wing. Turn the wing over and remove the covering material from over the two servo lead exit holes in the top of the wing. Each hole is 5/8"...
  • Page 49 Remove the servo cover assembly and enlarge only the holes in the servo cover using a 3/32" drill bit. Reinstall the servo cover assembly using the four 3mm x 5mm wood screws provided. Repeat the previous procedures to install the second servo cover assembly in the other half of the wing. Step 3: Installing the Aileron Pushrods Enlarge the fourth hole out from the center of one con- trol horn using a 5/64"...
  • Page 50 Cut one 1/4" long piece of clear tubing and slide it onto the base of one nylon clevis. Thread the clevis onto the pushrod wire and snap the clevis into the fourth hole out from the base of the control horn. Slide the clear tubing up over the clevis to keep it from opening during flight.

  • Page 51: Section 23: Cowling Installation

    SECTION 23: COWLING INSTALLATION YOU'LL NEED THE FOLLOWING PARTS: (1) Molded Fiberglass Cowling (4) 3mm x 12mm Wood Screws (4) Hardwood Cowl Mounting Blocks (D25) (4) 3mm Flat Washers YOU'LL NEED THE FOLLOWING SUPPLIES: Kwik Bond 5 Minute Epoxy Dremel Tool w/Sanding Drum & Cutting Disc # 1 Phillips Head Screwdriver 220 Grit Sandpaper w/Sanding Block Excel Modeling Knife...
  • Page 52 Carefully slide the cowling over the engine and onto the fuselage. The back edge of the cowling (at the top and upper sides) should overlap the front of the fuselage 1-1/4". Depending on the size of the engine you've chosen, you may need to cut away a portion of the cowling to clear the engine's cylinder head.

  • Page 53: Section 24: Wing Fairing Installation

    Before permanently installing the cowling you should make the rest of the cut-outs for your engine. These include cut-outs for the high and low speed needle valves, muffler assembly and in-cowl fueling valve assembly. If your engine is mounted sideways you will need to attach a short piece of wire to your needle valve to make mixture adjustments. If you are using a Pitt's Style muffler assembly, you will need to attach short lengths of rubber or silicon tubing to the exhaust stacks to vent the exhaust outside of the cowling.
  • Page 54 Cut out the front and back of the wing fairings, being careful to follow the molded edges closely. Cut the outer edge of the wing fairings along the molded scribe line. Sand the edges of the wing fairings smooth and straight using 220 grit sandpaper with a sanding block. Step 2: Installing the Balsa Support Braces Bolt the wing securely to the fuselage.
  • Page 55 Using a modeling knife, rough-cut the support block close to its final shape. Sand the support block smooth and straight using 220 grit sandpaper and a sanding block. You want the support block to be straight across from the inside edge to the outside edge. Test-fit balsa support block W74 into the middle of the wing fairing.

  • Page 56: Section 25: Canopy Installation

    Remove the wing fairing and carefully cut away and remove the covering material on the wing from within the outline you drew. Glue the wing fairing into place using 5 minute epoxy. Quickly remove any excess epoxy using a paper towel and rubbing alcohol, and use pieces of masking tape to hold the wing fairing securely in place.

  • Page 57: Section 26: Final Assembly

    Carefully drill four 1/16" pilot holes through the canopy and into the fuselage for the mounting screws. Locate three holes on each side of the canopy, equally spaced apart. Remove the canopy and enlarge only the holes in the canopy using a 5/64" drill bit. IMPORTANT If you have decided to install an optional pilot and/or instrument panel, do so now before gluing the canopy into place in the next procedure.
  • Page 58 Test-fit the machine gun fairings to the leading edge of each wing half. The center of each fairing should be 14" out from the centerline of the wing. When satisfied with the fit, glue the fairings to the leading edge of the wing using a generous amount of Formula 560 Canopy Glue.
  • Page 59 Secure the hatch cover into place using one 3mm x 12mm wood screw. Don't overtighten the screw or you will crush the wood. Step 4: Installing the Propeller and Spinner Hub Slide the propeller onto the crankshaft and thread on the spinner hub. Tighten the spinner hub firmly by sliding a thin-shank screwdriver through the hole in the spinner hub and twisting like a wrench.

  • Page 60: Section 27: Balancing The P-47 Thunderbolt

    If any air bubbles form under the decal you can "prick" the bubbles with a straight pin to release the air. Repeat the procedures above to install the remaining decals. Rub each decal down thoroughly to adhere it into place. SECTION 27: BALANCING THE P-47 THUNDERBOLT YOU'LL NEED THE FOLLOWING SUPPLIES:...

  • Page 61: Section 28: Lateral Balancing The P-47 Thunderbolt

    SECTION 28: LATERAL BALANCING THE P-47 THUNDERBOLT Lateral balancing will make the airplane easier to trim and will make it track straighter in the air. It is strongly recommended. Turn the airplane upside down and tie one length of string to the propeller shaft and one length of string to the tail wheel wire.

  • Page 62: Section 30: Preflight Check & Safety

    SECTION 30: PREFLIGHT CHECK & SAFETY Completely charge the transmitter and receiver batteries before your first day of flying. Check every bolt and every glue joint in the airplane to ensure that everything is tight and well-bonded. This should include all of the control surface hinges as well. Double-check the balance of the airplane.

  • Page 63: Section 31: Flying The P-47 Thunderbolt

    SECTION 31: FLYING THE P-47 THUNDERBOLT The Modeltech P-47 Thunderbolt 60 ARF is designed for those pilots who are experienced at flying sport models. It is not a trainer. If you do not feel comfortable that you are able to test fly the airplane, don't hesitate to ask someone for some help test-flying and trimming it.
