WINGS
NOTE: Make sure to have some sort of protective foam on the work bench. This will
protect the paint surface from unwanted dents. Assemble both wings simultaneously.
Mark √ each step.
The 1/5 F16 have 2 control surfaces on each wing. Slat and Flaperon. It is up to you in
what configuration you would like to build F16. You can opt for full flaps on the wing
and tailerons. Or you can go with flaperons mixed with tailerons. The F16 with the help
of slats can fly real slow. It is important to make sure the SLAT STOP is working prop-
erly for the safety concern.

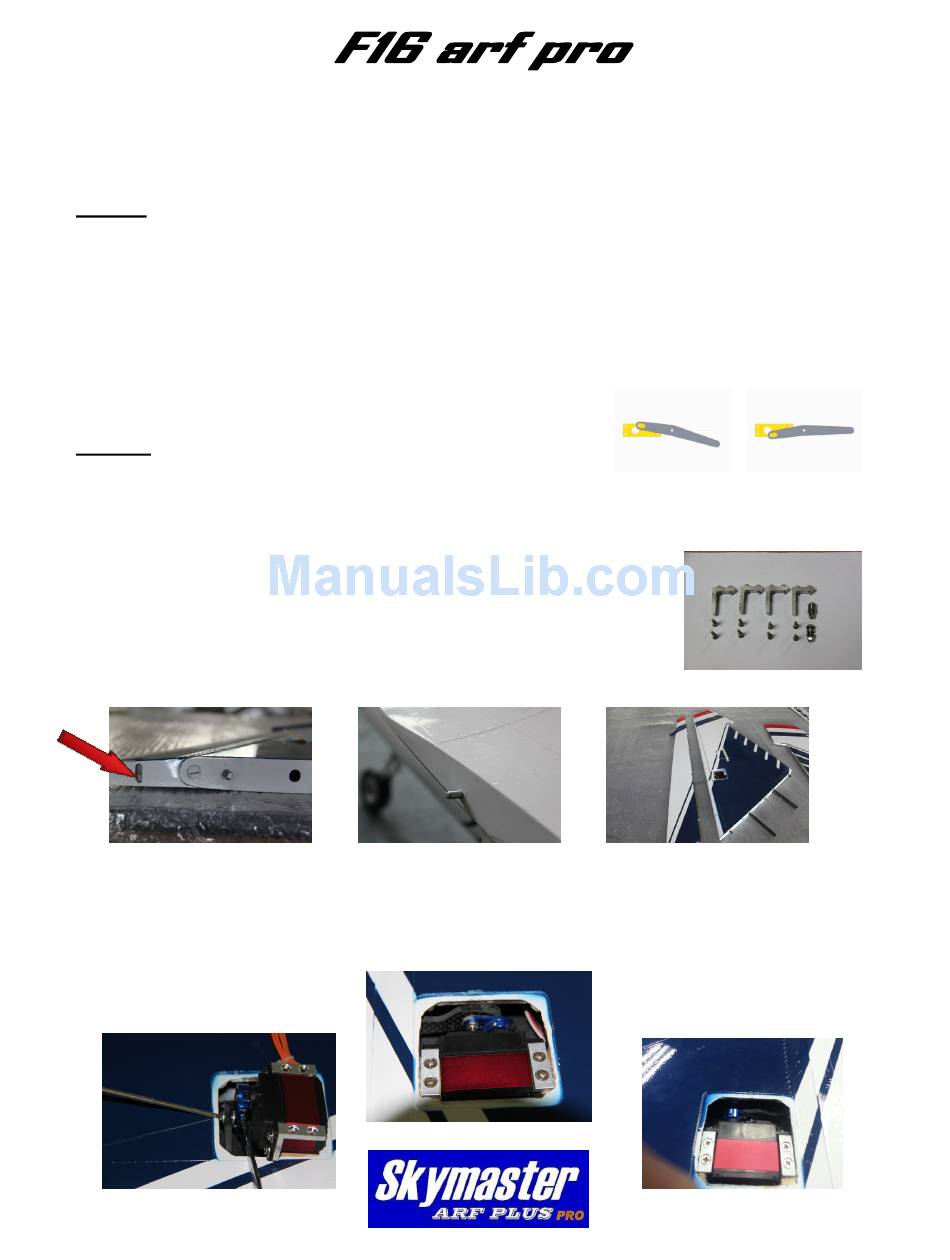

SLATS:

Remove and mark servo covers and inspect plywood. Use dremel to clean out
some glue and ply to make sure servos will fit well.
Pull out the pin hinge and remove the slat.
A factory installed bellcrank will be exposed.
Install metal horn to 8911 slat servo and 2 HD L-brackets
The bearings on metal horn should be 10mm centre/centre.
Photo 18
The bellcrank slot must fit over the servo horn bearings for slide fit.
Check operation against wing. Make sure no binding near the "slat stop".
Install servo cover.
Repeat for other wing
Photo 20
Assembly & Operation Manual
Photo 19
P-12
Photo 15 Photo 16
Photo 17
Photo 19
Photo 21
