BEFORE YOU FLY

It is assumed that the builder of this kit has acquired the basic skills and knowl-
edge necessary to make a safe and functional radio control installation into a
model. Therefore, these notes are intended only to assist that experience.
TRAVEL MAX SETTINGS:
1. Elevator
2. Rudder
3. Taileron
4. Flap
5. Flaperon
6. Slats
LANDING SETTINGS
1. Faperon
2. Flaps
3. Elevator mix 5mm up to Flap
4. Taileron
5. Slats
TAKE OFF / NORMAL SETTINGS
1. Flaperon
2. Elevator
3. Taileron
4. Flaps
5. Slats
Do not change location of CG unless you are experience and have some feel of
model before! 250mm—280mm from leading edge.
I have flown F16's in various setups. It is very predictable model to fly. If you do not like
to use flaperons and elevons, you can simply set it up with convention elevator and ai-
lerons. The F16 have 1 huge control surface on the wing. So be careful with too much
travel as the model will be over sensitive! The setup describe above is the best for this
model for good response and very slow controllable landings.
Elevons: Tail surface setup for elevator and ailerons function also called tailerons.
Flaperons: Wing control surface set up for both flaps and ailerons.
Set the maximum speed to 200mph! The prototype was tested with K210 turbine.
Assembly & Operation Manual
100 mm at T/E
42 mm each way
100 mm each way
75 mm
17 mm each way
25 mm
0 mm (no flaperon control for landing (only elevons)
70 mm (deployed below 90mph)
(for level flight)
100 mm
25 mm
17 mm mixed to Elevons
100 mm
66 mm
40 mm
18 mm
SLAT MIX TO ELEVATOR
VIDEO
This setting for high alpha flight!
P-24

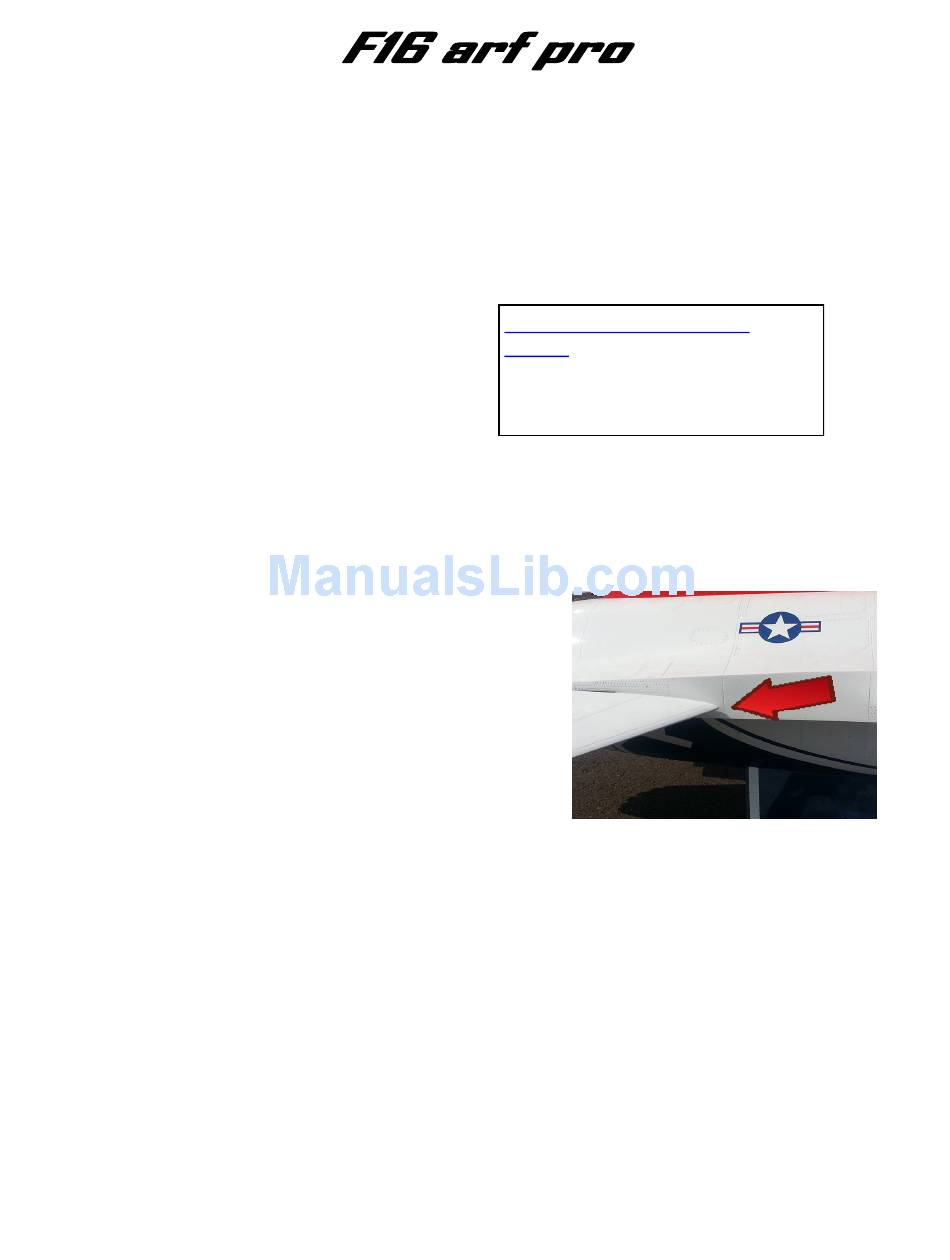

STAB NEUTRAL
Photo 71
