RUDDER

NOTE: Make sure to have some sort of protective foam on the work bench. This will
protect the paint surface from unwanted dents. Note that we have used JR servos. If
you use different servos, you may need to shim servo to fit rudder slot. No play must
be present. Mark √ each step.

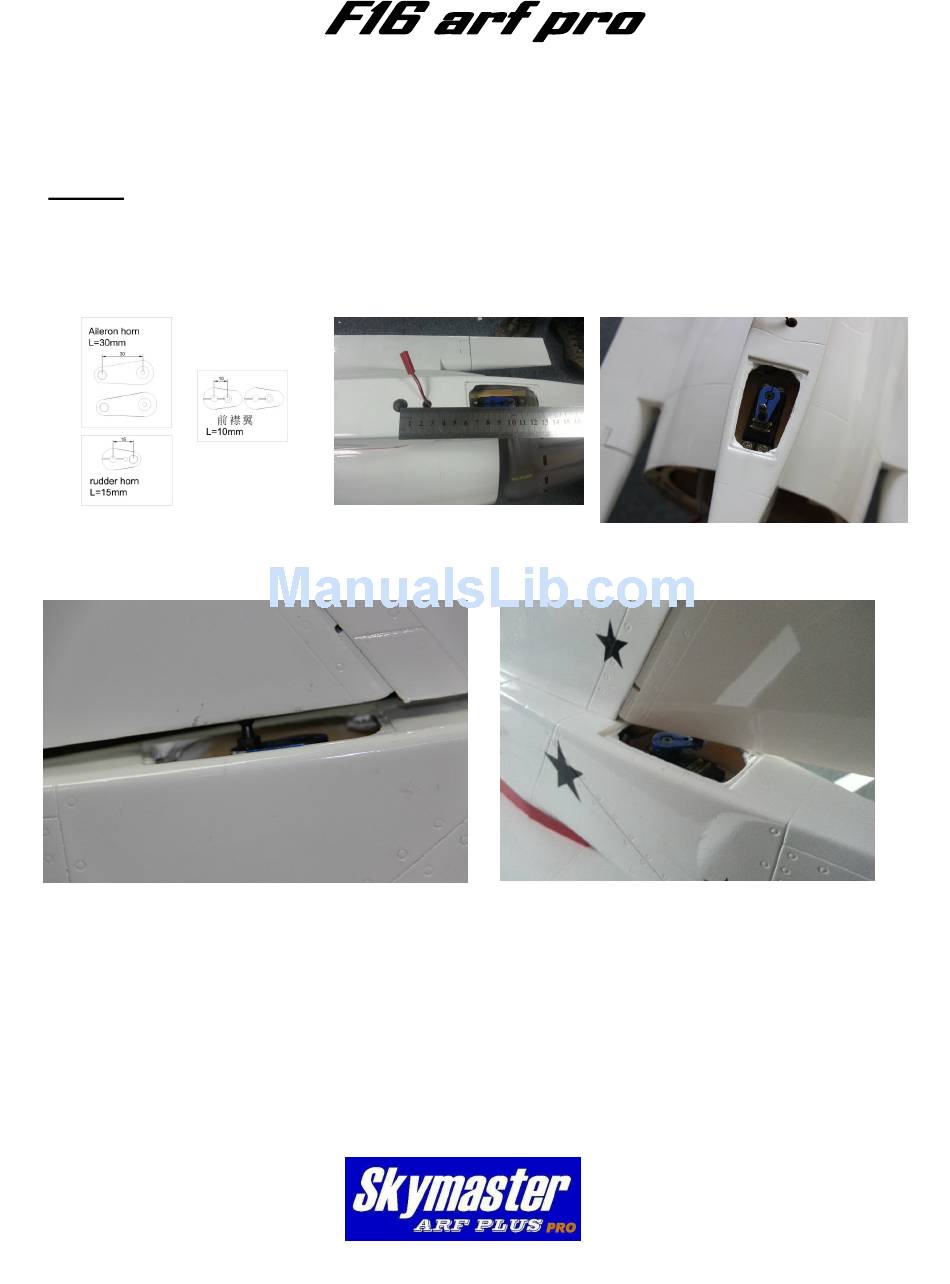

Photo 34
Photo 37
Fit horn to servo and centre servo. Make up rudder nipple(15mm). Use loctite.
Fit servo to fin. Nipple centre should be 100mm from main spar centre.
Trial fit rudder. Adjust if needed.
The rudder can be removed by pulling out the piano hinge wire.
Check left and right deflection. Check for play. If happy secure fin with allen key.
