CONTROL AND CONNECTIONS/DAY&NIGHT
IN/ALARM OUT TERMINALS

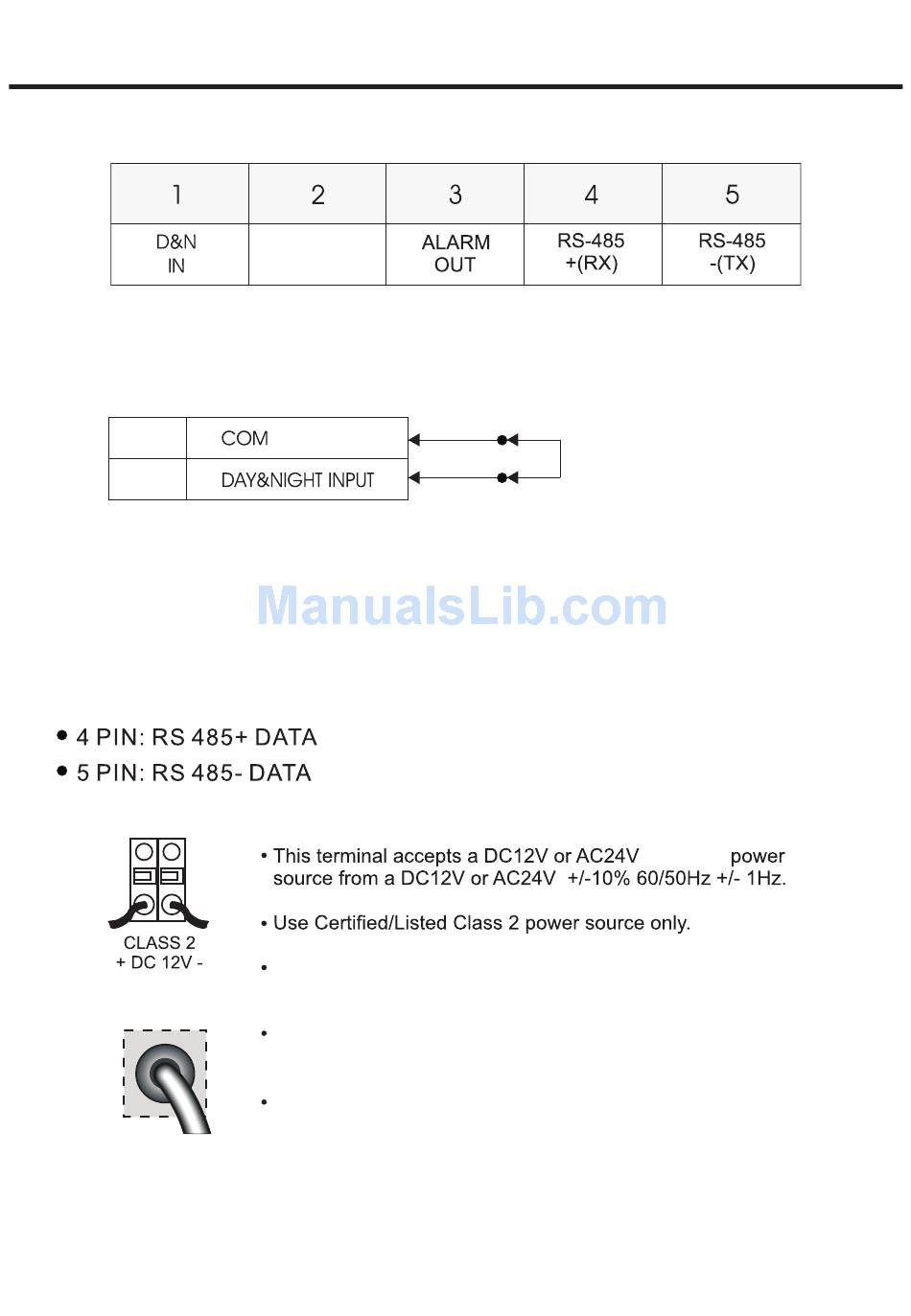

1. Terminal Block (Option)
1-1. DAY&NIGHT EXTERNAL INPUT (1pin)
Switches the cameras D/N mode to either Day or Night based on the input status. Refer to the
diagram below. The cameras D/N mode must be set to EXT for this to function.
2
1
1-2. Common/Ground – Used for D/N and Alarm connections
1-3. ALARM OUT
Motion detection signals are output through this port. Active state is High.
Normal : Low, ALARM : High.
1-4/5. CAMERA CONTROL
2. POWER INPUT TERMINAL
~ AC 24V ~
AC 100-240V
3. VIDEO OUT CONNECTOR
BNC : This BNC connector provides a 1.0Vp-p/75 ohms composite video Signal.
GND
(GND)
In DC power, use the Adapter mode than DC 12V 500mA Capacity.
It is recommended to use the DC power supply that can support
inrush current over 0.55A.
AC Power Cord -
This power cord accepts a 100-240V ~ 50(60)Hz ±1Hz.
Open contact: DAY
Close contact: NIGHT
17
(Option)
