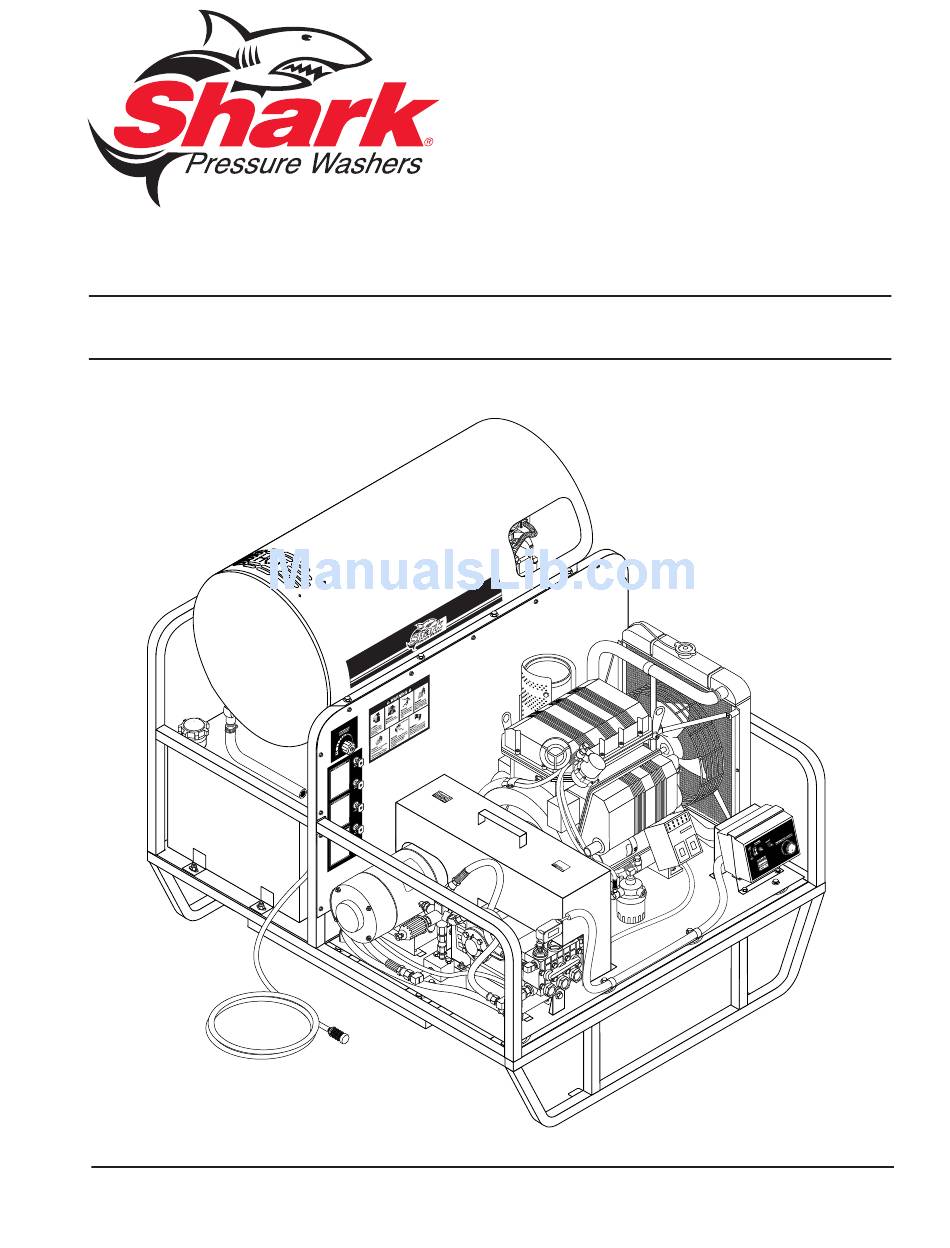

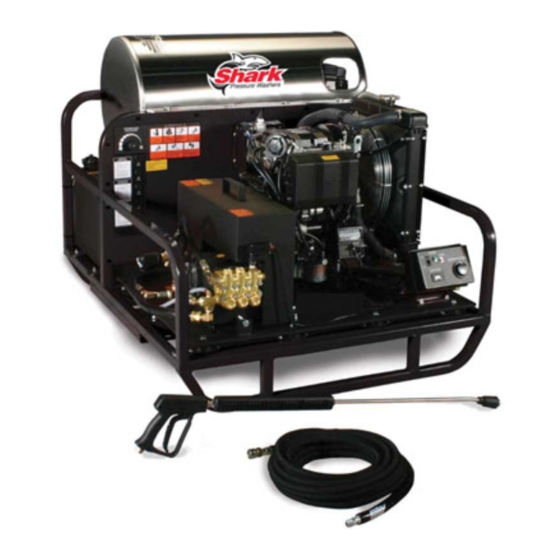

- Page 1 D I E S E L OPERATOR’S MANUAL I SSD-503067E I SSD-503067E/G I SSD-503061E I SSD-503061E/G SHARK PRESSURE WASHERS I 4275 N.W. PACIFIC RIM BLVD. I CAMAS, WA 98607 I USA For technical assistance or the Shark Dealer nearest you, call 1-800-771-1881.
- Page 2 3000 1066 51" x 44" x 41" OPTIONS Field Factory Part No. Description Installation Installation 35-130 Stainless Steel Float Tank 35-131 Stainless Steel Frame 35-138 Wheel Kit 35-168 Steam Combination Shark SSD Diesel Manual • Form #97-6167 • Revised 11/02...
-
Page 3: Table Of Contents
The model and serial numbers will be found on a decal attached to the pressure washer. You should record both serial number and date of purchase and keep in a safe place for future reference. Shark SSD Diesel Manual • Form #97-6167 • Revised 11/02... -
Page 4: Introduction
5. Avoid installing machines in time of printing. small areas or near exhaust Shark reserves the right to make changes at any time fans. Exhaust contains poison- without incurring any obligation. RISK OF ous carbon monoxide gas;... -
Page 5: Component Identification
(not included) Quick Coupler Burner Switch Detergent Metering Valve Diesel Fuel Tank Adjustable Thermostat Variable Pressure Wand High Pressure Hose Nozzle Quick Coupler Pressure Nozzle Spray Gun Trigger Detergent Pick-up Hose Detergent Bucket (not included) SHARK SSD DIESEL • REV. 11/02... -
Page 6: Pre-Operation Check
WARNING: Spray gun kicks back. Hold with both may result in a steam explosion. hands. 26. Shark will not be liable for any changes made to our 11. Grip cleaning wand securely with both hands before standard machines or any components not pur- starting the cleaner. -
Page 7: Operating Instructions
7. To apply detergent, place detergent pick-up tube into 2 minutes without water. a container of detergent and turn the detergent valve With machine off, open spray gun to release pres- counterclockwise (see page 8). sure before removing discharge hose. SHARK SSD DIESEL • REV. 11/02... -
Page 8: How To Use The Detergent Injector
RISK OF The machine can siphon and mix counterclockwise. Pull the trigger on the spray gun ASPHYXIATION. USE THIS PRODUCT detergents with the use of Shark's for 2 minutes. ONLY IN A WELL detergent injector kit. VENTILATED AREA. Detergent... -
Page 9: Preventative Maintenance
If compressed soot on the coil must be washed off after following the air is available, an air fitting can be screwed into the float coil removal steps (See Coil Removal on page 11). SHARK SSD DIESEL • REV. 11/02... -
Page 10: Rupture Disk
Next, slowly open the air shutter until white smoke just starts to appear. Turn air shutter halfway back to the black smoke position previously noted. Tighten locking screws. Air Shutter Air Band Locking Screw Locking Screw SHARK SSD DIESEL • REV. 11/02... -
Page 11: Coil Removal
7. Remove bolts that hold down coil to bottom wrap. 8. Remove coil. 9. Replace or repair any insulation found to be torn or broken. 10. Remove insulation retainer plates. Coil Reinstallation: Reinstall new or cleaned coil reversing Steps 9 through 1. SHARK SSD DIESEL • REV. 11/02... -
Page 12: Exploded View Left Side
U = Unloader R = Controls F = Frame H = Hose P = Pump E = Engine X = Battery Box W= Power Platform C = Coil N = Final Assembly T = Float Tank SHARK SSD DIESEL • REV. 11/02... -
Page 13: Exploded View Right Side
Control Fuel Lines To Fuel Tank Illus. H061 H090 U021 H080 R016 G10,G11, R017 G12,G13 H040, To Float Tank H041 H071 P081 H081 P091, P082 R018 P092,P093 R017 P25,P26, G25,G26,G27 H070 U022 U023 H071 SHARK SSD DIESEL • REV. 11/02... -
Page 14: Exploded View, Parts List
Wash Head 6-05101 Connector, Battery Post Burner Assembly, See Burner Spec's Page 23 7-0139 Insulation, Fiber Sleeving, 1/2" 3.5ft E251 2-9016 Clamp, Round, 0.56 ID E252 90-300210 Screw, #14 x 1", TEK, Blk., Zinc 3 SHARK SSD DIESEL • REV. 11/02... - Page 15 Bolt, 8mm x 16mm Hex Head 90-4002 Washer, 3/8", SAE, Flat H025 90-4008 Washer, 5/16", Lock, Split Ring L Nut, 3/8", Hex, NC 90-2007 H030 4-02047762 Hose, 3/8" X 62", 2 Wire, 5-40510001 Pulley, 2BK 100 H Pressure SHARK SSD DIESEL • REV. 11/02...
-
Page 16: Exploded View, Parts List
Assy, Power Platform, Diesel 2-0115 Box, Battery, M100 90-1002 Bolt, 1/4" x 1", Hex Head 90-2000 Nut, 1/4", ESNA, NC 90-4000 Washer, 1/4", Flat, SAE 2-0108 Bumper Pad, Engine 2-011500 Plate, Battery Box, Large, PO SHARK SSD DIESEL • REV. 11/02... -
Page 17: Platform Isolator, Exploded View And Parts List
Washer, 5/16", Flat, SAE 90-1012 Bolt, 5/16" x 2-1/2", NC HH 90-2001 Nut, 5/16", ESNA, NC 90-4001 Washer, 5/16", Flat, SAE 90-1021 Bolt, 3/8" x 2-1/2" GR 5 Zinc 90-2001 Nut, 5/16", ESNA, NC 2-011981 Washer, Snubbing SHARK SSD DIESEL • REV. 11/02... -
Page 18: Pump Assembly, Exploded View
F = Frame H = Hose P = Pump E = Engine X = Battery Box W= Power Platform C = Coil N = Final Assembly T = Float Tank U051 U031 P012 P011 SHARK SSD DIESEL • REV. 11/02... -
Page 19: Pump Assembly Parts List
Elbow, 3/8", Street, 45° U051 2-0051 Nipple, 1/2" MJIC x 3/8" NPT 2-0079 Swivel, 1/2" JIC Fem, 3/8" MAL 1 2-106301 Elbow, 1/2" JIC x 3/8", 45° 2-300816 Pump Protector, 3/8" PTP L Not Shown SHARK SSD DIESEL • REV. 11/02... -
Page 20: Float Tank Assembly, Exploded View And Parts List
2-301232 Nut, 1", Adapter, Float Valve 2-1006 Nipple, 1/2" Close 6-05134 Cable, TY, 48" 2-010049 Bulkhead, 1/2" PVC 2-301231 Adapter, Float Valve 2-1062 Elbow, 1/2" JIC x 1/2", 90° 95-07200014 Support Plate, Float Tank SHARK SSD DIESEL • REV. 11/02... -
Page 21: Control Panel, Exploded View And Parts List
R031 6-01270 SOC CS (503067E, 503061E) 1 Tubing 3 ft L Screw, 10/32" x 1-1/4" (ground) 1 R092 90-1994 R040 6-020251 Switch, Curvette RA901VB-B-1-1 L Nut, 10/32" R093 90-017 L Label, Ground R094 11-1042 SHARK SSD DIESEL • REV. 11/02... -
Page 22: Hose And Spray Gun Assembly And Parts List
Spray Gun, Shut-Off, AP 1000 1 L Nipple, 1/4" Steel 2-0003 4-0111341A Wand, VP w/Coupler & Nozzle 1 L O-Ring, Replacement Only 1 2-0119 L Seal, 1/4" Replacement Only 1 2-0132 L Not Shown SHARK SSD DIESEL • REV. 11/02... -
Page 23: Burner Specifications
WAYNE BURNER SPECIFICATIONS Burner Burner Fuel Fuel Model No. Assy No. Fuel Nozzle Transformer Motor Pump Solenoid Coil Electrode SSD-503061E/G 7-00034 7-0127 7-20358 7-0005 7-0009 7-0009611 7-13286 SSD-503067E/G 7-00034 7-0127 7-20358 7-0005 7-0009 7-0009611 7-13286 SHARK SSD DIESEL • REV. 11/02... -
Page 24: Troubleshooting
Faulty burner transformer Test transformer for proper arc between contacts. Replace as needed. Disconnected or short in electrical All wire contacts should be clean and tight. (continued on next wiring No breaks in wire. page) SHARK SSD DIESEL • REV. 11/02... - Page 25 Remove coils and burner assembly, clean and burner assembly thoroughly. Misaligned electrode setting Realign electrodes to specifications. Obstruction in smoke stack Check for insulation blockage or other foreign objects. Low engine RPM Increase RPM. SHARK SSD DIESEL • REV. 11/02...
- Page 26 O-Ring plunger retainer worn Check and replace if necessary. PUMP Cracked piston Check and replace if necessary. Pump protector Lower water supply pressure. Do not run with spray gun closed longer than 2 minutes. SHARK SSD DIESEL • REV. 11/02...
-
Page 27: Troubleshooting
Burner fan loose or misaligned Position correctly, tighten set screw. Defective control switch Replace switch. Loose wire Check and replace or tighten wiring. Defective burner motor Replace motor. RELIEF VALVE Relief valve defective Replace or repair. LEAKS WATER SHARK SSD DIESEL • REV. 11/02... -
Page 28: Maintenance Chart
100 Hrs or Maintenance Operation Yearly or Daily Weekly Monthly Yearly Pump Check Oil Engine Pump Change Oil Engine Air Cleaner Check Clean Spark Plug Check Valve Clearance Fuel Tank Filter Water Filter/Clean Check SHARK SSD DIESEL • REV. 11/02... -
Page 29: Warranty
TICULAR PURPOSE. SHARK does not authorize any other party, including authorized Dealers, to make any representation or promise on behalf of SHARK, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of SHARK products conforms to local codes. - Page 30 4275 N.W. Pacific Rim Blvd. • Camas, WA 98607 • 1-800-771-1881 Form #97-6167 • Revised 11/02 • Printed in U.S.A.
