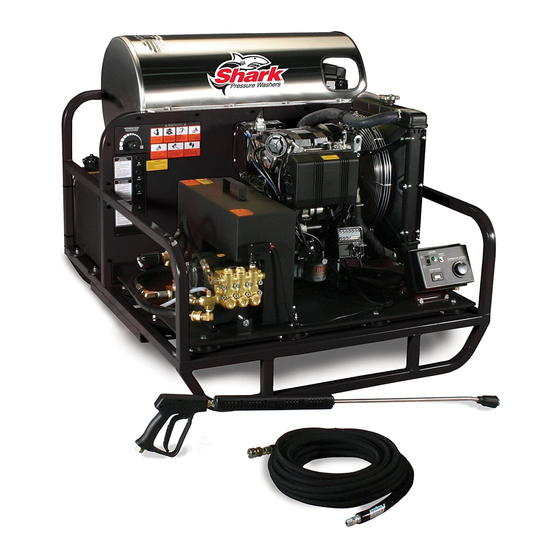

- Page 1 OPERATOR’S MANUAL 98011940-1 MODEL # ORDER # SSD-603567E 1.110-586.0 SSD-603567E/G 1.110-587.0 ® To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.sharkpw.com 9.801-194.0...
-
Page 3: Table Of Contents
CONTENTS Introduction & Important Safety Information Component Identification Assembly Instruction Operating Instructions Detergents & Cleaning Tips Shut Down & Clean-Up Storage Maintenance 12-14 Troubleshooting 15-18 Preventative Maintenance & Oil Change Chart Exploded View 20-21 Exploded View, Parts List 22-24 Hose and Spray Gun Assembly & Parts List Platform, Isolator, Exploded View &... -
Page 4: Introduction & Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION WARNING: This machine exceeds Thank you for purchasing a Shark Pressure Washer. We WARNING 85 db appropriate ear protection reserve the right to make changes at any time without must be worn. incurring any obligation. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION In an overfilling situation, additional precautions are 15. Be certain all quick coupler fittings are secured necessary to ensure that the situation is handled before using pressure washer. in a safe manner. WARNING: High pressure devel- WARNING WARNING: Risk of injury. - Page 6 IMPORTANT SAFETY INFORMATION 23. Machines with shut-off spray gun should not be operated with the spray gun in the off position for extensive periods of time as this may cause dam- age to the pump. 24. Protect discharge hose from vehicle traffic and sharp objects.
-
Page 7: Component Identification
COMPONENT IDENTIFICATION Inlet Connection Flue Adapter Optional 7-10049 Water Supply Hose Insulation Gasket (not included) Optional 7-01471 NOTE: Burner air adjustment must be tested after installation. Rupture Disk Detergent Metering Valve Burner Switch Diesel Fuel Tank Spray Adjustable High Thermostat Pressure Hose Pressure... -
Page 8: Assembly Instruction
ASSEMBLY INSTRUCTIONS Pressure Spray Dipstick Nozzle Safety Latch Wand High Pressure 98011940-11 98011940-12 Hose 98011940-10 STEP 1: Attach the high pressure STEP 2: Pull the spring-loaded STEP 3: Remove shipping cap and hose to the spray gun using teflon collar of the wand coupler back to in- install oil dipstick. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Oil Dipstick Fuel Tank Oil Cap Filter 98011940-16 98011940-17 STEP 1: Read operator's manual before operating machine. Check engine STEP 2: Fill engine fuel tank with oil level. Oil level should be level with the bottom of the oil filler neck. (Refer No. -
Page 10: Detergents & Cleaning Tips
DETERGENTS & GENERAL CLEANING TECHNIQUES WARNING: Some detergents THERMAL PUMP PROTECTION WARNING may be harmful if inhaled or in- gested, causing severe nausea, If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, fainting or poisoning. -
Page 11: Shut Down & Clean-Up
SHUTTING DOWN AND CLEAN-UP Burner Switch On-Off 98011940-18 98011940-25 Key Switch 98011940-24 STEP 2: Turn burner switch off and STEP 1: Remove detergent suction STEP 3: Turn off water supply. tube from container and insert into continue spraying, allowing water to cool below 100°F. -
Page 12: Maintenance
MAINTENANCE Winterizing Procedure: PREVENTATIVE MAINTENANCE Damage due to freezing is not covered by warranty. 1. Check to see that water pump is properly Adhere to the following cold weather procedures when- lubricated. ever the washer must be stored or operated outdoors 2. -
Page 13: Maintenance And Service
MAINTENANCE AND SERVICE Deliming Coils: Periodic inspection, to insure that the fuel solenoid valve functions properly, is recommended. This can Periodic flushing of coils or optional float tank is be done by operating the machine and checking to recommended. see that the burner is not firing when the spray gun is Step 1 Fill a container with 4 gallons of water, then . -
Page 14: Maintenance
Shark Clear Flame Oil Burner Burner Air Adjustment: The oil burner on this machine is preset for operation at altitudes below 1000 feet. If... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Faulty pressure gauge Install new gauge. OPERATING Insufficient water supply Use larger supply hose; clean filter at water PRESSURE inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle. Belt slippage Tighten or replace;... - Page 16 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BURNER WILL Flex coupling slipping on fuel Replace if needed. NOT LIGHT pump shaft or burner motor shaft (continued from On-Off switch defective Check for electrical current reaching burner previous page) assembly with burner switch on. Heavy sooting on coil and burner Clean as required.
- Page 17 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW WATER Improper fuel or water in fuel Replace with clean and proper fuel. TEMPERATURE Low fuel pressure Increase fuel pressure. Weak fuel pump Check fuel pump pressure. Replace pump if needed. Fuel filter partially clogged Replace as needed.
- Page 18 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION OIL DRIPPING Oil seal worn Check and replace if necessary. EXCESSIVE Irregular functioning of the valves Check and replace if necessary. VIBRATION IN DELIVERY LINE DETERGENT Air leak Tighten all clamps. Check detergent lines for NOT DRAWING holes.
-
Page 19: Preventative Maintenance & Oil Change Chart
PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for maintenance. -
Page 20: Exploded View
EXPLODED VIEW G30, (Reversed View Of Label) R101 R103 R070 R100 R071 R105 R104 R107 R106 Detail See Platform Isolator Illus. Detail See Float Tank Illus. H050 H051 H052 98011940-3 LEGEND G = Generator E = Engine L = Fuel Tank X = Battery Box B = Beltguard W= Power Platform... -
Page 21: Exploded View
EXPLODED VIEW C301 R102 Fuel Lines To Burner H100,H101 H110,H111 E002 H023,H024, H025 C-35 H010,H011, H020,H021,H022 C-41 Fuel Lines To C-10 Fuel Tank C-37 H030 Detail C-39 H060 See Pump E20,E21, Assy. R030 Detail See E22 E23, llus. Control E24,E25 C-38 E09,E10,E11, E251,E252... -
Page 22: Exploded View Parts List
EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-023.0 Belt Guard, Diesel, Black 9.184-030.0 Spacer, Rupture Disk (587) 8.706-248.0 Plug, 3/8" 9.803-024.0 Belt Guard, 12VDC Diesel 9.196-012.0 Screw, 10-24 x 1/4" (586) 8.752-114.0 Nipple, 1/4" 9.802-779.0 Nut, 3/8" ESNA, NC 8.725-944.0 Rupture Disk 8000 9.802-807.0 Washer, 3/8", SAE, Flat R030 8.750-094.0 Thermostat, Adjustable 302°F 1... - Page 23 R101 9.802-799.0 Screw, #14 x 1", Tek, H050 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 72" Black, Zinc H051 9.802-200.0 Clamp, Screw, #4 R102 8.900-870.0 Label, Shark H052 9.802-161.0 Strainer, 1/4", Brass w/Check R103 9.800-041.0 Label, Warning, Text H060 8.711-785.0 Hose, 3/8", Push-on 2 ft R104 9.800-042.0 Label, Control Panel...
- Page 24 EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION U021 9.802-730.0 Bolt, 3/8" x 2-1/2", Grade 5, Zinc U022 9.802-807.0 Washer, 3/8", SAE, Flat U023 9.802-779.0 Nut, 3/8", ESNA, NC 9.803-022.0 Assy, Power Platform, Diesel 9.802-075.0 Box, Battery, M100 9.802-701.0 Bolt, 1/4" x 1", Hex Head 9.802-773.0 Nut, 1/4", ESNA, NC 9.802-802.0 Washer, 1/4", Flat, SAE...
-
Page 25: Hose And Spray Gun Assembly & Parts List
HOSE & SPRAY GUN ASSEMBLY 98011940-9 HOSE & SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION 8.739-203.0 Hose, 3/8" x 50', 2 Wire, Tuff-Flex 8.710-384.0 Gun, ST-1500, 5000 10.4 GPM 9.803-805.0 Wand 9.802-307.0 Nozzle, 0006, Red 9.802-308.0 Nozzle, 1506, Yellow 9.802-309.0 Nozzle, 2506, Green 9.802-310.0 Nozzle, 4006, White LEGEND... -
Page 26: Platform, Isolator, Exploded View & Parts List
PLATFORM ISOLATOR EXPLODED VIEW 98011940-8 LEGEND E = Engine L = Fuel Tank X = Battery Box B = Beltguard W= Power Platform P = Pump G = Generator N = Final Assembly F = Frame T = Float Tank H = Hose U = Unloader C = Coil... - Page 27 PLATFORM ISOLATOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-057.0 Isolator, Vibration Mount, 100L 9.802-710.0 Bolt, 5/16" x 1", NC HH 9.802-804.0 Washer, 5/16", Flat, 9.802-776.0 Nut, 5/16", ESNA, NC 9.802-730.0 Bolt, 3/8" x 2-1/2" Grade 5 Zinc 9.802-099.0 Washer, Snubbing 9.802-807.0 Washer, 3/8", SAE, Flat 9.802-779.0 Nut, 3/8", ESNA, NC 9.802-717.0 Bolt, 5/16"...
-
Page 28: Pump Assemblies, Exploded View
PUMP ASSEMBLY EXPLODED VIEW H090 U051 H081 H080 H081 U021 H030 U031 P013 P012 P011 98011940-5 LEGEND E = Engine N = Final Assembly F = Frame T = Float Tank H = Hose U = Unloader G = Generator L = Fuel Tank X = Battery Box B = Beltguard... -
Page 29: Pump Assemblies Parts List
PUMP ASSEMBLIES PARTS LIST ITEM PART NO. DESCRIPTION H030 8.918-429.0 Hose, 3/8" Pressure 60" H080 9.802-254.0 Hose, 1/2" Push-On 19" H081 9.802-151.0 Swivel, 1/2" JIC Fem, Push-On H090 8.711-653.0 Hose, 3/8" Pressure 16" 9.802-346.0 Pump, KT 6035 P011 9.803-042.0 Screw, Pump P012 9.803-042.0 Washer, Lock, Pump P013 9.802-132.0 Elbow, 3/4"... -
Page 30: Control Box, Exploded View & Parts List
CONTROL BOX EXPLODED VIEW R012 R010 R015 R030 R011 R020 R021 89001000-7 R023 R095 NOTE: R096 "586.0 Only" R097 R094 R080 R060 98011940-6 R013 R040 R050 CONTROL BOX PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION R010 9.803-693.0 Box, Plastic, Back R060 9.802-455.0 Light Indicator, Green 115V (587.0) R011 9.802-700.0 Bolt, 1/4"... -
Page 31: Float Tank Assembly, Exploded View & Parts List
FLOAT TANK ASSEMBLY To Pump 98011940-7 FLOAT TANK PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.804-042.0 Tank, Float, 2-1/2 9.803-671.0 Stem, 5" Float Gallon, Blank 9.802-512.0 Cable, TY, 48" 8.749-328.0 Valve, Float, PVC 9.802-150.0 Anchor, 9.802-162.0 Strainer, 1/2" Basket Connector, 1/2"... -
Page 32: Specifications
SPECIFICATIONS BECKETT BURNER SPECIFICATIONS Burner Burner Fuel Pump/ Fuel Model No. Assy No. Fuel Nozzle Igniter Motor Solenoid/Cord Solenoid Coil Electrode 1.110-586.0 9.802-559.0 9.802-577.0 9.802-663.0 9.802-638.0 9.802-562.0 9.802-634.0 9.802-668.0 1.110-587.0 9.802-556.0 8.717-366.0 9.803-060.0 9.803-056.0 9.802-645.0 9.802-640.0 9.802-669.0 CLEAR FLAME BURNER SPECIFICATIONS Burner Burner Fuel Pump/... -
Page 33: Vrt 3 Unloader Exploded View & Parts List
VRT3 UNLOADER EXPLODED VIEW AND PARTS LIST 8.750-297.0, 8 GPM, 2320 PSI 8.750-298.0, 8 GPM, 3630 PSI 8.750-299.0, 8 GPM, 4500 PSI ITEM PART NO. DESCRIPTION 8.750-713.0 Outlet Fitting 8.750-712.0 Knob, Unloader 8.750-709.0 Repair Kit, VRT3, 2320/3630 PSI 8.750-710.0 Repair Kit, VRT3, 4500 PSI (Kit Items: 3, 4, 6, 9-12, 21, 24) Unloader Adjustment Procedures Remove lock nut (Item 19). -
Page 34: Kt.1 Series Pump Exploded View & Parts List
KT.1 SERIES PUMP EXPLODED VIEW 9.802-345.0 KT4035.1 Right 9.803-410.0 KT4035.1 Left 9.803-411.0 KT4040.1 Right 9.803-412.0 KT4040.1 Left 9.803-413.0 KT5030.1 Right 9.803-414.0 KT5030.1 Left 9.802-346.0 KT6035.1 Right 9.803-416.0 KT6035.1 Left TORQUE SPECS Item # Ft.-Lbs. KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO. -
Page 35: Kt.1 Series Pump Exploded View & Parts List
KT.1 SERIES PUMP EXPLODED VIEW & PARTS LIST ITEM PART NO. DESCRIPTION See Kit O-Ring Ø1.78 x10.82 See Kit Teflon Ring See Kit Plunger See Kit Copper Spacer 9.803-143.0 Plunger Rod 9.803-157.0 Connecting Rod 9.802-912.0 Snap Ring 9.802-915.0 Connecting Rod Pin 9.802-889.0 Spring Washer 9.802-937.0 Connecting Rod Screw 9.803-194.0 O-Ring Ø2.62 x 152.07... -
Page 36: Clear Flame Burner "S" Replacement & Parts List
CLEAR FLAME BURNER "S" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts 8.918-919.0 SSD • 9.801-194.0 • Rev. 12/13... - Page 37 CLEAR FLAME BURNER "S" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts SSD • 9.801-194.0 • Rev. 12/13...
-
Page 38: Clear Flame Burner "M/L" Replacement & Parts List
CLEAR FLAME BURNER "M/L" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts 8.920-645.0 SSD • 9.801-194.0 • Rev. 12/13... - Page 39 CLEAR FLAME BURNER "M/L" REPLACEMENT PARTS For best performance specify genuine KNA replacement parts SSD • 9.801-194.0 • Rev. 12/13...
- Page 41 Dealer or other sales or service outlet to another purchaser. Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tornadoes, hurricanes and lightning strikes.
- Page 42 www.sharkpw.com Form # 9.801-194.0 • Revised 12/13 • Printed in U.S.A. or Mexico...
