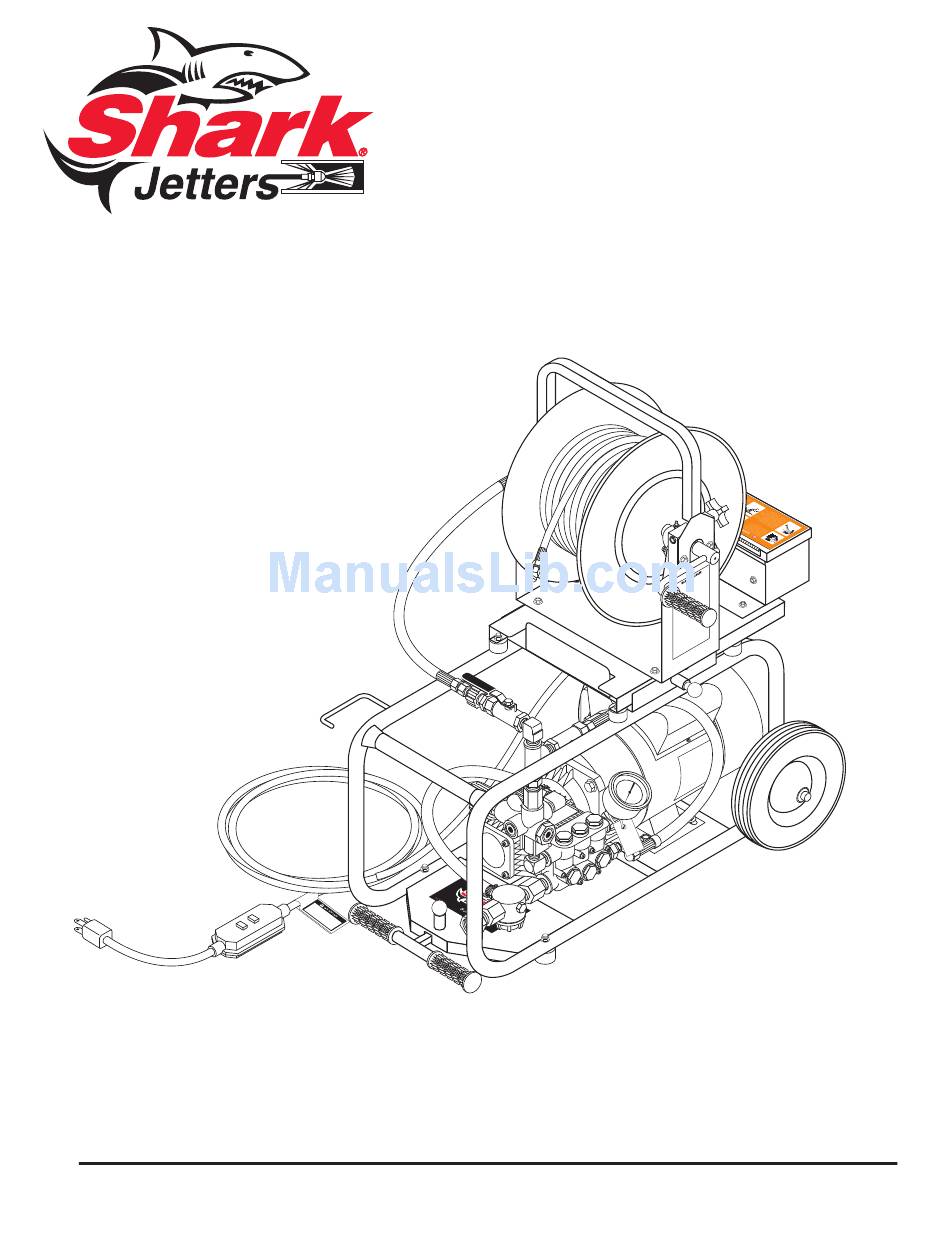

- Page 1 SJPE-1500 OPERATOR’S MANUAL 89143239-8 MODEL # ORDER # SJPE-1500 1.106-046.0 SJPE-1500-B 1.107-201.0 SJPE-1500-C 1.107-202.0 To locate your local Shark Commercial Pressure Washer Dealer nearest you, visit www.sharkpw.com 8.914-323.0...
-
Page 2: Table Of Contents
Component Identification & Use, Drain Cleaning through Roof Vent..........6 Operating Instructions ........................8-9 Maintenance ............................ 9 Exploded View, SJPE-1500 ......................10 Exploded View, Parts List SJPE-1500 ................... 11 Pump Exploded View ........................12 Pump Exploded View Parts List ..................... 13 SHR-200CP Hose Reel with Foot Pedal ..................14 Hose and Spray Gun Assembly ..................... -
Page 3: Introduction & Machine Safety Information
UL approved ground fault circuit 11. Shark will not be liable for any changes made to our interrupter (GFCI) power cord. standard machines or any components not purchased from Shark. -
Page 4: Assembly
If connect. The 1/4" and 1/8" (3.175mm) hoses may be con- jet is being used to clear ice blockages, see instructions nected directly to the accessory outlet if an adapter fitting on page 8. SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 5: Component Identification & Use, Drain Cleaning
OPERATOR’S MANUAL COMPONENT IDENTIFICATION AND USE DRAIN CLEANING Hose Reel Pulse Control Valve Tool Box Pressure Control Valve Unloader Valve Motor GFCI Pressure Foot Pedal Gauge (optional) Anti-Siphon Valve Pump Inlet Filter 89143230-3 Drain SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 6: Component Identification & Use, Drain Cleaning Through Roof Vent
Roof Vent Foot Pedal (optional) Roof Hose Line to Foot Pedal on Roof Hose Reel Pressure Control Valve Toolbox Unloader Valve Motor GFCI Pulse Control Anti-Siphon Valve Valve Pump Pressure Gauge Inlet 89143239-4 Strainer SJPE-1500 • 8.914-323.0 • REV. 4/12a... - Page 7 Check that traffic has not made the hose weak, worn pipe thoroughly. or damaged. Check the hose for pinching or kinking. ___ Replace any damaged hose. ___ Tighten all fluid connections securely. Rotary nozzle scours walls of pipe crystal clear SJPE-1500 • 8.914-323.0 • REV. 4/12a...
-
Page 8: Operating Instructions
OPERATOR’S MANUAL OPERATING INSTRUCTIONS SCP-1 Foot Pedal (Optional) The foot pedal is used with any jet manufactured by Shark ❑ Check all hoses for wear and damage. Tighten all con- (see pages 5,6). It interrupts the flow of water between nections securely. -
Page 9: Maintenance
Be careful not to dilute anti-freeze with incoming water Detergent Injector (Optional) supply. Anti-freeze, if kept relatively undiluted can be used The detergent injector is an option with the SJPE-1500 again and again. and can be attached to the free end of the ball valve. Do Hoses can also be protected from freezing by using com- not attach detergent injector to the inlet side of the pump. -
Page 10: Exploded View Sjpe-1500
Shark Jetters ® OPERATOR’S MANUAL EXPLODED VIEW SJPE-1500 89143230-1 Foot Pedal Assembly (Optional) SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 11: Exploded View, Parts List Sjpe-1500
▲ Tag, Warning, Backflow 8.706-828.0 Elbow, 3/8" Street 8.706-573.0 Grip, 7/8" Handle, Jetter ▲ Not Shown 8.911-632.0 Assy, Frame, Black 9.802-754.0 Screw, 1/4" x 1/2, HH, NC, Whiz Loc 8.900-994.0 Label, SJPE-1500, w/Pulse Technology SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 12: Pump Exploded View
Shark Jetters ® OPERATOR’S MANUAL PUMP MODEL NO. AR XTA2G15EBA-F8 JET SET MODEL SJPE-1500 PART #8.702-504.0 "E" version Ø24mm SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 13: Pump Exploded View Parts List
Shark Jetters ® OPERATOR’S MANUAL PUMP MODEL NO. AR XTA2G15EBA-F8 JET SET MODEL SJPE-1500 PART #8.702-504.0 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 83-680570 Head Bolt TCEI M6x60 Brass 8.718-393.0 Con Rod, Bronze 83-620301 Tap Plug 1/8" G (optional) 8.718-383.0... -
Page 14: Shr-200Cp Hose Reel With Foot Pedal
Bolt, 5/16" x 6-1/2" HH, NC MNPT(SWL) 9.802-069.0 Grip, 1" Handle, Waffle 8.711-866.0 Hose Reel, 13" Shark Jetter 8.940-343.0 Label, Discharge 8.711-874.0 Swivel, 3/8" x 3/8" 9.803-551.0 Screw, 5/16" x 3/4" Whiz Loc 8.718-980.0 Washer, 5/16" SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 15: Hose And Spray Gun Assembly
Hose, 3/8" x 25', 1 Wire, TS, Legacy, 50 x SW 8.707-182.0 Coupler, 3/8" Female Screw Type 7640 8.712-421.0 Nozzle Holder, Adjustable AL-TR9-4701.12 8.711-368.0 ▲ Nozzle Only, SA 1/4", MEG 1502.5 ▲ Not Shown SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 16: Specifications Nozzels
NOZZLE SETS Part Number Size Description Number of Nozzles 9.803-318.0 Nozzle Kit, 1/8" and 1/4" 9.803-319.0 Nozzle Kit, 1/8" and 1/4" 9.803-320.0 Nozzle Kit, 3/8" 9.803-321.0 Nozzle Kit, 1/4" 9.803-322.0 Nozzle Kit, 1/4" and 3/8" SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 17: Specifications Jetter Hoses, Adapters & Bushings
1/4" X 3/8" FPT X MPT 8.705-364.0 1/4" X 1/4" FPT X FPT 8.705-366.0 3/8" X 3/8" FPT X FPT 8.705-369.0 1/2" X 1/2" FPT X FPT 8.705-371.0 3/4" X 3/4" FPT X FPT SJPE-1500 • 8.914-323.0 • REV. 4/12a... -
Page 18: Troubleshooting
Hot water in pump Do not run in bypass for more than 5 minutes. Do not let water supply exceed 140 F (60 IRREGULAR SPRAY Worn or partially clogged nozzle Clean or replace nozzles. PATTERN SJPE-1500 • 8.914-323.0 • REV. 4/12a... - Page 19 Nozzle worn or wrong size Replace part as necessary. Piston or valve worn Replace part as necessary. EXTREME PRESSURE Adjusting nut turned completely into Back off adjusting nut. SPIKES unloader Clogged nozzle Clean or replace SJPE-1500 • 8.914-323.0 • REV. 4/12a...
-
Page 20: Warranty
Dealer or other sales or service outlet to another purchaser. Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tornadoes, hurricanes and lightning strikes. - Page 22 SHARK JETTERS SJPE-1500 • 8.914-323.0 • PRINTED IN USA • REV. 4/12a ®...
