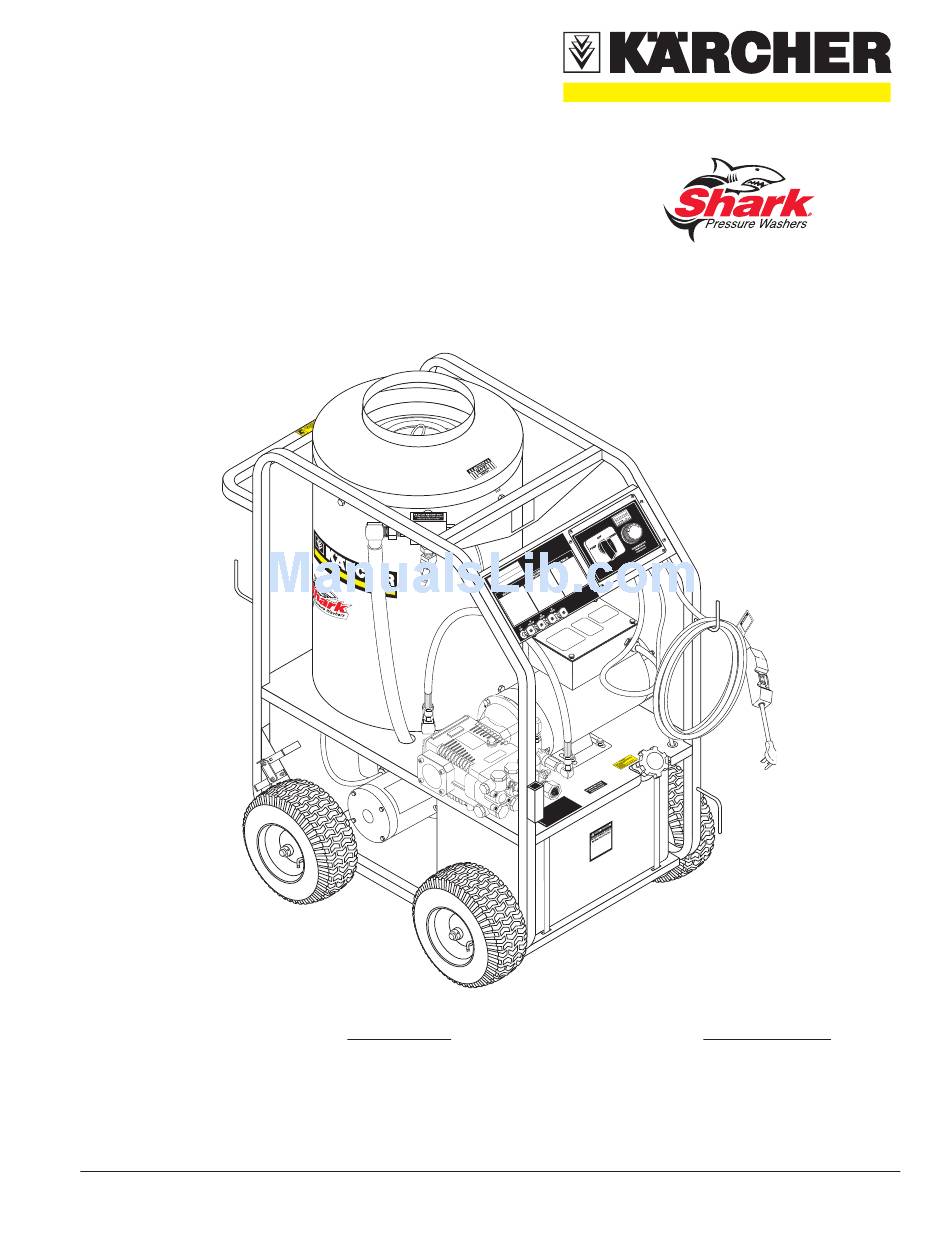

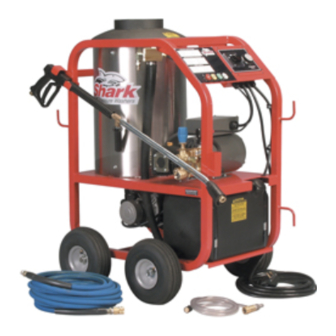

OPERATOR'S MANUAL
HDS 2.0/10 E
HDS 1.9/15 E
HDS 3.5/20 E
To locate your local Kärcher Shark Commercial Pressure Washer Dealer nearest you,
visit www.karchercommercial.com or www.karchershark.com
MODEL
Cage / STP-231007D
d
Cage / STP-201507D
d
Cage / STP-352007A
a
ORDER #
1.575-511.0
1.575-512.0
1.575-513.0
9.800-191.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP-231007D and is the answer not in the manual?

Questions and answers

Related Manuals for Shark STP-231007D

Summary of Contents for Shark STP-231007D

  • Page 1 ORDER # HDS 2.0/10 E Cage / STP-231007D 1.575-511.0 HDS 1.9/15 E Cage / STP-201507D 1.575-512.0 HDS 3.5/20 E Cage / STP-352007A 1.575-513.0 To locate your local Kärcher Shark Commercial Pressure Washer Dealer nearest you, visit www.karchercommercial.com or www.karchershark.com 9.800-191.0...

  • Page 2: Table Of Contents

    CONTENTS Introduction and Safety Information Component Identification Operating Instructions Preventative Maintenance and Service 9-11 Exploded Views 12-13 Exploded Views Parts List 14-16 Control Panel Exploded View and Parts List 17-18 Hose & Spray Gun Assembly and Parts List Downstream Injector Assembly and Parts List Unloader Exploded View and Parts List Pump Exploded View and Parts List 22-23...

  • Page 3: Introduction And Safety Information

    INTRODUCTION & IMPORTANT SAfETy INfORMATION DANGER: Improper connection of the equip- Thank you for purchasing this Pressure Washer. ment-grounding conductor can result in a risk of We reserve the right to make changes at any time electrocution. Check with a qualified electrician or without incurring any obligation.

  • Page 4: Important Safety Information

    IMPORTANT SAfETy INfORMATION WARNING: High pressure devel- 10. Keep operating area clear of all persons. WARNING oped by these machines will WARNING: High pressure spray WARNING cause personal injury or equip- can cause paint chips or other ment damage. Keep clear of particles to become airborne nozzle.
  • Page 5 IMPORTANT SAfETy INfORMATION INSTALLATION Place machine in a convenient location providing ample support, draining and room for maintenance. This machine is intended for indoor use. Machine must be stored indoors when not in use. Location: The location should protect the machine from damag- ing environmental conditions, such as wind, rain, and freezing.

  • Page 6: Component Identification

    COMPONENT IDENTIfICATION C A U T I O N H O T W A T E R : Must use insulated spray gun and wand. Nozzle ON - Off Switch Hour Meter Adjustable Thermostat Discharge Nipple gfCI Wand Holder fresh Water Downstream faucet Detergent...

  • Page 7: Operating Instructions

    OPERATINg INSTRUCTIONS Electrical: 5. Insert quick coupler onto discharge nipple and secure by pushing quick coupler collar forward. This machine, when installed, must be electrically 6. Securely attach the desired high pressure nozzle grounded in accordance to local codes. Check for into wand coupler as described in steps 4 and 5.

  • Page 8: Detergent Injector

    MAy bE HARMfUL The machine can siphon and mix If INHALED OR the variable pressure wand control handle clock- detergents with the use of Shark's INgESTED. wise to increase pressure. detergent injector kit. NOTE: The detergent injector will not siphon with 1.

  • Page 9: Preventative Maintenance And Service

    PREvENTATIvE MAINTENANCE AND SERvICE solution of anti-freeze/water into a 5 gallon bucket. PREvENTATIvE MAINTENANCE Place a short section of garden hose into bucket and connect it to machine. Elevate bucket and turn pump on 1. Use clean fuel - kerosene, No. 1 home hearing to siphon anti-freeze through machine.

  • Page 10: Rupture Disk

    PREvENTATIvE MAINTENANCE AND SERvICE burner Nozzle: the soot on the coil must be washed off after coil has been removed using the following steps: Keep the tip free of surface deposits by wiping it with a clean, solvent-saturated cloth, being careful not to plug 1.
  • Page 11 PREvENTATIvE MAINTENANCE AND SERvICE fUEL AIR ADjUSTMENT Air Shutter Locking Screw Air Shutter Air band Air band Air Shutter Locking Screw Locking Screw If the desired position cannot be obtained using only the air shutter, lock the air shutter in as close a position as can be obtained, then repeat the above procedure on the air band setting.

  • Page 12: Exploded Views

    ExPLODED vIEW - LEfT (Reversed view of Labels) (Reversed view of Label) Detail See Control Panel Illus. To fuel Tank fuel Tank 9.800-191.0 • Rev. 04/09...
  • Page 13 ExPLODED vIEW - RIgHT 28,29 D EP O SI TI VO Enlarged R ES R EP O SI C IO view Overload button 9.800-191.0 • Rev. 04/09...

  • Page 14: Exploded Views Parts List

    ExPLODED vIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.802-782.0 Collar, 5/8" Bore Shaft 9.802-271.0 Wheel & Tire Assy, 6" Steel Rim w/Tube 9.802-810.0 Washer, 5/8", Flat, SAE 9.803-110.0 Axle, Rod 5/8" x 27.80" L 9.802-081.0 Tank, Fuel 6 Gallon Blank 9.802-089.0 Cap, Fuel Tank, Plastic H60-AV 9.802-053.0...
  • Page 15 ExPLODED vIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.802-753.0 Screw, 1/4" x 3/4" HH NC, Whiz Loc 9.802-793.0 Nut, Cage, 1/4" x 16 Gauge 9.803-095.0 Coil, Assembly 9.800-041.0 Label, Warning, Text 9.800-006.0 Label, Hot/Caliete w/Arrows Warning 9.803-029.0 Tank Head Assy, 16" DIA x 8" Stack 9.802-904.0 Insulation, Tank Head, 16"...
  • Page 16 ExPLODED vIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.803-093.0 Fuel Strap Short 9.802-767.0 Screw, 3/8 X 3/4 HH NC, Whiz 9.802-781.0 Nut, 3/8, Flange Whiz Loc, NC 8.704-660.0 Label, Shark. Die-cut 9.800-191.0 • Rev. 04/09...

  • Page 17: Control Panel Exploded View And Parts List

    CONTROL PANEL ExPLODED vIEW Thermostat To burner Motor To Power Pressure Source Switch To Motor CONTROL PANEL ExPLODED vIEW PARTS LIST ITEM PART NO. DESCRIPTION 9.802-285.0 Thermostat, Adjustable, 302°F 9.802-449.0 Switch, 3 PS, 115V-230V, 1PH 9.804-519.0 Cover, Electric Box, Black 9.804-520.0 Label, Electric Box 9.802-7590...
  • Page 18 CONTROL PANEL PARTS LIST ITEM PART NO. DESCRIPTION 9.802-447.0 Conduit, Corr, Tubing, 1/4" 2 ft. 9.802-103.0 Bushing, Snap, 5/8" 9.804-526.0 Label, Control Panel, Kärcher 9.802-695.0 Nut, 10/32" Keps 9.802-762.0 Screw, 10/32" x 1-1/4" 9.800-040.0 Label, Ground 9.804-524.0 Panel, Control, Black 9.802-754.0 ▲...

  • Page 19: Hose & Spray Gun Assembly And Parts List

    HOSE AND SPRAy gUN ExPLODED vIEW HOSE AND SPRAy gUN PARTS LIST ITEM PART NO. DESCRIPTION 9.802-166.0 Coupler, 3/8" Female 9.802-100.0 ▲ Quick Coupler O-Ring LG 8.739-314.0 Hose, 3/8" x 50' 1 Wire Tuff-Flex 9.802-229.0 Spray Gun, Shutoff, AP 1000 9.802-222.0 Wand, VP Zinc 1/4"...

  • Page 20: Downstream Injector Assembly And Parts List

    DOWNSTREAM INjECTOR ExPLODED vIEW DOWNSTREAM INjECTOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-215.0 Injector, Detergent, Non-Adjust #2 (511.0, 512.0) 9.802-216.0 Injector, Detergent, Non-Adjust #3 (513.0) 6.390-126.0 Clamp, Hose, UNI .46 - .54 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 9.802-160.0 Strainer, 1/4"...

  • Page 21: Unloader Exploded View And Parts List

    vbA35 UNLOADER ExPLODED vIEW 25 LPM @ 240 bAR vbA35 UNLOADER ExPLODED vIEW PARTS LIST ITEM PART # DESCRIPTION kIT qTy ITEM PART # DESCRIPTION kIT qTy 9.803-916.0 Spring 9.803-902.0 Body Valve (KG) 9.803-901.0 Body Valve (KS) 9.803-917.0 Poppet 9.803-903.0 O-Ring A, C 9.802-893.0...

  • Page 22: Pump Exploded View And Parts List

    kE.1 SERIES PUMP ExPLODED vIEW 9.803-814.0 kE 2020f 9.803-815.0 kE 2020S 9.803-816.0 kE 2825f 9.803-817.0 kE 2825S 9.803-818.0 kE 3525f TORqUE SPECS Item # Ft.-lbs kE.1 SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-938.0 Crankcase 9.803-951.0 Brass Plug G1/4 9.804-586.0...
  • Page 23 kE.1 SERIES PUMP PARTS LIST ITEM PART NO. DESCRIPTION 9.804-584.0 Flange Screw 9.804-585.0 Crankshaft Seal 38* See Kit Below Plunger Nut 39* See Kit Below Copper Spacer 40* See Kit Below Plunger 15mm (2020F, 2825F, 3525F) 3 See Kit Below Plunger 18mm (2020S, 2825S) 41* See Kit Below...

  • Page 24: Troubleshooting

    TROUbLESHOOTINg PRObLEM POSSIbLE CAUSE SOLUTION LOW OPERATINg Faulty pressure gauge Install new gauge. PRESSURE Insufficient water supply Use larger garden hose; clean filter washer at water inlet. Old, worn or incorrect spray nozzle Match nozzle number to machine and/or replace with new nozzle.

  • Page 25: Maintenance Schedule

    MAINTENANCE SCHEDULE PREvENTATIvE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative maintenance procedures will assist in preserving the performance of your equipment. Contact your local pres- sure washer dealer for maintenance.
  • Page 27 LIMITED NEW PRODUCT Phone: 360-833-1600 WARRANTY—COMMERCIAL Fax: 800-248-8409 PRESSURE WASHERS www.karchercommercial.com WHAT THIS WARRANTY COVERS All Kärcher commercial pressure washers are warranted by Kärcher to the original purchaser to be free from defects in materials and workmanship under normal use, for the periods specified below. This Limited Warranty, subject to the exclusions shown below, is calculated from the date of the original purchase, and applies to the original components only.
  • Page 28 www.karchercommercial.com www.karchershark.com Form # 9.800-191.0 • Revised 04/09 • Printed in U.S.A. or Mexico...
