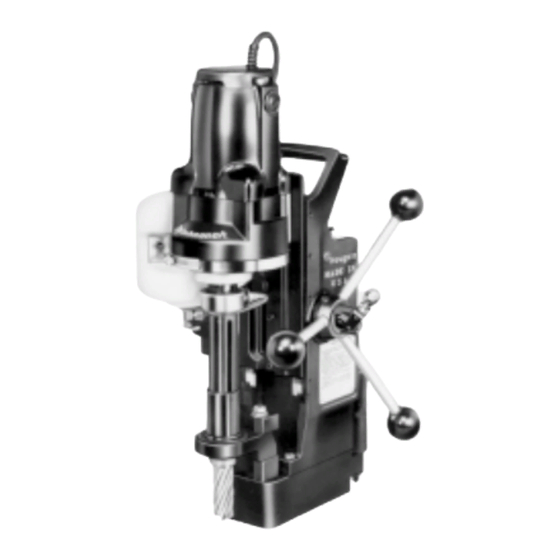

- Page 1 ® PORTABLE MAGNETIC DRILLS OPERATOR’S MANUAL 10925 10926 ® FOR USE WITH “12,000-SERIES” ROTABROACH CUTTERS...
- Page 2 INDEX Page 3 Factory Authorized Warranty Repair Centers Page 4 Cutting Capacity Unpacking Your MagneticBased Drill Table 1(Extension Cord Reference) Page 5,6 Important Safety Instructions Page 7 Automatic Shut-Off Limit Switch Adjustment Installing a Rotabroach Cutter in Arbor Page 8 Adjustment of Gibs Arbor Support Bracket Adjustment Impactor Adjustment...
-
Page 3: Welcome To Hougen
Models 10925 and 10926 Welcome to Hougen Congratulations on your purchase of the Hougen® Portable Magnetic Drill. Your model is designed to produce superior holes quickly and effeciently. Through constant innovation and development, Hougen is committed to provide you with hole-producing tools and products to help you be more productive. -
Page 4: Cutting Capacity
(10569) and then screw the handles into the 3. Complete and mail the Product Registration Card hub . NOW. It is important that Hougen Manufacturing, Inc. 8. Your Magnetic Drill was factory adjusted prior to shipping. have a record of product ownership. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: Read All Instructions Grounding Instructions This tool should be grounded while in use to protect the operator from electric shock. The tool is equipped with a 3-conductor cord and a 3-prong grounding type lug to fit the proper grounding type receptacle. - Page 6 21. Non-Conforming Cutting Tools Your Magnetic Drill is designed to use Hougen Rotabroach Cutters. The use of drilling tools having different shank styles is not recommended as they may not tighten securely in the drill arbor with risk of accident or injury.
- Page 7 AUTOMATIC SHUT-OFF LIMIT SWITCH ADJUSTMENT An automatic drill shut-off feature is provided which can be easily adjusted for material thickness and cutter length. 1. Place drill unit on workpiece surface with cutter projecting and clearing end of workpiece. 2. Energize magnet. 3.
- Page 8 GLIDE POST ADJUSTMENT ADJUSTMENT OF GIBS 1. Loosen all Gib screws (40237) Two glide posts are utilized. Post nearest edge of magnet 2. Feed the drill up and down a few times and then, with should make initial contact and be set according to top of motor slide flush with top of housing, tighten the instructions.
-
Page 9: Maintenance
5. We highly recommend applying a light viscosity cutting 5. With the allen wrench in place, turn the magnet ON. fluid (preferably Hougen cutting fluid) to the tool Depress the motor ON switch, if the motor does not through the automatic cutting fluid inducer. - Page 10 POWER FEED GEAR MOTOR...
-
Page 11: Coolant Bottle Assembly
COOLANT BOTTLE ASSEMBLY Checking Operation of Checking Operation of Automatic Cutting Cutting Fluid Reservoir Fluid Inducer Note: The automatic cutting fluid inducer system works 1. With magnetic drill in operating position, turn feed on a gravity flow basis. Therefore, it is only effective handle so that cutter and pilot are above the work when the drill is mounted on a horizontal or slightly surface. -
Page 12: Clutch Assembly
Power Feed Clutch Assembly (showing stepped washer combinations) Clutch Disengage Travel Adjustment Manufacturing tolerance variations combined with wear factors require the need for variable clutch lift off adjustment. Stepped washer (01134) facilitates (4) fixed adjustmnents in .015 increments when used in conjunction with thrust washer (40020) located at the end of the shaft at the gear box. - Page 13 D e tail P a rt N o . D e tail P a rt N o . D e sc rip tio n D e sc rip tio n N o . N o . R e q d . N o .
- Page 14 10925 / 10926 Power Feed Assembly...
- Page 15 10925 / 10926 Mechanical Breakdown...
- Page 16 Electrical Panel Layout Diagram...
- Page 17 Electrical Panel Hook-up Diagram...
-
Page 18: Parts Listing
Parts Listing Qty. Qty. P art No. Descripti on P art No . De s c riptio n Req'd . Req'd. 01084 GE AR HO US IN G 01993 H EX B OLT #10-32 X 3/4 02153 PO TE N TIOM ETER 01124 H UB 01125... - Page 19 Parts Listing PART QT Y. Qty. DE SCRI PT ION Part No. Description Req'd. NO . REQ 'D. 40419 TAB-RET RIGHT 10962 IM PA CTOR 40420 TAB-RET LEFT 10966 DU S T C AP 40422 CLAMP HOSE 6" 10967 M /S M OU NT S PR IN G 40424 FINGER ANTI-ROTATE 10968 M / S A DJ U ST S PR IN G...
- Page 20 No other expressed warranty is given or authorized. Hougen Manufacturing, Inc. disclaims any implied warranty of MERCHANTABILITY or FITNESS for any period beyond the expressed warranty and shall not be liable for incidental or consequential damages.
