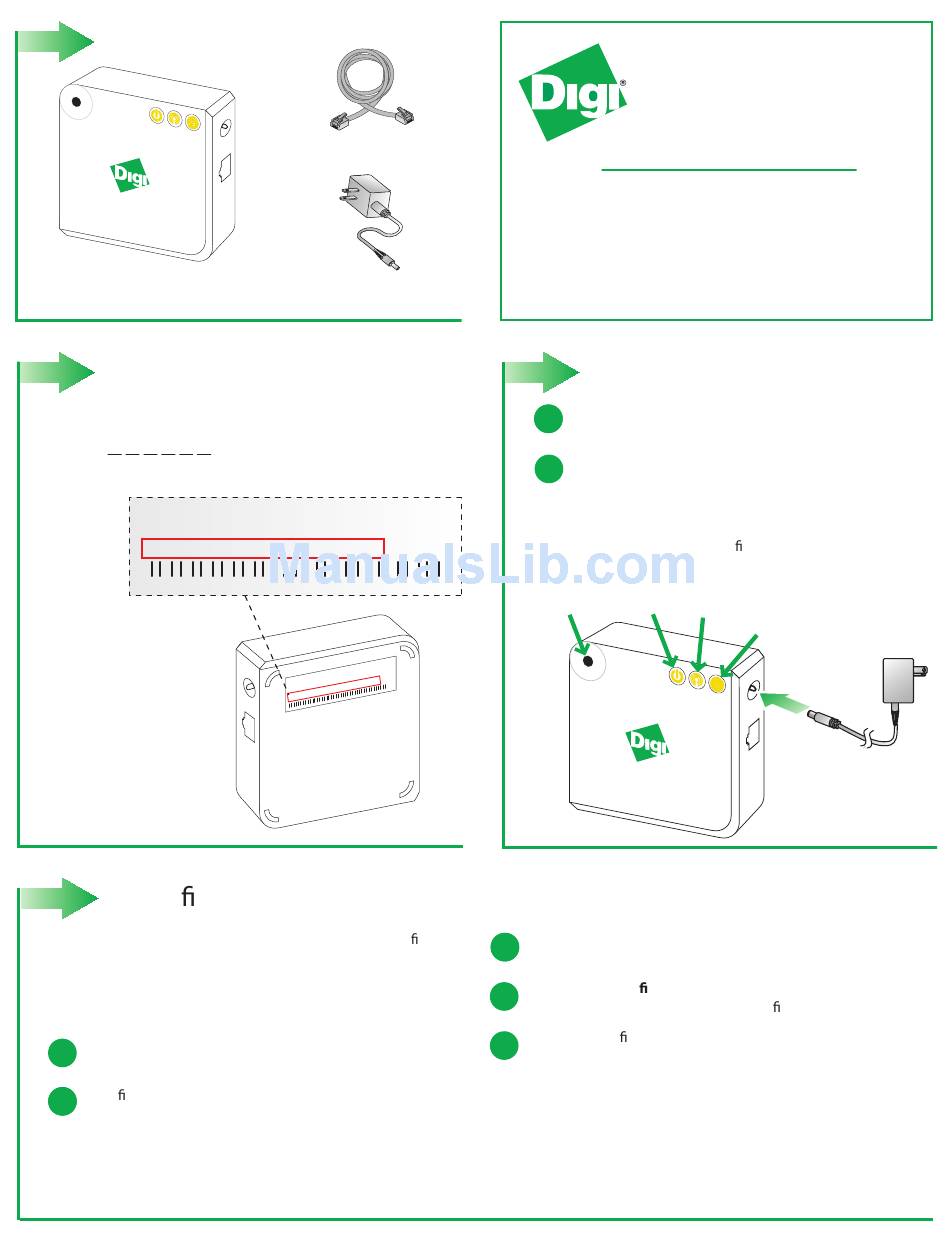

Digi ConnectPort X2e Wi-Fi Quick Start Manual

1 Verify Contents
ConnectPort X2e Wi-Fi SE
2 Write Down the Serial Number
Write down the ConnectPort X2e Wi-Fi SE Serial Number:
00409D:
Model: ConnectPort X2e Wi-Fi SE
Part Number: 50X2E-Z1C-002-01
Serial Number: 00409D 50E9BB
NOTE: The serial number
is also the Ethernet
MAC address, which
can be used to identify
the device during the
installation process.
4 Con gure your Device Using the Wi-Fi Interface
NOTE: If the ConnectPortX2e has already been con gured
to connect to an access point, it will need to be set back to
factory defaults to use the following procedure. See the
troubleshooting section below to return the gateway back
to its initial state.
Enable Access Point mode on your device by pressing
a
the button.
b c Con gure the Wi-Fi interface of your laptop to connect to
the ConnectPort X2e gateway's access point. The name
(SSID) of the access point will be cpx2e-se-xxxxxxxxxx,
where xxxxxxxxxxxx is the serial number of the gateway.
Ethernet Cable
Power Supply
i S E
e W i- F
o rt X 2
-0 1
n e c tP C -0 0 2
l: C o n 2 E -Z 1
M o d e r: 5 0 X 0 E 9 B B
u m b e 4 0 9 D 5
P a rt N
e r: 0 0
N u m b
S e ri a l

Quick Start Guide

ConnectPort X2e Wi-Fi
Smart Energy
3 Connect Hardware
a a
Connect the power supply Connect the power supply
Startup Sequence - After connecting the power
b
supply, the Power LED will be solid green, the ZigBee
LED will be blinking green, and the Network LED (WAN)
will be blinking orange.
NOTE: Once the Wi-Fi con guration is complete, the
Network (WAN) LED will change from blinking orange
to solid green.
Power
Button
Go to your web browser, and enter the URL of the gateway:
c c
http://192.168.100.1
Navigate to Con guration > Wireless Wizard.
d
Follow the steps in the wizard to con gure your device.
Once the con guration is complete, your device will connect
e
to your home access point and attempt to connect to
Smartlee. You can track its progress by observing the network
LED behavior. Once the connection to your access point and
gateway is connected to Smartlee, all the LED's will be solid
green.
®
90001281_A
ZigBee
Network
(WAN)
a
