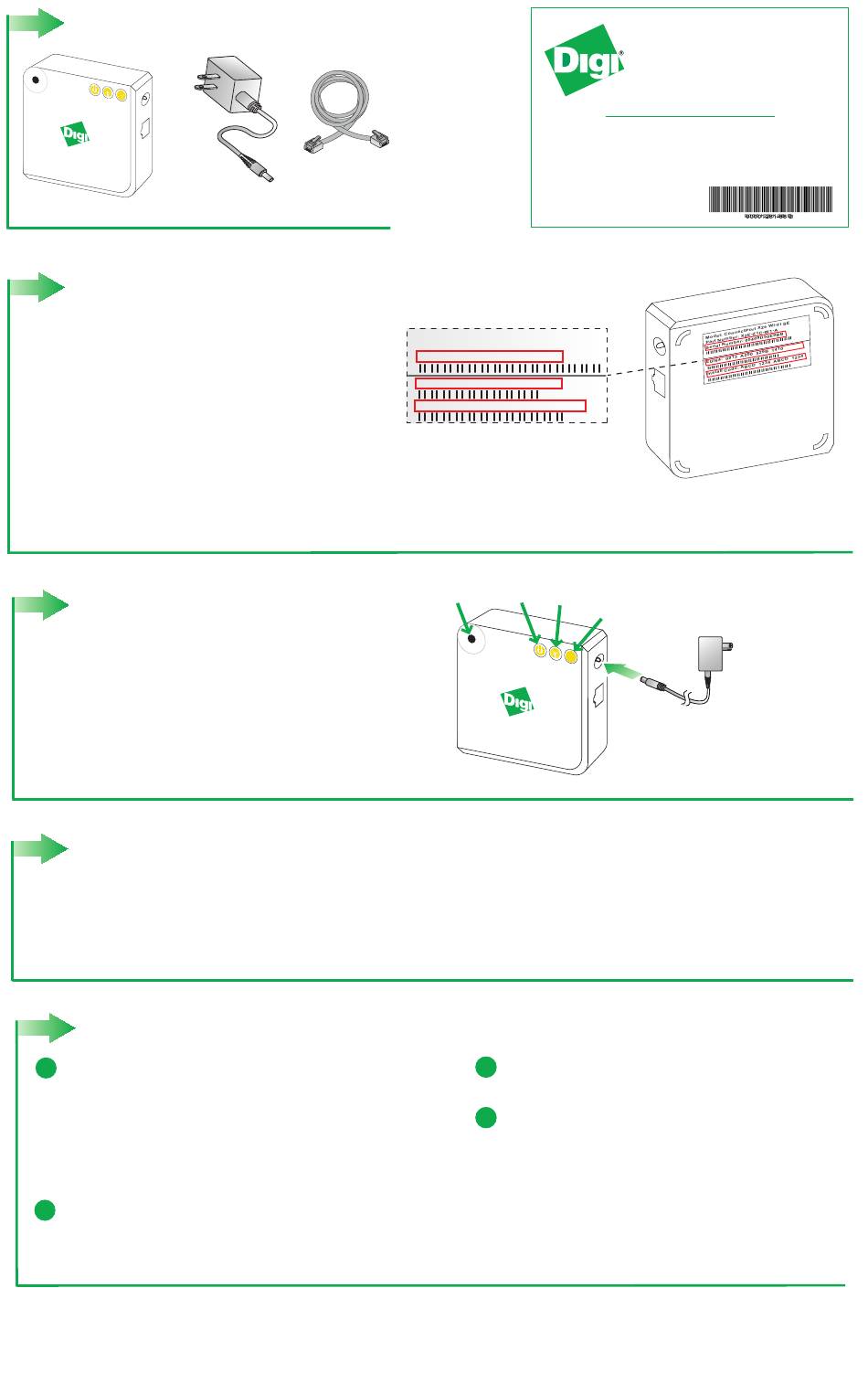

Digi ConnectPort X2e Quick Start Manual

1

Verify the kit contents

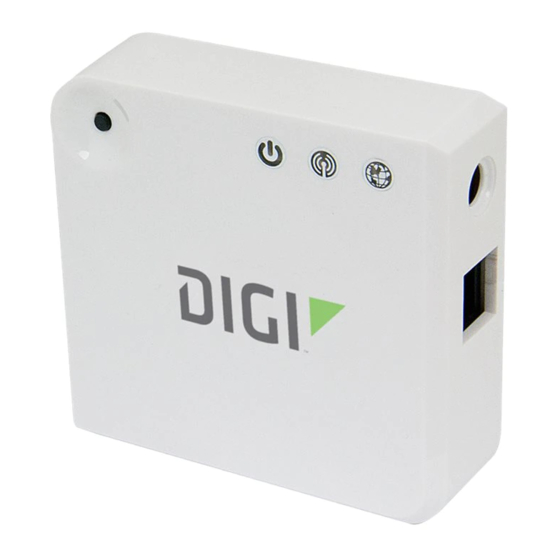

ConnectPort X2e Wi-Fi SE
2

Write down device information

Write down the following information (located on the back of
the ConnectPort X2e SE):
________________________________
Serial Number:
______________________________________
EUI 64:
_________________________________
Install Code:
NOTE: The Serial Number also is the Ethernet MAC
address, which is needed to complete Step 6. The
EUI 64 and the Install Code also are needed to
complete step 6.
3

Connect the hardware

Connect the power supply. The Power LED displays
green and the Network LED blinks orange.
b
NOTE: Once the device is connected to Device Cloud, the
Network LED changes to green.
4

Add the router to the network (router models only)

This step is for router models only. If you have a coordinator model, proceed to step 5.
Add the router variant to the Smart Energy network. Contact the utility company or owner of the Smart Meter if you're unsure
how to add a router to the network.
NOTE: The router must be powered ON when you add it to or remove it from a Smart Energy network.
5 Configure the device using the Wi-Fi interface
a Enable the built-in web service on your device by
pressing the button. After you press the button,
you have 10 seconds to open the web interface.
NOTE: If the device has been previously configured
to connect to an access point, you must reset it to the
factory defaults before you can complete this procedure.
Press and hold the button for 10 seconds to reset.
b
Configure the Wi-Fi interface on your laptop to connect to
the gateway's access point. The name (SSID) of the access
point is cpx2e-se-xxxxxxxxxxxx, where xxxxxxxxxxxx is the
serial number of the gateway.
Ethernet cable
Power supply
Model: ConnectPort X2e Wi-Fi SE
Part Number: X2E-Z1C-W1-A
Serial Number: 00409D 50E9BB
EUI64: 0013 A200 526B 1410
Install Code: ABCD 1234 ABCD 1234
Button Power
ZigBee
c c
From your web browser, enter the URL of the gateway:
http://192.168.100.1
Navigate to Configuration > Wireless Wizard.
c d
Follow the configuration steps in the wizard.
Quick Start Guide
ConnectPort X2e Wi-Fi
®
Smart Energy
Network
(WAN)
