iPECS LDP-9008D Quick Manual

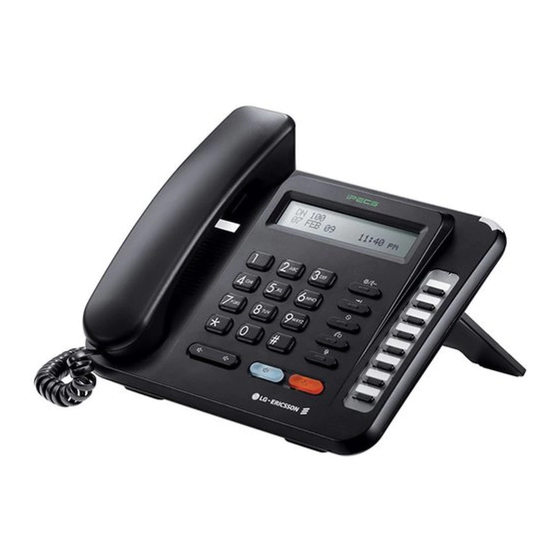

LDP-9008D Digital Telephone

Fixed Feature button definition

Button
Trans/PGM
Speed
DND
Call Back
Mute
Volume
Speaker
Hold/Save
8 Flexible Buttons
Visual Ringing LED
LCD Display
Hands-free Microphone
This button is used to initiate a call transfer (TRANS) or to enter programming
mode (PGM).
Used to access speed dialing, speed programming, saved number redial.
The DND (Do Not Disturb) feature blocks all calls. When DND is active, the red
LED in this button is illuminated. When pressed after the Speaker button it is
used for setting call forwarding. Used by the attendant to set the Day/Night mode.
A station can initiate a call back request to a busy station. Once that station
becomes idle, the initiating station is signaled.
Toggle outgoing audio; red LED illuminates.
The volume button adjusts the audio levels for ringing, handset and
speakerphone functions.
Speaker toggles the speakerphone state, and the red LED is illuminated when
the speakerphone is active.
This button is used to put a call on hold or save information when programming.
Some flexible buttons are pre-programmed in the system for line appearances,
loop functions etc. The remaining flexible buttons can be user-programmed.
Illuminates when there is a message (in some cases when phone is ringing).
Displays information about telephone status, dialing directories, and message
information.
Microphone is used for hands-free speakerphone function.
Description
Quick Guide
