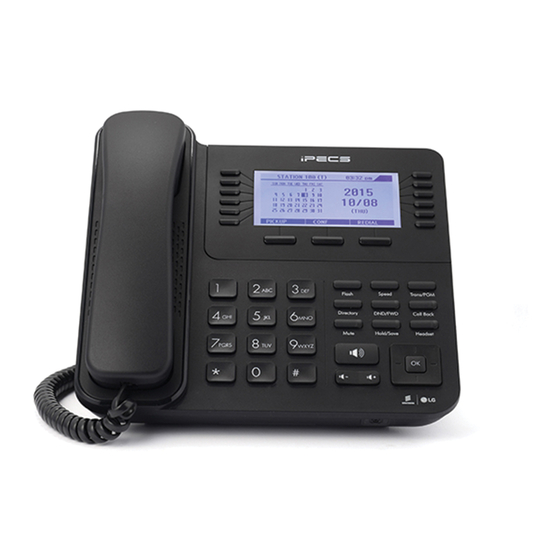

iPECS LDP-9240D Features Manual

Ericsson-LG iPECS
LDP-9240D Handset Key Features Guide

LDP-9240D Button Layout

1. LCD Display
14. Volume
Dealing with calls

Answering an Incoming Call

Making an External Call

Making an Internal Call

Rejecting a Call

Placing a call on hold

3.
2. Three soft keys
buttons (flex keys)
across 2 pages
4.
7.
10.
15. Speaker
Lift the handset or press the flashing Flex button (as needed), the call will be connected.
You may also use pick up codes assigned by your installer engineer to answer other ringing handsets
from your desk phone.
To answer a call on another extension that is programmed to one of the phones 12 flex keys, press
the flashing flex key before lifting the handset.
Lift the handset and press a free flex key allocated to a line, or dial 9 to pick up an outside line.
Once you have the outside line, dial your number.
Lift the handset. Dial the extension number or press the flex key assigned to the contact.
Press the DND button when a call comes in - the caller will get a busy tone.
During a call, press the Hold/Save button.
To reconnect the call, press the flashing line key.
Button Guide
24 flexible
1.
2.
3.
4.
5.
6.
7.
8.
5. 6.
9.
8. 9.
11. 12.
10.
11.
12.
13.
14.
15.
16. Navigation
16.
LCD Screen: Displays your phones status, dialing
directories, and text message information.
Soft keys: Soft keys are interactive, changing function
based on the phones status.
Flexible Button ('flex key'): a line or feature can be
assigned to these 24 flexible buttons - ask your system
administrator for help.
Flash button: use the flash button to dial straight out to
another line once you have finished a call.
Speed: assign or use assigned speed dial numbers.
Trans/PGM: transfer the current active call or access
the Program menu while the phone is idle.
Directory: Accesses your private or public directory for
speed dialing.
DND (Do-Not-Disturb): blocks incoming calls. You can
also activate Do-Not-Disturb while the phone is ringing.
Use to allow you to forward all calls to another number
Call Back: when a light shows on the call back button
this indicates you have a message, use to access your
Voice Mailbox.
Mute: mute the call so that the caller cannot hear your
voice.
Hold/Save: Use to place a call on Hold. Also, use to
access a held call. In menu mode, it saves your inputs.
Headset: when a headset is connected, toggle call
between headset and speaker.
Flash button: use the flash button to dial straight out to
another line once you have finished a call.
Volume control: adjust the ring, headset, handset, and
speaker volume.
Speakerphone: toggle the speakerphone on and off
during a call. The button will automatically illuminate
when the phone is in menu mode.
Navigation key: use to navigation through the soft
keys and menu options.
