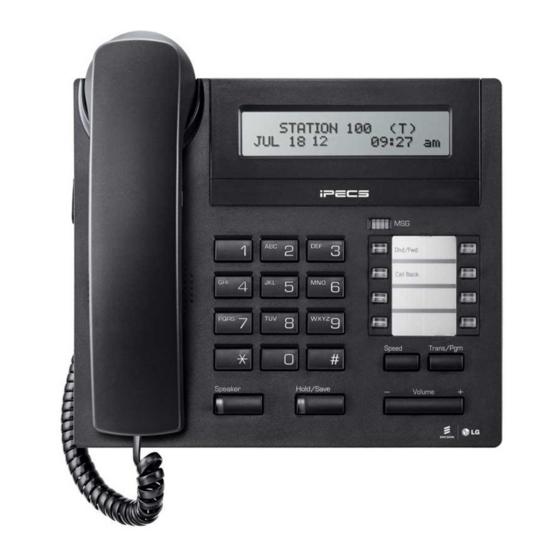

LDP-7000 Series

User Guide

Please read this manual carefully before
operating Phone. Retain it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDP-7000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for iPECS LDP-7000 Series

Summary of Contents for iPECS LDP-7000 Series

  • Page 1: User Guide

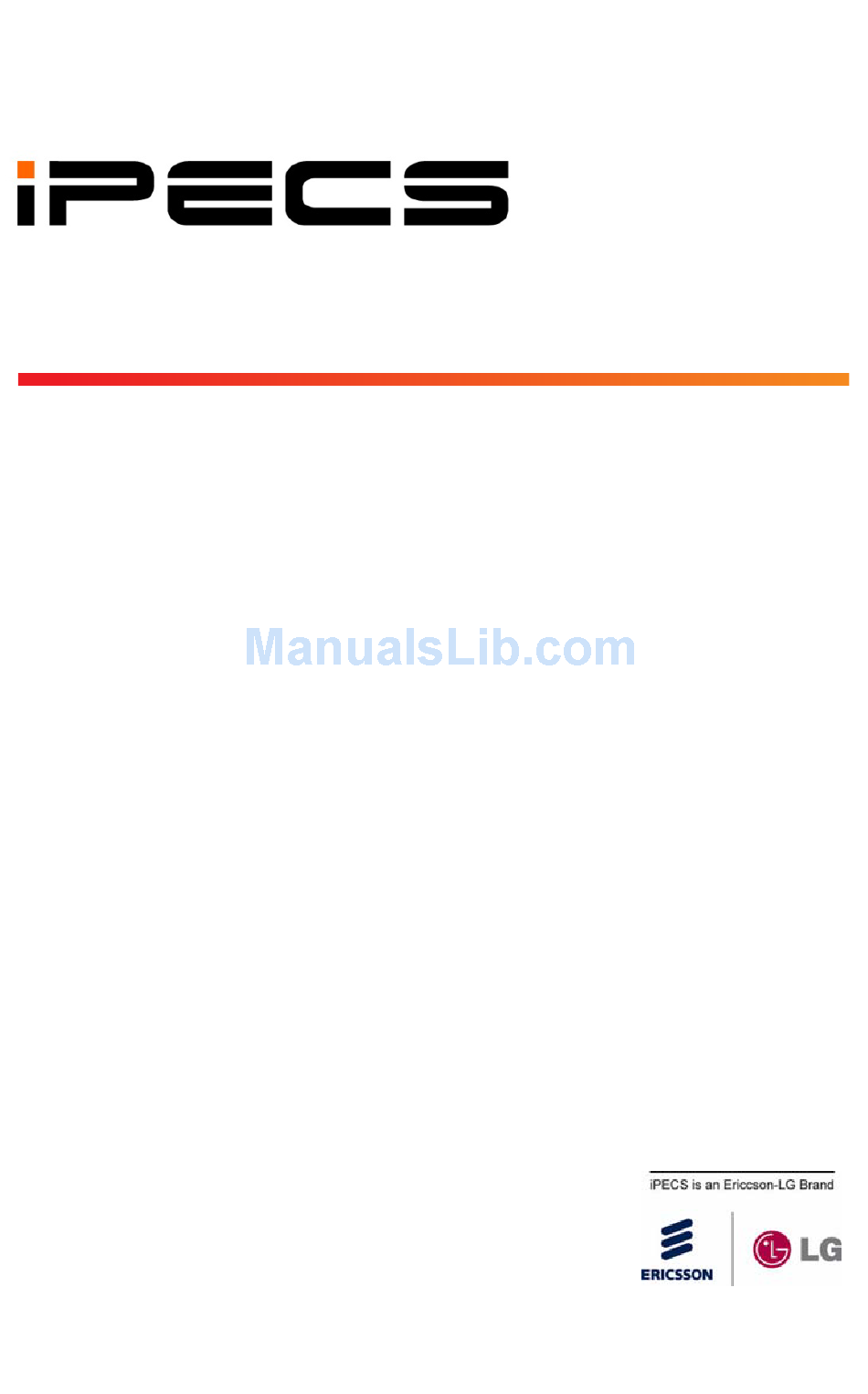

    LDP-7000 Series User Guide Please read this manual carefully before operating Phone. Retain it for future reference...
  • Page 2 Important Safety Information...
  • Page 3 Important Safety Information...
  • Page 4 Important Safety Information...
  • Page 5 LDP-7000 Series Model LDP-7008D LDP-7008D LDP-7004D LDP-7004N...
  • Page 6 Input/Output Devices and Button LDP-7008D LDP-7008D LCD Display Handset Headphone Socket (Ear/Mic Mode) Headphone Socket (Ear/Mic Mode) Speaker Speaker Button Hold/Save Button Volume Button Loop Button Loop Button Message Waiting LED Dnd/Fwd Button Call Back Button Flexible Button Speed Button Speed Button Trans/Pgm Button Handsfree Microphone...
  • Page 7 Input/Output Devices and Button LDP-7004D LDP-7004D LCD Display (LDP-7004D only) Handset Speaker Speaker OHD Button Hold/Save Button Message Waiting LED Trans/Pgm Button Speed Button Speed Button Flexible Button(Loop Button) Volume Button...
  • Page 8 Input/Output Devices and Button Item Item Description Description Handset Used for handset call. Earphone-Jack The optional earphone into the handset to provide a hands handset to provide a hands- free phone conversation. Speaker Outputs tones and voice. Speed Button Speed Button Used to access speed dialing Used to access speed dialing, speed programming, saved...
  • Page 9 Input/Output Devices and Button Item Item Description Description LCD Display Shows dialed and incoming numbers (where applicable) and on the 7008D it will display other information about call status, dialing directories and message information. Trans/PGM This button is used to initiate a B tt Button call transfer (TRS) or to enter...

  • Page 10: Cable Connection

    Cable Connection Cable connection Connect the telephone cord (curly cord) to the handset and the other end to the handset jack at the bottom of the telephone. Connect the line cable to the port at the bottom of telephone and the other end to the wall socket.
  • Page 11 Basic Function Placing an Outside Call Placing an Outside Call Lift handset, press OHD/Speaker or dial from live keypad. ● Dial 9. ● Dial the desired number. ● Placing an Intercom Call Lift handset, press OHD/Speaker or dial from active keypad. ●...

  • Page 12: Last Number Redial

    ● Dial speed dial number you wish to store. ● (iPECS-MG : Dial number with CO Access code) (iPECS MG : Dial number with CO Access code) Press the [HOLD/SAVE] button. ● Enter the name associated to the number. ●...

  • Page 13: Code For Flexible Button Programming

    Code for Flexible Button Programming Register of Flexible Button Register of Flexible Button Trans/Pgm Press the [Trans/Pgm] button. Press the [Flexible] button. Dial 1 for Number, Dial 2 for Fixed Button Enter code number . Or, Select desirable Fixed Button Hold/Save Press the [Hold/Save] button.
  • Page 14 Code for Flexible Button Programming Button Assignment for LDP- 4N/4D 8D Button Assignment for LDP 4N/4D, 8D FUNCTION FUNCTION Answer mode (H/T/P) d (H/T/P) M bil E t N Mobile-Ext. Number Station Name Program Mobile-Ext. CLI PGM Set Wake Up Create Conference Room Reset Wake Up...
  • Page 15 Important Safety Information...
  • Page 16 Important Safety Information...
  • Page 17 Important Safety Information...

  • Page 18: Getting Started

    Getting Started LDP 7000 Series Model 7016D & 7024D LDP-7000 Series, Model 7016D & 7024D LDP-7016D/7024D are advanced, user-friendly digital keysets, offering the convenience of 3 soft buttons and a navigation key. • Features -.Trendy and Stylish LDP Family design -.Multi Level 3 Line LCD (3 x 24)
  • Page 19 Getting Started Input / Output Devices and Buttons Input / Output Devices and Buttons Handset Visual Ringing LED Earphone-Jack Socket Trans/Pgm Button (Ear/Mic Mode) Speaker Flexible Button (Loop Button) Speed Button Call back Button Dnd/Fwd Button Volume Button Speaker Button Hands-free Microphone Hold/Save Button Menu Button...
  • Page 20 Getting Started Handset Used for handset call. Earphone-Jack Socket Used to connect optional headset to the phone. Speaker Outputs tones and voice. Speed Button Used to access speed dialing, speed programming, save number redial, and last number redial. DND/Fwd Button The DND (Do Not Disturb) feature blocks all incoming calls.
  • Page 21 Getting Started Cable Connection Cable Connection Cable connections A - Connect the telephone cord (curly cord) to the handset and the other end to the A Connect the telephone cord (curly cord) to the handset and the other end to the handset jack at the bottom of the telephone.
  • Page 22 Getting Started ADP (Additional Device Port) ADP (Additional Device Port)
  • Page 23 Getting Started ADP (Additional Device Port) ADP (Additional Device Port)
  • Page 24 Getting Started 1 Placing a Call 1. Placing a Call ICM Line ▶ ▶ talk Lift handset Enter the extension number CO Line CO Line Dial 9 or select ▶ ▶ ▶ CO line flexible talk button. Lift handset Enter the desired phone number 2.
  • Page 25 3 Soft Buttons & Navigation Button 3 Soft Button 3 Soft Button The 3 Soft Buttons are located on the bottom of the LCD display. The function of each button changes, subject to call status and progress. The current functions are displayed on the LCD screen, directly above each button.
  • Page 26 DND : press the [DND] to set Do Not Disturb. 1.1 Pickup A station can pickup a call ringing to an unattended station within the same pickup group by using the pickup procedure. ＊ Refer to iPECS-MG system programming manual. Press [PICKUP] button. STATION 100 (T) 12 OCT 09 12:00 pm PICKUP...
  • Page 27 Basic Function 1 2 Conference 1.2 Conference Dial the desired station number. CALL TO 100 (e.g.100) 12 OCT 09 12:00 pm Station 100 answers the call. FLASH Press [CONF] button. CONNECT TO 100 FEB 01 04 05:34 pm TRANS CONF MUTE...

  • Page 28: Intercom Dialing

    Basic Function 1 3 Redial 1.3 Redial The last number dialed on an external call is automatically saved in the LAST Number& Redial (LNR) buffer Or Call Log Buffer. Press the [REDIAL] button. STATION 100 (T) 12 OCT 09 12 OCT 09 12:00 pm 12:00 pm REDIAL ...
  • Page 29 Basic Function 4. Intercom Ring Back MSG : Press to leave a your station number or STATION 100 (T) message. 12 OCT 09 12:00 pm FLASH : Press to disconnect the line and re-seize. FLASH 5 Intercom Busy 5. Intercom Busy C-BACK : Press to leave your station number or BUSY : 100 message.
  • Page 30 Basic Function 9. Intercom Talk TRANS : Press to transfer an incoming call to another CALL FROM 104 station. 12 OCT 09 12:00 pm CONF : Press to initiate a conference call. TRANS CONF MUTE MUTE : Press to mute the handset, speakerphone, or headset microphone.

  • Page 31: Call Forward

    Basic Function 12 CO Talk 12. CO Talk TRANS : Press to transfer a call to another station. 123456789 CONF : Press to initiate a conference call. LINE 08 00:00:03 MUTE : Press to mute the handset, speakerphone, or TRANS CONF MUTE...
  • Page 32 Basic Function 15 FLEXIBLE BUTTON PROGRAM 15. FLEXIBLE BUTTON PROGRAM • Press the [TRANS/PGM] button • Press the flexible button to be programmed • Enter the desired feature code below table. • Press the [HOLD/SAVE] button to save. *) The following Numbering Plan code can be changed by Admin Programming PGM 113~115 depending on the user’s needs.
  • Page 33 Basic Function 18 CALL BACK 18. CALL BACK When a called station is in busy, call back can be requested. BUSY : 100 12 OCT 09 12:00 pm FLASH  C-BACK 19. CAMP ON When a called station is in busy, camp-on can be requested. BUSY : 100 12 OCT 09 12:00 pm...

  • Page 34: Call Log

    Call Log The call log feature enables the LDP phone user to view a log of the last(100) incoming and outgoing calls. The user can scroll through the list of numbers stored, select the number outgoing calls. The user can scroll through the list of numbers stored, select the number and activate a redial to that number.
  • Page 35 Menu 1 > USER ORGANIZER RING / BGM EXIT Press [Menu] button. 3 > COS/PASSWORD MULTI MESSAGE EXIT Press [Navigation] button. 5 > MOBILE/CONFERENCE ROOM HEADSET/BLUETOOTH EXIT EXIT 7 > STATION ICLID KEYSET INFORMATION EXIT 9 > SYSTEM INFORMATION ATTENDANT PROGRAM EXIT * >...
  • Page 36 Menu 1. USER ORGANIZER 1 > USER ORGANIZER RING / BGM EXIT Press [MENU] button Press [MENU] button. Press [OK] or [OK] b tt button. 1 > ANSWER MODE(H/T/P) STATION NAME PROGRAM BACK EXIT Press [Navigation] button. 3 > SET WAKE UP RESET WAKE UP BACK EXIT...
  • Page 37 Menu 1 1 ANSWER MODE(H/T/P) 1.1 ANSWER MODE(H/T/P) 1> ANSWER MODE(H/T/P) Press [OK] or button. 2 STATION NAME PROGRAM BACK EXIT Select ICM Mode. ENTER ICM ANS MODE (2) ※ There are three types as follows; H(1) T(2) P(3) H(1) HANDSFREE MODE BACK EXIT T(2) TONE MODE...
  • Page 38 Menu 1 3 SET WAKEUP 1.3 SET WAKEUP Press [OK] or button. 3> SET WAKE UP 4 RESET WAKE UP BACK EXIT Enter the time and select once or repeat (#) ENTER WAKE UP TIME(RPT:#) HH:MM-ONCE 12:00 Press [OK] or button.
  • Page 39 Menu 1 5 LANGUAGE PROGRAM 1.5 LANGUAGE PROGRAM Press [OK] or button. 5> LANGUAGE PROGRAM 6 LCD DATE MODE CHANGE BACK EXIT Select language FOR LANGUAGE, DIAL 00-14 ENGLISH (00) Press [OK] or button. BACK EXIT 1.6 LCD DATE MODE CHANGE 5 LANGUAGE PROGRAM Press [OK] or button.
  • Page 40 Menu 2 RING / BGM 2. RING / BGM Press [OK] or button. 1 USER ORGANIZER 2> RING / BGM EXIT 1 > ICM RING TYPE PROGRAM CO RING TYPE PROGRAM BACK EXIT Press [Navigation] button. 3 > SET BGM BACK EXIT 2.1 ICM RING TYPE PROGRAM...
  • Page 41 Menu 2 2 CO RING TYPE PROGRAM 2.2 CO RING TYPE PROGRAM 1 ICM RING TYPE PROGRAM Press [OK] or button. 2 >CO RING TYPE PROGRAM BACK EXIT Select Keyset ring source 1>KEYSET RING SOURCE 2 MUSIC BELL RING SOURCE Press [OK] or button.
  • Page 42 Menu 3 COS / PASSWORD 3. COS / PASSWORD Press [OK] or button. 3> COS / PASSWORD 4 MULTI MESSAGE EXIT 1 > TEMPORAL COS MODE RETRIEVE COS BACK EXIT Press [Navigation] button. 3 > WALKING COS REGISTER PASSWORD BACK EXIT 5 >...
  • Page 43 Menu 3 2 RESTORE COS 3.2 RESTORE COS TEMPORAL COS MODE Press [OK] or button. 2 > RETRIEVE COS BACK EXIT ENTER CURRENT PASSWORD Press [OK] or button. BACK EXIT PRESS OK / SAVE KEY Press [OK] or button. ******* BACK EXIT ※...
  • Page 44 Menu 3 4 REGISTER PASSWORD 3.4 REGISTER PASSWORD 3 WALKING COS Press [OK] or button. 4 >REGISTER PASSWORD BACK EXIT ENTER NEW PASSWORD Enter new password. Press [OK] or button. BACK EXIT PRESS OK / SAVE KEY Press [OK] or button.
  • Page 45 Menu 4 MULTI MESSAGE 4. MULTI MESSAGE Press [OK] or button. 3 COS / PASSWORD 4> MULTI MESSAGE EXIT 1 > PRESELECTED MSG PGM SET USER MESSAGE BACK EXIT Press [Navigation] button. 4.1 PRESELECTED MSG PGM 1 > PRESELECTED MSG PGM 1 >...
  • Page 46 Menu 5. MOBILE/CONFERENCE ROOM Press [OK] or button. 5> MOBILE/CONFERENCE ROOM 6 HEADSET/BLUETOOTH EXIT 1 > MOBILE-EXT. ENABLE MOBILE-EXT. NUMBER PGM BACK EXIT Press [Navigation] button. 3 > MOBILE-EXT. CLI PGM CREATE CONFERENCE ROOM BACK EXIT 5 > DELETE CONFERENCE ROOM BACK EXIT 5.1 MOBILE-EXT.
  • Page 47 Menu 5.2 MOBILE-EXT. NUMBER PGM 1 MOBILE-EXT. ENABLE Press [OK] or button. 2> MOBILE-EXT. NUMBER PGM BACK EXIT Select Mobile Ext. index.(1 or 2) MOBILE-EXT. NUMBER PGM ENTER(1-2), TO CHOOSE BACK EXIT Enter Mobile Phone number with CO Access code. MOBILE-EXT.
  • Page 48 Menu 5.4 CREAT CONFERENCE ROOM 3 MOBILE-EXT. CLI PGM Press [OK] or button. 4> CREATE CONFERENCE ROOM BACK EXIT Enter Conference Room Number DIAL ROOM NUMBER ※ Please refer to Feature Numbering Plan in System. BACK EXIT Enter Password for conference room. Or, ENTER NEW PASSWORD Press [OK] or button.

  • Page 49: Headset Ring Mode

    Menu 6. HEADSET/BLUETOOTH Press [OK] or button. 5 MOBILE/CONFERENCE ROOM 6> HEADSET/BLUETOOTH EXIT 1 > SPEAKER/HEADSET PGM HEADSET RING PROGRAM BACK EXIT Press [Navigation] button. 3 > REGISTER BLUETOOTH 3 > REGISTER BLUETOOTH BACK EXIT 6.1 SPEAKER/HEADSET PGM 1 > SPEAKER/HEADSET PGM Press [OK] or button.
  • Page 50 Menu 6.3 REGISTER BLUETOOTH 3 > REGISTER BLUETOOTH Press [OK] or button. BACK EXIT Select 1 for Pairing, 2 for Unpairing, 3 for Paired 1 > PAIRING Information UNPAIRING BACK EXIT 3> PAIRED INFORMATION BACK EXIT ※ BTU module should be installed.
  • Page 51 Menu 7 STATION ICLID 7. STATION ICLID Press [OK] or button. 7> STATION ICLID 8 KEYSET INFORMATION EXIT 1 > REGISTER STATION ICLID VIEW STATION ICLID BACK BACK EXIT EXIT Press [Navigation] button. 7.1 REGISTER STATION ICLD 1 > REGISTER STATION ICLID 1 >...
  • Page 52 Menu 7 2 VIEW STATION ICLID 7.2 VIEW STATION ICLID 1 REGISTER STATION ICLID Press [OK] or button. 2> VIEW STATION ICLID BACK EXIT Select the list. >01 1234567 Press [SELECT] or button. 02 EMPTY BACK SELECT EXIT Press [DELETE] button to delete LIST. ICLID : 1234567 ROUTE : 101 BACK...
  • Page 53 Menu 8. KEYSET INFORMATION ※ LDP 7016/7024 does not support this feature. 9. SYSTEM INFORMATION Press [OK] or button. 9> SYSTEM INFORMATION 0 ATTENDANT PROGRAM 0 ATTENDANT PROGRAM EXIT 1 > MPB VERSION DISPLAY VIEW IP ADDRESS VIEW IP ADDRESS BACK EXIT Press [Navigation] button.
  • Page 54 User Program Codes • Press the [TRANS/PGM] button ▶ Press the flexible button to be programmed • ▶ Press [Trans/Pgm] button again ▶ Enter the desired feature code below table • ▶ Press the [HOLD/SAVE] button to save. CODE FUNCTION CODE FUNCTION Answer mode (H/T/P)
  • Page 55 Entering characters...
  • Page 56 Glossary of Terms Intercom – describes internal calls within the telephone system CO Line Central Office Line – also known as a trunk line, exchange line or outside line Speed Dial A commonly used number stored in a speed bin for easy access Do Not Disturb –...
  • Page 57 Important Safety Information...
  • Page 58 Important Safety Information...
  • Page 59 Important Safety Information...
  • Page 60 Putting into operation LDP 7024LD LDP-7024LD LDP-7024LD is a user-friendly digital keyset, which offer convenience to user with 3 soft key and navigation key. • Features -.Trendy and Stylish LDP Family design .Trendy and Stylish LDP Family design -.Multi Level Graphic LCD (9 * 32) -.Dual LED 24 Flexible buttons -.Additional Device Port for SLT and FAX -.Call Log Feature...
  • Page 61 Putting into operation ICON description on LCD ICON description on LCD ICON Description 1 You have received message 1. You have received message 2. Call forward 3 DND 3. DND mode 4. Earphone mode 5. Full Duplex Speaker Phone Mode 6.
  • Page 62 Putting into operation Input / Output Devices and Button Input / Output Devices and Button Handset Message Waiting LED Earphone Jack Socket Earphone-Jack Socket 3 Soft Button 3 Soft Button (Ear/Mic Mode) Speaker Flexible Button Speed Button Trans/Pgm Button Dnd/Fwd Button Dnd/Fwd Button Call back Button Call back Button...
  • Page 63 Putting into operation Used for handset call. Handset The optional earphone into the handset to provide a Earphone- handsfree phone conversation. Jack Socket Outputs tones and voice at your extension. Speaker Used to access speed dialing speed programming Used to access speed dialing, speed programming, Speed Button Speed Button save number redial, and last number redial.
  • Page 64 Putting into operation Cable Connection Cable Connection ④ ③ ① ② Cable connection ①, ② Connect the end of the telephone cord to the handset and the other end to the handset jack at the bottom of the telephone. ③, ④ Connect the end of the cable to the port at the bottom of telephone and the other end to the switch port.
  • Page 65 Putting into operation ADP (Additional Device Port) ADP (Additional Device Port)
  • Page 66 Putting into operation ADP (Additional Device Port) ADP (Additional Device Port)
  • Page 67 Placing or answering an outside call 1 Placing an Outside Call 1. Placing an Outside Call ICM Line ▶ ▶ ▶ ▶ talk talk Lift handset Enter the extension number CO Line Dial 9,0 or select ▶ ▶ ▶ CO line flexible talk button Lift handset...
  • Page 68 3 Soft & Navigation Button 3 S ft B tt 3 Soft Button The 3 Soft Buttons are located on the bottom of the LCD display. The function of each button changes, subject to call status and progress. The current functions are displayed on the LCD screen, directly above each button.
  • Page 69 Disturb. 1.1 Pickup A station can pickup a call ringing to an unattended station within the same pickup group by using the pickup procedure. ＊ Refer to iPECS-MG system programming manual. Press [PICKUP] button. STATION 100 (T) 12 OCT 09 12:00 pm ◀PICKUP...
  • Page 70 Basic Function 1 2 OG 1.2 LOG The call log feature enables the LDP phone user to view a log of the last(100) incoming and outgoing calls. The user can scroll through the list of numbers stored, select the number and activate a redial to that number. Press the [LOG] button.
  • Page 71 Press ADD to add ne speed bin n mber Press ADD to add new speed bin number. 001 MG 91234 6 001 MG : 91234567 002 iPECS : 98450123 Press [HOLD] or button to make the call. SPEED NUMBER LAST(*) SAVE(#)
  • Page 72 Basic Function 1 4 R di l 1.4 Redial The last number dialed on an external call is automatically saved in the LAST Number & Redial (LNR) buffer. Press the [REDIAL] button Press the [REDIAL] button. STATION 100 (T) STATION 100 (T) FEB 01 04 05:34 pm REDIAL▶...

  • Page 73: Intercom Ring Back

    Basic Function 2. Intercom Ring Back MSG : Press to leave a your station number or message. STATION 100 (T) FLASH : Press to disconnect the line and re-seize. 12 OCT 09 12:00 pm FLASH 3 Intercom Busy 3. Intercom Busy C-BACK : Press to leave your station number or message.

  • Page 74: Intercom Talk

    Basic Function 7. Intercom Talk TRANS : Press to transfer an incoming call to another CALL FROM 104 station. 12 OCT 09 12:00 pm CONF : Press to initiate a conference call. MUTE ▶ TRANS CONF MUTE : Press to mute the handset, speakerphone, or headset microphone.
  • Page 75 Basic Function 10 CO Talk 10. CO Talk TRANS : Press to transfer a call to another 123456789 station. LINE 08 00:00:03 CONF : Press to initiate a conference call. TRANS CONF MUTE▶ MUTE : Press to mute the handset, speakerphone, or headset microphone.

  • Page 76: Name Display On My Phone

    Basic Function 13 FLEXIBLE BUTTON PROGRAM 13. FLEXIBLE BUTTON PROGRAM • Press the [TRANS/PGM] button • Press the flexible button to be programmed • Enter the desired feature code below table. • Press the [HOLD/SAVE] button to save. *) The following Numbering Plan code can be changed by Admin Programming PGM 113~115 depending on the user’s needs.
  • Page 77 Basic Function 16 CALL BACK 16. CALL BACK When a called station is in busy, call back can be requested. BUSY : 100 12 OCT 09 12:00 pm C-BACK FLASH▶ 17. CAMP ON When a called station is in busy, camp-on can be requested. BUSY : 100 12 OCT 09 12:00 pm...

  • Page 78: Phone Book

    Phone Book 1 PHONE BOOK 2 SCHDULE Press the [PhoneBook] button. EXIT The [PHONE BOOK] is used for registering the new phone number and searching, correcting and deleting the stored phone number. PHONE BOOK PHONE BOOK 1. NEW ENTRY ▲ 6.
  • Page 79 Phone Book Enter the type, select the desired one among the NEW ENTRY cellular phone number or office number or home NAME : JANE number or fax number or e-mail or address or TYPE : ◀ MOBILE ▶ memo. CO CODE : NOT USE NUMBER : GROUP : NO GR.
  • Page 80 Phone Book 2 SEARCH BY NAME 2. SEARCH BY NAME Press [FIND] and then the phone book entry will be displayed. Press the [2] button. PHONE BOOK 1. NEW ENTRY ▲ 2 SEARCH BY NAME 2. SEARCH BY NAME 3. SEARCH BY NUMBER 4.
  • Page 81 Phone Book 3 SEARCH BY NUMBER 3. SEARCH BY NUMBER Press the [3] button. PHONE BOOK 1. NEW ENTRY ▲ 2 SEARCH BY NAME 2. SEARCH BY NAME 3. SEARCH BY NUMBER 4. SEARCH BY GROUP 5. EDIT CO ACCESS CODE ▼ EXIT When entering the phone number, enter the PHONE BOOK...
  • Page 82 Phone Book 4 SEARCH BY GROUP 4. SEARCH BY GROUP Press the [4] button. PHONE BOOK 1. NEW ENTRY ▲ 2 SEARCH BY NAME 2. SEARCH BY NAME 3. SEARCH BY NUMBER 4. SEARCH BY GROUP 5. EDIT CO ACCESS CODE ▼ EXIT to select the group and press [FIND].

  • Page 83: Delete All Entry

    Phone Book 5 CO ACCESS CODE 5. CO ACCESS CODE Press the [5] button. PHONE BOOK 1. NEW ENTRY ▲ 2. SEARCH BY NAME 3 SEARCH BY NUMBER 3. SEARCH BY NUMBER 4. SEARCH BY GROUP 5. EDIT CO ACCESS CODE ▼ EXIT to select the code and enter the to select the code and enter the...
  • Page 84 SCHEDULE 1 PHONE BOOK 2 SCHEDULE Press the [PhoneBook] button. EXIT 1. SCHEDULE ADD/DEL/EDIT The number of the schedule is added up to 50. The calendar of schedule is from 1960 to 2040 The calendar of schedule is from 1960 to 2040. to select the date and SCHEDULE 1.
  • Page 85 SCHEDULE SCHEDULE ADD Set the alarm. DATE : 01/JUL/04 (SAT) Press the [SET] button to inform the TIME : [PM ] 06 : 59 schedule and enter the time. REPE : NONE ALARM ALARM : NONE NONE TEXT : BACK SAVE SCHEDULE ADD DATE : 01/JUL/04 (SAT)

  • Page 86: Find Schedule

    SCHEDULE 2. FIND SCHEDULE FIND SCHEDULE to select the year. SEARCH : SCHEDULE YEAR YEAR 2004 2004 ◀ ◀ ▶ ▶ MONTH TEXT BACK FIND FIND SCHEDULE to select the month. SEARCH : SCHEDULE YEAR 2004 Press the [FIND] button and the result will be MONTH ◀...
  • Page 87 SCHEDULE 3 DELETE PAST SCHEDULE 3. DELETE PAST SCHEDULE The number of the past schedule is displayed. PAST SCHEDULE Press the [DEL] button. PAST SCHEDULE : 01 BACK to select [YES] or [NO]. PAST SCHEDULE ARE YOU SURE Press [DEL] to delete the past schedule. TO DELETE DATA? PAST SCH.
  • Page 88 SCHEDULE 5 DELETE ALL SCHEDULE 5. DELETE ALL SCHEDULE to select [YES] or [NO]. PAST SCHEDULE ARE YOU SURE Press [OK] to delete the all schedule. TO DELETE DATA? PAST SCH. : 01 If selecting “YES”, delete it. If selecting “no”, don’t delete it.
  • Page 89 User Program Codes • Press the [TRANS/PGM] button ▶ Press the flexible button to be programmed • ▶ Press [Trans/Pgm] button again ▶ Enter the desired feature code below table • ▶ Press the [HOLD/SAVE] button to save.ㅋ ▶ P h [HOLD/SAVE] b CODE FUNCTION...
  • Page 90 Entering characters Enter the figure Enter the figure ▶ ▶ ▶ Dial Enter the symbol SYMBL ▶ ▶ ▶ ▶ Dial ▲▼ Norm 1 / 4 ◀▶ ※ Use the button and then select the symbol. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Enter the letters...
  • Page 91 Glossary of Terms Intercom Intercom – describes internal calls within the describes internal calls within the telephone system CO Line Central Office Line – also known as a trunk line or outside line Speed Dial Speed Dial A commonly used number stored in a speed bin for A commonly used number stored in a speed bin for easy access Do Not Disturb –...
