LIP-9071

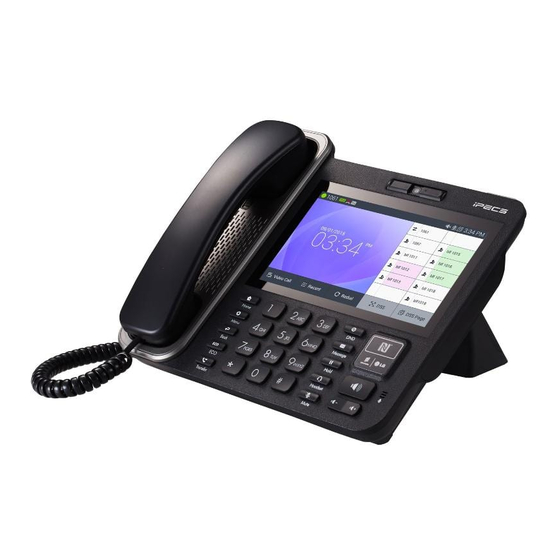

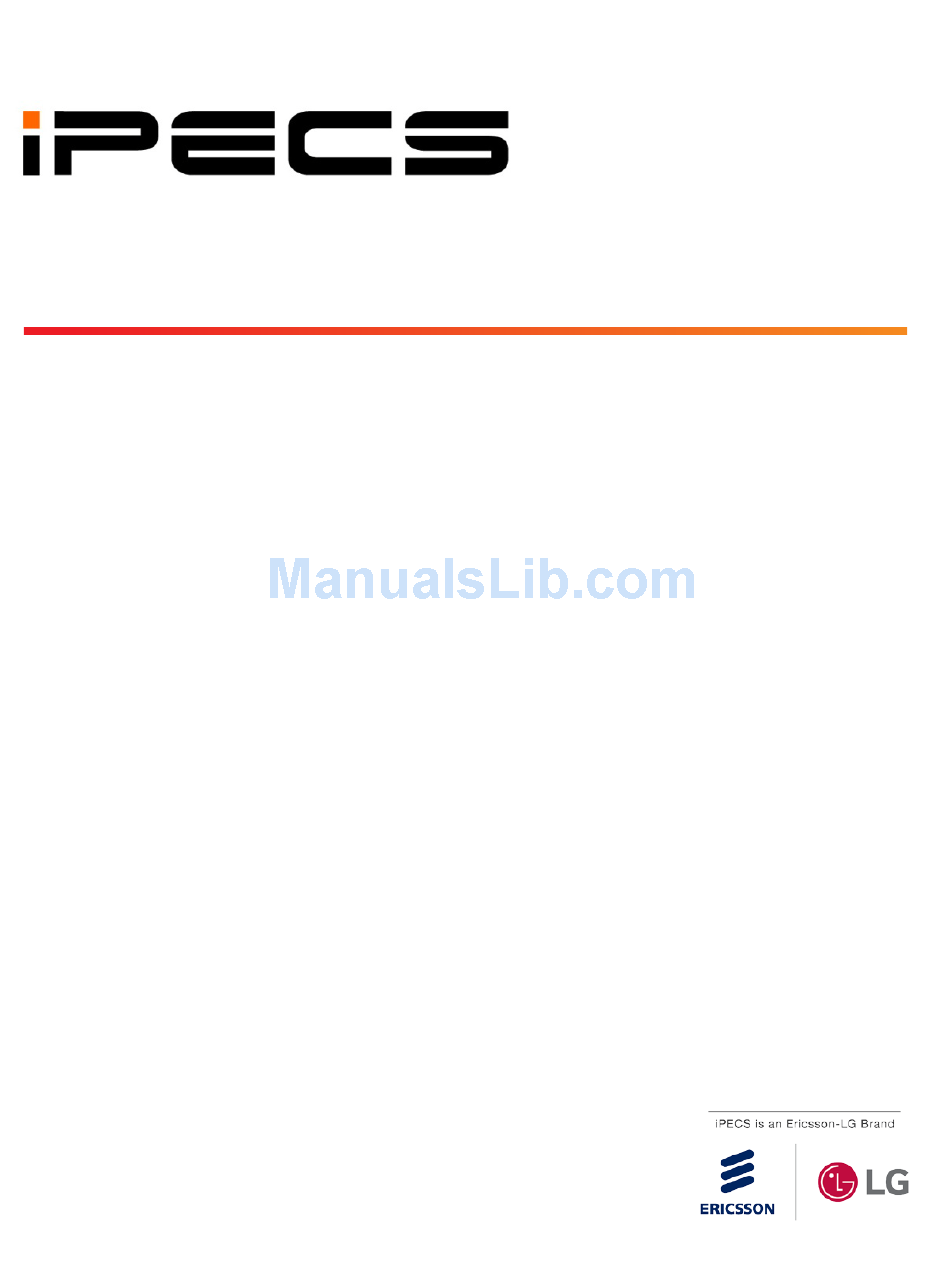

User Guide – for iPECS (iPKTS)
Please read this manual carefully before operating Phone.
Retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIP-9071 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iPECS LIP-9071

Summary of Contents for iPECS LIP-9071

  • Page 1 LIP-9071 User Guide – for iPECS (iPKTS) Please read this manual carefully before operating Phone. Retain it for future reference.
  • Page 2 LIP-9071 iPKTS User Guide What is new in this release? Issue Date Change of Contents Jan., 2016 Initial Release Copyright© 2015 Ericsson-LG Enterprise Co., Ltd. All Rights Reserved This material is copyrighted by Ericsson-LG Enterprise Co., Ltd. Any unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly prohibited and is a violation of Copyright Laws.

  • Page 3: Regulatory And Safety Notices

    LIP-9071 iPKTS User Guide Regulatory and Safety Notices European Union Declarations of Conformity Ericsson-LG Enterprise Co., Ltd. declare that the equipment specified in this document bearing the “CE” mark conforms to the European Union Radio and Telecommunications Terminal Equipment Directive(R&TTE 1999/5/EC), including the Electromagnetic Compatibility Directive(2004/108/EC), Low Voltage Directive(2006/95/EC) and Regulation (EC) 801/2013.
  • Page 4 This device has been evaluated for compliance with FCC/IC RF exposure limits in a portable configuration. At least 20 cm (8 inches) of separation distance between the IP Gigabit Video Phone, LIP-9071, device and the user's body must be maintained at all times. This device must not be used with any other antenna or transmitter that has not...

  • Page 5: Important Safety Instructions

    LIP-9071 iPKTS User Guide Regulatory Information / Disclaimers "Privacy of communications may not be ensured when using this telephone". Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
  • Page 6 Keep the product away from heating appliances and electrical noise generating devices such as  florescent lamps, motors and televisions. These noise sources can interfere with the performance of iPECS system. This product should be kept free of dust, moisture, high temperature (more than 40 degrees) and ...

  • Page 7: Table Of Contents

    2.10.2 Cascade the external consoles (LIP-9048DSS) ..............8 3 Power up and Setup Wizard ................9 Language Selection .....................9 Protocol Selection ......................9 Registration ........................9 4 Basics Operation for iPECS system .............. 10 Incoming Calls ......................11 Outgoing Calls ......................11 Holding Calls ......................12 Transferring a Call .....................12 Conference ........................13...
  • Page 8 Reboot ..........................32 iPECS Phone System Configuration ................33 5.6.1 Phone Configuration ......................33 5.6.2 System Configuration ......................33 6 Basics Operation for iPECS CM ..............34 Incoming Calls ......................35 Outgoing Calls ......................35 Holding Calls ......................36 Transferring a Call .....................36 Conference ........................37 7 iPECS Phone for iPECS CM ................38 Speed ........................40...
  • Page 9 LIP-9071 iPKTS User Guide 7.6.2 System Configuration ......................57 8 Mini-Tab Phone Display Basics ..............58 Basic User Gestures ....................59 Function Buttons ......................60 Mini-Tab Menus ......................60 8.3.1 Screen Option Menus (Option menu and Menu button) ............60 8.3.2 Touch and Hold Context Menus ...................60 8.3.3...
  • Page 10 LIP-9071 iPKTS User Guide 9.6.2 Contact Ringtone .........................78 9.6.3 Share a Contact ........................79 10 Using Message (for iPECS station only) ............80 10.1 Send a Message ......................80 10.2 Compose Screen Options Menu ................81 10.3 Receive a Message ....................81 10.4 Message Options .......................82 10.5...
  • Page 11 LIP-9071 iPKTS User Guide 12.7 Display ........................103 12.8 Storage ........................104 12.8.1 USB Storage ........................104 12.9 Applications ......................105 12.10 Location access ....................... 106 12.11 Security ........................106 12.12 Language & input ..................... 107 12.13 Factory Reset ......................107 12.14 Date &...
  • Page 12 LIP-9071 iPKTS User Guide 14.3.3 Navigating among web pages ....................128 14.3.4 Working with multiple Browser windows ................129 14.3.5 Working with bookmarks ....................130 14.3.6 Changing Browser settings ....................131 14.4 Email ........................134 14.4.1 Sign in email ........................134 14.4.2 Inbox ..........................137 14.4.3 Send Email Message ......................137 14.5...
  • Page 13 LIP-9071 iPKTS User Guide 15.3.17 Update History ........................151 15.3.18 LogCat ..........................152 15.3.19 Reboot ..........................152...

  • Page 14: Introduction

    User Guide 1 Introduction LIP-9071 phone is an advanced business communications terminal that employs the iPKTS Protocol standards to control and manage real-time communications. The phone employs a Mini-tab running the Android OS as a display and user control interface. The Phone application is permanently installed and provides the user with access to all the features and functions of the Call server host plus the interaction with other communications aware apps with a truly intuitive user touch interface.

  • Page 15: Installation

    Quick Guide. An optional AC/DC adapter is available for use when the network connection does not support IEEE 802.3af up to class 4 PoE (Power over Ethernet). The figures below present line drawings of the front and top of LIP-9071 phone identifying major elements of the user interface and external connections. Front view LIP-9071 has hardware button interface with touch interface as well.

  • Page 16: Hardware Specification

    2.4.1 Mounting USB devices An USB can be installed in the USB host connector slot on the rear top side of the phone. The USB connection expands the features of LIP-9071 phone. To support from USB host: 1. Mouse 2. Keyboard 3.

  • Page 17: Connecting Hdmi Device

    2.4.2 Connecting HDMI device An HDMI cable can be connected in the HDMI connector slot on the rear top side of LIP-9071 phone. Plug one end of the HDMI cable into the HDMI port on LIP-9071. Plug the other end of the HDMI cable into the HDMI port on the LCD display or TV. User needs to adjust the resolution on the LCD display or TV for proper display if it is needed.

  • Page 18: Network Connections

    Network Connections LIP-9071 phone has two RJ-45 Ethernet LAN jacks on the bottom of the phone. One of the jacks is the interface to a local IEEE 10/100/1000 Base-T Network port. The other jack is a 10/100/1000 Base-T port for connection to a The network interface port jack is wired as a standard MDI connection and the PC port is wired as an MDIX connection.

  • Page 19: Optional Ac/Dc Adapter Connections

    The optional AC/DC adapter is used when the network connection is not PoE compatible. In this case, the AC/DC adapter converts the normal AC power input to the 48 VDC at 0.3 amps required by LIP-9071 phone. The adapter is plugged into a standard AC wall outlet and the DC connector is inserted in the DC jack located on the bottom of the phone.

  • Page 20: Wall Mount

    User Guide Wall Mount LIP-9071 phone can be wall mounted as needed. The following instructions describe how to perform a wall mount installation. 1. Align the wall-mount bracket (not included) over the back of the phone, then press the bracket forward applying steady pressure until it clicks into place.

  • Page 21: Cascade The External Consoles (Lip-9048Dss)

    PoE Class The Class switch is used to select the PoE class. To connect LIP-9071 phone, you set the class on 4. The default position of Switch is ‘0’; 0 means the power is off and it does not support PoE power, 1 means the power is on and it supports PoE power.

  • Page 22: Power Up And Setup Wizard

    Home screen with the Station Number and status (On Line) shown above the clock. If iPECS network settings have been changed or the phone is installed in a remote location, the phone will not be able to complete registration. The phone screen will display a No Acknowledgement or other fault message. In this case, assistance of iPECS administrator may be required.

  • Page 23: Basics Operation For Ipecs System

    Phone application is fully available once LIP-9071 completes registration with iPECS host as outlined in Registration section. iPECS Call icon in the Apps Dock opens iPECS Phone app where calls can be managed. Details for using iPECS Phone window beyond the basics are covered in Mini-Tab Phone Display Basics section.

  • Page 24: Incoming Calls

    Outgoing Calls LIP-9071 employs a “’live dial pad’ meaning that you need not lift the handset or press the Speakerphone button to start a call. To place a call, dial the desired number. This will activate the speakerphone, send the digits to iPECS host and show the dialing screen.

  • Page 25: Holding Calls

    Holding Calls You can place a call in a waiting state where the caller is connected to the Music on Hold source of iPECS system, freeing you for other activities. The call will remain on hold for the hold recall time then the user is recalled.

  • Page 26: Conference

    User Guide Conference An active call can be joined with another call to establish a conference. If iPECS host is equipped with a Conference bridge, up to 32 parties can be included in a conference. To conference calls, 1. Place/receive first call as usual.

  • Page 27: Ipecs Phone For Ipecs System

    Along the left are the first six (6) programmable ‘Flex’ buttons. These allow access to CO Lines/Trunks, calls to other stations or activation of an iPECS system feature. In the center of the window is the Call information screen that displays information about active, incoming and held calls.
  • Page 28 ° LIP-9071 does not support as same as legacy iPECS Muted Ring feature. It support with notification message on top bar as “new call wait” with one time beep tone. This is almost same as what normal mobile...

  • Page 29: Speed

    System and Station Speed Dial Storage is allocated in iPECS for System Speed dial numbers, numbers available to all system users, and Station Speed dial numbers, numbers available and configured by the station user. To use an auto dial feature 1.

  • Page 30: Setting Up A Station Speed Dial

    8. Touch the Hold/Save button to complete the Speed Dial entry. Call Back Message Wait When calling another station in iPECS system and the call is not answered, you can leave a request for a call back and activate an Intercom Message Wait to the called user.

  • Page 31: Flex Buttons

    IPECS Phone screen displays the first six (6) Flex buttons on the left of the screen. The full (48) Flex buttons including first (6) Flex buttons can be displayed in iPECS Phone screen using the Flex button icon. The buttons are shown with dial pad icon button under full 48 buttons layout.

  • Page 32: Video Calling

    Video Start button, which will open the Video Call window. On the right side of the window is a thumbnail of the video sent from LIP-9071 and controls for the Video call including: Frame Rate: set the frame rate from 5 to 24 frames per second. Higher frame rates improve quality but require higher bandwidth.

  • Page 33: Ipecs Phone Call Settings

    H.264 : max=2048kbps @CIF 24fps, typical = 768kbps @CIF 24fps iPECS Phone Call Settings The Call Settings for iPECS Phone impacts call handling, button appearance, sounds and other characteristics of the phone. To view the Call Settings menu, 1. While on iPECS phone screen, press the Menu button.

  • Page 34: Sound

    User Guide 5.5.1 Sound IPECS system includes 15 Tone-type ringtones and many music ringtones in memory that can be used for external incoming call ringtones. To assign Ring group for ICM or CO. 1. In the Call Setting screen, select Sound.

  • Page 35: Video Call Preference

    Busy Call Waiting: while the user is busy on a call, new DID and DISA calls can be delivered to the phone  or, when disabled, the call routes based on the busy call routing configured in iPECS system. Answer Mode: set the Intercom Call Answer Mode as HF (Hands-free Answerback to Voice announced ...

  • Page 36: Call Idle Screen

    LIP-9071 iPKTS User Guide 5.5.4 Call Idle Screen The user can manage characteristics of the phone including the name, password and number as well as the contact icon and language for the display. Background Image Setting: User can change background image what user want to see.

  • Page 37: Flex Button Color

    5.5.7 NFC Call Feature All NFC call related features are managed at this menu. LIP-9071 can simply execute call settings by tagging an NFC Forum-compliant tag. For example User can execute call setting by on touch tagging without complicated menu control when using a call setting.
  • Page 38 User Guide 5.5.7.1 NFC Call Forward LIP-9071 can configure call forward of call settings by using an NFC Forum-compliant tag. Call forward is the same feature as basic call forward. User first needs to write call forward information to an NFC tag. NFC tag write is provided at the “NFC Call Feature” of “Call Settings”...
  • Page 39 In order to use the NFC call forward tag, user just tags the NFC tag on the tag pad of LIP-9071 The following is the screen by tagging the NFC call forward tag.
  • Page 40 User Guide 5.5.7.2 NFC Hot Desk LIP-9071 can configure hot desk of call settings by using an NFC Forum-compliant tag. Hot desk is the same feature as basic hot desk. User first needs to write hot desk information to an NFC tag. NFC tag write is provided at the “NFC Call Feature” of “Call Settings”...
  • Page 41 After touching “Write” button, the following screen is shown. Then, tag the prepared NFC tag on the tag pad. User can cancel writing tag in this step by pressing “Close” button. After writing is success, LIP-9071 shows the following screen.
  • Page 42 Basically the way to use an NFC hot desk tag is the same as a call forward tag. If user tags the NFC tag on the tag pad of LIP-9071, LIP-9071 shows the recorded hot desk information on the screen.
  • Page 43 NFC call setting features. In case that an NFC tag has two call settings, LIP-9071 shows a dialog window for user to select the call setting. After user selects one, the following process is the same as each call setting.
  • Page 44 LIP-9071 iPKTS User Guide 5.5.7.5 NFC Tag Erase LIP-9071 provides erase function for NFC Tag which has some information already. If user taps the tag with Erase Tag option, all tag information will be deleted.

  • Page 45: Reboot

    User Guide 5.5.8 Reboot After modifying the System Configuration, it is necessary to reboot LIP-9071. To reboot, operate the following procedures: 1. With iPECS Phone screen display, select the Menu button. 2. Touch the Call Settings icon. 3. Select Reboot from the Call settings.

  • Page 46: Ipecs Phone System Configuration

     5.6.2 System Configuration The System Configuration menu allows input of the IP address for iPECS system and the connection mode (local, remote and local/remote). To change the system IP address or the connection mode, 1. In the Call Setting screen, select System Configuration.

  • Page 47: Basics Operation For Ipecs Cm

    Phone application is fully available once LIP-9071 completes registration with iPECS CM host as outlined in Registration section. iPECS Call icon in the Apps Dock opens iPECS Phone app where calls can be managed. Details for using iPECS Phone window beyond the basics are covered in Mini-Tab Phone Display Basics section.

  • Page 48: Incoming Calls

    Outgoing Calls LIP-9071 employs a “’live dial pad’ meaning that you need not lift the handset or press the Speakerphone button to start a call. To place a call, dial the desired number. This will activate the speakerphone, send the digits to iPECS host and show the dialing screen.

  • Page 49: Holding Calls

    Holding Calls You can place a call in a waiting state where the caller hears the prompt “Place a hold” of iPECS CM system, freeing you for other activities. The call will remain on hold for the hold recall time then the user is recalled.

  • Page 50: Conference

    User Guide Conference An active call can be joined with another call to establish a conference. If iPECS host is equipped with a Conference bridge, up to 128 parties can be included in a conference. To conference calls, 1. Place/receive first call as usual.

  • Page 51: Ipecs Phone For Ipecs Cm

    Across the bottom are two menus. In the left menu are three soft keys that are context sensitive and show available call functions from iPECS host. If more than three selections are available a left/right arrow is exposed to access the additional items.
  • Page 52 ° LIP-9071 does not support as same as legacy iPECS Muted Ring feature. It support with notification message on top bar as “new call wait” with one time beep tone. This is almost same as what normal mobile...

  • Page 53: Speed

    Using Speed button iPECS CM can store up to 3,000 System Speed Dial numbers, which can be used by all system users and can be set with WMS. Each System Speed Dial number can be programmed with up to 24-digit numbers. Search the station number or name by using Station Name.

  • Page 54: Call Back Message Wait

    User Guide Call Back Message Wait When calling another station in iPECS CM system and the call is not answered, you can leave a request for a call back and activate an Intercom Message Wait to the called user. To activate a Call Back message wait, 1.

  • Page 55: Flex Buttons

    Phone screen displays the first six (6) Flex buttons on the left of the screen. The full (48) Flex buttons including first (6) Flex buttons can be displayed in iPECS Phone screen using the Flex button icon. The buttons are shown with dial pad icon button under full 48 buttons layout.

  • Page 56: Video Calling

    Video(S) button, which will open the Video Call window. On the right side of the window is a thumbnail of the video sent from LIP-9071 and controls for the Video call including: Frame Rate: set the frame rate from 5 to 24 frames per second. Higher frame rates improve quality but require higher bandwidth.

  • Page 57: Ipecs Phone Call Settings

    H.264 : max=2048kbps @CIF 24fps, typical = 768kbps @CIF 24fps iPECS Phone Call Settings Call Settings for iPECS Phone impacts call handling, button appearance, sounds and other characteristics of the phone. To view the Call Settings menu, 1. While on iPECS phone screen, press the Menu button.

  • Page 58: Sound

    7.5.1 Sound iPECS CM system includes 15 Tone-type ringtones and many music ringtones in memory that can be used for external incoming call ringtones. To assign Ring group for ICM or CO. 1. In the Call Setting screen, select Sound.

  • Page 59: Video Call Preference

    Busy Call Waiting: while the user is busy on a call, new DID and DISA calls can be delivered to the phone  or, when disabled, the call routes based on the busy call routing configured in iPECS CM system. Answer Mode: set the Intercom Call Answer Mode as HF (Hands-free Answerback to Voice announced ...

  • Page 60: Call Idle Screen

    LIP-9071 iPKTS User Guide 7.5.4 Call Idle Screen The user can manage characteristics of the phone including the name, password and number as well as the contact icon and language for the display. Background Image Setting: User can change background image what user want to see.

  • Page 61: Flex Button Color

    7.5.7 NFC Call Feature All NFC call related features are managed at this menu. LIP-9071 can simply execute call settings by tagging an NFC Forum-compliant tag. For example User can execute call setting by on touch tagging without complicated menu control when using a call setting.
  • Page 62 User Guide 7.5.7.1 NFC Call Forward LIP-9071 can configure call forward of call settings by using an NFC Forum-compliant tag. Call forward is the same feature as basic call forward. User first needs to write call forward information to an NFC tag. NFC tag write is provided at the “NFC Call Feature” of “Call Settings”...
  • Page 63 In order to use the NFC call forward tag, user just tags the NFC tag on the tag pad of LIP-9071 The following is the screen by tagging the NFC call forward tag.
  • Page 64 User Guide 7.5.7.2 NFC Hot Desk LIP-9071 can configure hot desk of call settings by using an NFC Forum-compliant tag. Hot desk is the same feature as basic hot desk. User first needs to write hot desk information to an NFC tag. NFC tag write is provided at the “NFC Call Feature” of “Call Settings”...
  • Page 65 Basically the way to use an NFC hot desk tag is the same as a call forward tag. If user tags the NFC tag on the tag pad of LIP-9071, LIP-9071 shows the recorded hot desk information on the screen.
  • Page 66 LIP-9071 iPKTS User Guide First make sure that the information shown is correct. The hot desk screen shows new station number and call forward information when user logs out from hot desk station. User touch “Apply” button for hot desk setting, otherwise touch “Close”.
  • Page 67 NFC call setting features. In case that an NFC tag has two call settings, LIP-9071 shows a dialog window for user to select the call setting. After user selects one, the following process is the same as each call setting.
  • Page 68 LIP-9071 iPKTS User Guide 7.5.7.5 NFC Tag Erase LIP-9071 provides erase function for NFC Tag which has some information already. If user taps the tag with Erase Tag option, all tag information will be deleted.

  • Page 69: Reboot

    User Guide 7.5.8 Reboot After modifying the System Configuration, it is necessary to reboot LIP-9071. To reboot, operate the following procedures: 1. With iPECS Phone screen display, select the Menu button. 2. Touch the Call Settings icon. 3. Select Reboot from the Call settings.

  • Page 70: Ipecs System Configuration

     7.6.2 System Configuration The System Configuration menu allows input of the IP address for iPECS CM system and the connection mode (local, remote and local/remote). To change the system IP address or the connection mode, 1. In the Call Setting screen, select System Configuration.

  • Page 71: Mini-Tab Phone Display Basics

    8 Mini-Tab Phone Display Basics LIP-9071 phone employs a Mini-tab running the Android OS as the phone display and the main user input device. The Mini-tab is equipped with several Apps and Widgets which are discussed in separate sections of this manual as below.

  • Page 72: Basic User Gestures

    LIP-9071 iPKTS User Guide Basic User Gestures The Mini-tab uses a touchscreen as the user interface. There are several finger gestures supported by the Mini-tab for user interaction. Touch or Tap: To select items such as application icons, to press ...

  • Page 73: Function Buttons

    LIP-9071 iPKTS User Guide Function Buttons LIP-9071 phone has three function buttons related to the Android OS as shown to the right. The function buttons are: Home: return to the Home screen.  Menu: menu associated with the viewed screen. The menu displays in the bottom of the screen.

  • Page 74: Launcher Screens

    8.5.1 Managing running App On LIP-9071 Phone, press the Home button for about 2 seconds (long press). Users could use the Android thread manager to do stop an application. Slide the running thread to the up or down to stop (remove) the application.

  • Page 75: Application Dock

    App Dock appears on the right side of all the Launcher screens to permit quicker access to apps than moving across the Launcher screens. The first eight dock locations are available and the first four are fixed with icons for applications in LIP-9071 iPECS phone including: 8.6.1...

  • Page 76: Notification And Status Bar

    LIP-9071 iPKTS User Guide Notification and Status Bar At the top of the screen is the Notifications and Status bar. Icons to the right indicate the status of connections to the phone, the speaker and alarms. Icons to the left are notifications of new events such as a new SMS and missed call or ongoing events such as call forward or mute.

  • Page 77: Notification Icons

    LIP-9071 iPKTS User Guide 8.7.1 Notification Icons Icons Description State of properly connected from the Call Sever State of being disconnected from the registered Call Sever IP Address collision between nodes Memory removed unexpectedly was not unmounted properly External memory being mounted...

  • Page 78: Status Icons

    LIP-9071 iPKTS User Guide 8.7.2 Status icons Icons Description Bluetooth is enabled, but not connected Bluetooth interface active and now it is in connection LAN connected and available LAN is connected but the internet is unavailable LAN is not connected properly...

  • Page 79: Managing Status Bar

    Managing Status Bar The status bar on the top of LIP-9071 screen provides visual notifications for the system settings and status, as well as quick access for important system settings. To access it, slowly slide down from the top to the bottom of the screen as the following figure shows.

  • Page 80: Customize The Launcher Screens

    LIP-9071 iPKTS User Guide Customize the Launcher Screens Each of the Launcher screens display application icons, widgets and shortcuts to a favorites, playlists, etc. The icons and widgets can be added to or deleted from the Launcher screens or repositioned on the screens. Also, the background wallpaper can be changed.

  • Page 81: Adding Apps And Widget

    To place another widget or icon on the screen an existing icon or widget must be deleted. ° A picture taken with the Camera app can be used as wallpaper. ° Deleting an app or widget from a screen does not delete the application from LIP-9071 phone.

  • Page 82: Reposition Or Delete A Screen Item

    LIP-9071 iPKTS User Guide 8.8.3 Reposition or Delete a Screen Item To reposition or delete an icon or widget, use the drag and drop gesture. 1. Touch and hold the application until the Waste-can appears to the left. 2. Drag the icon across the screen, releasing the item at the desired location or on Waste-can to delete.

  • Page 83: Working With Contacts

    LIP-9071 iPKTS User Guide 9 Working with Contacts With Contacts users have quick access to a database of up to 1000 commonly called contacts. The database can be searched and communication with a contact established. Users can manage the database, adding, deleting and editing contact information.

  • Page 84: Communicating With Contacts

    LIP-9071 iPKTS User Guide Communicating with Contacts After locating a contact, the contact is selected (tapped) to display the options available for communicating with the contact. When an option is selected, the appropriate screen opens for the communication, the Call window or the SMS screen.

  • Page 85: Managing The Contact Database

    LIP-9071 iPKTS User Guide Managing the Contact Database Contacts are managed through one of two menus. The Contacts list Option menu impacts the Contacts list as a whole and permits contacts to be added, imported or exported. 9.3.1 Adding a Contact To add a Contact, 1.

  • Page 86: Delete All Contacts

    LIP-9071 iPKTS User Guide 9.3.2 Delete all contacts The Delete all contacts menu provides a way to delete all contact at once. To delete all contacts, 1. Open the Contacts database by touching the Contact icon in the Apps Dock.

  • Page 87: Display Options

    LIP-9071 iPKTS User Guide 9.3.3 Display Options The Display options determine the displayed records, the sorting options for the Contact list and the way names are displayed. To change the Display options: 1. Open the Contacts database by touching the Contact icon in the Apps Dock.
  • Page 88 LIP-9071 iPKTS User Guide Export to storage 1. Open the Contact application. 2. Touch the Option menu in the upper right. 3. Select Import/Export. 4. Select ‘Export to Storage’. 5. Touch Apply. The contacts are exported as a group VCard file with the vcf file extension. Files are named with the year, month and date with the vcf extension.

  • Page 89: Managing A Contact Record

    LIP-9071 iPKTS User Guide Managing a Contact Record 9.4.1 Edit Contact Information To edit the information for a Contact, 1. Open the Contacts list by touching the Contact icon in the Apps Dock. 2. Touch the desired Contact. 3. Touch the Edit icon in the upper right.

  • Page 90: Favorites

    LIP-9071 iPKTS User Guide Favorites When a large number of Contacts are entered in the database, it can be helpful to have a smaller list of Favorite contacts for quicker access. Contacts marked as a favorite, display when the Favorite tab of the Call Log/Contact screen is selected.

  • Page 91: Miscellaneous Contact Options

    LIP-9071 iPKTS User Guide Miscellaneous Contact Options 9.6.1 Contact’s Default Number The Contact’s default number is used when the contact record is touched and held to place a call. The default number, which can be changed, is marked with a check in the Contact’s detailed information.

  • Page 92: Share A Contact

    LIP-9071 iPKTS User Guide 9.6.3 Share a Contact A Contact record can be shared with an external device employing Bluetooth. The record is sent as a Vcf file with the contact’s first and last name as the file name (John Smith.vcf). To share a contact, 1.

  • Page 93: Using Message (For Ipecs Station Only)

    10 Using Message (for iPECS station only) LIP-9071 phone incorporates an iPECS station SMS application so users of the phones can send and receive short text messages to other iPECS phone(station) users only. Each message can be a maximum of 80 characters. With LIP-9071 phone messages are stored as a conversation or thread between two specific users and linked for display purposes.

  • Page 94: Compose Screen Options Menu

    LIP-9071 iPKTS User Guide 3. Enter the receiving station number. Note for a receiver that is a Contact, the QWERTY keyboard can be displayed by touching ‘ABC’ on the number pad, and then enter the name. Matches are displayed for selection as characters are entered.

  • Page 95: Message Options

    LIP-9071 iPKTS User Guide The most recent messages in the thread are displayed and previous messages can be viewed with the swipe gesture. The sender of the message is identified followed by the message. Below the sender and message, the time received is indicated.

  • Page 96: Messaging Screen Options Menu

    LIP-9071 iPKTS User Guide 10.5 Messaging Screen Options Menu The Messaging screen Options menu is displayed when the Option menu is touched while viewing the Messaging screen. The Options menu includes the following tools. Search: searching text or string matches in the message thread.

  • Page 97: Messaging Settings

    LIP-9071 iPKTS User Guide 10.7 Messaging Settings The Settings for the Messaging screen includes items for managing the message retention and activating new message notification. Text message limit: set the maximum number of messages for each thread, 1 to 100.

  • Page 98: Using Nfc

    Maps. Move the back of your mobile phone toward the front of the tagging area on LIP-9071 device. When the devices connect, you hear a sound, the image on your screen reduces in size, and you see the message Touch to beam.

  • Page 99: Settings

    The System Settings menu, which is accessed with the Setting icon in the Dock or the Home screen option menu, contains items that have a global effect on operation of LIP-9071 phone. In general, your administrator should configure the Settings. The settings include: ...

  • Page 100: Ethernet

    Ethernet connection is set on as DHCP by default. If you would like to use Ethernet connection for network access, please make sure the Ethernet cable is plugged in to the LAN port on the back of LIP-9071. The Ethernet setting includes:...

  • Page 101: Ip Address

    1. Go to Settings  Ethernet  IP address 2. Select address type one of DHCP or Static mode. 3. For DHCP, just save the setting and LIP-9071 can be able to get IP address from the DHCP server in the network.
  • Page 102 LIP-9071 iPKTS User Guide The top status bar shows the VLAN indication icon with green color when function enabled and gray color when function disabled on. Note 1 For proper operation, other network elements (LAN switches and default gateway) must support and be configured with proper VLAN parameters.
  • Page 103 LIP-9071 iPKTS User Guide • Authenticator – a PAE that facilities the authentication of the supplicant. For example, the switch as an authenticator PAE that controls the physical access to the network based on the authentication status of a supplicant.
  • Page 104 User Guide 12.1.3.1 802.1x Setting LIP-9071 phone supports Layer 2 (Ethernet) security employing 802.1x port-based Network Access Control. EAP-MD5 method is used for ID and password authentication for access to the network. The ID and password can be up to 128 characters each.

  • Page 105: Wi-Fi

    LIP-9071 iPKTS User Guide 12.2 Wi-Fi Wi-Fi is a wireless networking technology that can provide internet access at distances of up to 30 meters, depending on the Wi-Fi router and your surroundings. This device has no Wi-Fi Module. You must connect Wi-Fi dongle to device's USB port to use Wi-Fi.

  • Page 106: Forget A Wi-Fi Network

    LIP-9071 iPKTS User Guide To join a secured network, you first need to learn security details from the network's administrator. 1. Turn on Wi-Fi, if it's not already on. 2. Touch the Plus icon at the top of the screen.

  • Page 107: Wi-Fi Static Ip Settings

    LIP-9071 iPKTS User Guide 1. Touch & hold a network in the list of Wi-Fi networks you’ve added. 2. Touch Modify network in the dialog that opens. 3. Select Show advanced options. 4. If the network has no proxy settings, touch none under Proxy settings, then touch Manual in the menu that opens.

  • Page 108: Network Services

    LIP-9071 iPKTS User Guide 12.3 Network Services The Network Services menu includes: OpenVPN LLDP Ping Test 12.3.1 OpenVPN OpneVPN settings define the security priority. OpenVPN implements virtual private network technology employing an open source software application. The phone OpenVPN implements User name/password or certificates for authentication utilizing SSL/TLS (Secure Socket Layer/Transport Layer Security).
  • Page 109 LIP-9071 iPKTS User Guide The openVPN setting menu provides the following 9 settings. 1. Enable/disable the OpenVPN 2. Setting the remote server address for OpenVPN 3. setting the remote server Port for OpenVPN 4. Setting the protocol type for OpenVPN. It can be changed to radio button and have TCP or UPD as a value 5.

  • Page 110: Lldp Setting

    “” 12.3.2 LLDP Setting When enabled, LIP-9071 phone employs LLDP (Link Layer Discovery Protocol) to advertise capabilities and determine characteristics of the surrounding network environment. The phone can determine and automatically configure VLAN settings for both the LAN and PC ports when LLDP is enabled.
  • Page 111 Through the LLDP protocol, LIP-9071 phone communicates with the switch to learn the voice VLAN ID. There is no longer a need to configure VLAN tagging manually.

  • Page 112: Ping Test

    LLDP Enable/disable Boolean 0:disable, 1:enable Vlan_type LLDP Auto/Manual Boolean 1:auto, 2: manual 12.3.3 Ping Test LIP-9071 phone supports basic ping test menu. Input destination IP address then press ‘Ping Test’ button. It will take few second to see the result.

  • Page 113: Bluetooth

    (music or other audio output) from LIP-9071. To connect to a Bluetooth device, turn on LIP-9071’s Bluetooth dongle radio. The first time when using a new Bluetooth device with LIP-9071, "pair" the device with LIP-9071 so that both devices know how to connect properly to each other.

  • Page 114: Pairing

    1. Tap on the Bluetooth device to enable it visible to all nearly Bluetooth devices. 2. LIP-9071 scans and displays the IDs (devices name) of all available Bluetooth devices in range. If the device you would like to pair with does not show up in the list, ensure that the other device is turned on and set to be discoverable.

  • Page 115: Nfc

    LIP-9071 iPKTS User Guide 12.5 NFC Near field communication (NFC) lets you get things done just by tapping your phone on NFC touch points – quickly change your phone settings, for example, or open a website featured on an advertising poster without typing the Web address, and lots more.

  • Page 116: Sound

    LIP-9071 iPKTS User Guide 12.6 Sound Sound settings control the ringtones and volume for incoming calls and Notifications. The Sound settings include: Volume: set the volume level for ringtones, voice and alarm signals.  Ringtone: select the tone for incoming intercom calls.

  • Page 117: Storage

    12.8.1 USB Storage A USB stick can be inserted in the USB host slot on the rear upper side of LIP-9071 phone. With the USB stick Settings, the total and available memory on the stick displays, a stick can be safely removed with the Unmount command and the data on the card may be erased.

  • Page 118: Applications

    LIP-9071 iPKTS User Guide 12.9 Applications The Applications settings menu is used to manage and view the status of Android applications in the phone. Selections include: Downloaded sources: list of applications from Android apps store or other places.  Running sources: manage active process and services.

  • Page 119: Location Access

    12.11 Security The display of LIP-9071 phone can be locked so that none of the apps are exposed and only an outgoing call can be made. To set-up the screen lock, the user will receive instructions to connect a series of on-screen dots. The pattern must link a minimum of four (4) dots.

  • Page 120: Language & Input

    12.13 Factory Reset Privacy is used to return LIP-9071 phone to the default configuration. The reset removes all entries in the Contacts and Calendar databases, and all other personal data stored in the internal Flash memory. Note the reset to default...

  • Page 121: Date & Time Settings

    LIP-9071 iPKTS User Guide 12.14 Date & time settings The Date and Time can be configured automatically or manually and the format of the Date and Time display can be adjusted. Automatic: use the Date and Time from the Host Call server.

  • Page 122: About Phone

    LIP-9071 iPKTS User Guide 12.16 About phone About displays information about LIP-9071 phone including the OS version, build and MAC address. In addition, System Updates can be selected to update the phone software from the USB stick. Note ° You may need to scroll down the screen to see all selections.
  • Page 123 LIP-9071 iPKTS User Guide Note ° During the update procedure, do NOT unplug or remove the phone from the power source. Note ° Available update options can be managed through Network Update Setting menu.

  • Page 124: Restart

    LIP-9071 iPKTS User Guide 12.17 Restart The soft restart of the phone can be started at this menu without power plug out from the Phone.

  • Page 125: General Purpose Apps

    LIP-9071 iPKTS User Guide 13 General Purpose Apps 13.1 Appointment Calendar In the Appointment Calendar application appointments and events are scheduled and reminders for the schedules are assigned. The application sends a notification at the scheduled event reminder times. The Calendar is presented in four (4) views: Agenda displays events in chronological order beginning with the next upcoming event.
  • Page 126 LIP-9071 iPKTS User Guide Week View Month View In the Day, Week and Month views, the swipe gesture can be used to display the next or previous Day, Week or Month, as appropriate. To select the schedule view, Touch the Appointment Calendar icon in a Launcher screen or the Apps Dock.

  • Page 127: Viewing Schedule Details

    LIP-9071 iPKTS User Guide 13.1.1 Viewing Schedule details The details of a scheduled event display by touching the event in any of the Schedule views. The details provided include the Event name, Calendar location, the time and date for the event, and the reminder setting.

  • Page 128: Responding To A Reminder

    LIP-9071 iPKTS User Guide 13.1.2.2 Edit an Event Schedule To edit an event schedule, In the Day, Week or Month view, touch a scheduled event. Pop up the event and select ‘Edit icon’. In the popup Event details screen, touch an item and enter new information.

  • Page 129: Setting The Alarm Clock

    13.2 Setting the Alarm Clock LIP-9071 phone includes an Alarm Clock app. Selecting the Alarm Clock icon displays the list of Alarms that have been set. Alarms can be set as a single alarm or can be set to repeat on selected days of the week. Alarms can be added, edited, turned on or off, or deleted.

  • Page 130: Handling Pictures And Videos

    LIP-9071 iPKTS User Guide 13.3 Handling Pictures and Videos Pictures and videos have two associated applications. The Camera application takes pictures and records videos with the built-in camera. Pictures and videos are stored on the USB stick can be shared. In addition, pictures can be used as wallpaper or a user contact icon.

  • Page 131: Review Pictures And Videos

    LIP-9071 iPKTS User Guide Note ° Videos and pictures taken with the camera are stored in the user dedicated 2G memory. ° A video can be a maximum of 30 minutes. 13.3.3 Review Pictures and Videos Pictures and videos stored in the Camera application memory can be viewed, edited, deleted or rotated. The Pinch gesture can be used to control zoom and, if the left/right arrow displays, the Flick gesture will display the next/previous picture.
  • Page 132 LIP-9071 iPKTS User Guide 13.3.4.1 Viewing a Slide show When the Slide show view is selected in the Gallery, the Slide show screen appears. Each picture and first video frame display. Each is displayed for about 2 seconds and the next picture or video displays. Videos display with the play arrow, when touched the video plays.
  • Page 133 LIP-9071 iPKTS User Guide 13.3.4.3 Viewing Pictures In the Gallery, pictures can be selected for display. To display a picture, 1. Touch the picture thumbnail. 13.3.4.4 Viewing Videos In the Gallery, videos can be selected for display. To display a video, 1.

  • Page 134: Android Basic Apps

    LIP-9071 iPKTS User Guide 14 Android Basic Apps LIP-9071 has some basic Android Applications. 14.1 Using the Calculator The Calculator has the common arithmetic functions and with a left flick, the advanced mathematic function calculator is exposed. The Calculator icon opens the basic calculator. Use the keypad to enter digits and the functions buttons to complete an operation.

  • Page 135: Playing Songs

    14.2.2 Playing a Party-Shuffle When Party Shuffle is selected, LIP-9071 phone plays songs from the USB stick in a random order. To play a Party Shuffle, 1.

  • Page 136: Play Songs From A Playlist

    LIP-9071 iPKTS User Guide 14.2.3 Play songs from a Playlist To play songs in a Playlist, 1. In the Music Library, select Playlist. 2. Select the desired Playlist. Songs in the Playlist are played. 14.2.4 Managing Playlists A Playlist is a set of songs that have been organized in a group. Songs in the Playlist are played in the order entered in the Playlist or the list can be shuffled before playback.
  • Page 137 LIP-9071 iPKTS User Guide A song currently playing in the playback window can be added as the first song in Playlist 1. In the playback screen press the Menu button. 2. Touch ‘Add to Playlist’. 3. Touch New in the menu and enter a name.

  • Page 138: Use As Ringtone

    LIP-9071 iPKTS User Guide 14.2.4.4 Delete a Playlist To delete a Playlist, 1. Touch and hold the Playlist from the Music Library. 2. In the menu, touch Delete. Note ° The ‘Recently Added’ item in the Playlist cannot be deleted.

  • Page 139: Browser

    LIP-9071 iPKTS User Guide 14.3 Browser Use Browser to view web pages and to search for information on the web. 14.3.1 Opening Browser Use Browser to surf the web. Some websites have two versions of their sites: full-size for computer-based web browsers and another for mobile devices.

  • Page 140: Navigating Within A Webpage

    LIP-9071 iPKTS User Guide 14.3.1.3 Refresh the current page Press Menu and touch Refresh. The webpage is reopened, updating any content that has changed. 14.3.1.4 Stop opening a page If a webpage is taking a long time to open, or if you change your mind, you can stop it from opening.

  • Page 141: Navigating Among Web

    LIP-9071 iPKTS User Guide 14.3.2.3 Quickly zoom into a section of a webpage You may not be able to zoom in or out on web pages designed for mobile devices. Double-tap on the section of the webpage you want to view.

  • Page 142: Working With Multiple Browser Windows

    LIP-9071 iPKTS User Guide 14.3.3.3 View your most frequently visited pages 1. Touch the bookmarks icon at the top right of the screen. 2. Touch the Most visited tab. The pages you’ve visited most frequently are listed in order. Bookmarked pages have a gold star. Touch a star to add or remove that page from your bookmarks.

  • Page 143: Working With Bookmarks

    LIP-9071 iPKTS User Guide 14.3.4.5 Allow installing applications from the web or email By default, your phone is configured to prevent you from installing applications that you download from the web or receive with an email message. Warning! Applications downloaded from the web can be from unknown sources. To protect your phone and personal data, download applications only from trusted sources, such as Android Market.

  • Page 144: Changing Browser Settings

    LIP-9071 iPKTS User Guide 2. Touch a bookmark to open it. The bookmark opens in the current window. If you prefer to open it in a new window, touch & hold the bookmark and touch Open in new window in the menu.
  • Page 145 LIP-9071 iPKTS User Guide 14.3.6.1 Privacy settings Clear cache The browser stores the text and images of the web pages you visit so that they open more quickly when you revisit them. Touch Clear cache to delete these temporary files.
  • Page 146 LIP-9071 iPKTS User Guide 14.3.6.3 Accessibility Force enable zoom Override a website’s request to control zoom behavior when displaying web pages. Text size Opens a dialog where you can increase or decrease the size of the text that Browser uses when displaying web pages.

  • Page 147: Email

    Slide thumb from the left or right edge to open quick menu and hide app and URL bars. 14.4 Email LIP-9071 provides built-in Email application for users to access personal or business Email account. User can use this Email application to read and send email from services other than Gmail. Email includes a wizard that makes it easy to configure it for several popular email service providers.
  • Page 148 LIP-9071 iPKTS User Guide 3. If "Manual setup" is selected in step 2, users will need to choose the account type "POP3" "IMAP" or "EXCHANGE" depending on the type of your Email account.  EXCHANGE setup. When using EXCHANGE, all Emails are stored in the central Exchange mail server and can be checked using capable mail client such as Microsoft Outlook.
  • Page 149 LIP-9071 iPKTS User Guide 5. Set up "Your name" to be displayed on the outgoing messages and tap on "Next" again. Users should be able to start using the Email account now. 6. Depending on the server setting, email application need to send Activation request to server.if server need to get activation pop-up window will be guided to set.

  • Page 150: Inbox

    LIP-9071 iPKTS User Guide 8. After complete of synchronization user can use email app. 14.4.2 Inbox Accounts are listed in the tab on the left side, followed by a summary of folders with new messages. Folders are listed on the left side.

  • Page 151: Managing Download

    LIP-9071 iPKTS User Guide 14.5 Managing Download Files, applications, and other items you downloaded in Browser, Gmail, or Email are stored on your phone’s internal storage. You can use the Downloads application to view, reopen, or delete what you’ve downloaded.

  • Page 152: Appendix

    15.1.3 VLAN Setting When LIP-9071 gets VLAN options (vid, priority) option from DHCP, it applied those values to network setting. It based on LLDP and VLAN configuration related to VLAN configuration. It condition to apply those option is defined in...

  • Page 153: Call Server Setting

    15.1.4 Call Server Setting When LIP-9071 gets Call sever for iPKTS and Connection mode for iPKTS. After receiving those values, it will apply that to system setting. If those setting are changed, the iPKTS call tries to connect to Call server with new values.

  • Page 154: Dhcp Option 60

    15.3.1 Web Manager Login To access the Web Manager, point the browser to the IP address of LIP-9071 phone at TCP port 8000 as <ip address:8000>. The Web Manager may be password protected. At the Login screen enter the password and touch the Authenticate button.
  • Page 155 LIP-9071 iPKTS User Guide...

  • Page 156: Overview Screen

    15.3.3 Language (web admin) setting The change language menu for language selection between English and Korean is only for LIP-9071 web admin screen...

  • Page 157: Change Password

    15.3.5 System Setting The System Setting assigns the IP address of iPECS system and the type of connection that can be local, remote or Local/remote. If these values are changed, the phone must restart to properly register with iPECS system.

  • Page 158: Device Number

    15.3.7 Flexible Button Label LIP-9071 has a group of fourth eight (48) Flexible or Flex buttons. The function for each button is configured in iPECS or through the Station User Programming. For more on Flex button assignments see the host iPECS manuals.

  • Page 159: Network Settings

    LIP-9071 iPKTS User Guide 15.3.8 Network Settings The Network Setting menu configures the address Mode, Static or Dynamic. If static addressing is employed, the IP and Gateway address as well as the subnet mask must be defined. In addition a Primary and secondary DNS (Directory Name Server) can be configured to support VPN installations.

  • Page 160: Open Vpn

    ID, and Password or certificate must be defined. 15.3.11 LLDP When enabled, LIP-9071 employs LLDP (Link Layer Discovery Protocol) to advertise capabilities and determine characteristics of the surrounding network environment. The phone can determine and automatically configure VLAN settings for both the LAN and PC ports when LLDP is enabled.

  • Page 161: Time Setting

    ID and password authentication for access to the network. The Id and password can be a maximum of 128 characters. 15.3.13 Time Setting NTP (Network Time Protocol) Server Configuration defines the URL of an NTP sever LIP-9071 will employ to determine the time when verifying VPN certificates.

  • Page 162: Diffserv Menu

    However, at congested routers, higher priority packets are discarded first. Thus, a median value for DSCP is recommended. 15.3.15 Video setting LIP-9071 provides 5 options for video frame rate. It can be chosen depending on the network traffic or the video quality. And it provides 14 transmission video resolutions with bitrate setting.

  • Page 163: Update Setting

    User Guide 15.3.16 Update setting From time to time LIP-9071 phone software may be modified or upgraded to improve performance or add features. LIP-9071 software can be upgraded to the modified software. The upgrade may include updates to the Android operating system as well as iPECS Phone application.

  • Page 164: Update History

    LIP-9071 iPKTS User Guide 15.3.17 Update History Update history shows all package installation history of LIP-9071. Also selected history list can be deleted using Delete button.

  • Page 165: Logcat

    When certain parameters, see list below, are modified, the phone will require a reboot to modify the active configuration. A reboot will terminate all network connections and registrations with an iPECS host. After the reboot the phone will establish the network connection and register with iPECS.

Table of Contents

Save PDF
