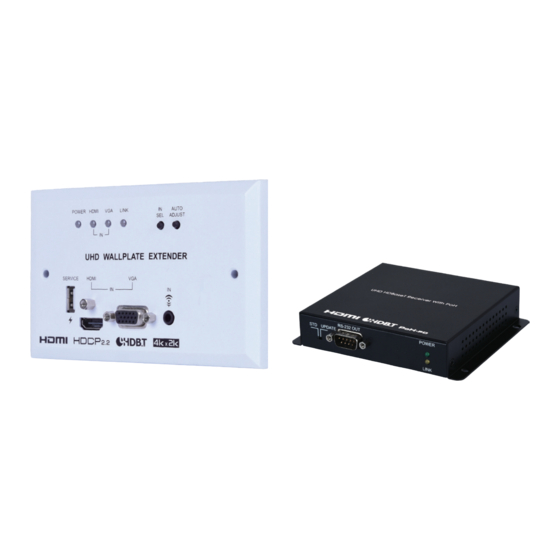

- Page 1 CH-2538TXPLWPKD 4K UHD HDMI/VGA over HDBaseT Wallplate Transmitter CH-2527RXPL 4K UHD HDMI over HDBaseT Receiver Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............2 3. Package Contents ..........2 4. System Requirements ........2 5. Features ............3 6. Operation Controls and Functions ....5 6.1 Transmitter's Front Panel ......5 6.2 Transmitter's Rear Panel ......6 6.3 Receiver's Front Panel....... 7 6.4 Receiver's Rear Panel ....... -
Page 6: Introduction
1. INTRODUCTION Transmitter This Transmitter is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with UK two- gang sized enclosures. This Transmitter can send high definition uncompressed audio/video over a single cable up to a distance of 70 meters at 1080p@60Hz. -
Page 7: Applications
2. APPLICATIONS • Household entertainment sharing and control • Lecture room display and control • Showroom display and control • Meeting room presentation and control • Classroom display and control 3. PACKAGE CONTENTS • 1×HDMI/VGA over HDBaseT Transmitter • 1×HDMI over HDBaseT Receiver •... -
Page 8: Features
5. FEATURES Transmitter • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • 1 HDMI input • 1 VGA input with 3.5mm mini-jack audio input • Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit) •... - Page 9 Receiver • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • Supports resolutions up to 4K@50/60Hz (YUV 4:2:0, 8-bit) • Supports CEC bypass • Simultaneous reception of uncompressed video, audio and data over a single 70m Cat.5e/6/7 cable at 1080p and 35m at 4K •...
-
Page 10: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel POWER HDMI LINK AUTO ADJUST UHD WALLPLATE EXTENDER SERVICE HDMI POWER LED: This LED will illuminate to indicate the unit is on and receiving power. HDMI IN LED: This LED will illuminate when HDMI is the selected source. -
Page 11: Transmitter's Rear Panel
player, game console or set-top box. VGA IN: Connect to VGA source equipment such as a PC or laptop. AUDIO IN: Connect to the stereo analog output of a device such as a CD player or PC for embedding into the HDBaseT output. 6.2 Transmitter's Rear Panel DC 12V −... -
Page 12: Receiver's Front Panel
6.3 Receiver's Front Panel RS-232 OUT POWER STD UPDATE LINK STD/UPDATE: This switch is reserved for factory use only. RS-232 OUT: Connect to a PC, laptop or other serial control device to send control commands to a compatible Transmitter. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. -
Page 13: Rs-232 Protocol
6.5 RS-232 Protocol Pinout Pinout 6.6 RS-232 Commands COMMAND DESCRIPTION AND PARAMETERS HELP Show the full command list. Show the full command list. GET FW VER Show the unit’s firmware version. GET MODEL NAME Show the unit’s model name. SET FACTORY DEFAULT Reset all settings to the factory defaults. - Page 14 COMMAND DESCRIPTION AND PARAMETERS SET OUT AUTO MODE N1 Set the auto source select mode. Available values for N1: [OFF] [Auto Switch] GET OUT AUTO MODE Show the current auto source select mode. GET OUT AUTO MODE LIST List all available auto source modes.
- Page 15 COMMAND DESCRIPTION AND PARAMETERS SET FIX COLOR SPACE N1 Set the output color space. Available values for N1: [RGB] [YUV 4:4:4] GET FIX COLOR SPACE Show the current output color space. GET OUT A TIMING Show the video timing of the output.
- Page 16 COMMAND DESCRIPTION AND PARAMETERS GET IN 1 EDID Show the currently selected EDID source for the HDMI input. GET IN EDID LIST List all available EDID sources. Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.
-
Page 17: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVD/Blu-ray Player HDMI Input Stereo Input Input POWER HDMI LINK AUTO ADJUST UHD WALLPLATE EXTENDER SERVICE HDMI Cat.5e/6/7 Cable Power Supply BLASTER HDMI OUT DC 48V EXTENDER RS-232 OUT POWER STD UPDATE LINK RS-232 RS-232 Equipped HDMI PC/Laptop Output... -
Page 18: Specifications
8. SPECIFICATIONS 8.1 Transmitter's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340Hz/10.2Gbps Input Ports 1×HDMI 1×VGA 1×3.5mm (Stereo Audio) Output Port 1×Cat.5e/6/7 Baud Rate 19200bps Power Supply 12V/3A DC (US/EU standards, CE/FCC/ UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 147mm×87.5mm×41.5mm (W×H×D) -
Page 19: Receiver's Technical Specifications
8.2 Receiver's Technical Specifications HDMI Bandwidth 600MHz/18Gbps HDBaseT Bandwidth 340Hz/10.2Gbps Input Port 1×Cat.5e/6/7 Output Port 1×HDMI Pass-through Ports 1×IR Extender [3.5mm] 1×IR Blaster [3.5mm] 1×RS-232 [9-pin D-sub] IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate Up to 115200bps Power Supply 48V/0.83A DC (US/EU standards, CE/... -
Page 20: Video Specifications
8.3 Video Specifications Input Output HDMI via Supported PC Resolutions (Hz) HDMI VGA HDBaseT 640×480 60, 72, 75, 85 720×400 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 ... - Page 21 Input Output HDMI via Supported TV Resolutions (Hz) HDMI VGA HDBaseT 720×480i 59.94, 60 720×576i 720×480p 59.94, 60 720×576p 1280×720p 50, 59.94, 60 1920×1080i 50, 59.94, 60 1920×1080p 23.97, 24, 25, 29.97, 30 ...
-
Page 22: Cable Specifications
8.4 Cable Specifications 1080p HDMI Cable Length (meter) 8-bit 12-bit 8-bit Input Output Cat. Cable Length (meter) 1080p Cat.5e Cat.6 Cat.7 • Full HD Video (1080p) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Cat.5e Category 5 (enhanced) Cable Cat.6 Category 6 Cable Cat.7 Category 7 Cable Consumer Electronics Control Digital Visual Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared LPCM Linear Pulse-Code Modulation Powered Device Power over HDBaseT Power Sourcing Equipment Ultra-High-Definition... - Page 24 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
