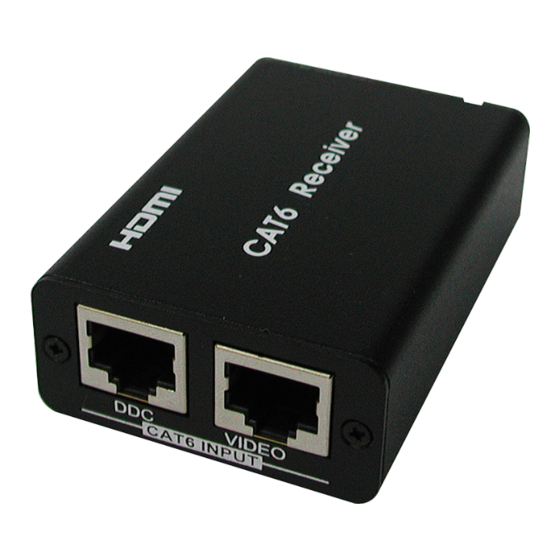

- Page 1 CH-103RX CAT6 to HDMI Receiver Operation Manual CH-103RX...
- Page 2 TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions..........1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Connection and Installation............2 6. Specifications................2...
- Page 3 1. Introduction This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the digital signal through CAT6 cables. This is compatible with HDMI v1.3 specifications, a cutting-edge technology which defines the supports to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz.
- Page 4 5. Connection and Installation HDMI VIDEO Cable HDMI DVD PLAYER Cable CH-103TX CH-103RX HDMI LCD TV 6. Specifications Input Ports 1 x CAT6 input for Video, 1 x CAT6 input for DDC Output Port 1 x HDMI Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
