For TVB-2403/TVB-4403, you can connect the white
and black line ends of the WDR switch cable to enable
the Wide Dynamic Range (WDR) function. The WDR
function is disabled by default. If WDR is enabled, the
CVBS output will be blocked out, and only TVI output
is available.
Installation
To install the camera on a ceiling:
1.
Using the template, place it level against the
mounting surface and mark the position of the
mounting holes.

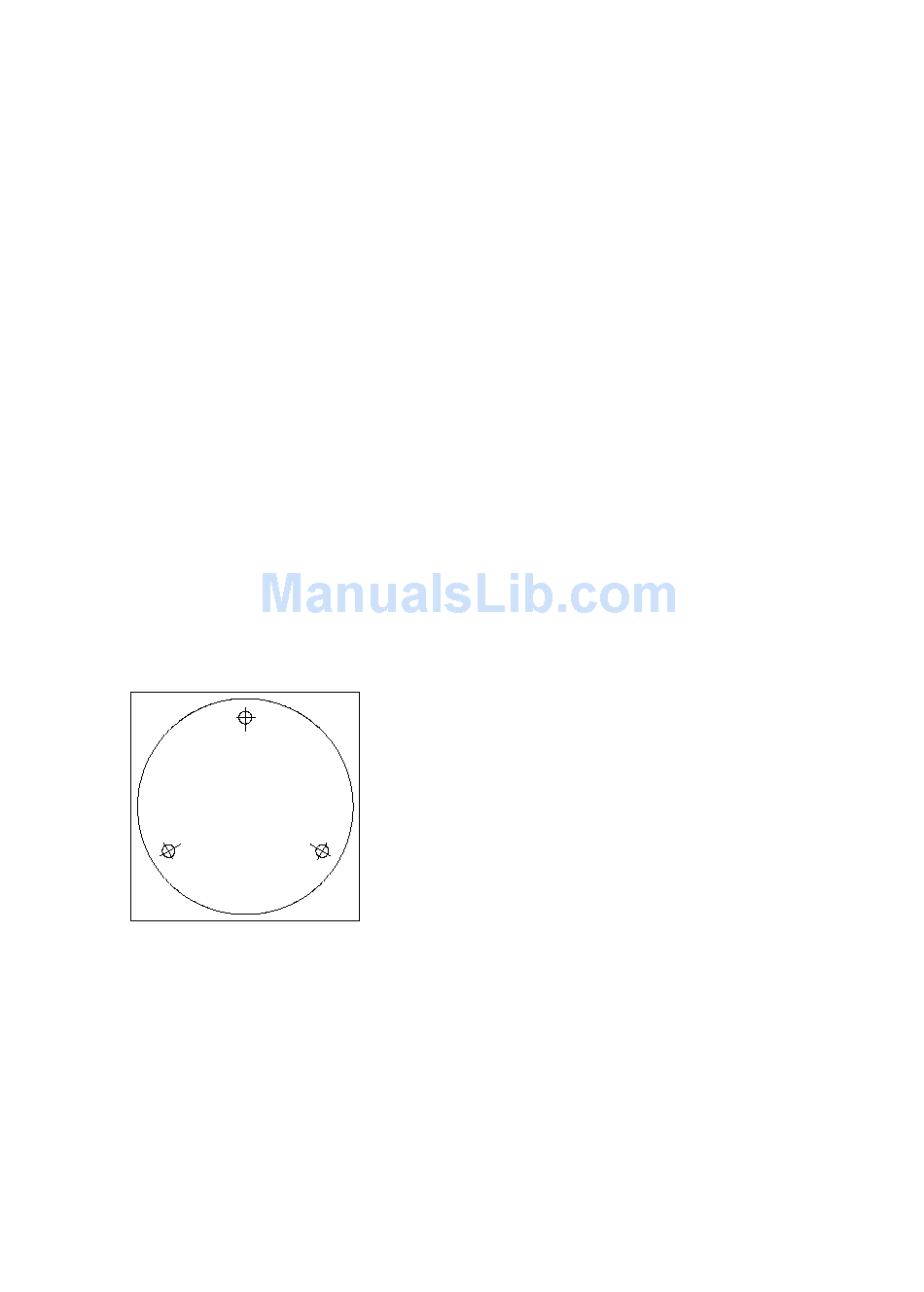

Drill Template
2.
Following all local codes, drill and prepare the
mounting holes.
3.
Securely fasten the mount to the mounting
surface with the screws.
Installation Guide
5
