Programming on CVBS output:
Programming on CVBS output is available for TVB-
2403/TVB-4403 only.

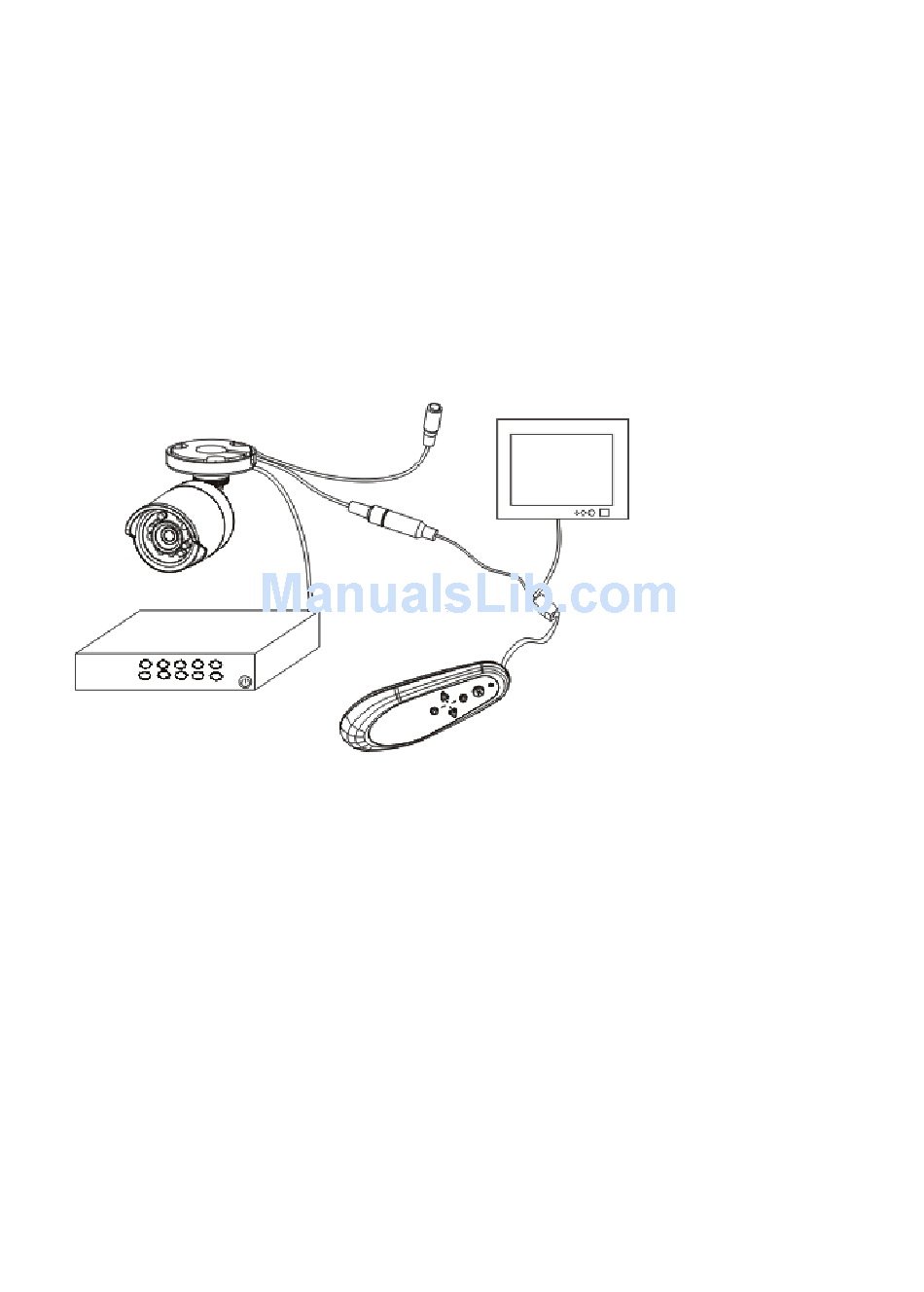

Programming on CVBS output, you need to connect a
monitor and a TVS-C200 controller (purchase
separately) as following system figure.
TVI
CVBS
The TVS-C200 has one male BNC output and a
female output. Please connect the male output to
camera's CVBS output and female output to a monitor.
8
Installation Guide
