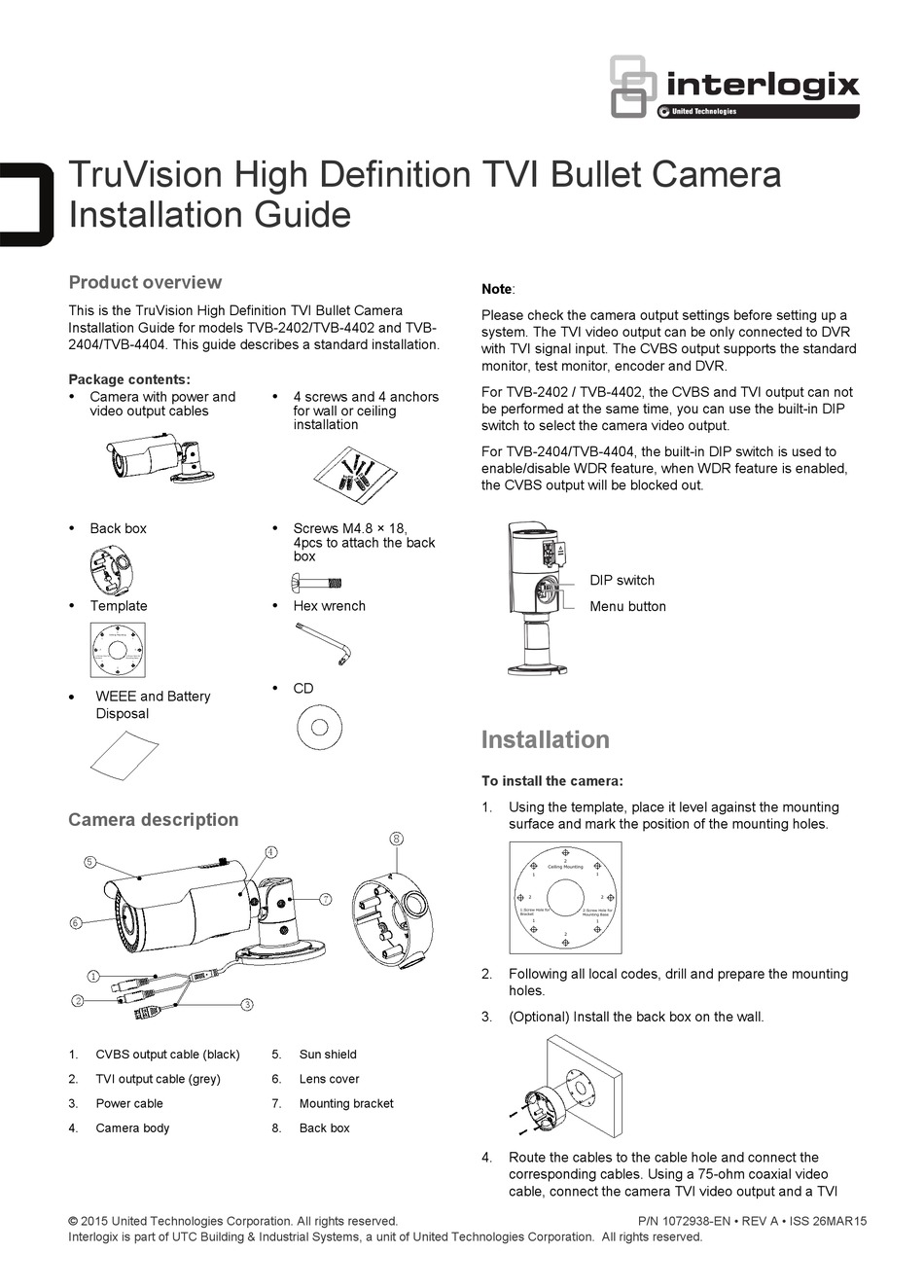

TruVision High Definition TVI Bullet Camera

Installation Guide

Product overview

This is the TruVision High Definition TVI Bullet Camera
Installation Guide for models TVB-2402/TVB-4402 and TVB-
2404/TVB-4404. This guide describes a standard installation.
Package contents:
Camera with power and
video output cables
Back box
Template
2
Ceiling Mounting
1
1
2
2
1:Screw Hole for
2:Screw Hole for
Bracket
Mounting Base
1
1
2
WEEE and Battery
Disposal

Camera description

5
6
1
2
1.
CVBS output cable (black)
2.
TVI output cable (grey)
3.
Power cable
4.
Camera body
© 2015 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.
4 screws and 4 anchors
for wall or ceiling
installation
Screws M4.8 × 18,
4pcs to attach the back
box
Hex wrench
CD
8
4
7
3
5.
Sun shield
6.
Lens cover
7.
Mounting bracket
8.
Back box
Note:
Please check the camera output settings before setting up a
system. The TVI video output can be only connected to DVR
with TVI signal input. The CVBS output supports the standard
monitor, test monitor, encoder and DVR.
For TVB-2402 / TVB-4402, the CVBS and TVI output can not
be performed at the same time, you can use the built-in DIP
switch to select the camera video output.
For TVB-2404/TVB-4404, the built-in DIP switch is used to
enable/disable WDR feature, when WDR feature is enabled,
the CVBS output will be blocked out.
DIP switch
Menu button
Installation
To install the camera:
1.
Using the template, place it level against the mounting
surface and mark the position of the mounting holes.
2
Ceiling Mounting
1
1
2
2
1:Screw Hole for
2:Screw Hole for
Bracket
Mounting Base
1
1
2
2.
Following all local codes, drill and prepare the mounting
holes.
3.
(Optional) Install the back box on the wall.
4.
Route the cables to the cable hole and connect the
corresponding cables. Using a 75-ohm coaxial video
cable, connect the camera TVI video output and a TVI
P/N 1072938-EN • REV A • ISS 26MAR15
