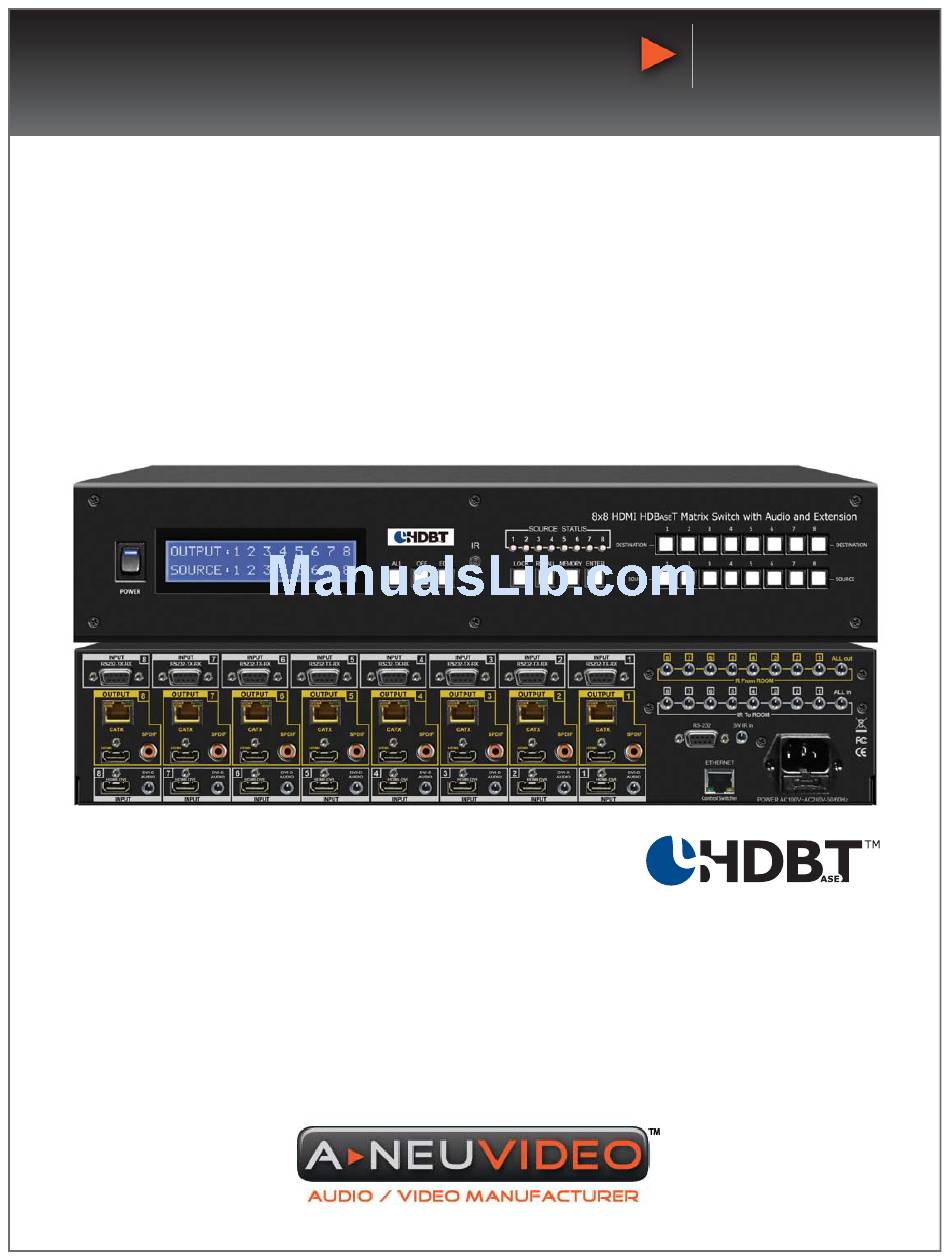

- Page 1 HD-88CT-A 8x8 HDMI-HDBaseT Matrix Switch with Audio and Extension INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461 V.1.1...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
(8) HDMI with DVI-Audio inputs and supports simultaneously eight (8) HDMI with DVI-Audio and eight (8) CATx outputs. The HD-88CT-A is based on HDBaseT technology and that supports full resolution HDMI Video with embedded audio, DISCLAIMERS RS-232, and IR bi-directional, all over a single CATx cable. -
Page 4: Package Contents & Features
The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be invoked PACKAGE CONTENTS 1. HD-88CT-A Matrix Switcher 2. Operating Instructions 3. RS-232 V2.0 Protocol Instructions 4. Master wireless IR Remote Control (IR-HD88LA) 5. -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS Type of HDMI Switcher: 8x HDMI inputs To 8x HDMI + 8x HDBaseT Outputs with Audio Matrix Switcher HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4a formats HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant. Video Bandwidth: Double Data Rates: 340Mhz, Total 6.75Gbps bandwidth Digital Video Support: HD: 480i / 480p / 720p / 1080i / 1080p up to 36bit deep color Digital Audio Support: Multi Audio Formats 5.1 / 7.1, MAT(MLP) Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH,... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi... - Page 7 FRONT PANEL FRONT PANEL FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
- Page 8 FRONT PANEL FRONT PANEL FUNCTION KEY - RECALL The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location. - Press RECALL button.
-
Page 9: Rear Panel
REAR PANEL REAR PANEL Power Plug: DC POWER INLET Power input - AC100~240V,50/60Hz, 10A The Switcher is fi tted with a AC power plug input connector. Ensure that the used is of an approved type and is of suffi cient current carrying connector capacity with the correct voltage and connector polarity. - Page 10 REAR PANEL REAR PANEL Remote port : RS-232- 1,2,3,4,5,6,7 & 8 CONNECTION TO CONTROL ROOM DB-9pin Female connector 8x RS-232 control port to allow for interfacing to a PC, Such as a computer or touch panel control, to the switcher via this DB-9pin Female connector for serial RS-232 control.
-
Page 11: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (HD-101) and IR Receiver (HD-100) with HD-6335R & HD-88CT-A to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: HDBaseT Transmitter / HD-6335R HDBaseT Receiver HD-101 2. Projector RS-232 Control by a PC via CATx TX. - Page 12 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (HD-101) with HD-88CT-A and HD-6335R to control a IR signal from Satellite Receiver. NOTE : 1. IR Control Satellite Receiver Over HDBaseT HD-6335R HD-5609 CAT5e/6/7 Extender from room: HD-88CT-A HDBaseT CATx(6/6a/7) Transmitter HD-6335R HDBaseT CATx(6/6a/7) Receiver 2.
- Page 13 INSTALLING DIAGRAM Sample connection using Audio Extractor To Recode Audio (HD-5609) or to control ARC (HD-5610) and extend the HDMI signal via HDBaseT Transmitter to IR Receivers (HD-6335R) with HD-88CT-A to extend 100M distance between switcher and destination. NOTE : 1.
-
Page 14: Remote Control
REMOTE CONTROL Before making any connections to the switcher. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug-pack (+/- 10%) > Power up all source and destination audio-visual sources >... - Page 15 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : Model number : HD-88CT-A CUSTOM CODE : 09F6 POWER ON : 09F6 A15E POWER OFF : 09F6 A25D ALL : 09F6 B04F OFF :...
- Page 16 REMOTE CONTROL ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-01 DATA CODE: IR-02 DATA CODE: SOURCE #1 : 09F6 11EE SOURCE #1 : 09F6 21EE SOURCE #2 : 09F6 12ED SOURCE #2 : 09F6 22ED...
- Page 17 REMOTE CONTROL ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-05 DATA CODE: IR-06 DATA CODE: SOURCE #1 : 09F6 51EE SOURCE #1 : 09F6 61EE SOURCE #2 : 09F6 52ED SOURCE #2 : 09F6 62ED...
-
Page 18: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT HD-100 (HD-100C) HD-100 HD-100C HD-100C (HD-100C) HD-100C *** When you plug the External IR extender into the switcher, the front panel IR receiver remains active. *** IR EXTENDER PACKAGE : HD-100C HOW TO SETUP THE IR EXTENDER TRANSMITTER & RECEIVER COMPONENTS HD-100 HD-101 HD-100... -
Page 19: Edid Function
EDID FUNCTION EDID FUNCTION SETUP EDID setup To change the EDID setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status. - Page 20 EDID FUNCTION LEARNING EDID Learning EDID from Destination to Source Press EDID > DESTINATION Button. The LCM will be show LEARNING. Learning EDID setup Press EDID > DESTINATION > SOURCE > ENTER Switcher will LEARN destination HDMI EDID and pass the selected source. Learning EDID setup for CATx Key Press Sequence: EDID >...
- Page 21 EDID FUNCTION EDID function : 8x Embedded EDID Modes Fast Speed Start mode shortens the startup time of the switcher. Selecting ® Mode 1. FSS (Fast Speed Start) this mode does not force the EDID setup to be cancelled. Users may fi rst select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start.
- Page 22 EDID FUNCTION EDID FUNCTION : LEARNING Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. The button will fl ash blue and the display will show the current Embedded EDID Press the EDID button Step 1. Status.
- Page 23 EDID FUNCTION Auto mode defi nition Common Resolution and Audio Switcher will fi nd highest common Resolution and Audio from all destination EDID to link Source. Example for single source Destination > press #1 and then Source > press #1 Destination device #1 will set to the highest common resolution and Audio of source #1 Example for multiple sources Destination device #1, #2, #3 will be set to the highest common resolution and Audio available and source device #1 will output...
-
Page 24: Ethernet Serial Interface
ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +... -
Page 25: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used... - Page 26 BY, THROUGH OR UNDER A-NEUVIDEO, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
