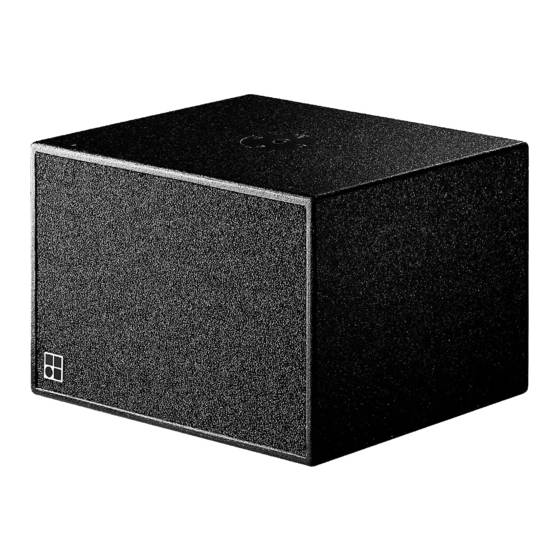

E12-SUB
Manual
(4.1 EN)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E12-SUB and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik E12-SUB

Summary of Contents for d&b audiotechnik E12-SUB

  • Page 1 E12-SUB Manual (4.1 EN)

  • Page 2: Table Of Contents

    Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 E12-SUB ................4 Connections......................4 Operation with D6 or D12................5 Operation with E-PAC..................5 Technical specifications..................6 Manufacturer's declarations..........7 EU conformity of loudspeakers (CE symbol)..........7 WEEE Declaration (Disposal)................7...

  • Page 3: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. E12-SUB Manual (4.1 EN) Safety precautions - 1...

  • Page 4: E12-Sub

    Connections The E12-SUB cabinet is fitted with a pair of EP5 connectors. All pins of both connectors are wired in parallel. The E12-SUB uses the pin n.c. assignments 3/4 and 5 (Pin 5: SenseDrive - D12 only and in conjunction with 5-wire cables).

  • Page 5: Operation With D6 Or D12

    In applications with low continuous levels and low ambient temperatures up to three cabinets can be connected to a D12 channel. When the D12 is operated in "Mix TOP/SUB" mode, E12-SUB cabinets and respective full range systems can be linked together locally and fed by a single 4-wire cable from either amplifier output connector.

  • Page 6: Technical Specifications

    Pin assignments............3/4 and 5 (Pin 5: SenseDrive - D12) optional........................2 x NL4 Fig. 3: E12-SUB frequency response Pin assignments......................2+ / 2– Weight.......................20 kg (44 lb) Fig. 4: E12-SUB cabinet dimensions in mm [inch] E12-SUB Manual (4.1 EN) Page 6 of 8...

  • Page 7: Manufacturer's Declarations

    Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to: d&b E12-SUB Z0200 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
  • Page 8 d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00...
